Need a Rear Brake Line Pic Please!!

[Lifted94XLT]

I have replaced all my hardlines with aftermarket pre-bent ones form Classic Tube Industries and I went today and bought the center rubber brake line for the axle. As this was a 4cyl car to begin with, I never got to see how the hard line was mated to the "Banjo fitting Block" on the soft line. So, could I ask somebody to do me a favor and go out to your carand snap a picture of this connection and post it up for me.... I'm wondering if there's some kind of ditribution block or something that connects the two lines. Thanks guys!!

--Ryan



[Mustang5L5]

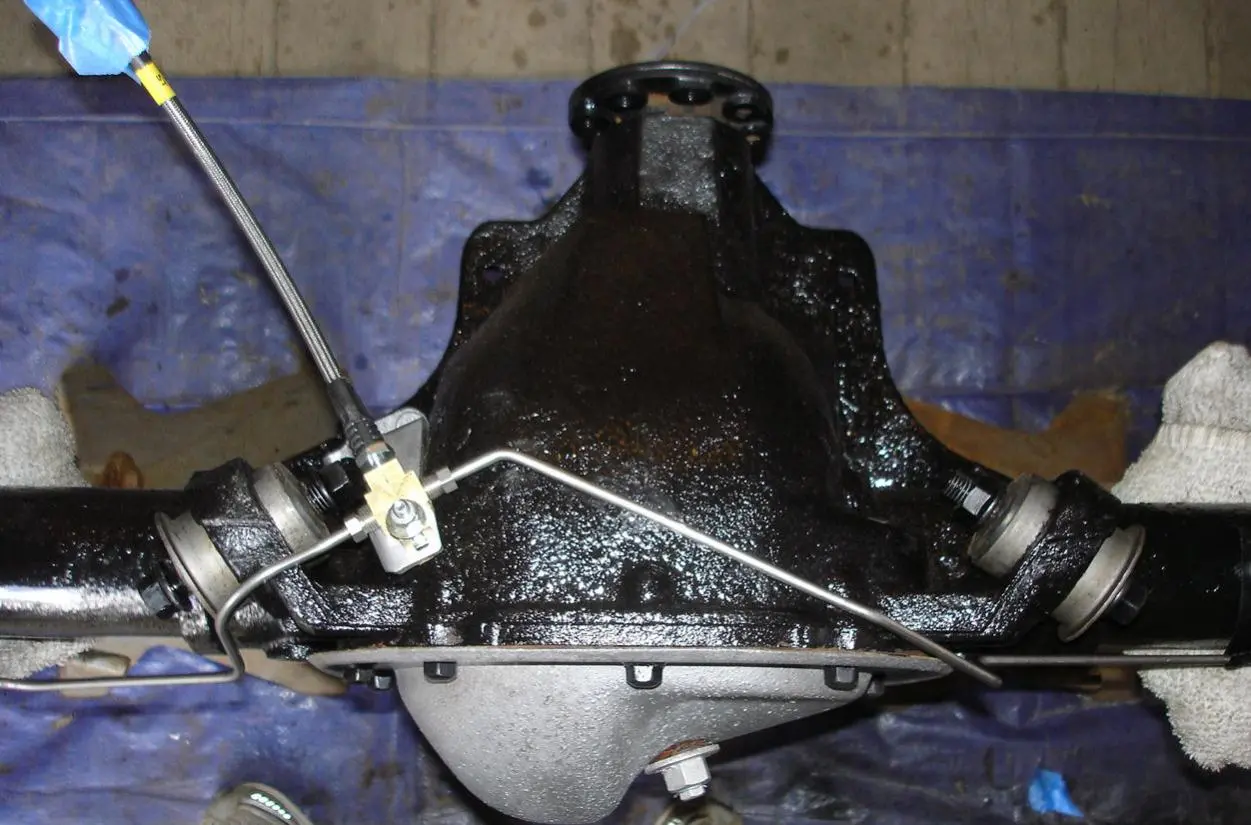

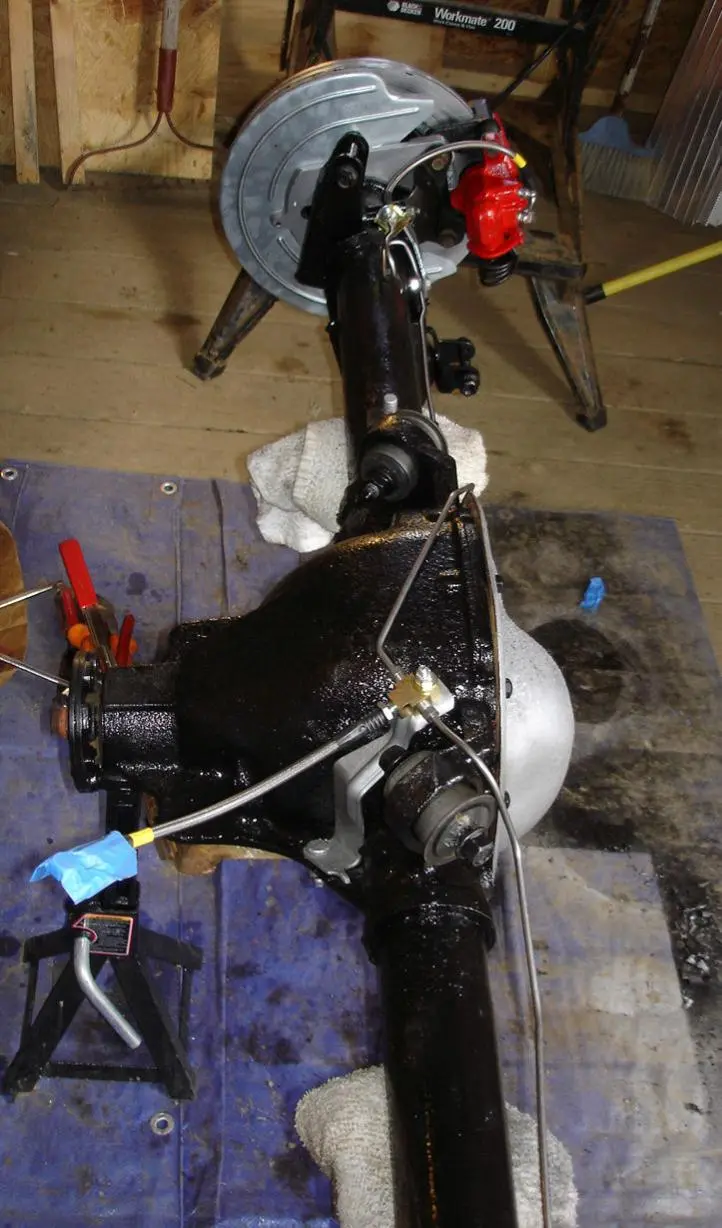

This is a Maximum motorsports SS brake line, but the stock part looks identical. It's fairly cheap and comes complete with the flex line and the bracket that bolts to the axle

(click on first pic to see undistorted view)



[Mustang5L5]

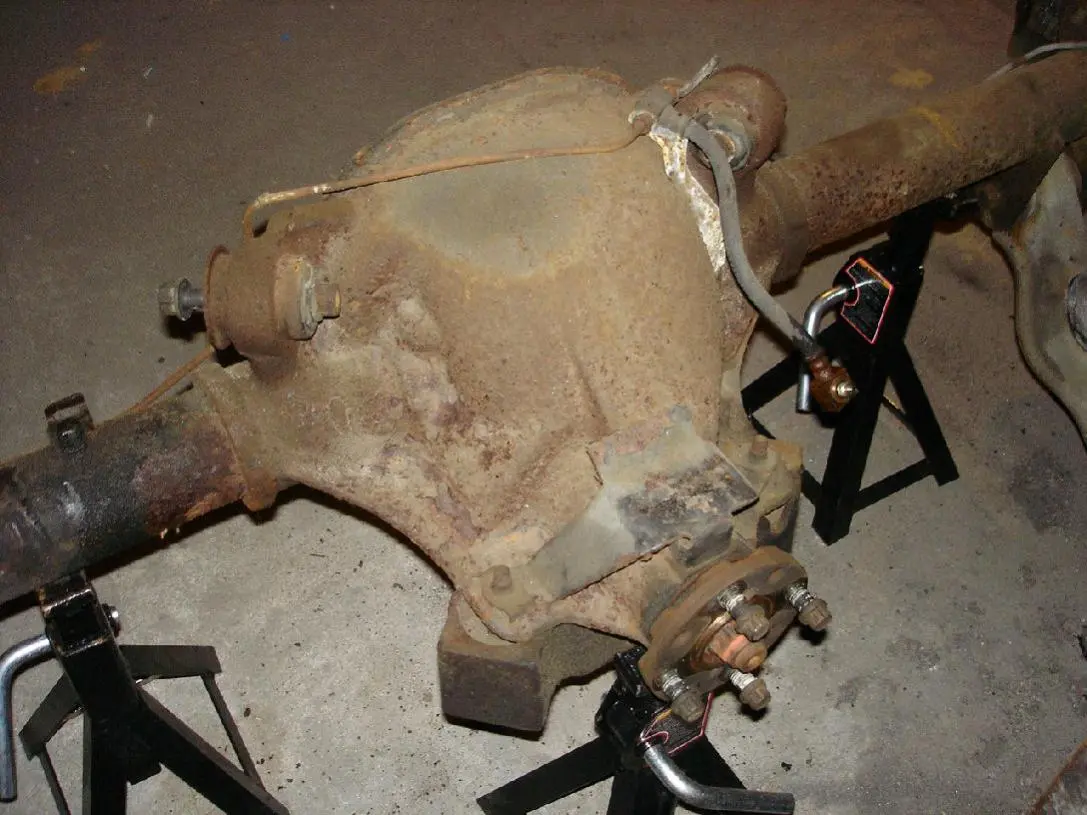

Actually. I have a pic of the stock line.

Believe it or not, this is the same rear end as above.



[Lifted94XLT]

Thanks for the quick reply, but I actually need a pic of how the Other side mates up to the body hardline (where the banjo fittin under the blue tape screws into). That's one mighty fine lookin rearend though. Haha



[Mustang5L5]

Thanks for the quick reply, but I actually need a pic of how the Other side mates up to the body hardline (where the banjo fittin under the blue tape screws into). That's one mighty fine lookin rearend though. Haha

Ah, hang on I might have a pic of that too. Stay tuned



[Mustang5L5]

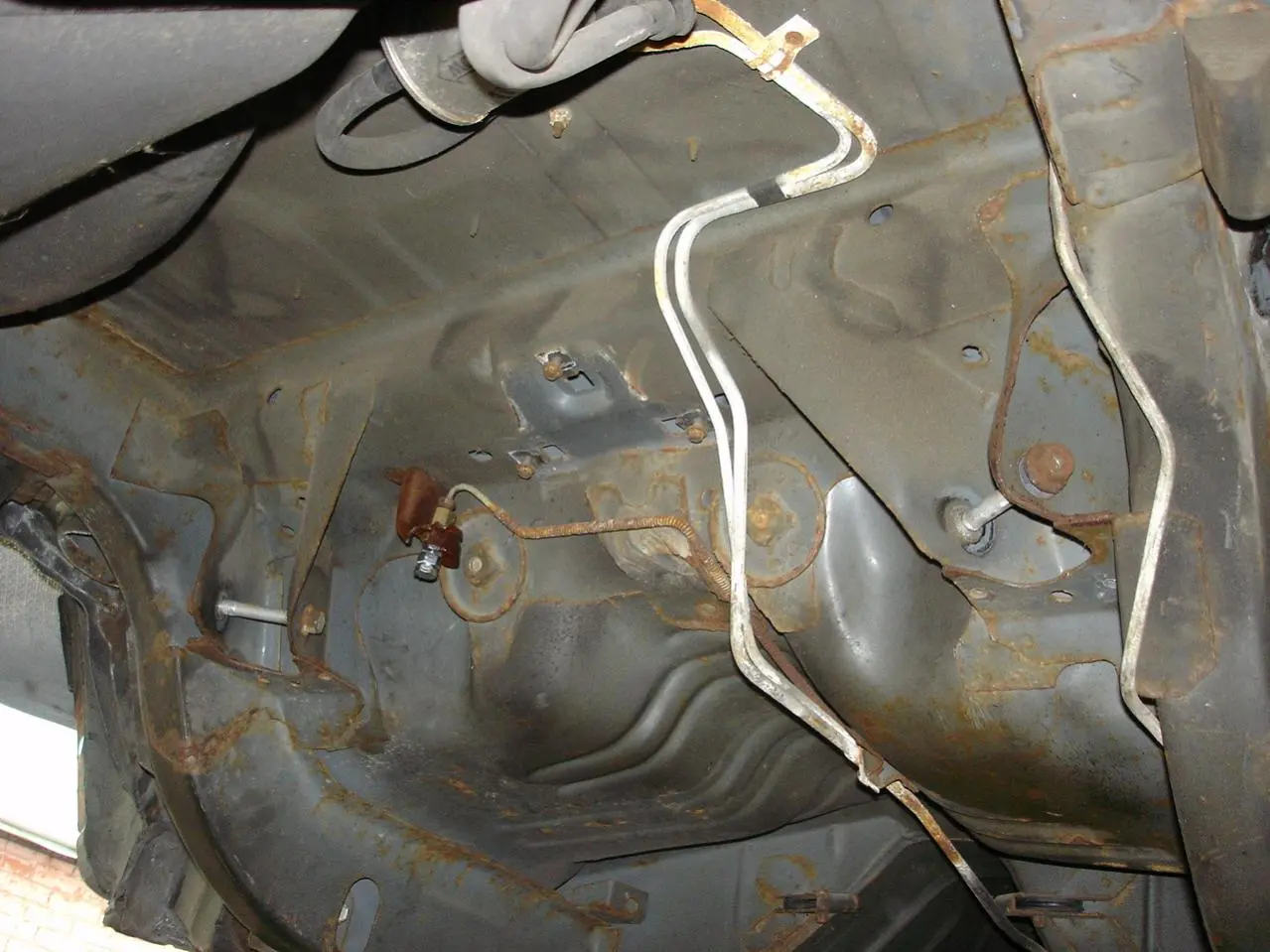

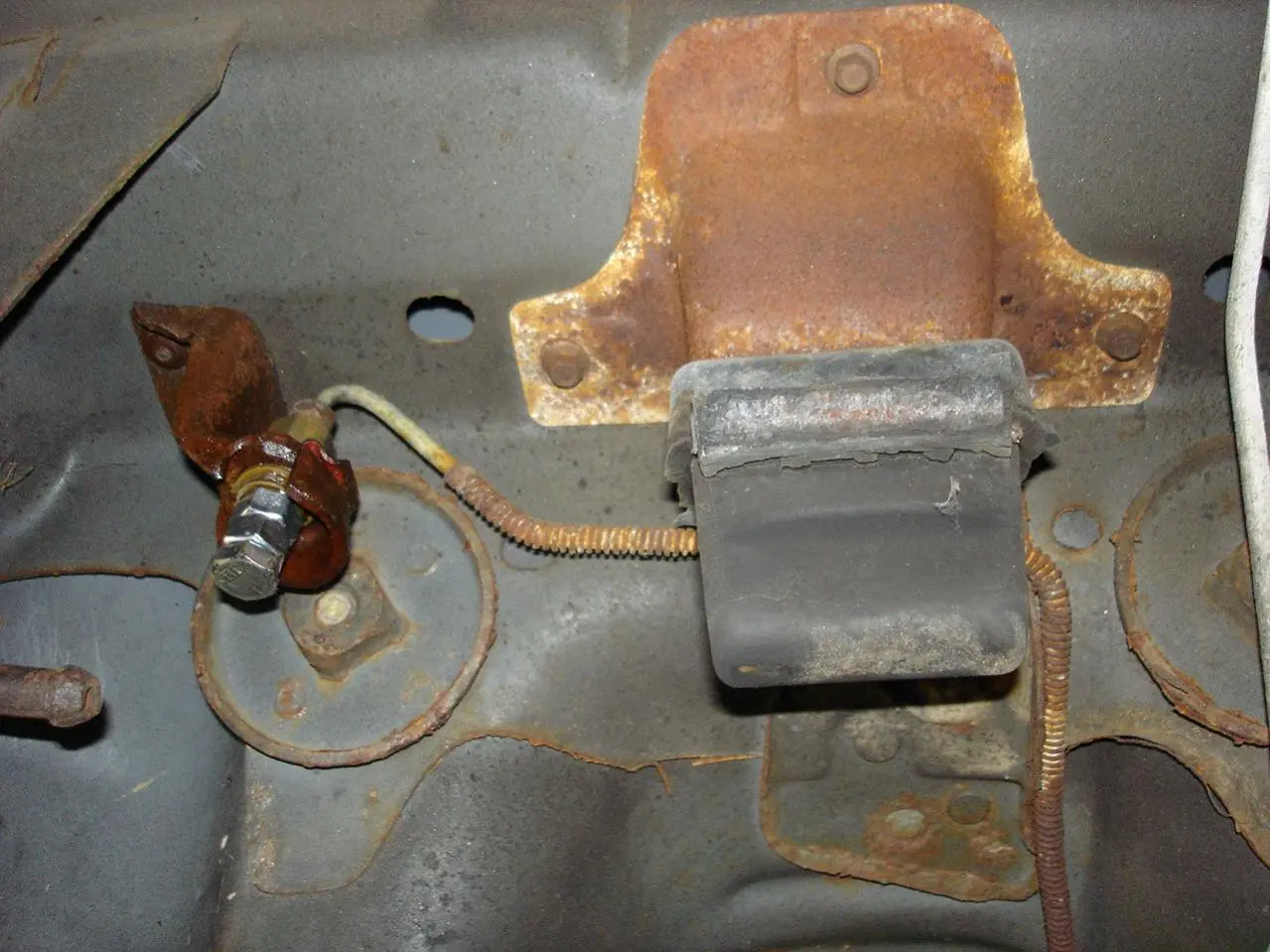

Here ya go. Does this help?

Unfortunately I gotta use the ugly rusted "before" pics and not the clean, painted, new brake/fuel line "after" pics



[Lifted94XLT]

That's the piece I dont have.... do any aftermarket companies sell this or am I stuck with the dealer or a junkyard?? And thank you for the great pics!!

--Ryan



[Mustang5L5]

i think boneyard only sorry
