Electrical Need help with A/C clutch cycling connector

tim4698

Member
Jun 16, 2019
8
1
13
41
Kansas City, MO

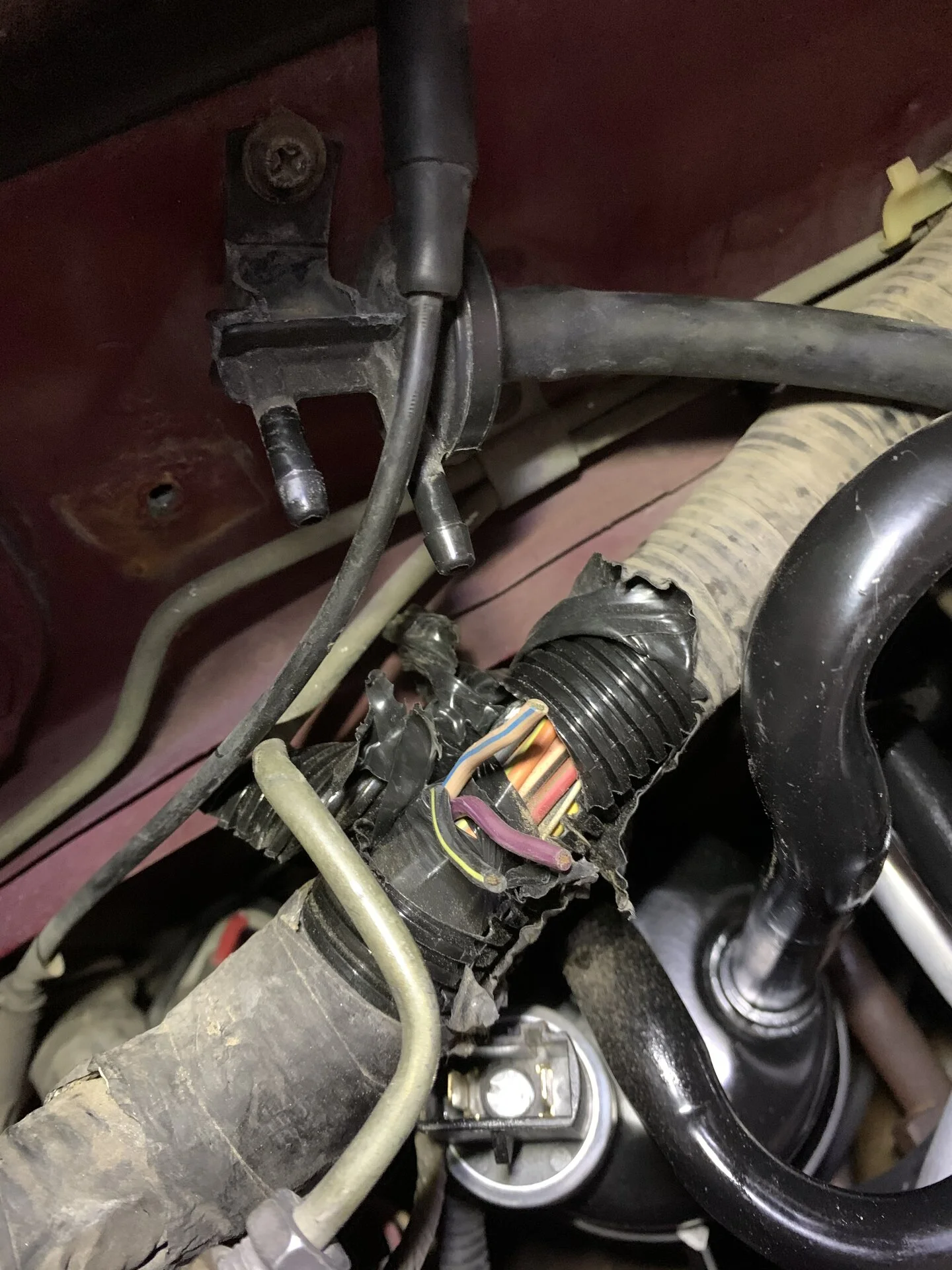

I’m working on reinstalling the a/c after the previous owner deleted it. They cut the clutch cycling harness at the main harness. I was expecting two wires (orange/blue and black/yellow) but found another wire. It looks like a pink/blue wire. I believe this wire gets spliced with the orange/blue wire. Can anyone confirm this with.

-Tim


Attachments

  • Sponsors(?)


90sickfox

I didn't really have an issue with the stink...
SN Certified Technician
Mar 2, 2015
5,178
4,264
203
42
I have 2 pink and light blue wires and one green and purple wire on my 89.


tim4698

Member
Jun 16, 2019
8
1
13
41
Kansas City, MO

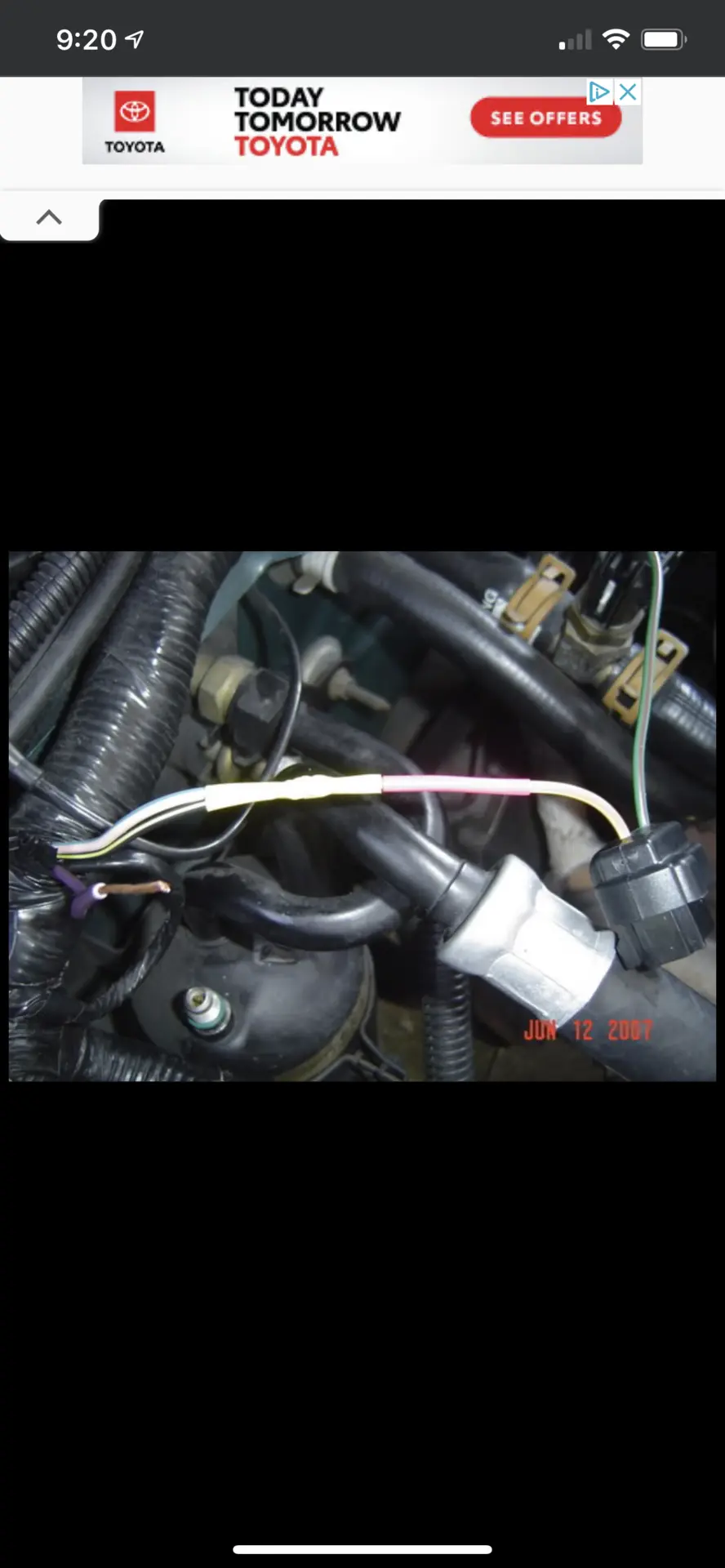

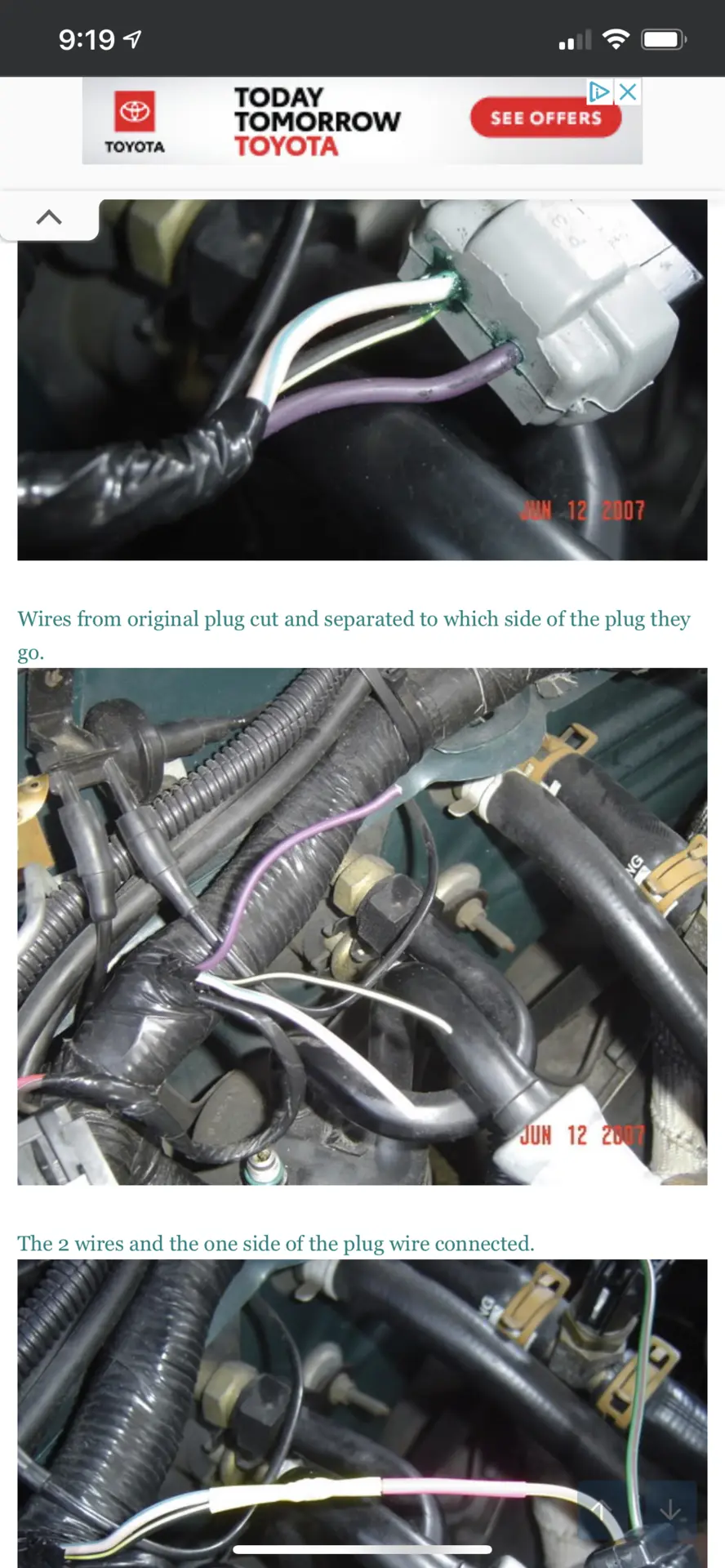

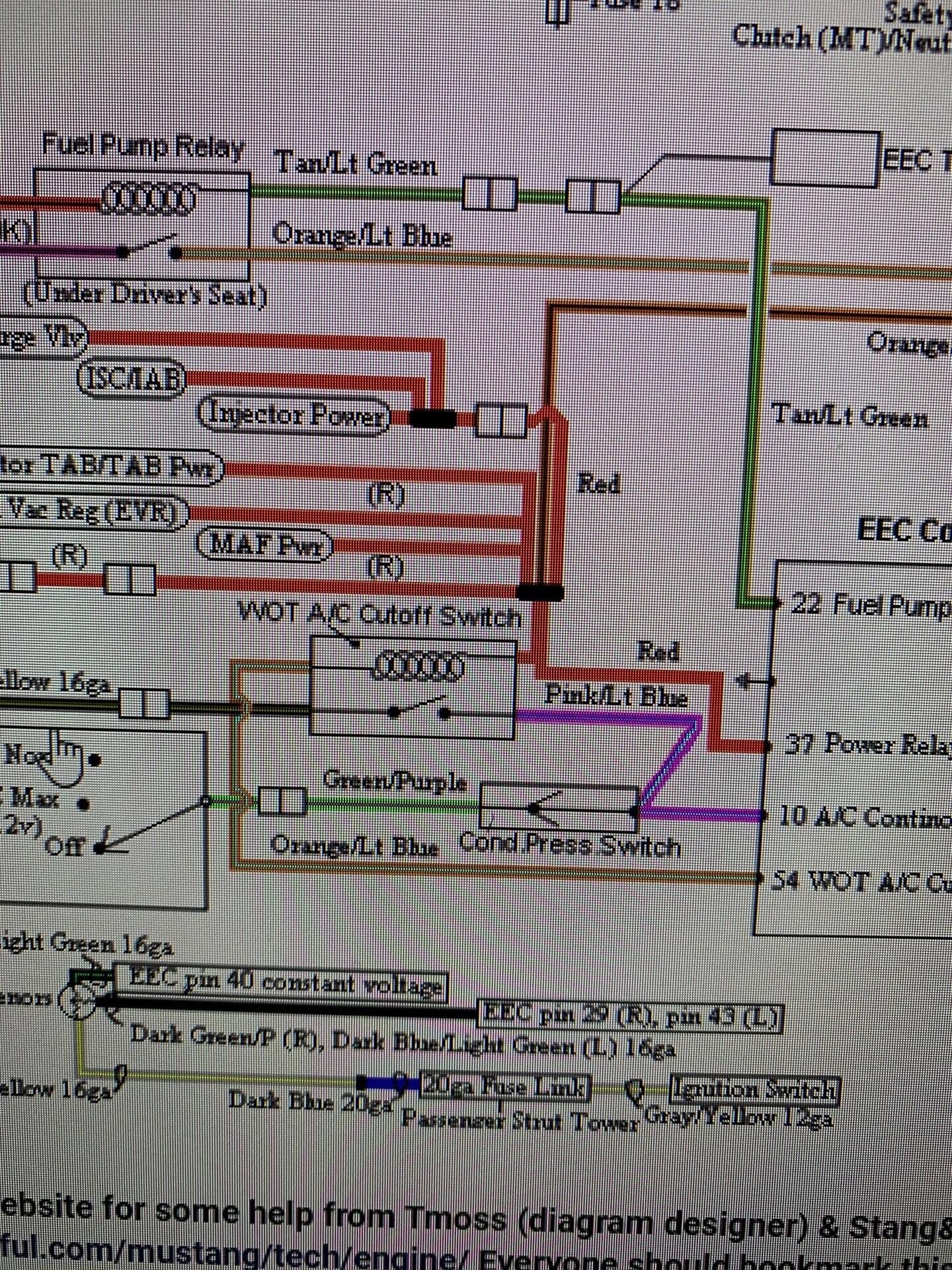

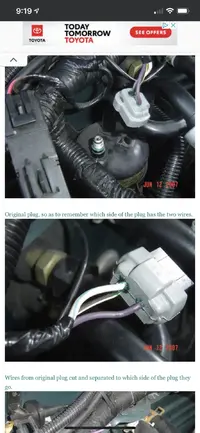

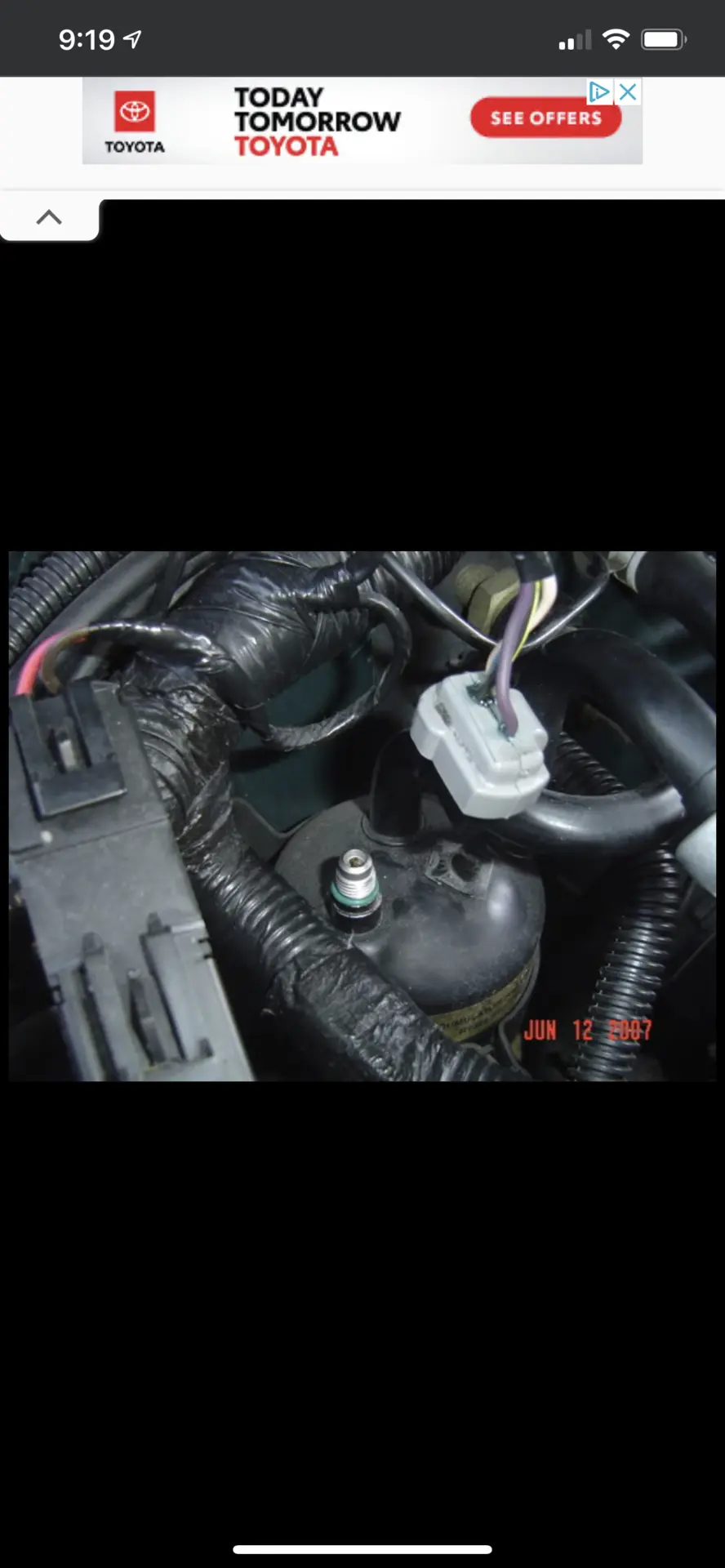

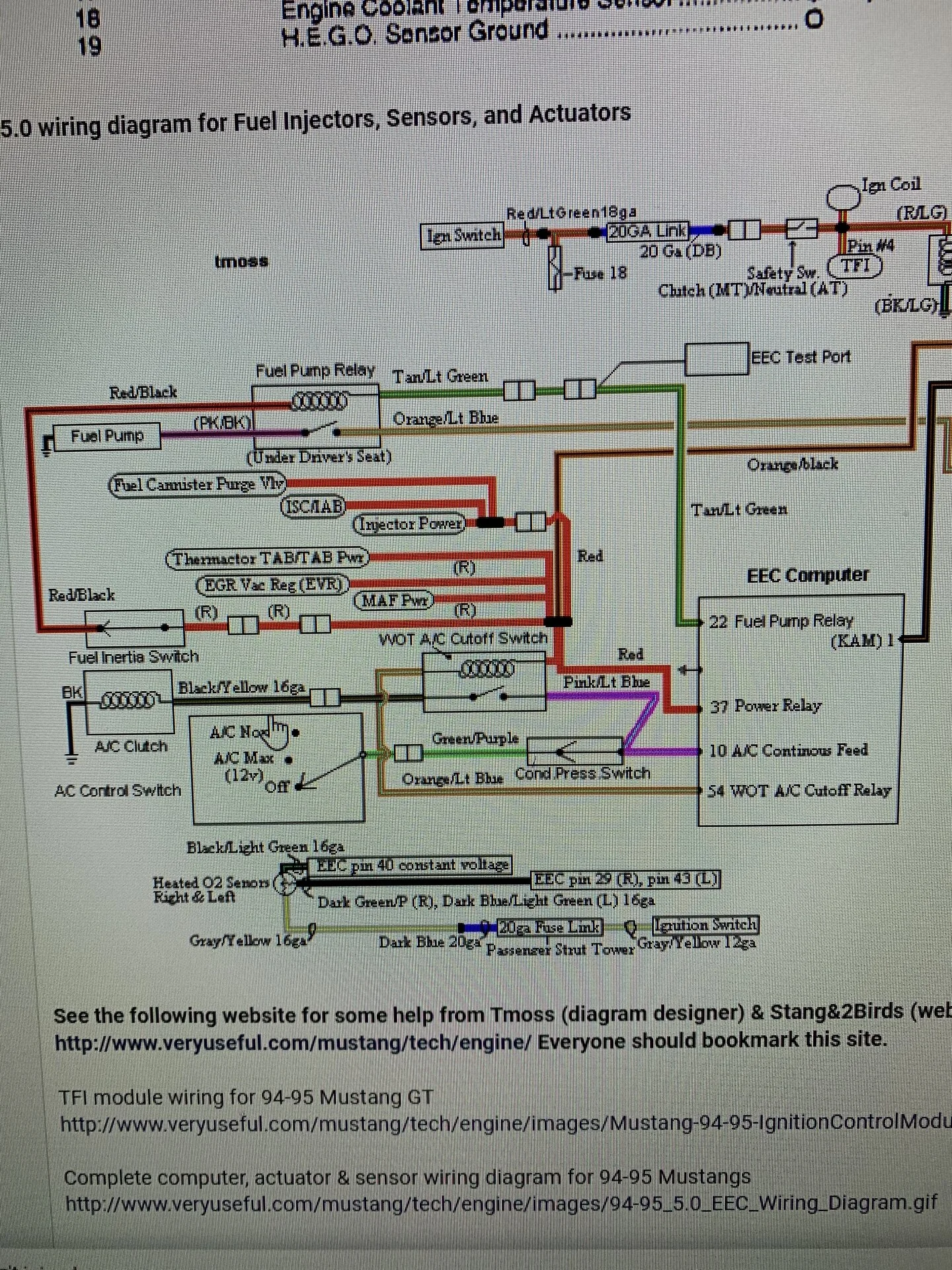

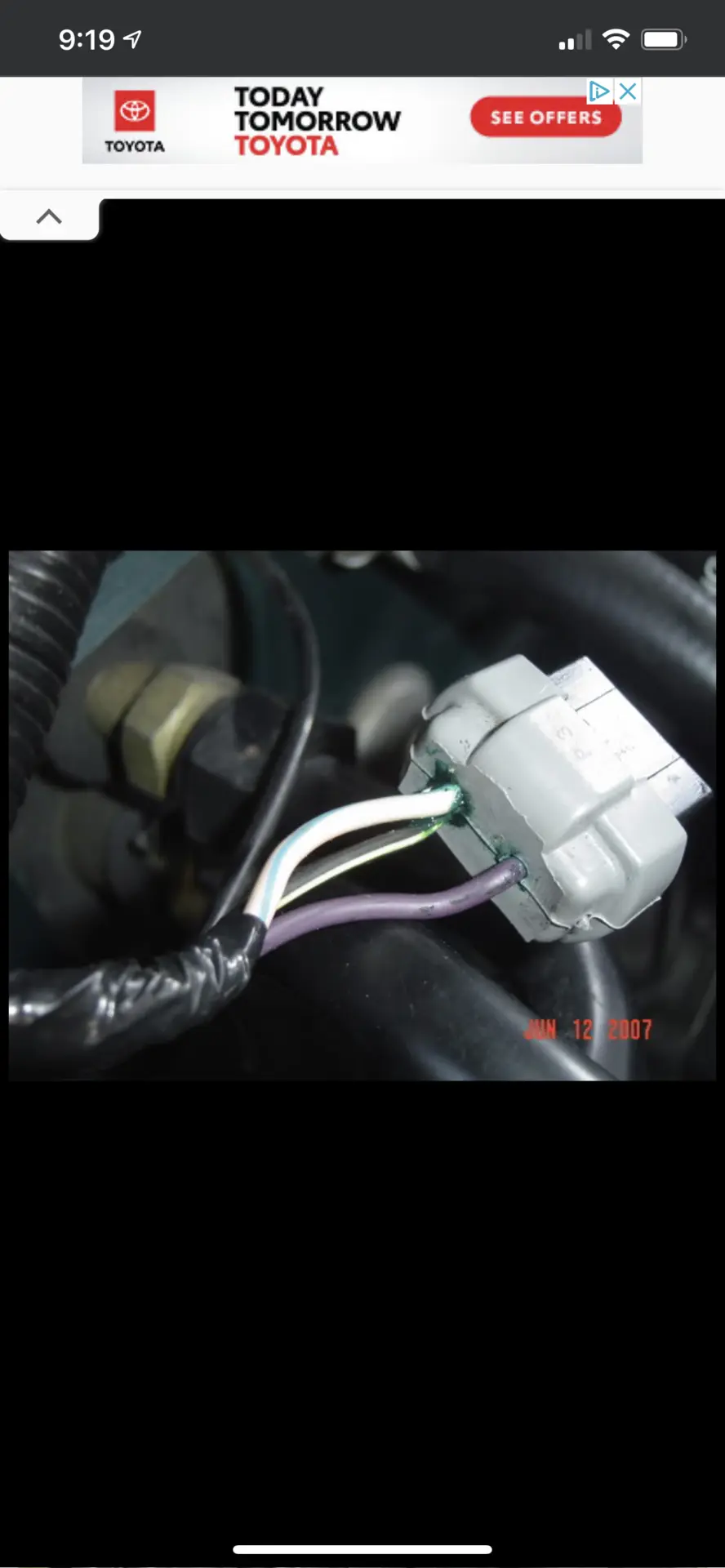

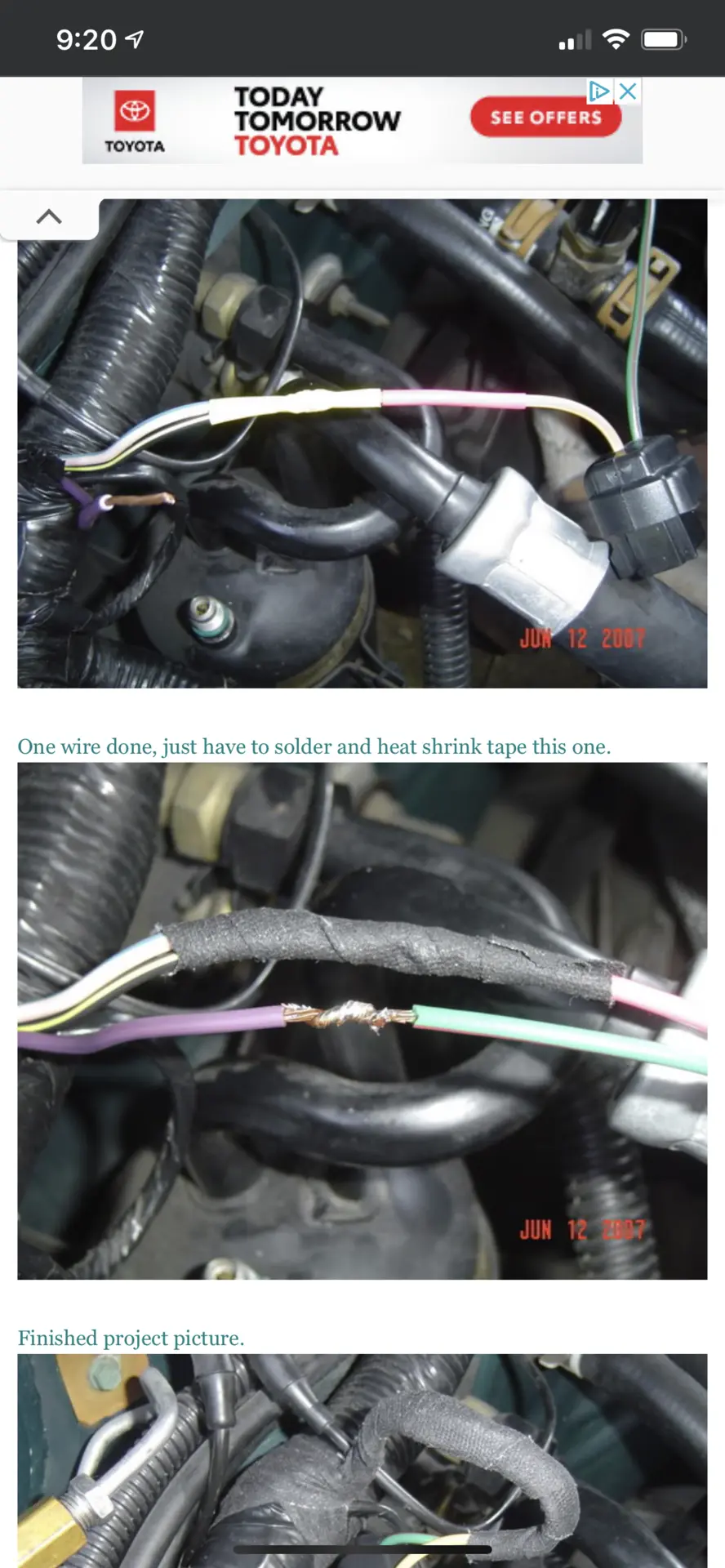

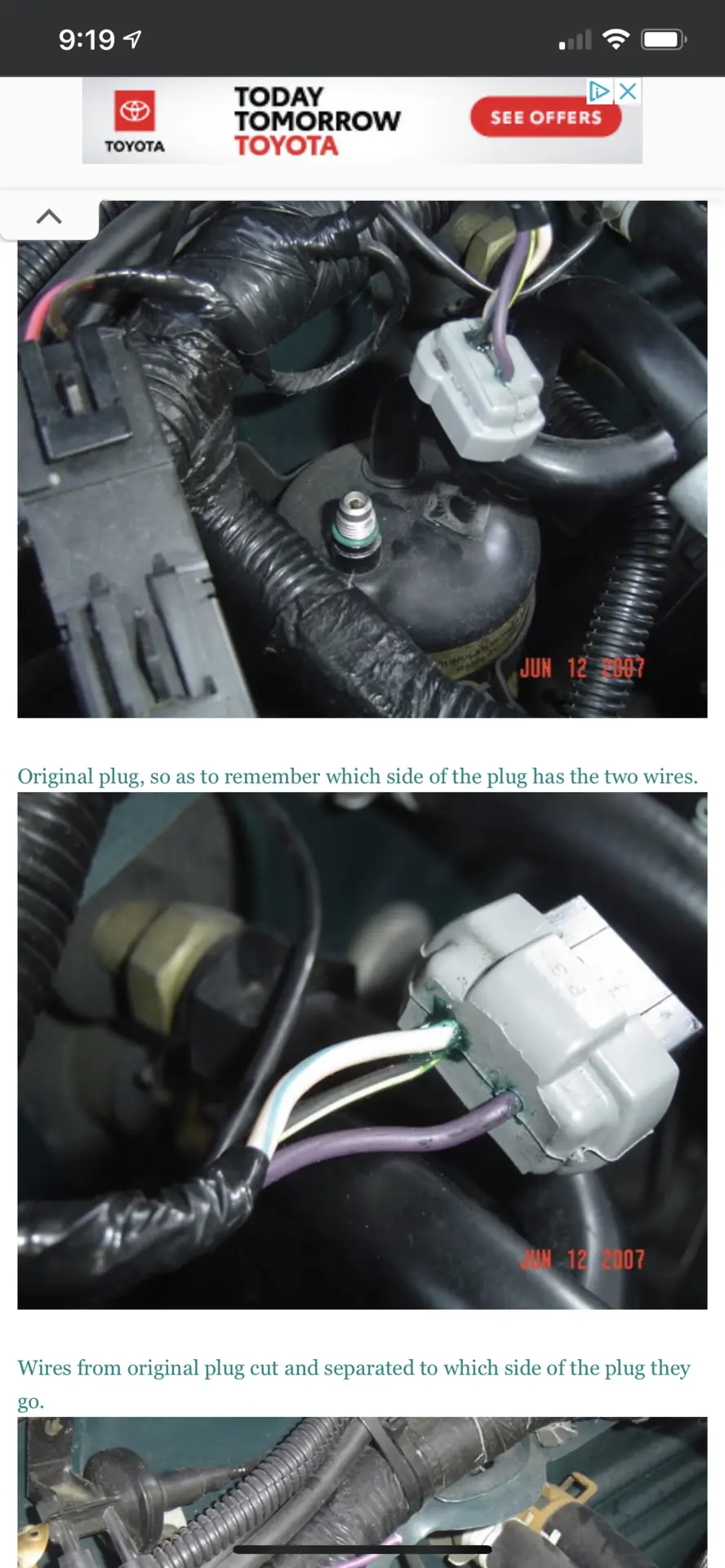

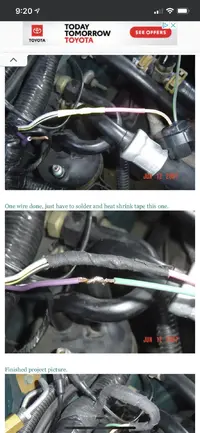

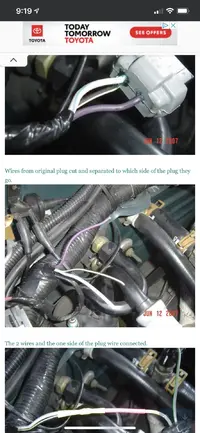

Thanks. Found the info today from a 2009 post. Took a bit to find. Pictures below. These are not my pics but big thanks to the Stangnet user who took them.


Attachments

  • Like
Reactions: nickyb
