new o2 sensors, new harness, high idle??

[jrichker]

Unbolt it and get it out in the open where you can see what you are doing...



[OonDeanisS]

so when i look into the computer itself at the pins, #1 is the top right and #60 is bottom left?



[jrichker]

so when i look into the computer itself at the pins, #1 is the top right and #60 is bottom left?

The following is a view from the computer side of the computer wiring connector.

This is the same connector, wire side view.



[OonDeanisS]

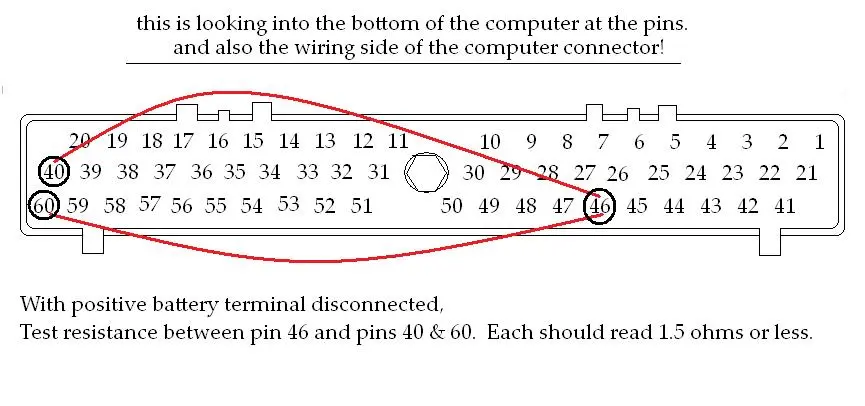

i gotcha, thanks. i also made a diagram for myself to make sense of it, figured id share it. i still dont understand fully how to read this dvm as an ohmmeter. (see next post)



[OonDeanisS]

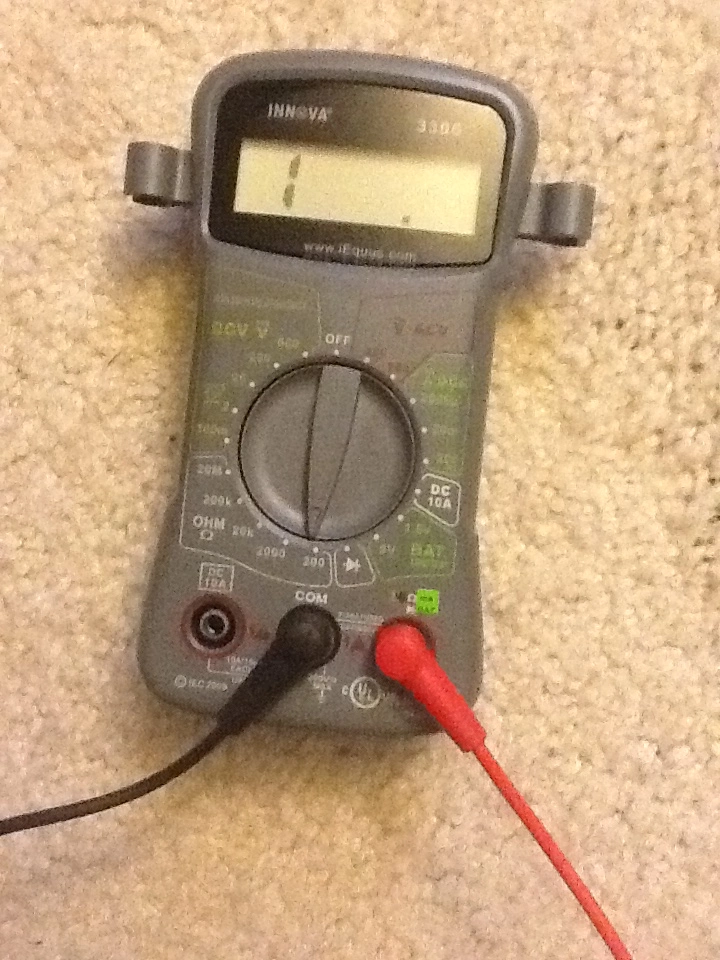

when i turn on my dvm to 200 ohms range, this is what i see with the leads in the air (see picture attached). when i test the computer pins, the dvm doesnt change at all, it stays at 1__._ which worries me because im not sure if that should be read as 1.0 or as [out of range].



[OonDeanisS]

anyone?



[jrichker]

when i turn on my dvm to 200 ohms range, this is what i see with the leads in the air (see picture attached). when i test the computer pins, the dvm doesnt change at all, it stays at 1__._ which worries me because im not sure if that should be read as 1.0 or as [out of range].

That looks like an open cricuit, which means that the computer has suffered some internal damage to the signal ground.
See http://www.stangnet.com/mustang-forums/749974-computer-issue.html#post7490537 for Joel5.0’s fix for the computer internal signal ground.



[OonDeanisS]

shux, do you think that picture is actually a sigrtn on a a9L? could i do that myself with some solder and a small wire?



[jrichker]

shux, do you think that picture is actually a sigrtn on a a9L? could i do that myself with some solder and a small wire?

It's possible. Some people can do a neat job on the small circuit traces and lands and others make a big mess. It is dependent on your skill and the tools used. You may want to find a TV repair place and have them do it. For an experienced technician, it's an easy 5 minute job.



[OonDeanisS]

great thanks!
