O2 heater fusible link repair.

[Ranchero5.0]

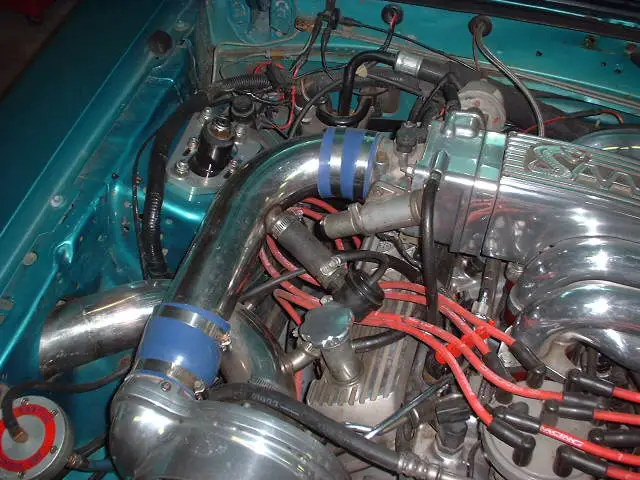

Some pix for 1993ssp and anyone else who may need them to locate the o2 heater fusible link in the factory harness'. On the early cars it's buried in the loom, but Ford taped them on the outside of the harness in my '93 and others may be the same. In my case since I hate fusible links I removed it and soldered in an inline fuse holder and popped in a 15A fuse. It's a lot quicker to check than getting out a meter and probing the wires..

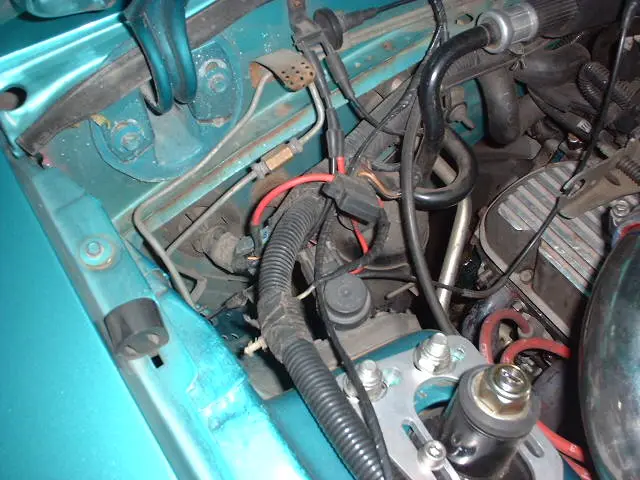

In the pics it's the black box with the red wires in the corner

Jamie



[onehot92]

what color is the wire for the o2 fuse link



[sln583]

raising this thread from the dead.
does anyone know where this wire ends up.
its green coming from the 02 sensor side and blue from the other side of the fusable link.
Does it go to the 10 pin connectors, the computer or somewhere else.
I need to try to dig it out of that huge taped up harness on the firewall and it would help if I knew where it went.



[sln583]

Bump
