Electrical Fusible link wire shorted to ground

Kid wita 5oh

Founding Member
Nov 5, 2000
1,176
50
68
Saugus, MA
I was just finishing up a mini starter conversion and battery relocation. I got rid of the fender solenoid in favor of a distribution block and relay.

I was about to connect the battery and thought, *let me just make sure everything is good first*
Well it's not.... I have a dead short between the 2 sides
I've found the short to ground is on the yellow wire that feeds the 4 fusible links.
the distribution block is about 5 inches from where the solenoid was mounted. The wire harness was already tucked (in the fender) prior to this project, with no issues.

i have wiggle tested the harness from yellow wire to firewall, with the meter connected, and no change in the short.

What do these links feed and are there any common spot where they may short out?

  • Sponsors (?)

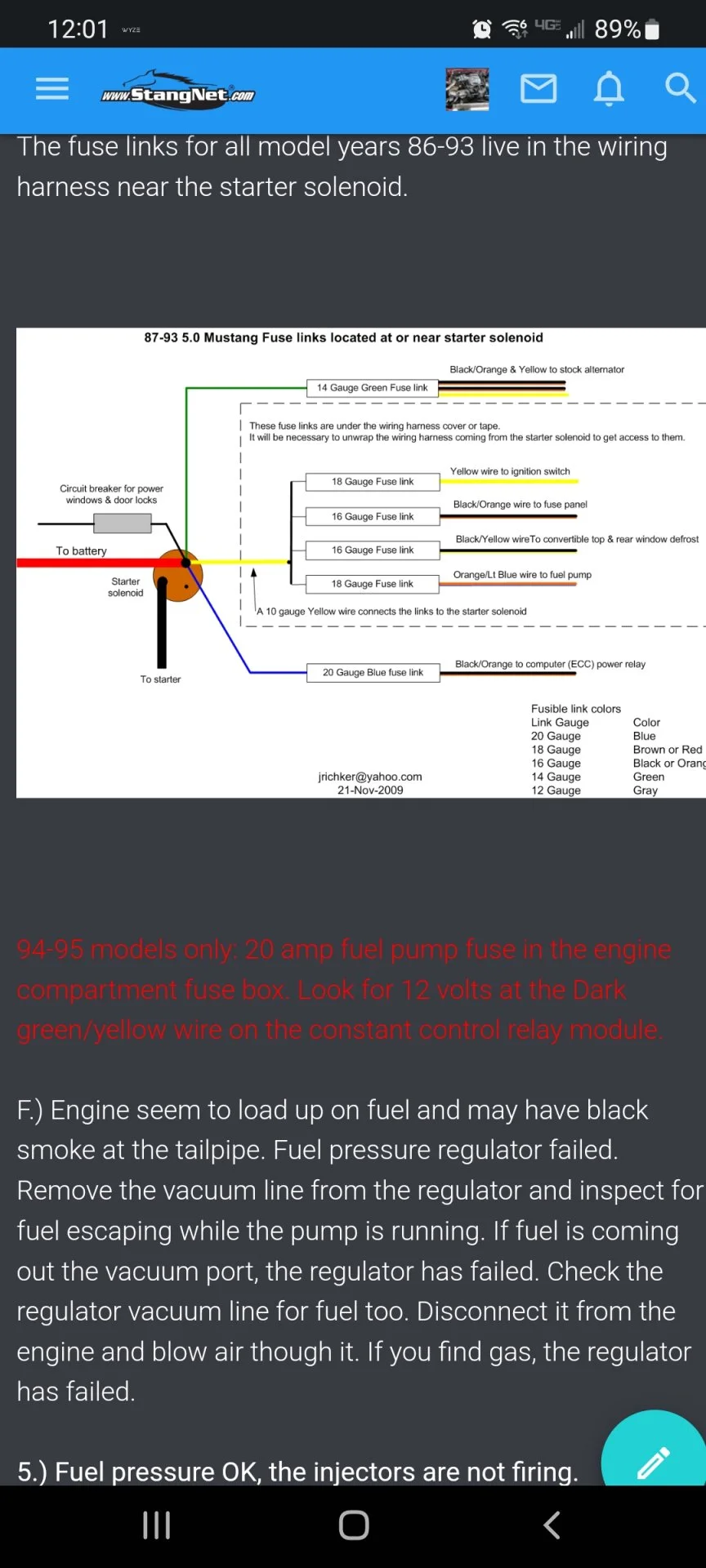

90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
6,562
5,639
203

  • Like
  • Useful
Reactions: 1 users

Mustang5L5

Put lubricant all over the balls
Mod Dude
Feb 18, 2001
39,736
15,516
224
Massachusetts

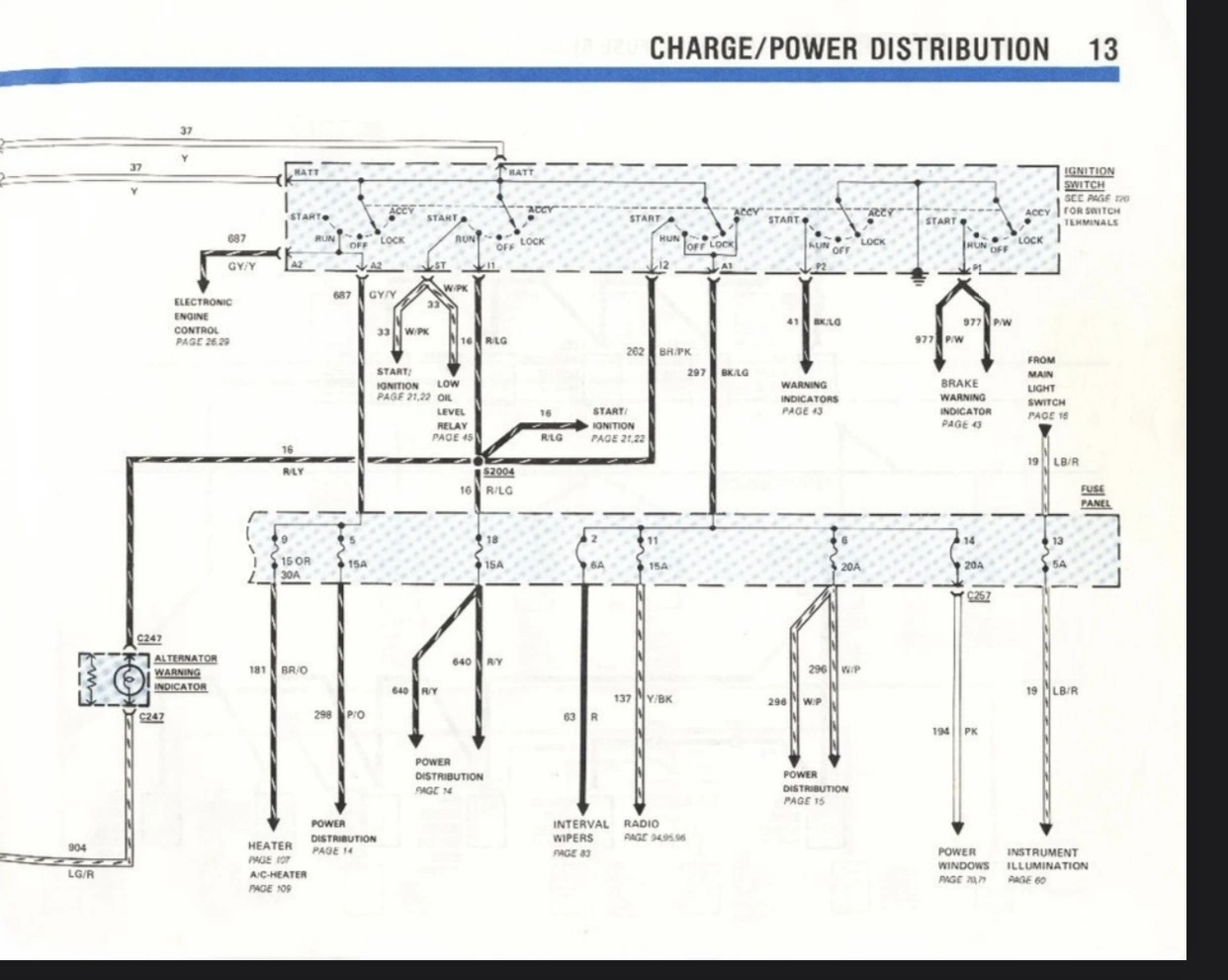

I only have 1988 handy. Should be the same

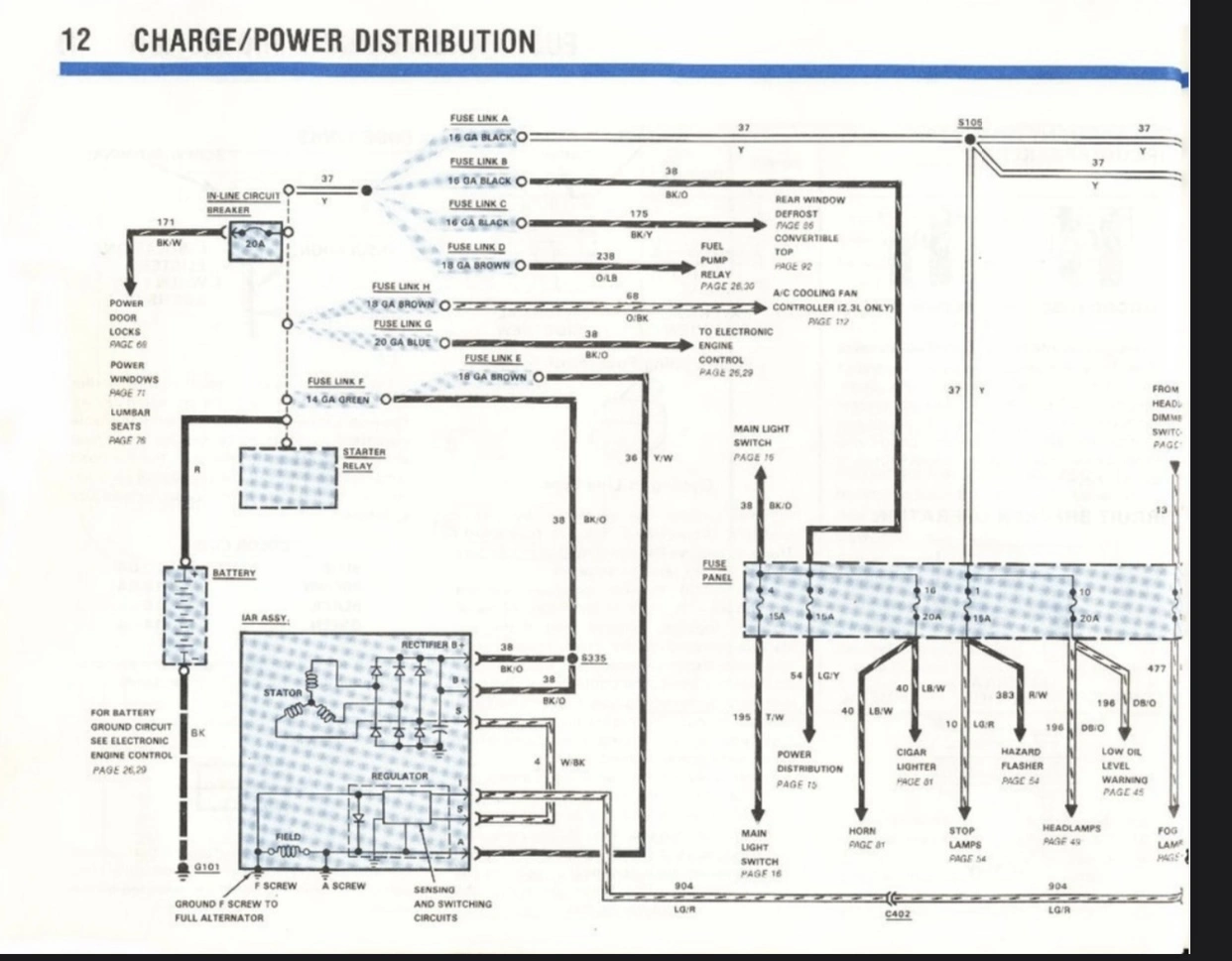

I can provide further down the line if needed but this shows what fuses to pull. Fuse link D goes directly to fuel pump relay and fuse link C goes directly to defrost relay


Last edited:
  • Like
  • Useful
Reactions: 1 users

Kid wita 5oh

Founding Member
Nov 5, 2000
1,176
50
68
Saugus, MA

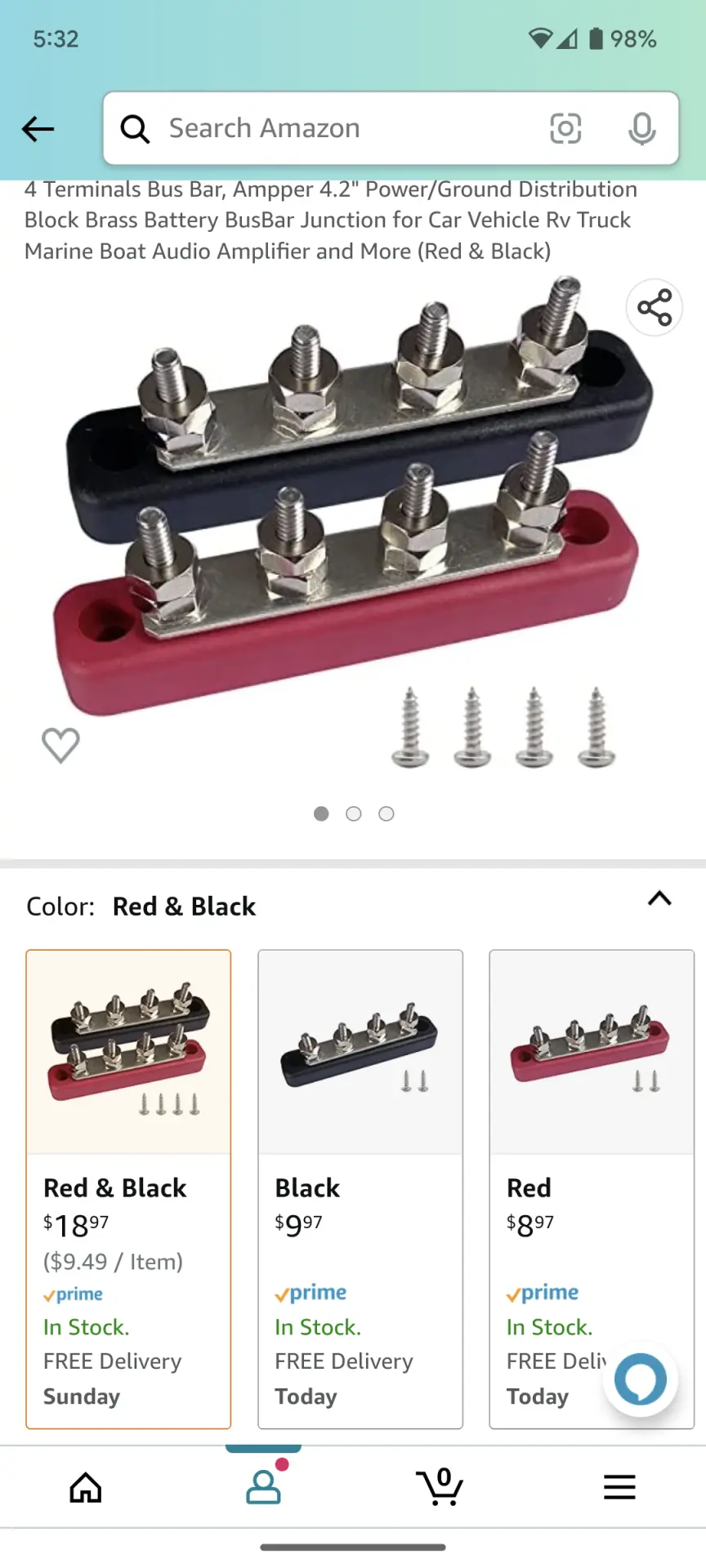

Made by China, bought off Amazon.
There's a ton to pick from, but these are what I got.

Haven't gotten to looking into the short yet, crazy week at work. Planning on today after work


Attachments

  • Screenshot_20221021-053230.png
    674.8 KB · Views: 20
