Is there any list or chart that shows all the various OEM Steering Wheels that have come in the Foxbody? The 87-93 cars are pretty simple. The 79-86 though....ummm. I've had a bunch of these cars and the 4 eyed ones all had various styles. Maybe if any of you have pictures and are totally sure of the year (and maybe GT, GL, etc) you could post them. Unless I missed it, which is highly possible, there's no resource for this.
Have at it! :)

  • Sponsors (?)

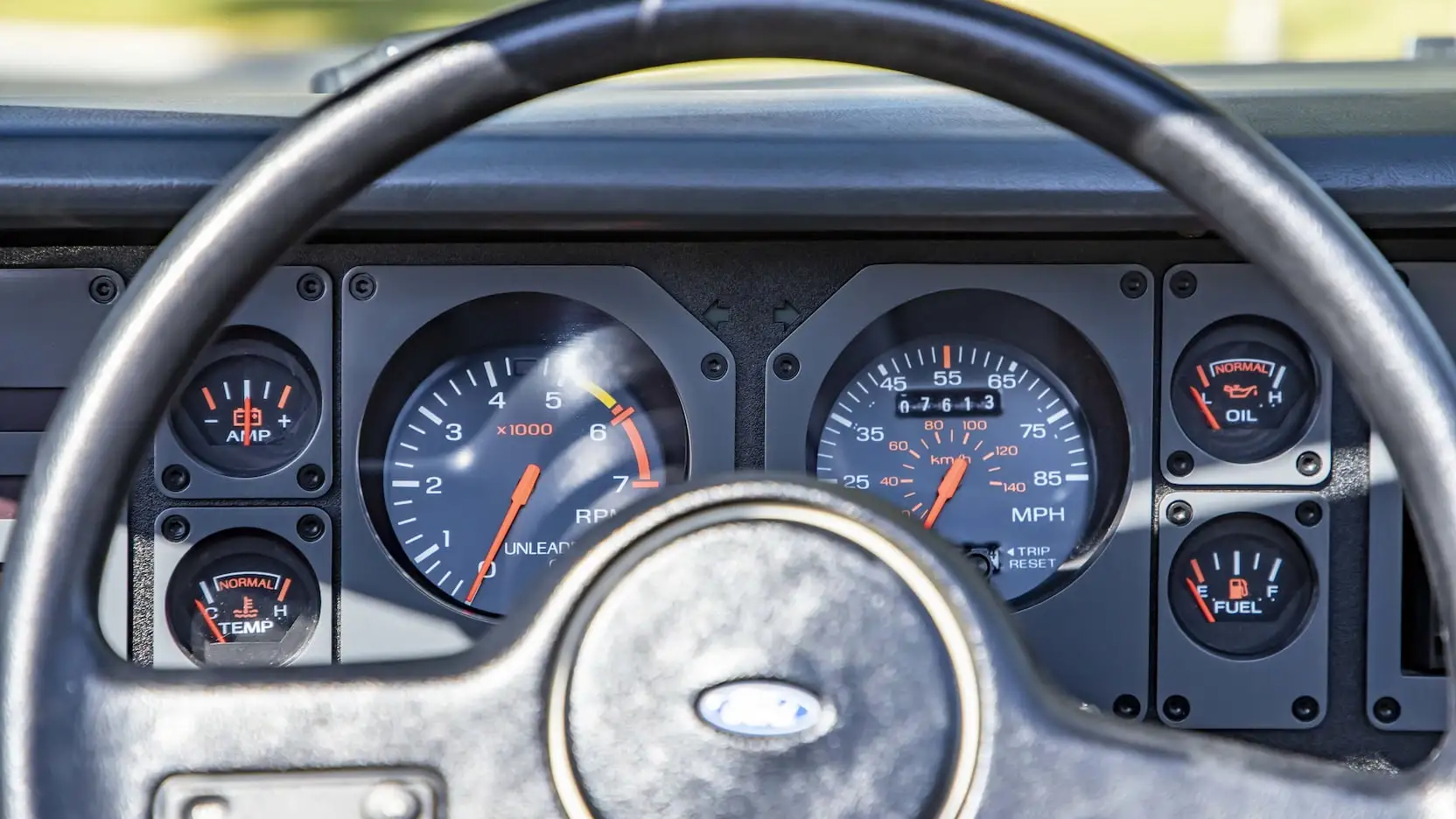

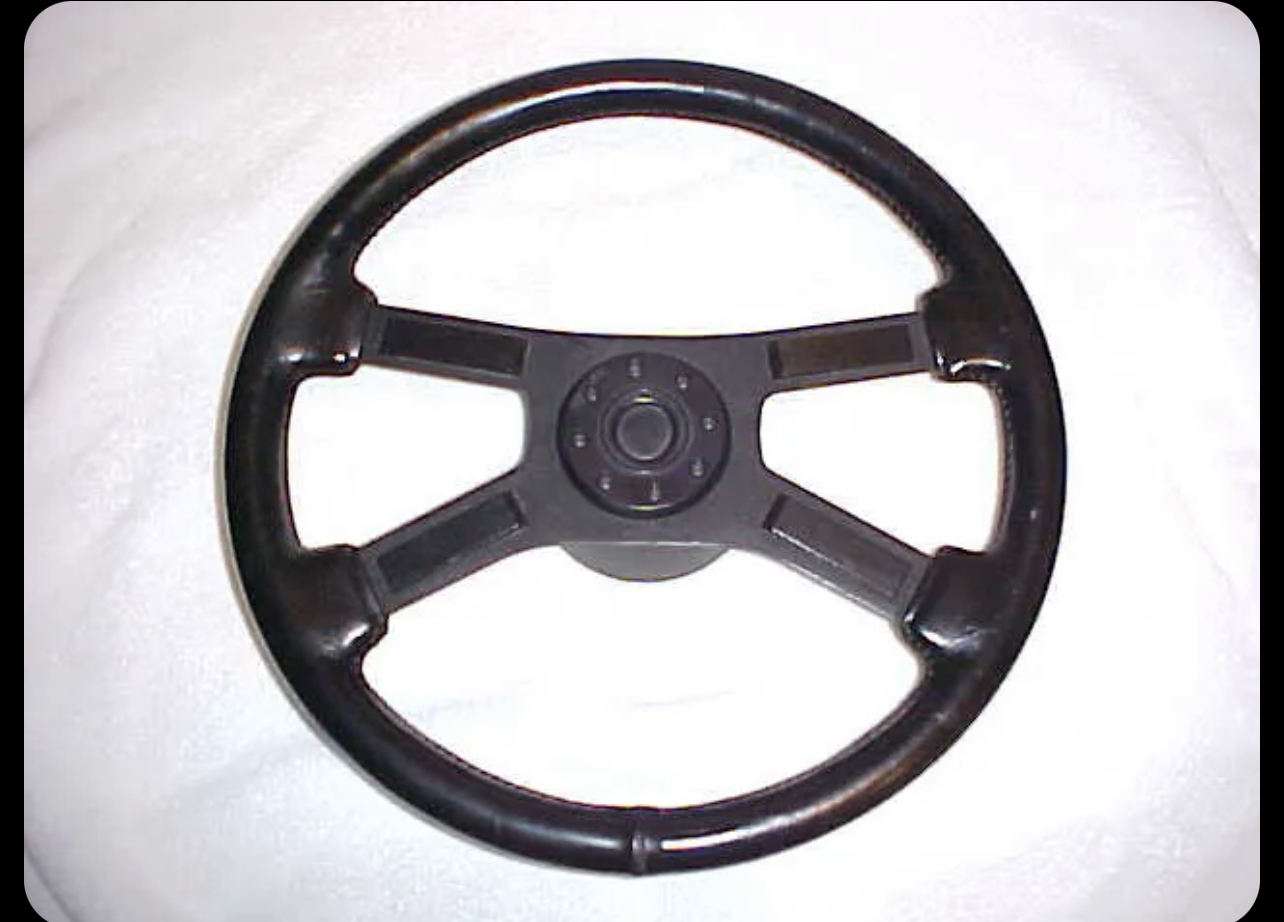

85-86 Gt Non cruise wheel , re wrapped in my car

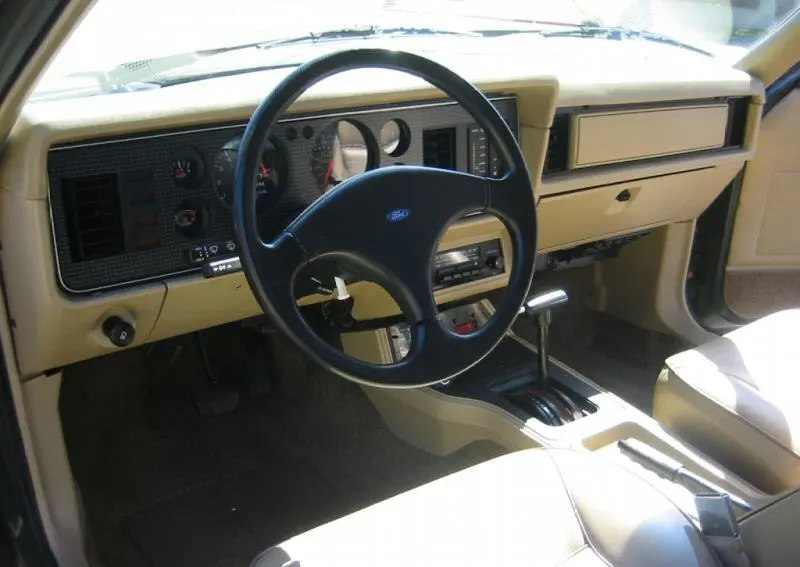

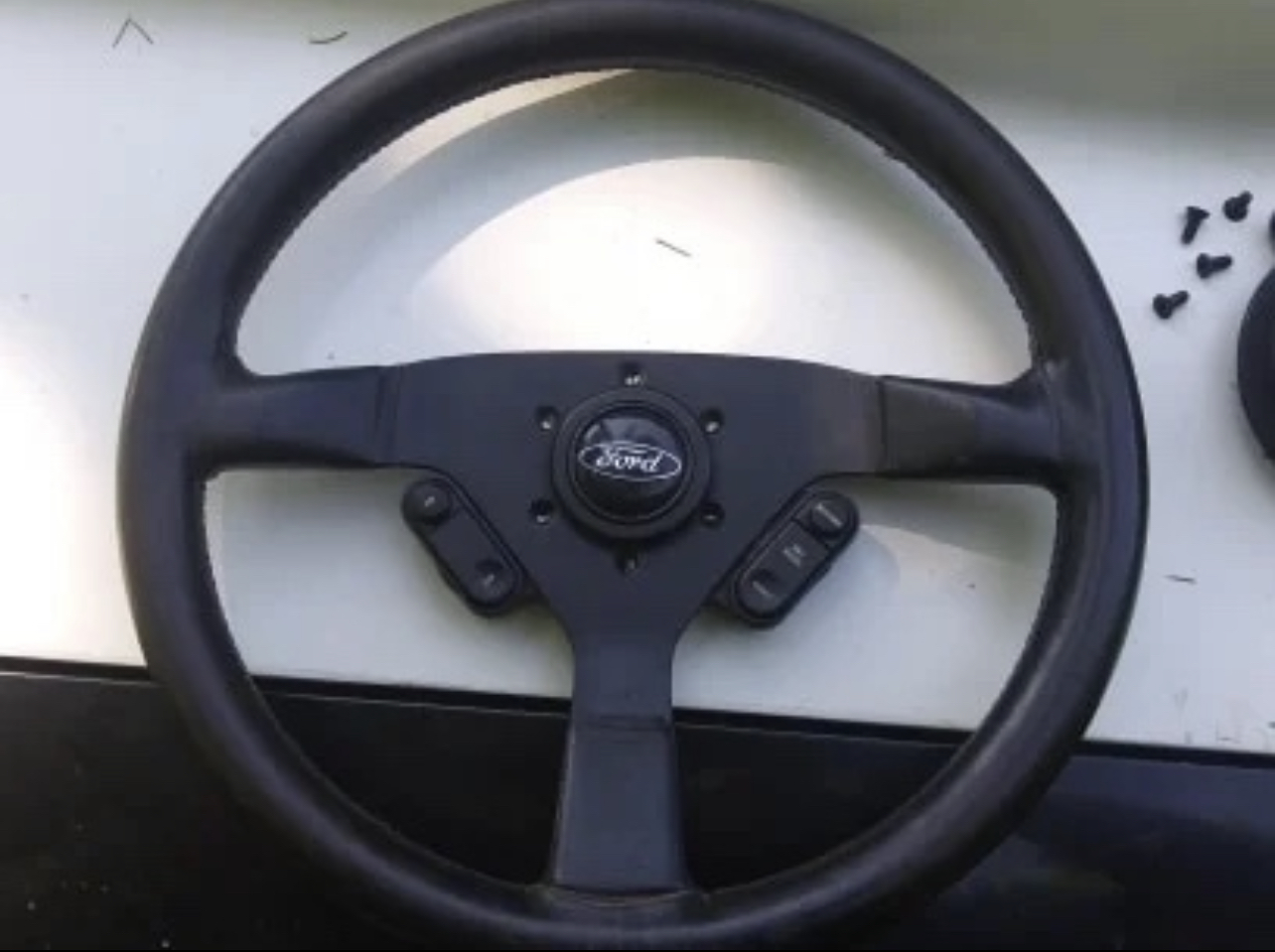

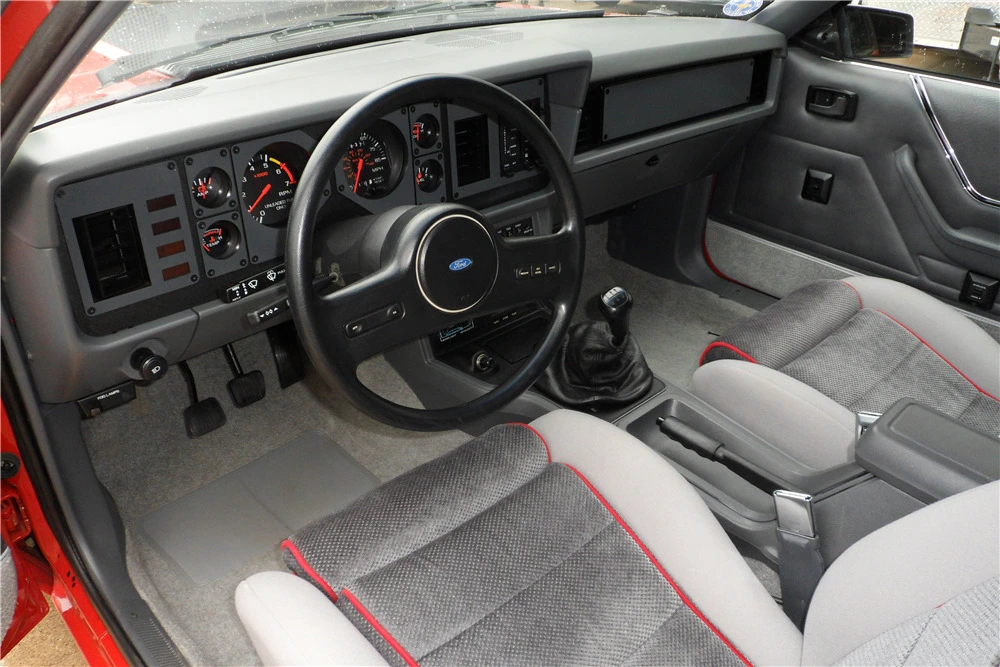

85-86 cruise control wheel

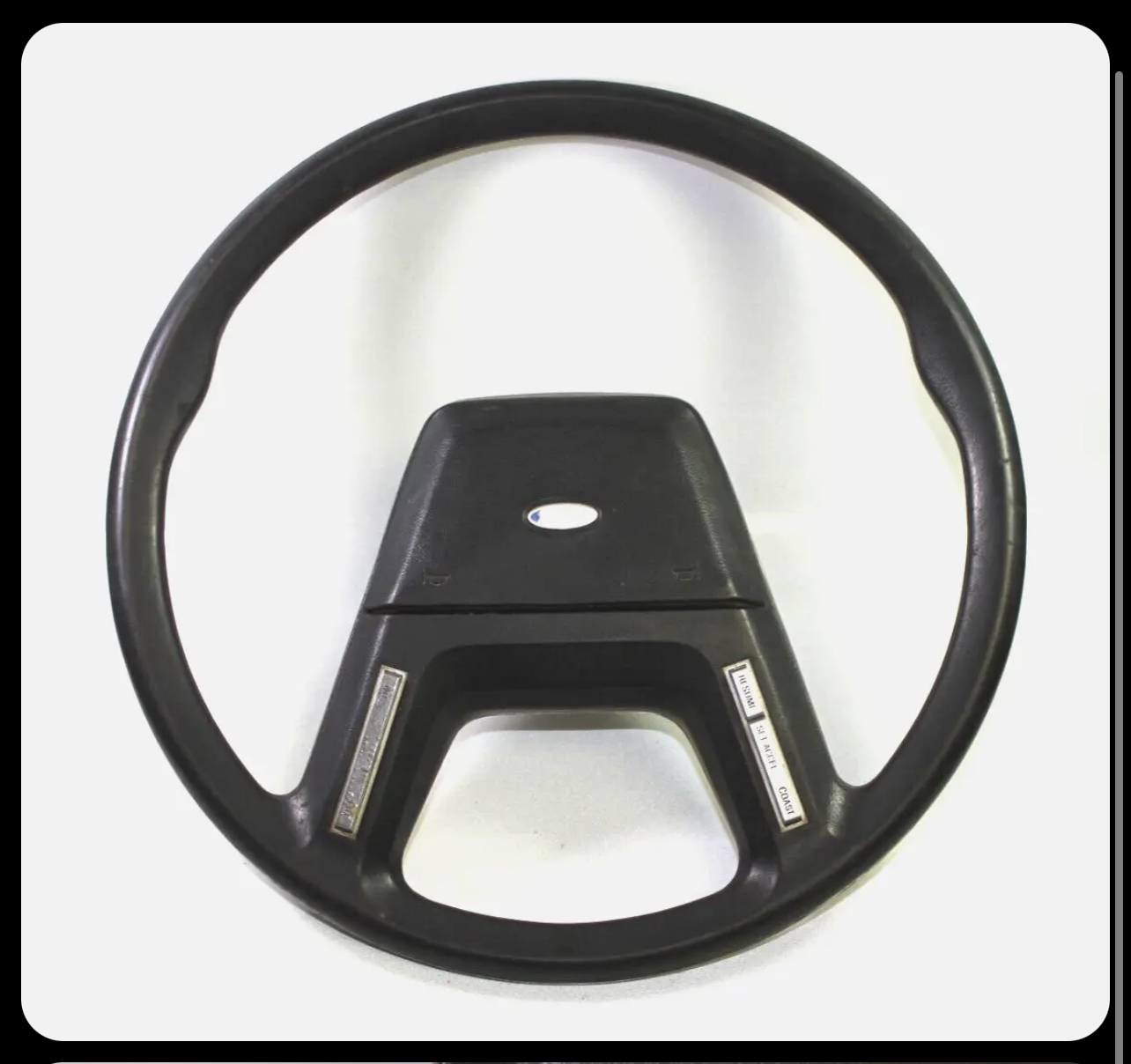

85 86 Lx

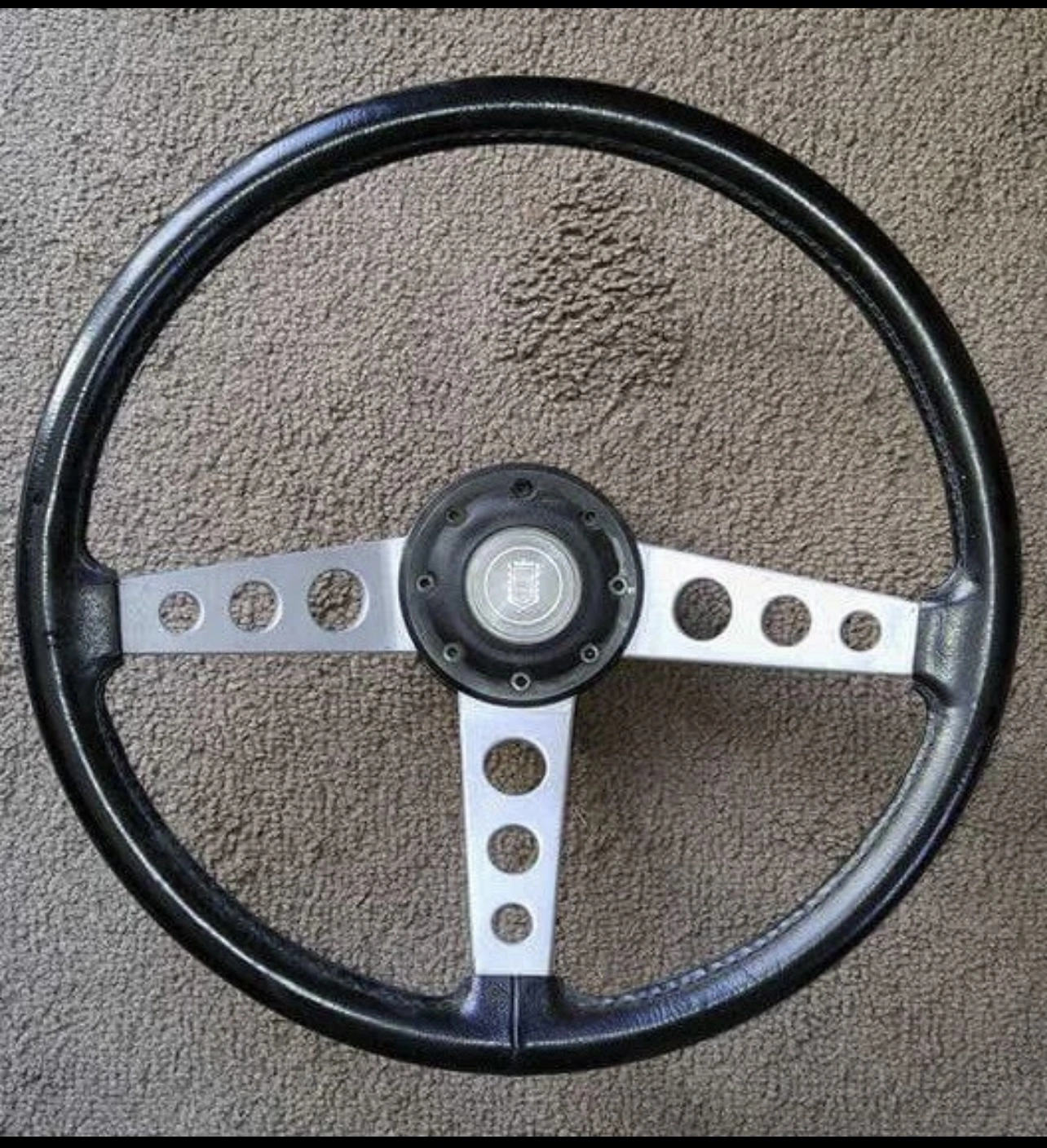

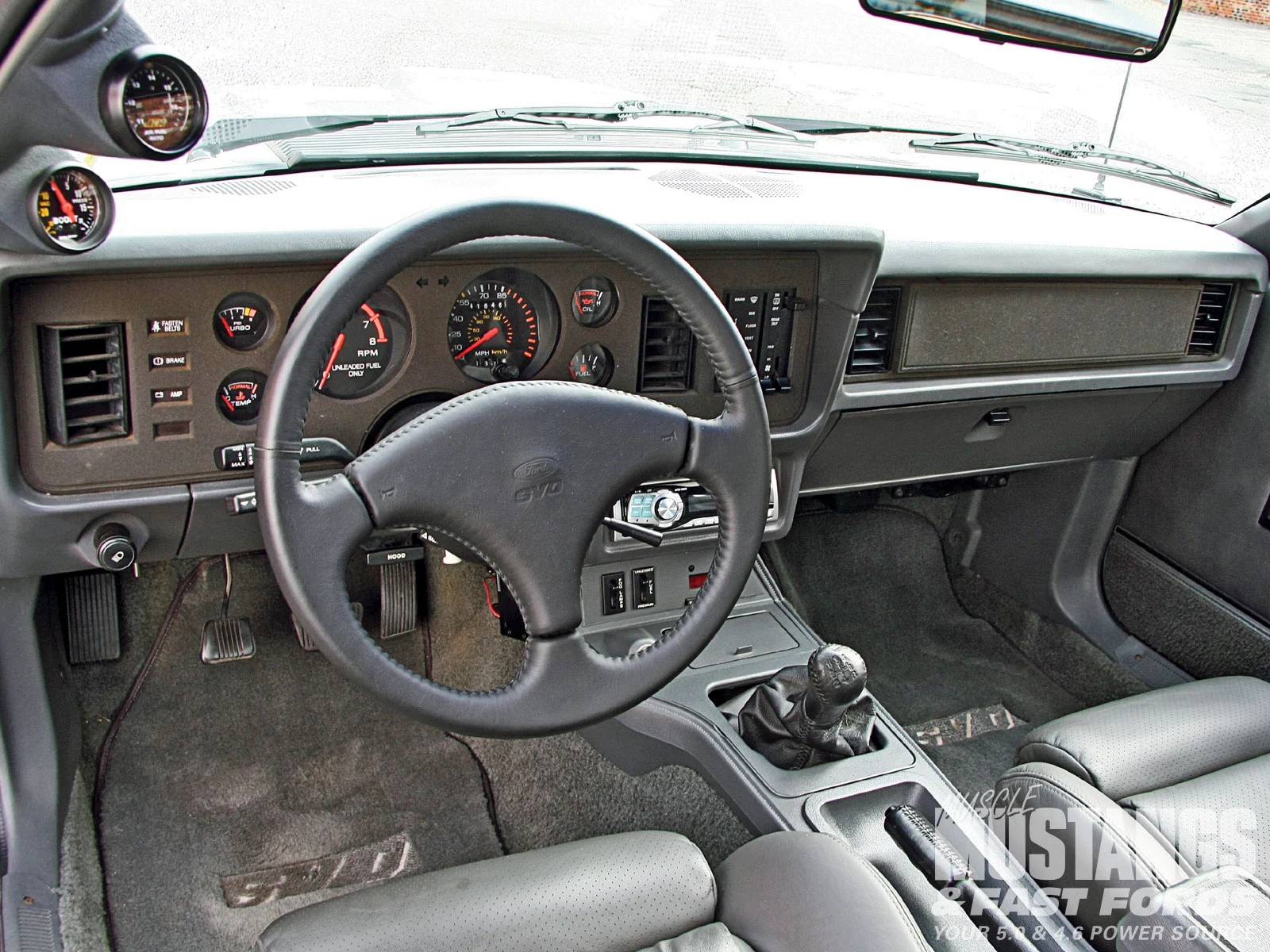

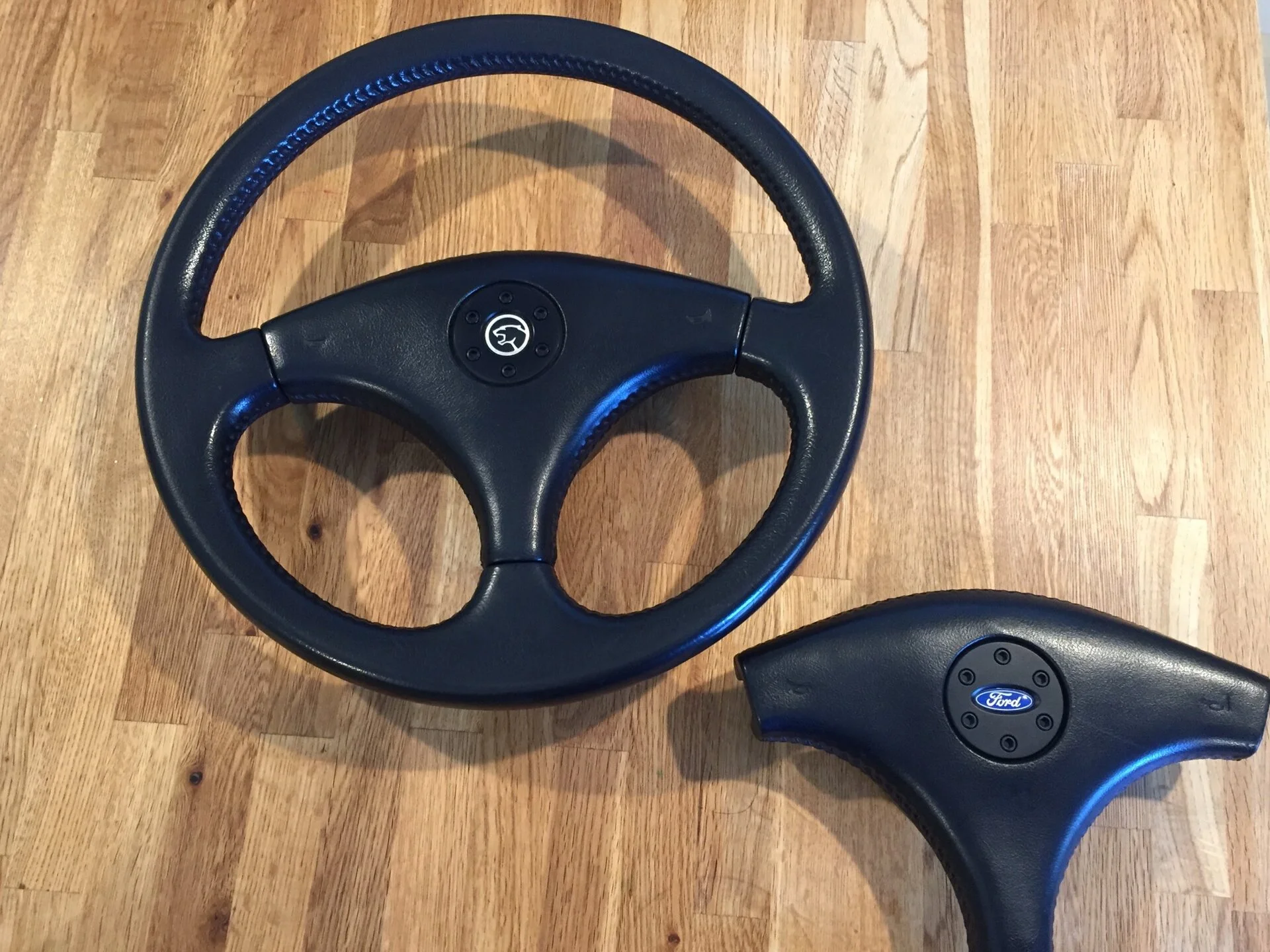

84-86 svo

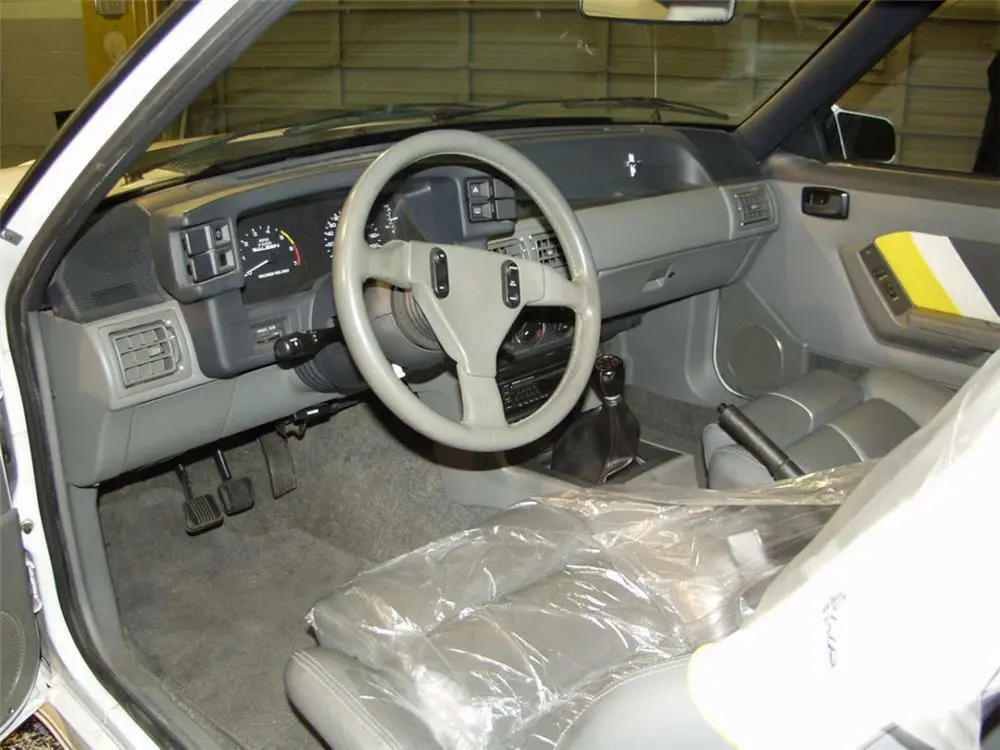

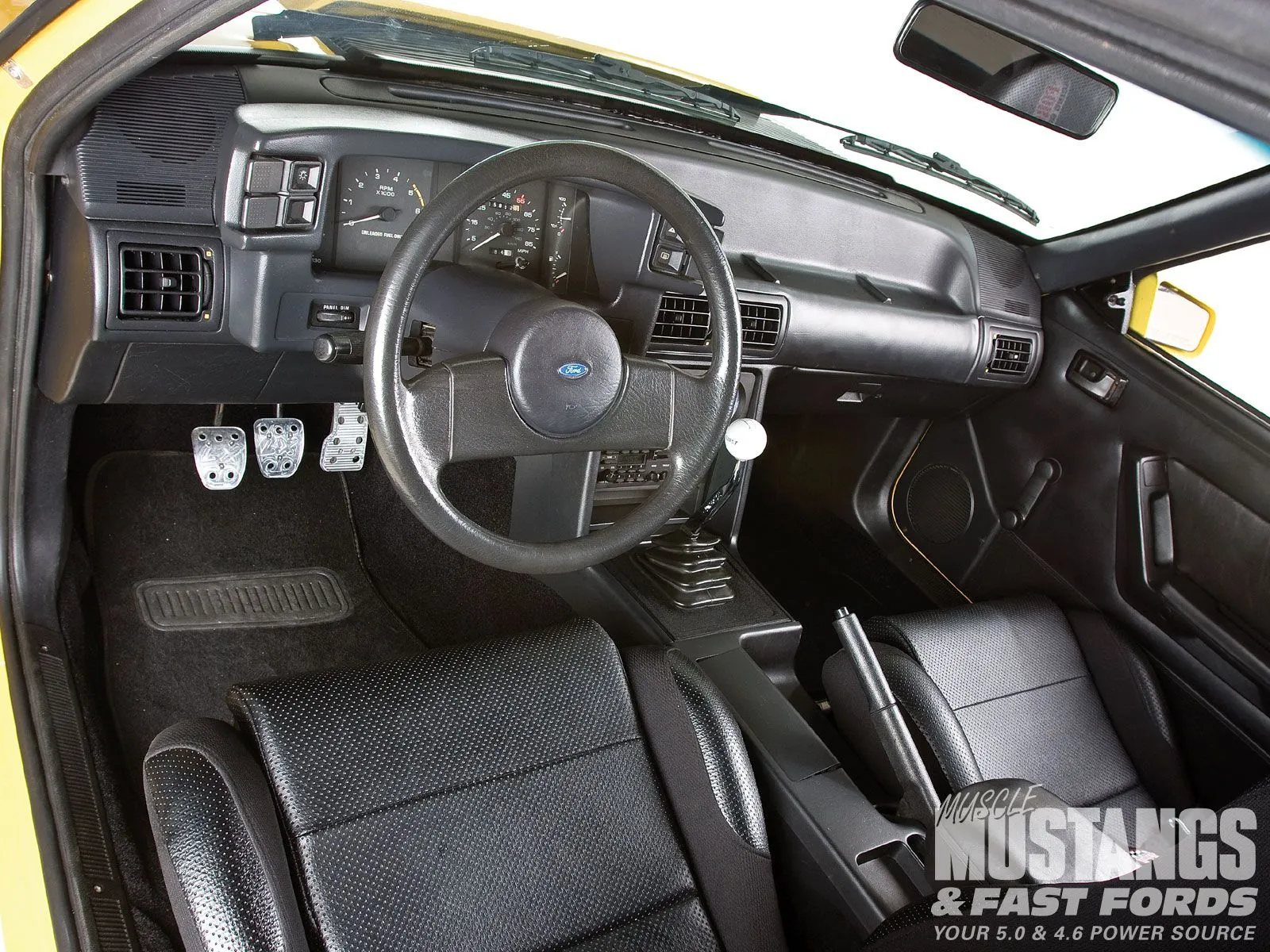

87-89 Cruise and non cruise

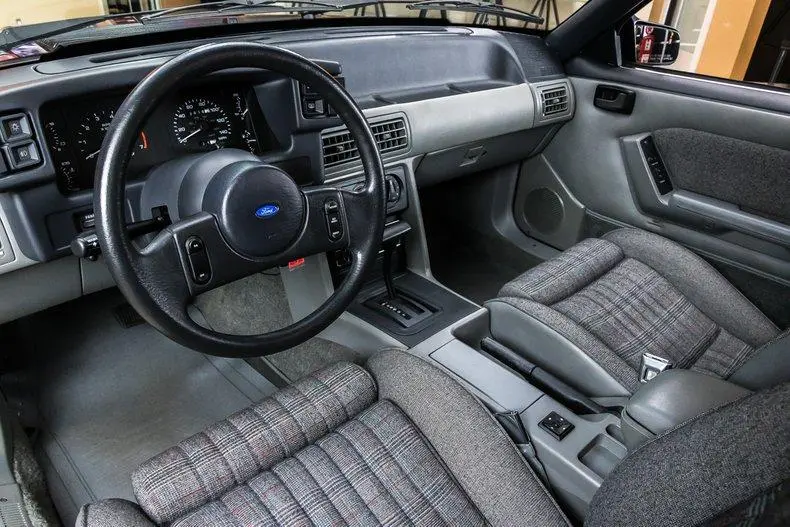

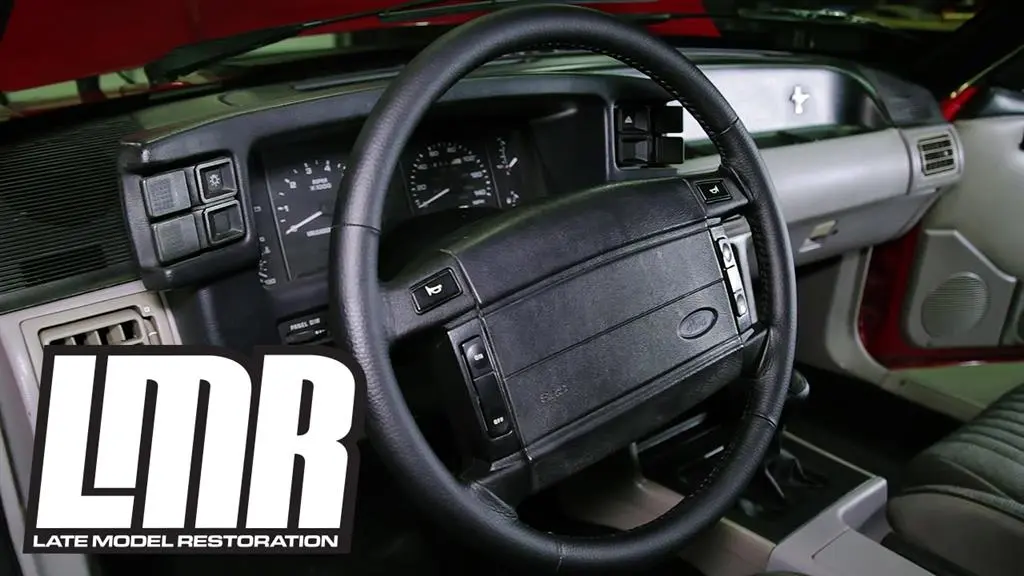

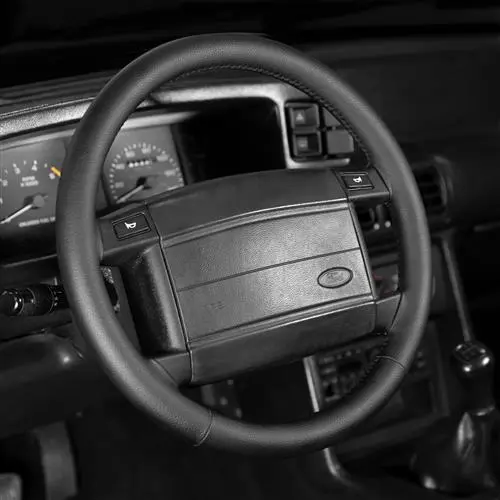

90-93 cruise and non cruise





I don’t think I missed any for the 4 eye cars or 87-93 but this is off the top of my head so someone correct me if I missed something .

  • Like
Reactions: 2 users

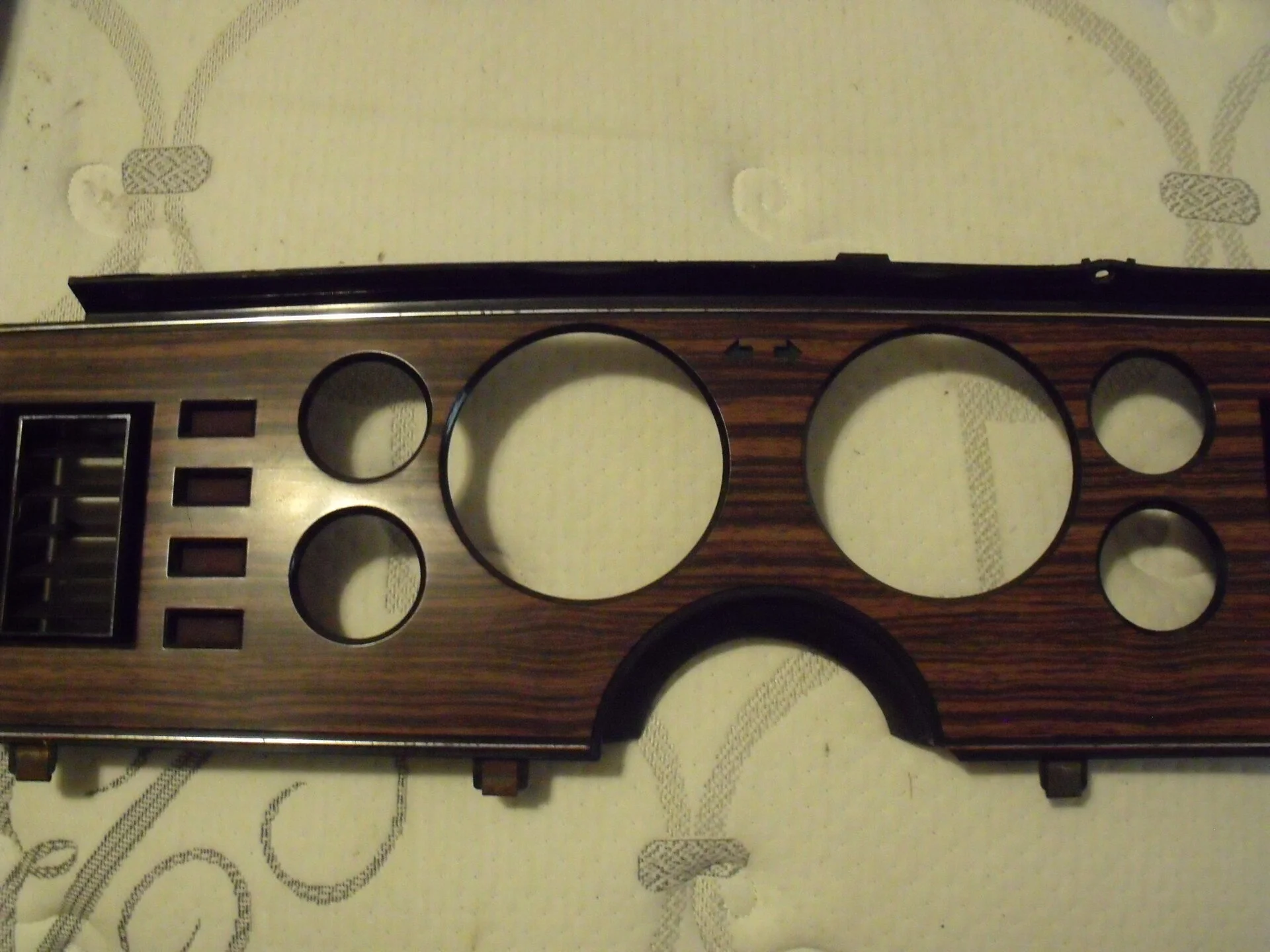

85-86 with cruise pic... Is that dash stock?? I am changing my dash from blue to black and not sure how the " fake wood" look will work?

Man, you guys did great! That's some good info with good pictures.

So the differences between the 4 eyed Sport vs LX(base) is the Sport has fake stitching and the LX is thin? Does the center interchange between those two?

Man, you guys did great! That's some good info with good pictures.

So the differences between the 4 eyed Sport vs LX(base) is the Sport has fake stitching and the LX is thin? Does the center interchange between those two?

The centers interchange but they don’t match due to the stitching being on the centers as well

  • Like
Reactions: 1 user

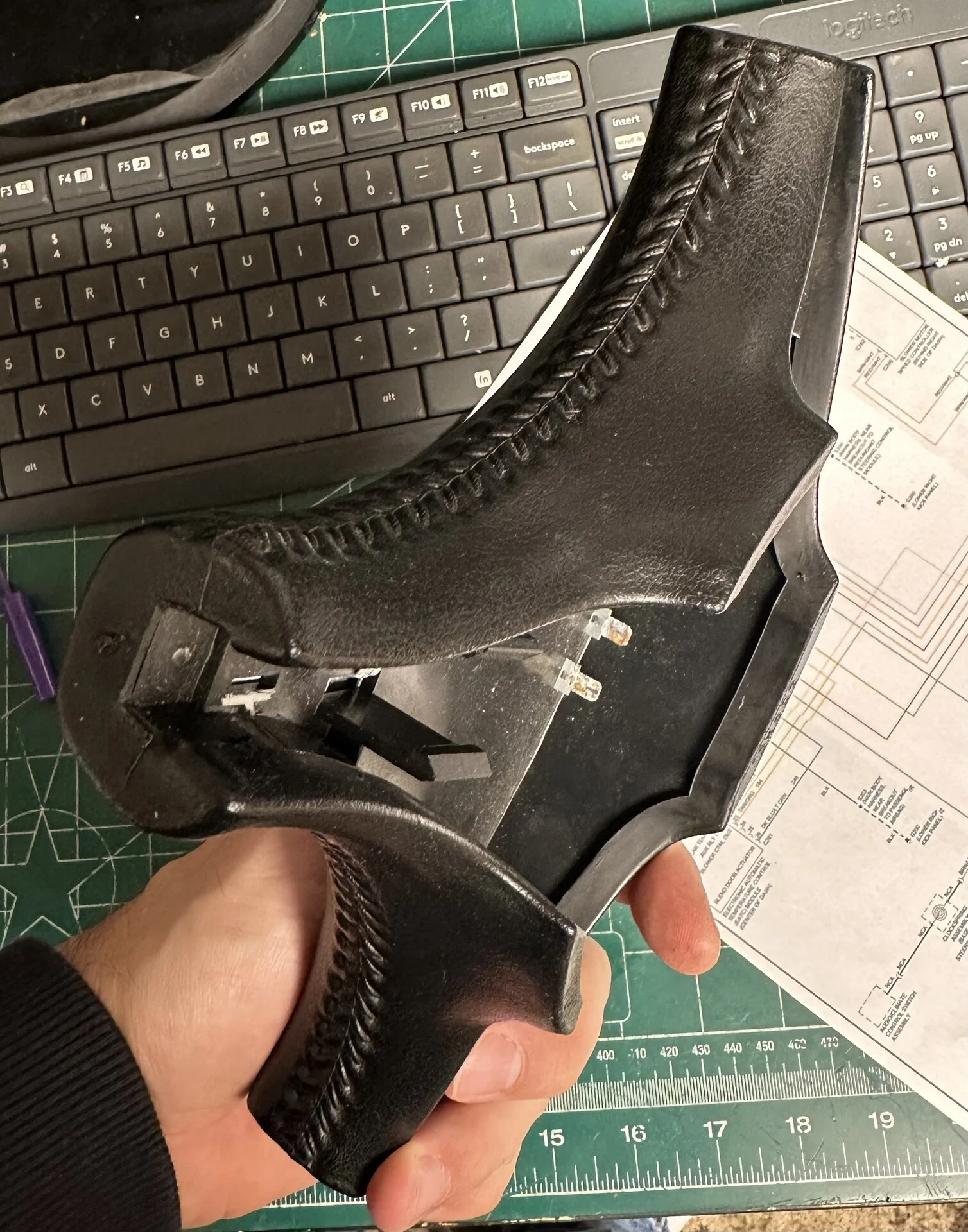

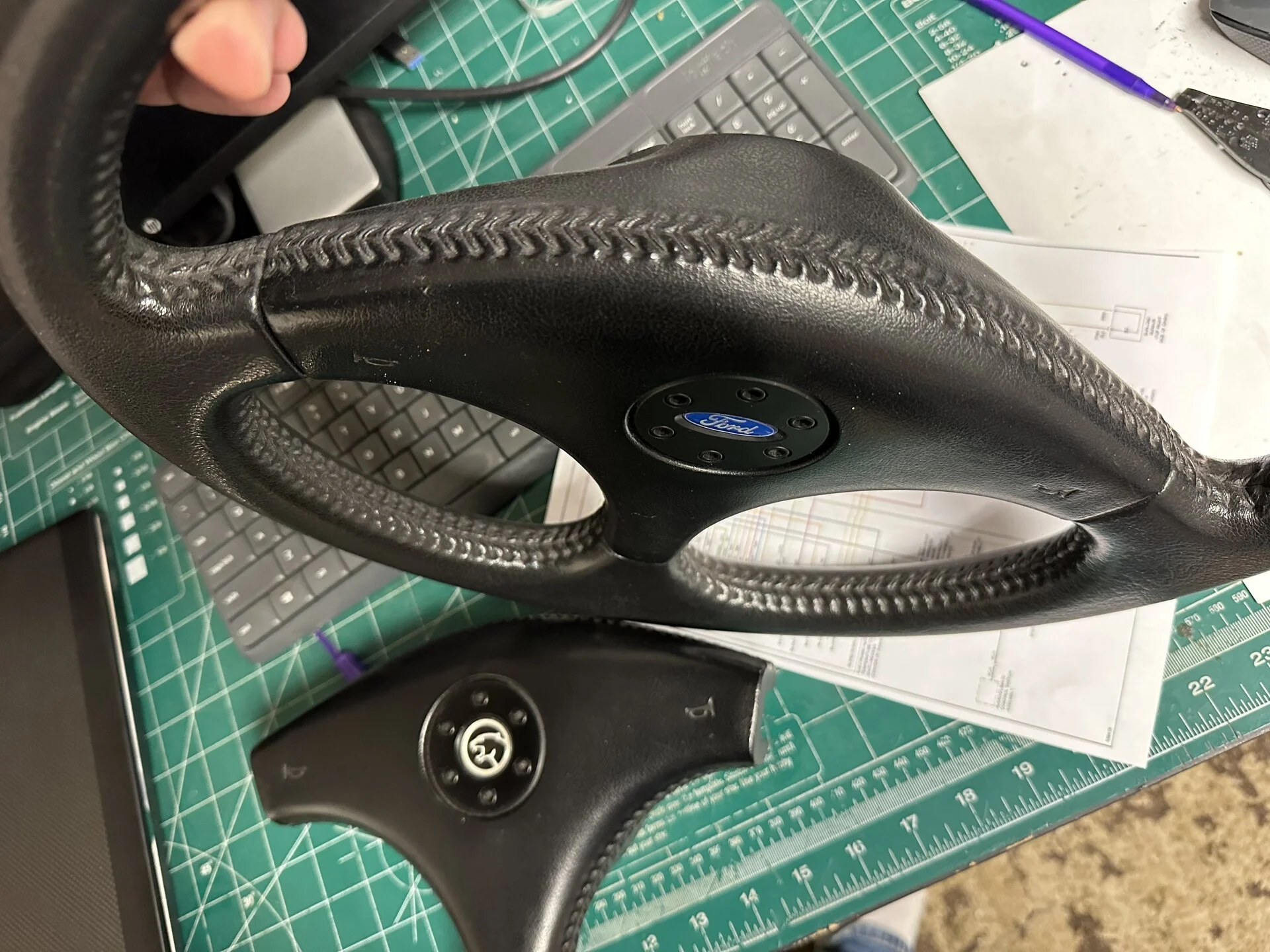

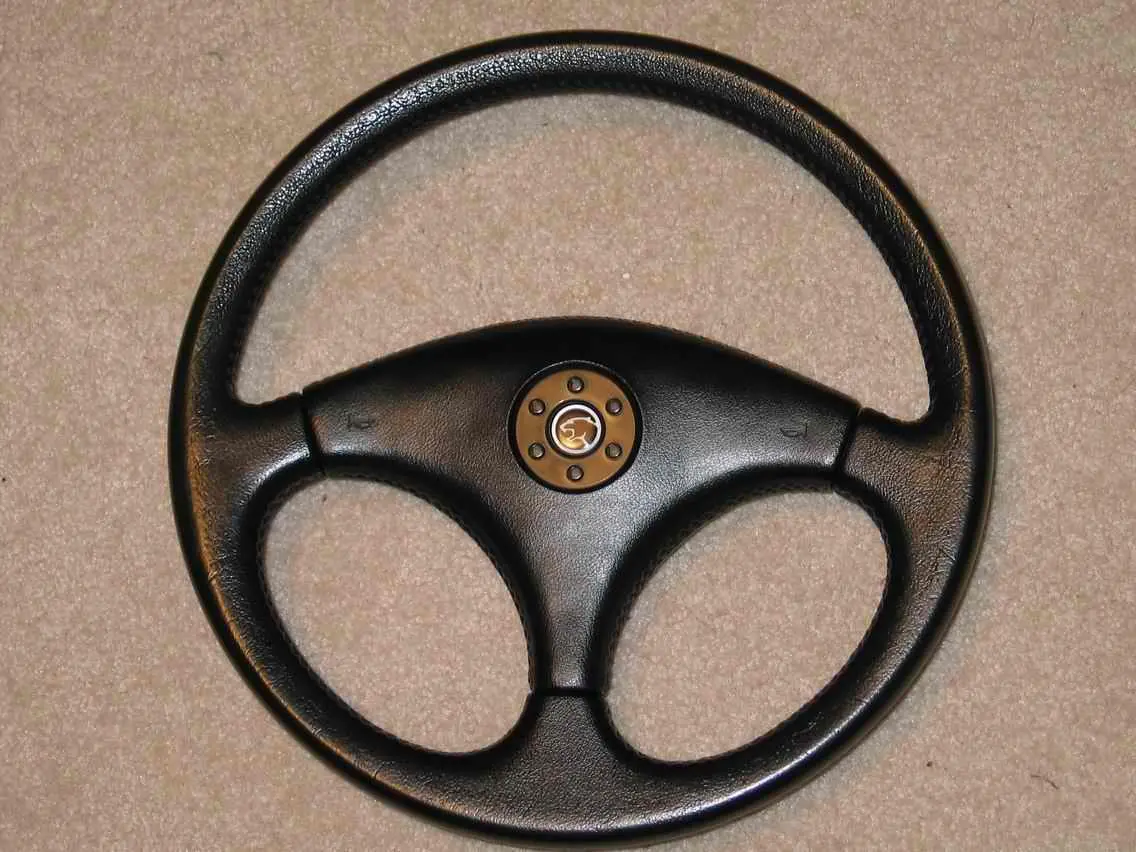

Close up of the stitching detail on the 83-86 non-cruise GT and Mercury RS wheels. The fake stitches are on the horn button which is all plastic.

The LX non-cruise wheels lack this stitching and the rim itself is much thinner.


  • Like
Reactions: 1 users
Close up of the stitching detail on the 83-86 non-cruise GT and Mercury RS wheels. The fake stitches are on the horn button which is all plastic.

The LX non-cruise wheels lack this stitching and the rim itself is much thinner.

Redline had a hell of a time with mine because they had only ever seen svo ones . They ended up sending it to England and back to actually do the leather and stuff at no cost to me
