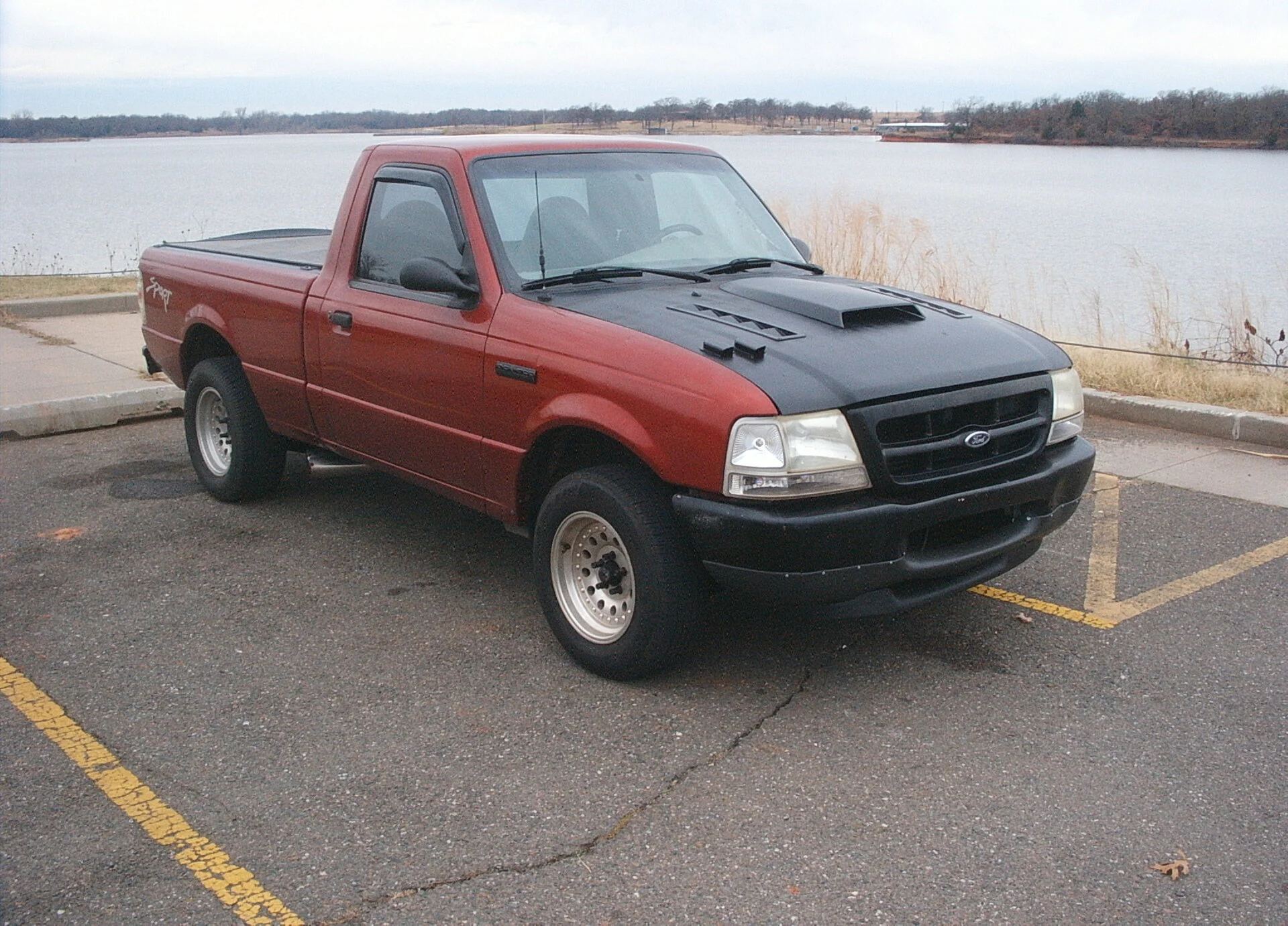

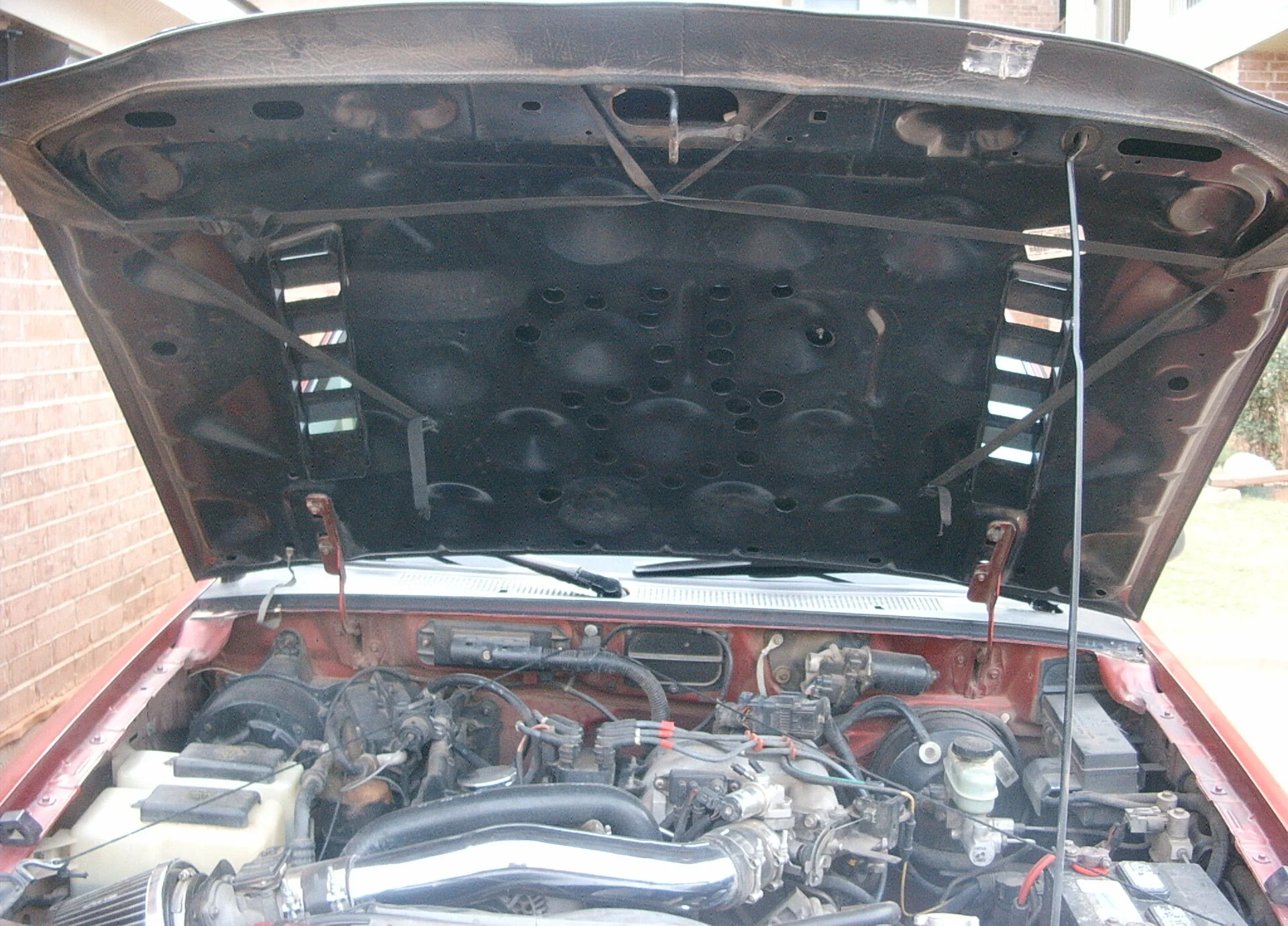

The area where that shaker goes is pretty flat, doesn't have any reinforcement. I believe it's meant for a scoop there. Fairly straight forward to cut. Myself, I recently put some Stang vents on my Ranger as an experiment to see if I could do it before doing the same on my 07 Stang. The Ranger's hood is steel, not aluminum and has heavy reinforcement. I masked off the entire hood where the vents went. I obtained some metal reinforced cutting wheels from Harbor Freight, and the mandrel you use to put them in a drill. Drilled the corners with a half inch drill, then connected the corners with the cutting wheel. Be sure and cover the entire engine bay with a tarp or something before hand, it's messy. Then I used a rotary file to clean up the edges, painted the edges with flat black model enamel, and stuck the vents on.

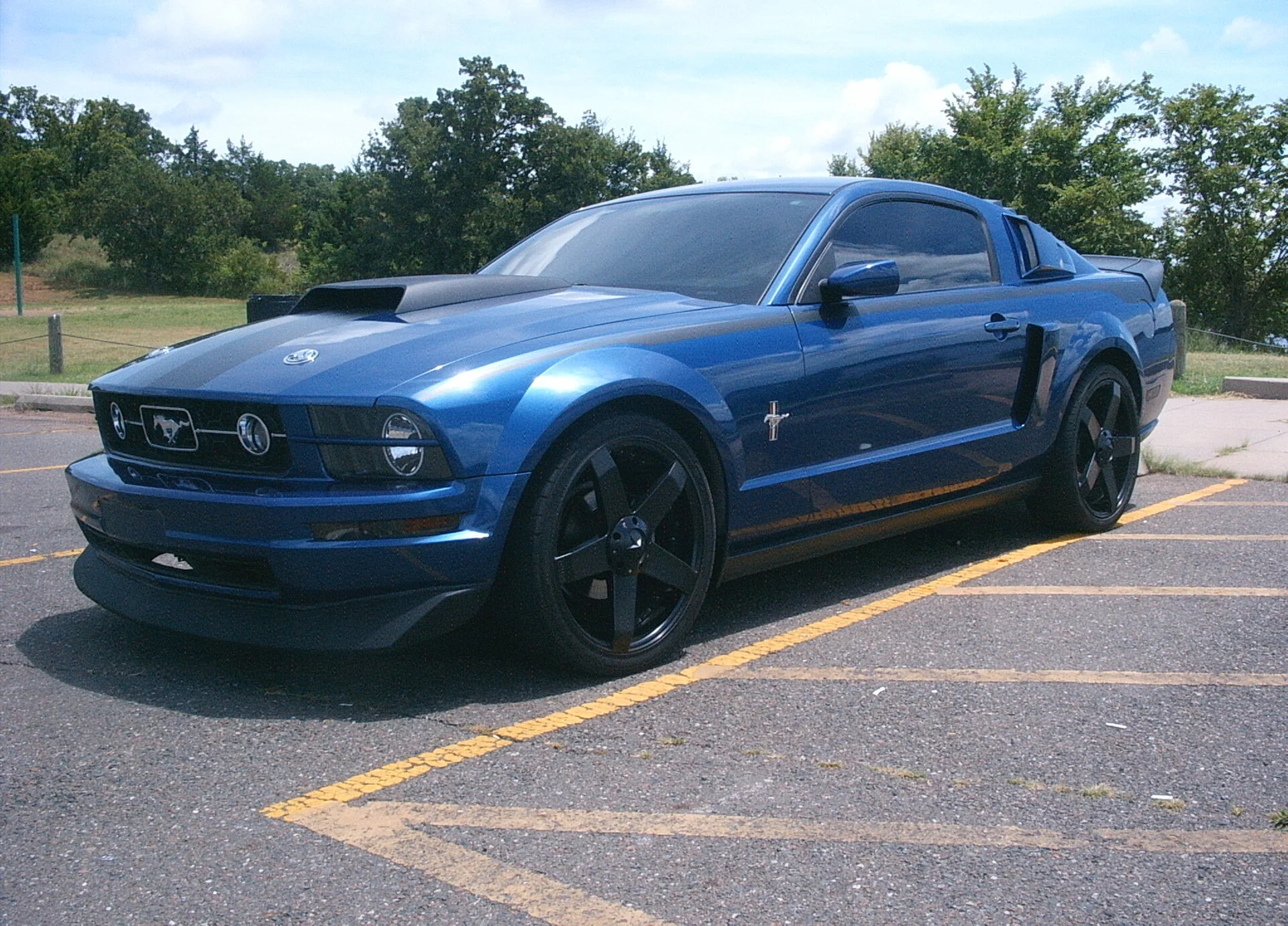

The hood scoop on the Ranger used to be on the Mustang. The two small scoops on the passenger side are directly over the large cone filter.

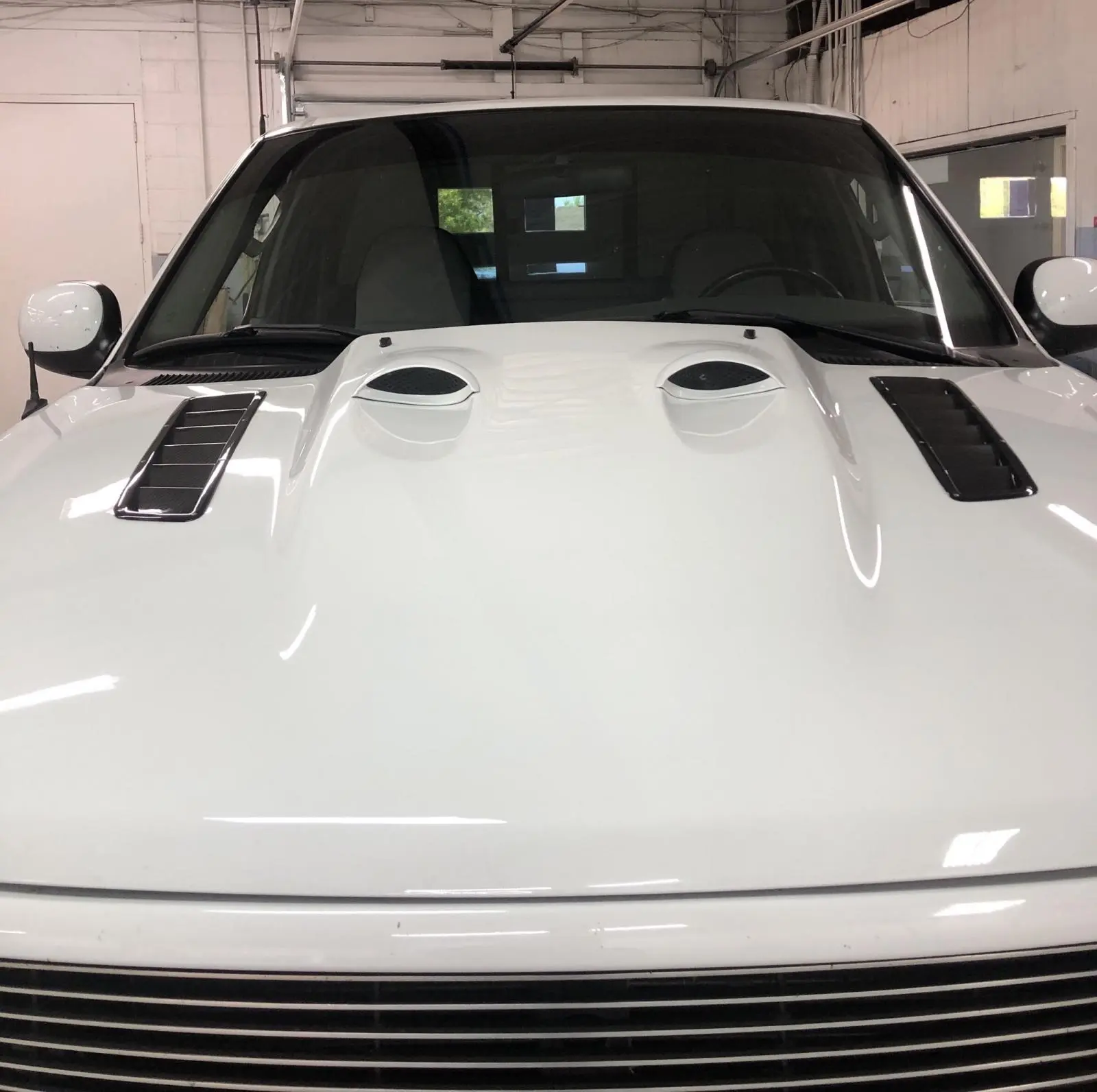

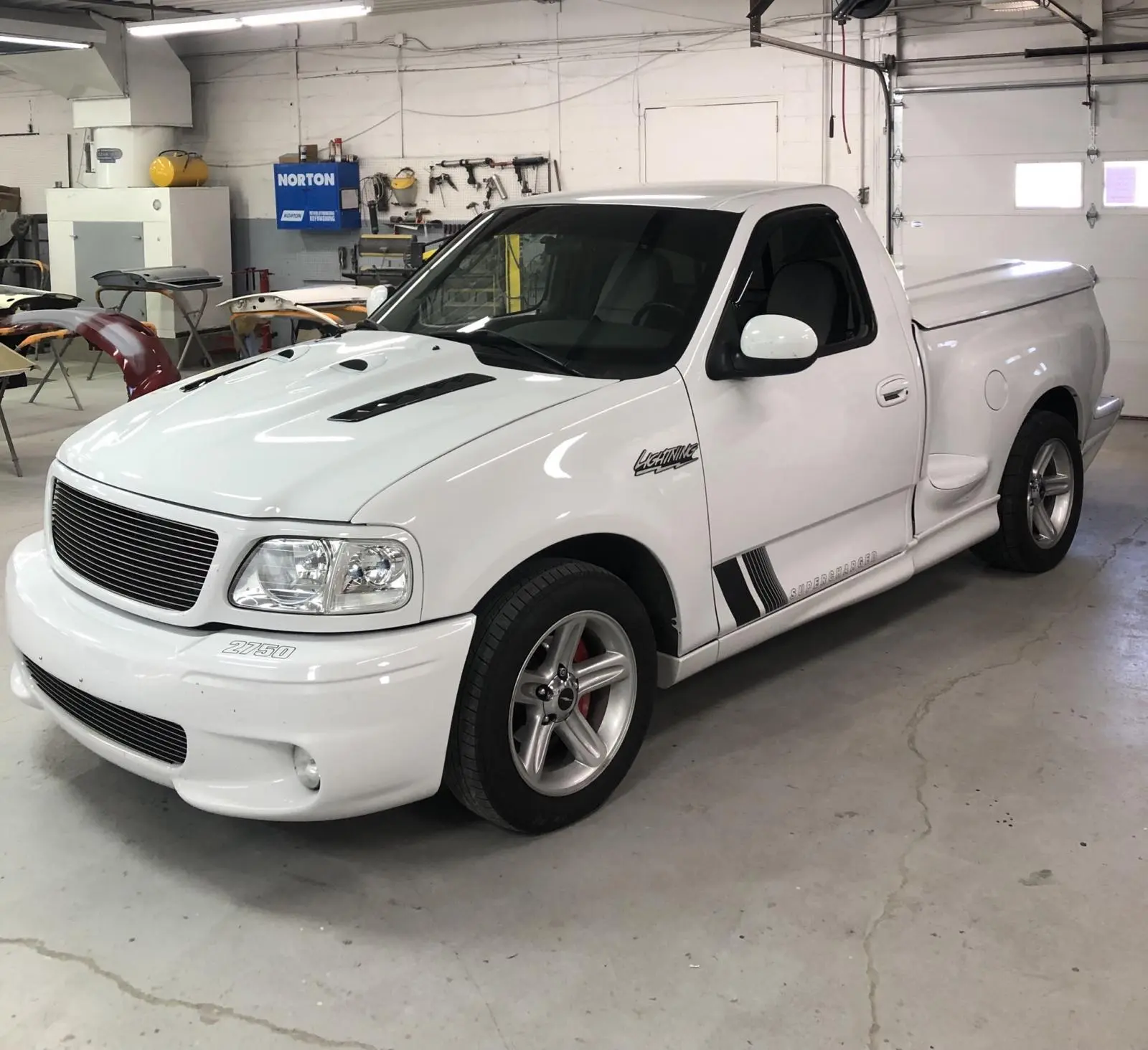

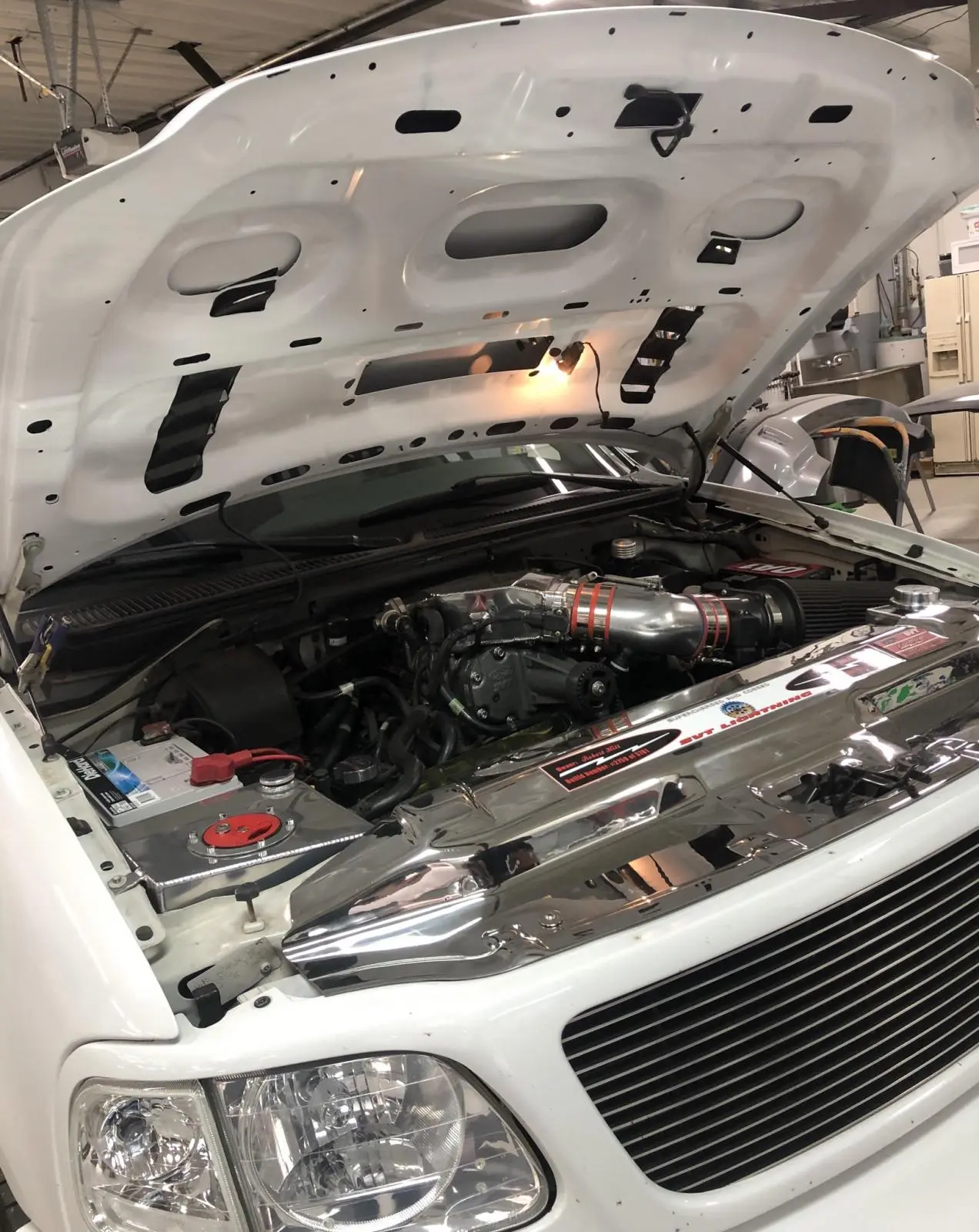

In 2019, a guy in Poplar Bluff Missouri did the hood on my Lightning, including carbon fiber Stang vents. I have two of the same on the way for my Mustang. They'll probably collect dust until it gets warm though. We'll see.


Attachments

  • 00026.JPG
    575.8 KB · Views: 24
  • 00018.JPG
    561.7 KB · Views: 19
  • 8467990C-5795-41A7-B08E-205E28F9B76B.jpg
    222.3 KB · Views: 22
  • BA381FB4-436A-4DDD-9FBF-54FEC8D2C620.jpg
    256 KB · Views: 22
  • E229B28C-A485-4121-ACFA-032E02AE1AB1.jpg
    172.5 KB · Views: 25
  • 01010033.JPG
    646.7 KB · Views: 24
  • Sponsors(?)


Sycostang67

Member
Sep 27, 2019
34
23
16
41
Kuna, ID
Looks fantastic! I've also wanted one on my '08 GT ever since they came out. Finally ponied up the cash and it's coming this Friday. Still trying to figure out in my head how I'm going to get the hole in the hood cut Also I'm going to have to figure out how to cut the hole in my Airaid CAI heat shield.
I drilled 2 holes in opposite corners and used a jig saw to cut the opening and since the hood is aluminum, it cuts pretty easy. The whole process made me cringe but it was worth it in the end. It helps to have a buddy when taking the measurements as well and do follow the old adage of measure twice, cut once. The only other thing I did was zip tie the drain hose to something, it's kind of long and looks like it could move around possibly getting into trouble. I think you need to get a 3.5" hole saw, the directions will say for sure. You just put the hole in the shield someplace that the slinky tube they give you will fit. I am still using the factory airbox and the hose was a tight fit.


nickyb

WAIT,you now have a pair?
10 Year Member
Apr 3, 2009
906
386
93
58
nevada

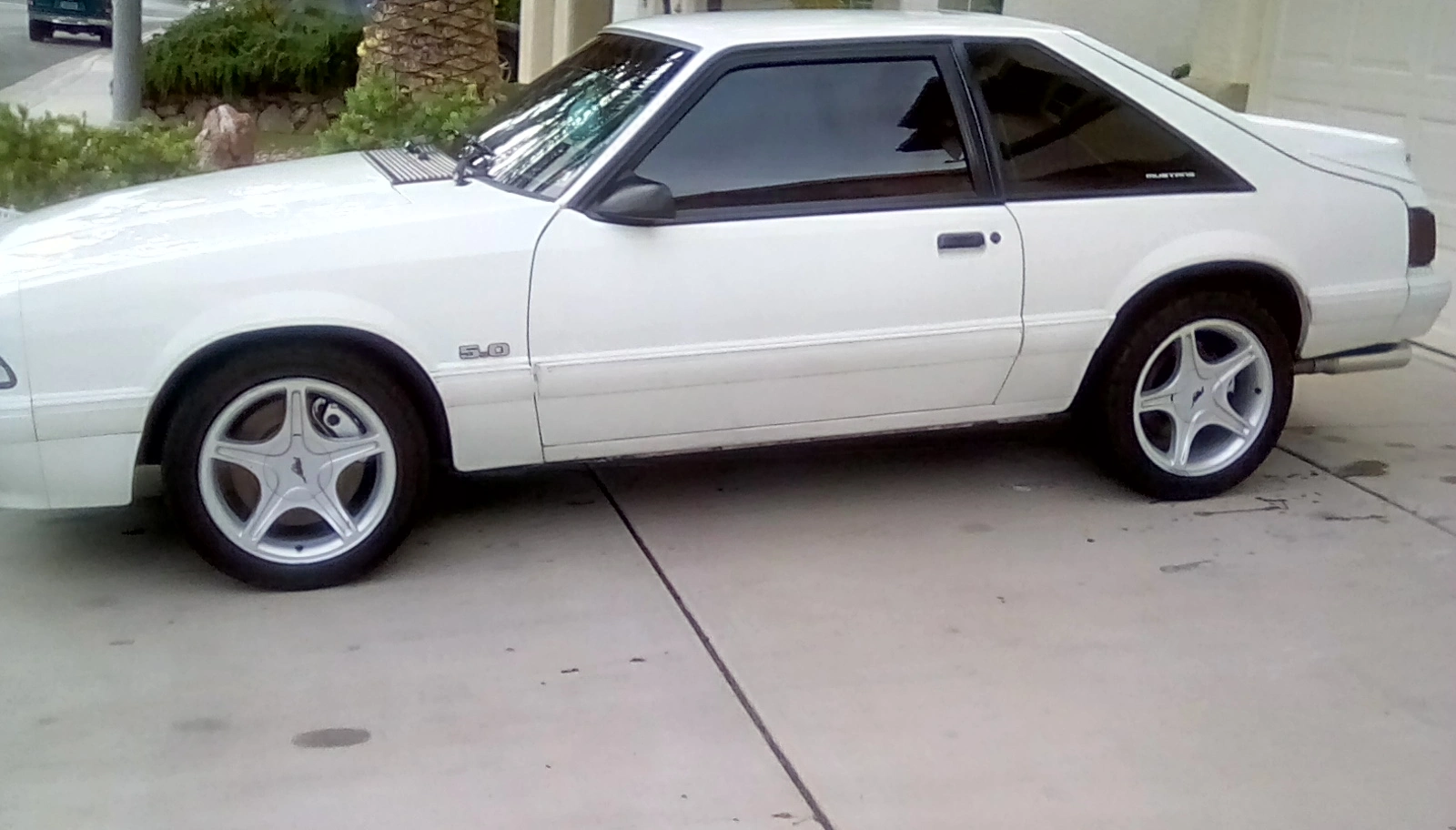

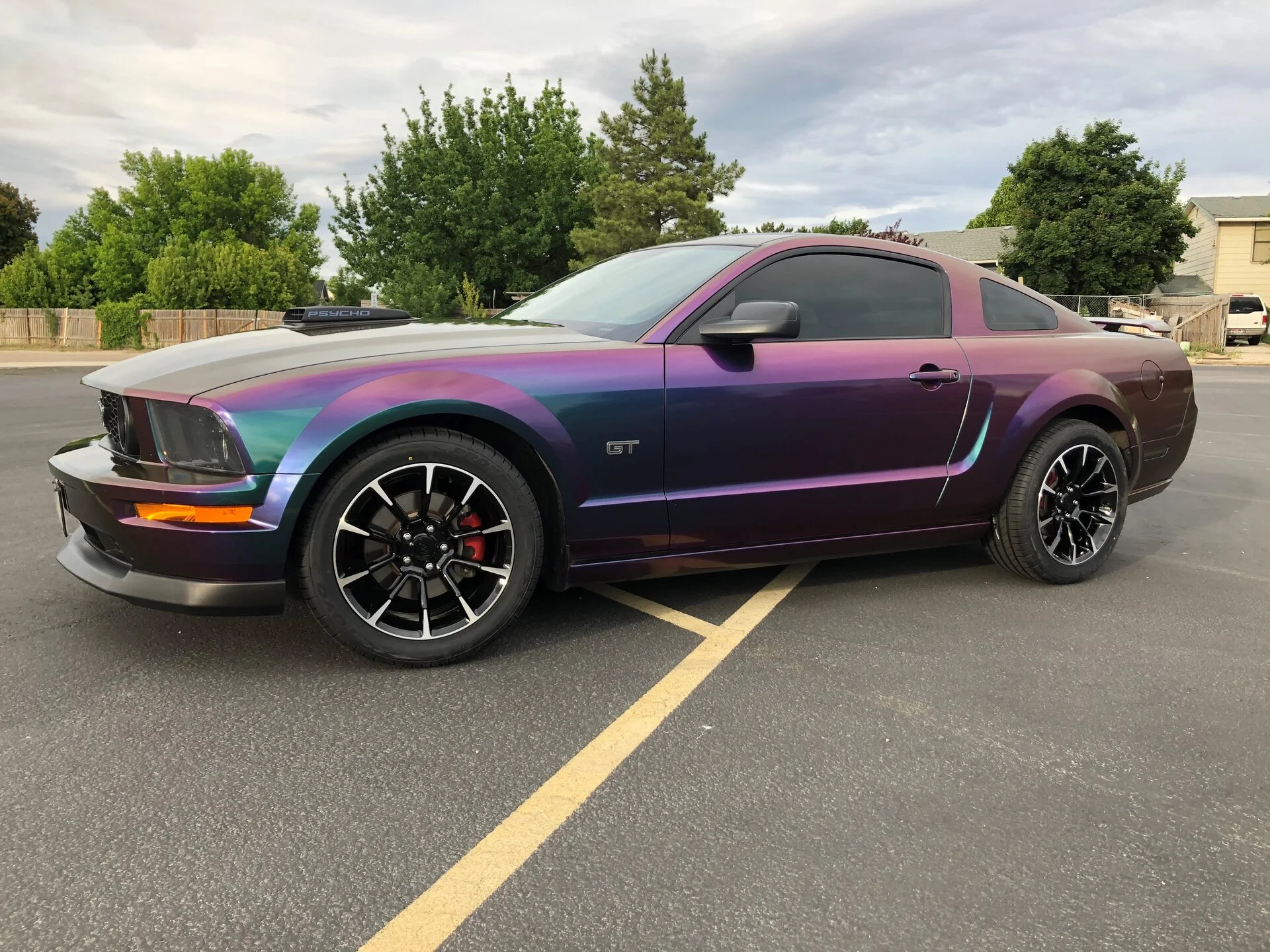

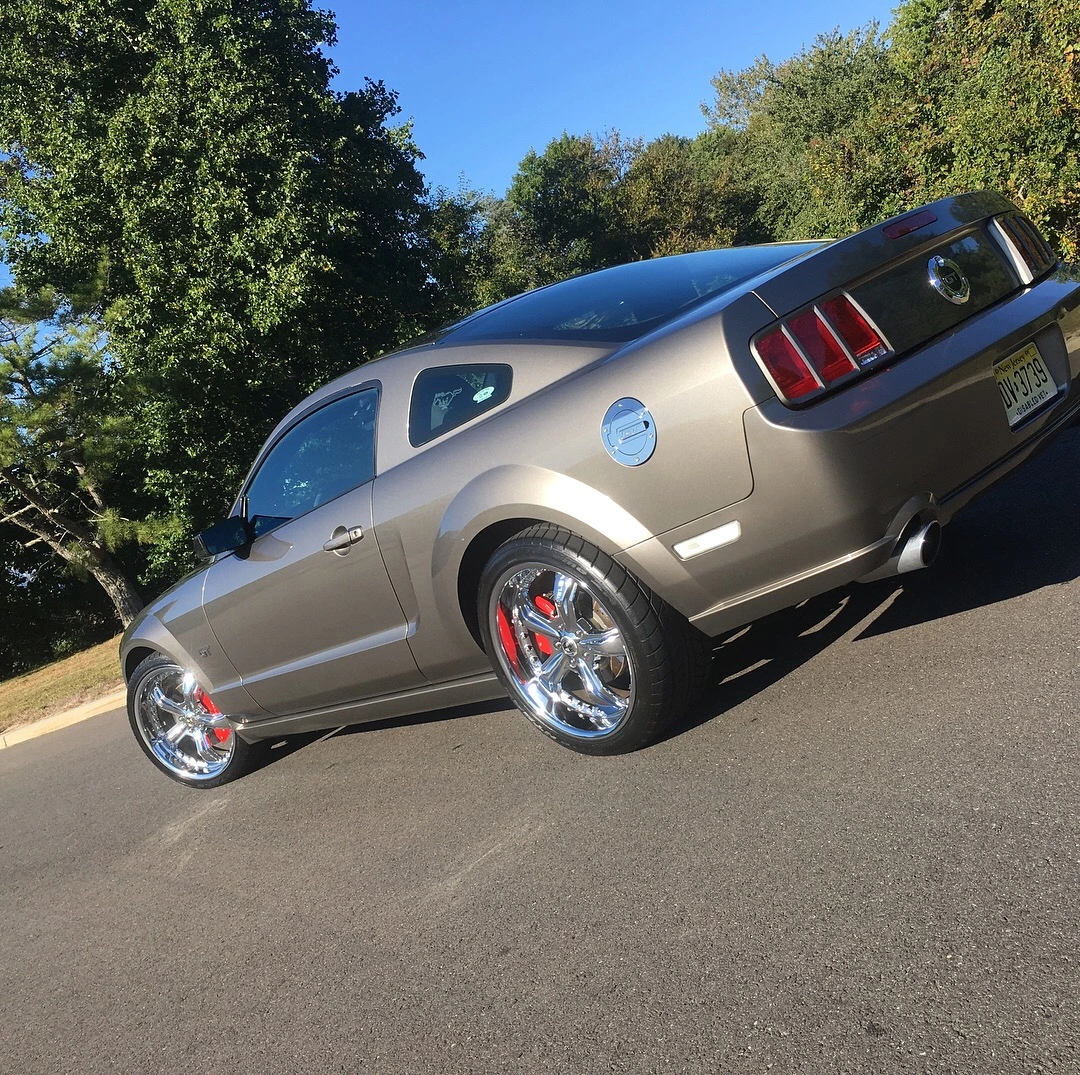

Here she is.


Attachments

  • IMG_20200417_165459_hdr.jpg
    543 KB · Views: 5
  • IMG_20200417_165439_hdr.jpg
    519.4 KB · Views: 4
  • IMG_20200417_165357_hdr.jpg
    525.8 KB · Views: 6
