Request pic of engine out of car!!

[jstang209]

This is kinda dumb.. but i took everything off my engine and im not really sure on where everything goes back.. i wish i woulda took a pic.. i just need now where the ac comp, alt braket and alt, power steerin pump, and idler pulley and stuff go thanks



[HISSIN50]

not sure, but this might help at some point.

Good luck.



[jstang209]

come on i no someone has to hav a good pic of there engine out of the car!



[Modular2v]

go buy a chilton manual for your car...you can find it at your local auto store. it will give you explicit detail on where every bolt goes on your car



[1990LXDropTop]

go buy a chilton manual for your car...you can find it at your local auto store. it will give you explicit detail on where every bolt goes on your car



[jerryD]

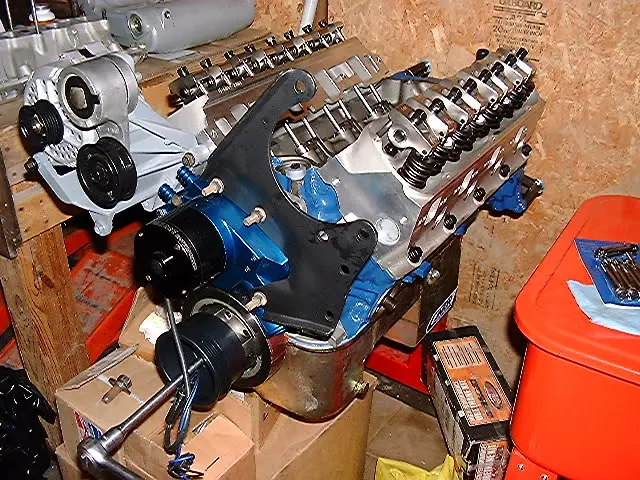

this might help some. ps pump goes under the a/c bracket.



[88GThatchback]

Hows this?



[ALMOST STOCK]

Just like jerryD had said, this might help some.

I remember when I took all my accessories off and couldn't remember exactly how then went on, so I understand you dilemma.


View attachment 510635

View attachment 510637

View attachment 510639



[Mustang5L5]

Make sure you put the heads on with the threaded inserts towards the front.

When i built this engine, i had it all together and realized the inserts were at the rear. I couldn't get them out...so i had to tear down the motor

View attachment 510619
View attachment 510621
View attachment 510623
View attachment 510627
View attachment 510630



[jstang209]

perfect, thanks!



[MahFiVeOh]

Just like jerryD had said, this might help some.

I remember when I took all my accessories off and couldn't remember exactly how then went on, so I understand you dilemma.


View attachment 510487

View attachment 510489

View attachment 510491

Dayum....Those pics gave me wood
