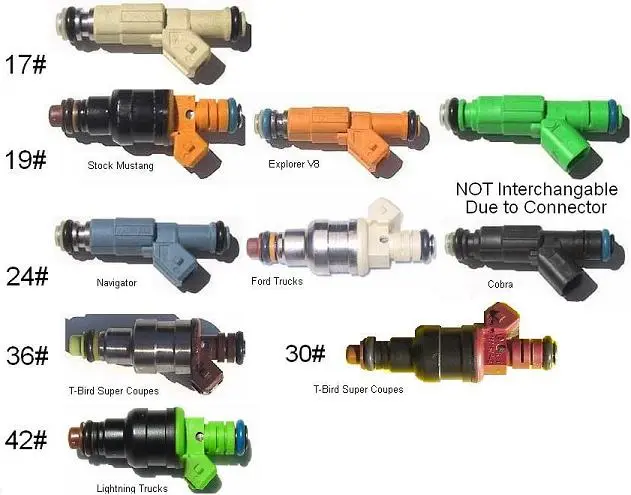

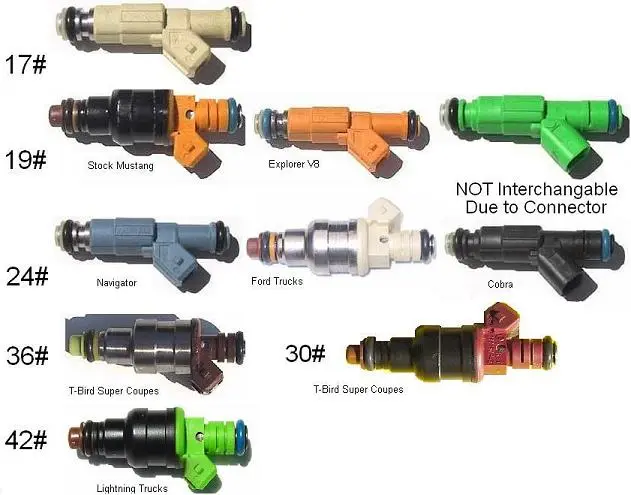

You won't need 24 lb injectors until you start doing things like aftermarket heads and cam. Until then, stick with the 19 lb injectors. The Cobra/Explorer intake, MAF, throttle body exhaust and pulleys are good for a total of maybe 20 real flywheel HP or 30 HP if yo are really lucky.
If you go aftermarket MAF, go Mass Air Systems (
HOME ) the sucessor to Pro-M that went out of business.
Be sure to check out the
Useful Technical Thread Index
sticky thread at the top of 5.0 Tech. It is loaded with all kinds of good info on upgrades you can do yourself.
On a budget? do the junkyard upgrade...
Gears - 87-88 T-Bird Turbo Coupe rear axle - disc brakes and 3.55 or 3.73 gears in one package for $125-$300. Add another $100-$200 or so to complete the brake upgrade.
94-95 Mustang GT MAF - $40-$100. It is 70 MM instead of the stock 55 MM on regular stangs built prior to 94. It uses a slip on duct on the side that goes to the throttle body and a 4 bolt flange on the other. You need a flange adapter to fit the stock slip on air ducting that goes to the air box. Wiring plugs right in with no changes. *1 *2
95-97 Ford Explorer intake manifold & throttle body $150-$300. The intake manifold flows 220 CFM +, much better than stock. Throttle body is 65 MM, bigger than the 60 MM on stock stangs. I got a 96 with EGR passages that match the stock setup, so my smog gear works just like factory. You’ll need a 65 MM EGR spacer & new gaskets for $65-$90 so you have a place to mount the EGR & throttle linkage.
3G alternator from 94-95 Mustangs or other Ford. $20-$120. A must have to make the electrical system work like it should or if you have an electric fan. You’ll need a 4 gauge power wire and a 125-135 amp fuse to go with it about $15- $30.
Lincoln MK VIII electric fan -$40-$160. Free up some HP by not having to drive the stock fan. The 3G alternator upgrade is a must have prerequisite before you do the MK VIII fan. You won’t have enough electrical power if you don’t do the 3G upgrade.
Aluminum driveshaft: (courtesy of shawn13) It needs to be from a 92-93-94 Aerostar AWD. It measures 45 ½” center of the front U-joint to center of the rear U-joint. You will need the U-joint, part #PUJ353 from NAPA. The Canadian NAPA pat number is 1-0134BF. It should bolt right up after the U-joint swap.
Note: This driveshaft is not an exact duplicate of the Ford Racing part. It is 3” in diameter while the Ford Racing part is 3.5” in diameter.
*1.) Metal flange adapter
Kurtz Kustomz Motorsports, Inc. KKM Buy the TR70 for $44.95. Or spend some time on eBay looking for one that may fit.
Try AutoZone and ask for 81413 - Spectre / 3 in. Aluminum Intake Mass Air Flow Sensor Adapter at $12.00. You may have to order it online.
*2.) MAF & sensor interchange
The 94-95 Mustang 5.0 MAF & sensor is also found on:
1995-94 Mustang 3.8L F2VF-12B579-A2A,
1994-92 Crown Victoria 4.6L F2VF-12B579-A2A,
1995-94 Mustang, Mustang Cobra 5.0L F2VF-12B579-A2A,
1994-92 Town Car 4.6L F2VF-12B579-A2A,
1994-92 Grand Marquis 4.6L F2VF-12B579-A2A,
Evidently the –A1A, -A2A, AA, etc. on the end of the part number is a minor variant that did not change the operating specs. You should be able to ignore it and have everything work good.
