Serpentine Belt Help

[StarFox07]

My smog pump locked up and ended up killing my belt. I got a 84.5'' belt so I can bypass the pump, but I cant get it on? How do I adjust the tensioner so I can get it over all the pulleys? Anyone have a diagram on how to best setup the belt? Its a stock 91 5.0.



[rd]

It goes just like the original, but not over the smog pump.

If it's too short, you will have to get a longer belt.

They do vary some.

It's probably just as easy to replace the pump and be done with it.



[StarFox07]

This topic can be locked, i finally got it, after calling in a 250lb powerlifter, its on.



[jtfairlane]

Were you just asking how to lift the tensioner?

The bolt in the center of the tensioner pulley is left/reverse threaded, to allow you to raise the tensioner without loosening the bolt.

All you need is a breaker bar and an 18mm socket, and one arm.



[Mustang5L5]

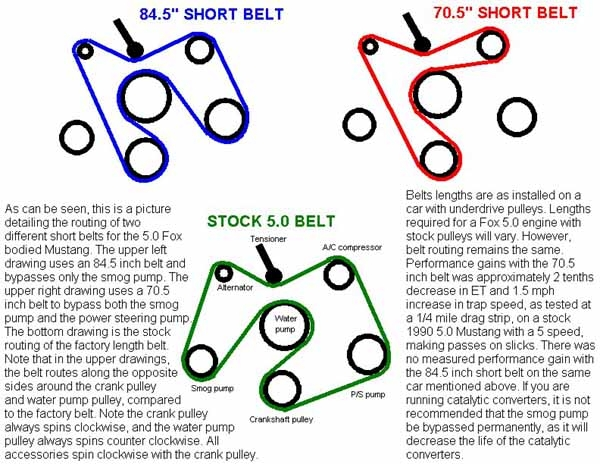

Belt gets routed slightly different
