Swapping Tranny Need Some Help

ratsr89lx50

New Member
Jan 29, 2016
2
0
1
61

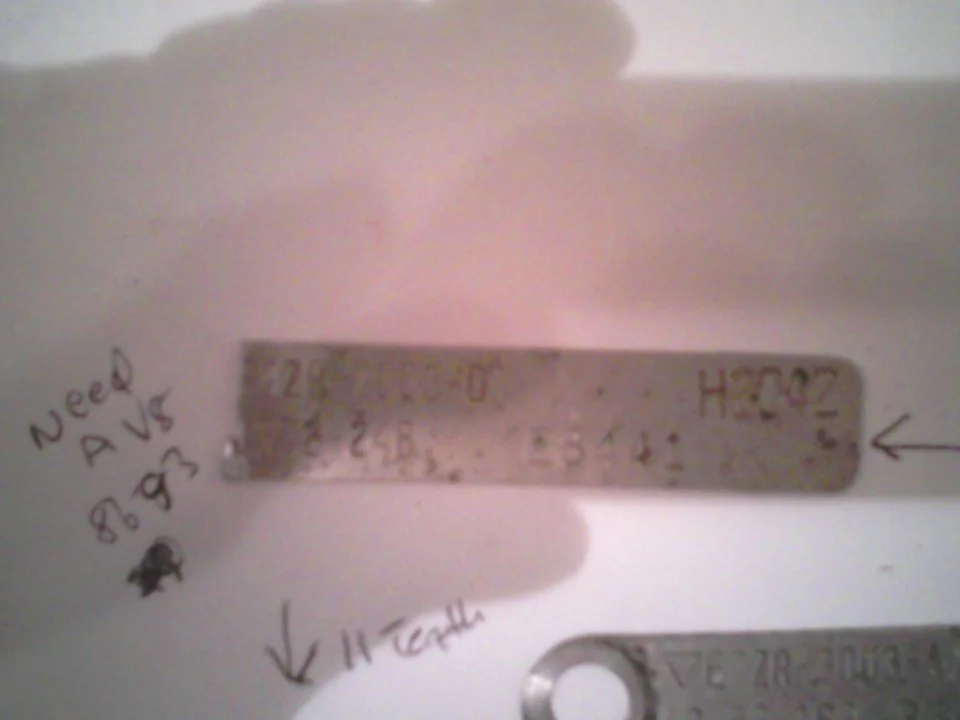

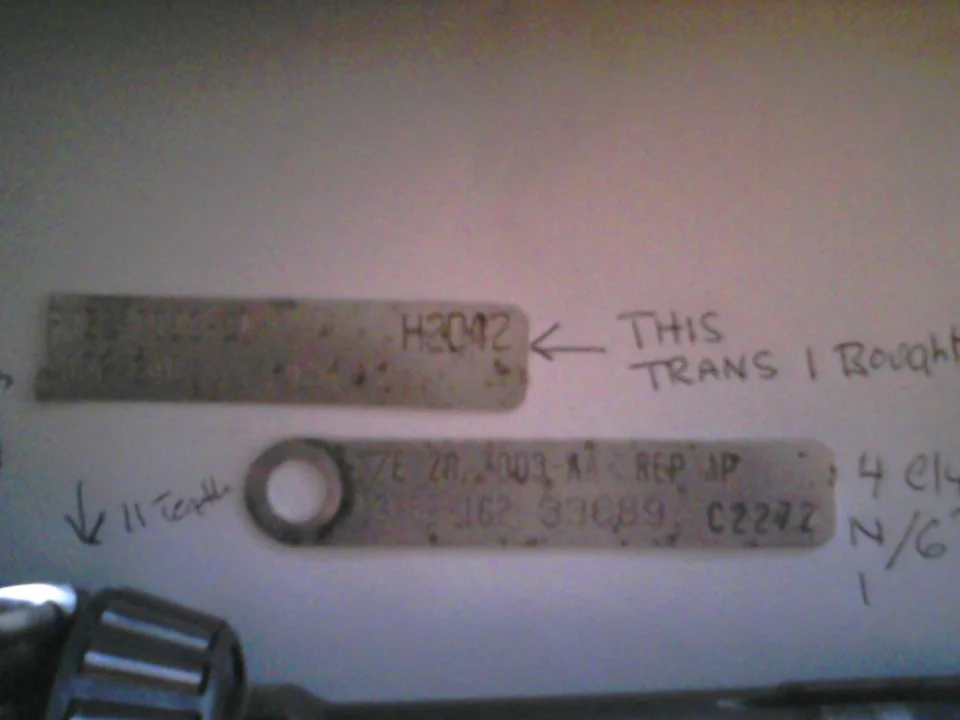

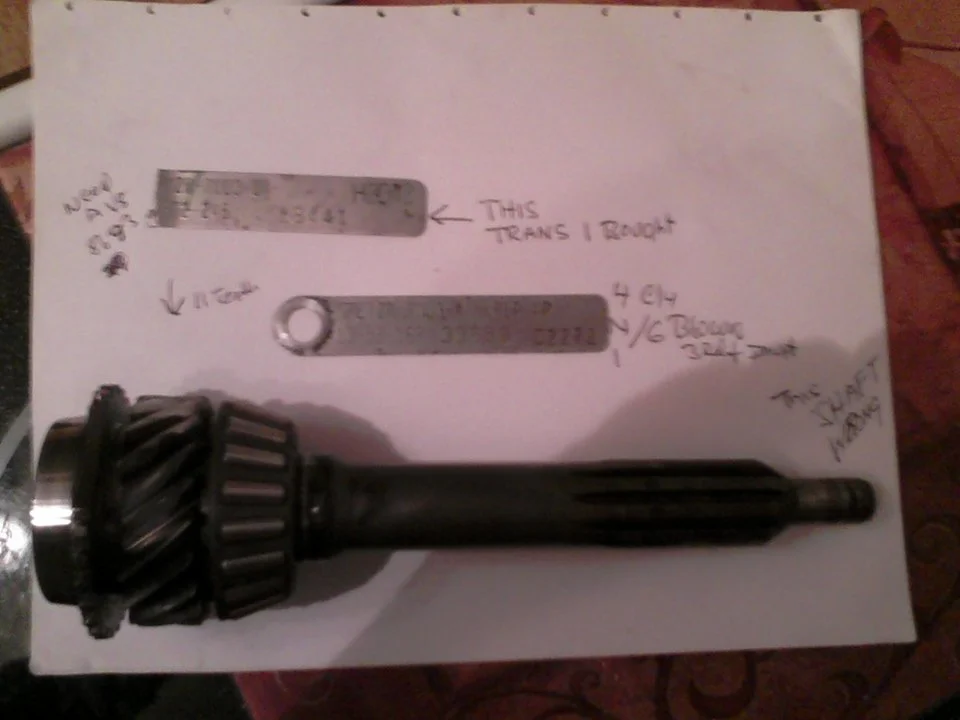

hi I have a 246 transmission I want to put in my fox, I found out after pulling mine it was a 162 4 cyl and I cant use the input shaft, does anyone know where I can get one and is there any othe ford models that use the same input shaft for the 246 to fit in 89 lx 5.0, also does anyone know how many teeth th 246 input shaft has


Attachments

  • zzzzzzzzzzzzzzzz 001.jpg
    zzzzzzzzzzzzzzzz 001.jpg
    63.2 KB · Views: 167
  • zzzzzzzzzzzzzzzz 002.jpg
    zzzzzzzzzzzzzzzz 002.jpg
    52.7 KB · Views: 161
  • zzzzzzzzzzzzzzzz 004.jpg
    zzzzzzzzzzzzzzzz 004.jpg
    62.4 KB · Views: 172
Last edited:
  • Sponsors(?)


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,457
2,785
234
75
Dublin GA
lowendmac.com
Try using a micrometer on the input shaft.
6 & 8 cylinder T5 - pilot shaft is .668"
4 cylinder T5 - pilot shaft is .59

The 6 & 8 cylinder T5 use a different pilot bearing from the 4 cylinder T5.

The 246 T5 is from a 94-95 Mustang and the input shaft is longer. To use it, you would need a bellhousing from a 94-95 5.0 Mustang

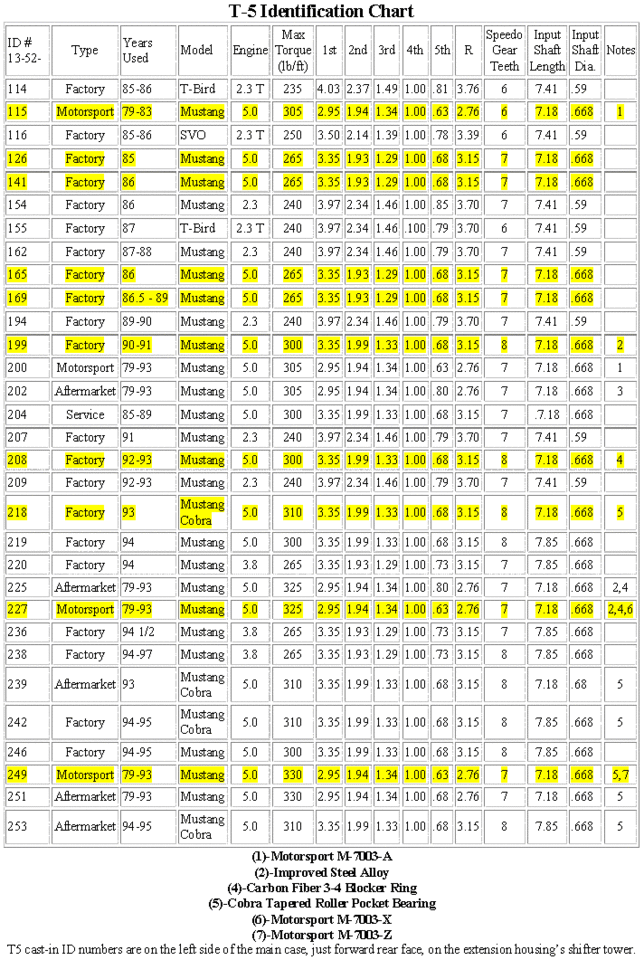

T5 identifier information.

On the tail shaft of the transmission, there will be a stamped aluminum tag. The tag will have a number on it that you can cross reference to the chart below. There is no other way to find out what type of T5 it is without disassembling it. All the rest of the numbers on the outside of the T5 case are part numbers which are not unique to any particular T5 model.

Remember that 94 - 97 T5's have a longer input shaft (about 11/16” longer) and can only be used with a 94-95 bell housing unless you modify or replace the input shaft.

T5's used with a 4 cylinder have a 3.93 first gear, reduced torque ratings and an input shaft pilot diameter that is smaller that the T5 used for V6 & V8 engines. The pilot diameter is .59" compared to the .668" used on V6 & V8 T5's. It requires a different pilot bearing to be used with a V6 or V8. The pilot bearing you need is for a Ford Ranger diesel from AutoZone part #14672




I don't know how you feel about the DYI thing when it comes to gears, some people don't like the idea of working on transmissions. If the DYI transmission fix idea isn't something that you would rather leave to someone else, here are some resources:

See http://www.ttcautomotive.com/English/onlineorder/product.asp to download a FREE service manual for T5 or Tremec 3550/TKO
You will need the Adobe Acrobat viewer which is also a free download – http://get.adobe.com/reader/

See http://www.hanlonmotorsports.com/ or http://www.ddperformance.com for parts
