Tranny Really Hard To Shift!!

Foxstang31

Member
Aug 11, 2015
87
21
18
Ok this problem started yesterday I noticed yesterday while driving the clutch pedal was looser than normal. I also would have to push it all the way to the firewall as hard as I can to get it to shift!? Still has stock clutch cable no adjuster ect. Any way to adjust this or any ideas on what's going on?

  • Sponsors (?)


The clutch is not disengaging completely....That makes it difficult to get the transmission difficult to shift or get in gear.

Clutch adjustment
Do the clutch adjustment first before considering any other problems. With the stock plastic quadrant and cable, pull up on the clutch pedal until it comes upward toward you. It will make a ratcheting sound as the self adjuster works. To release to tension of the stock quadrant, use a screwdriver to lift the ratchet paw up and out of engagement with the quadrant teeth.

Binding clutch cable
A binding clutch cable will make the clutch very stiff. If the cable is misrouted or has gotten too close to the exhaust, it will definitely bind. The binding common to adjustable cables is often due to misplacement of the adjusting nuts on the fork end of the cable. This will also cause the cable to wear and fray. Both nuts should be on the back side of the fork so that the domed nut faces the fork and the other nut serves as jam or locknut to the domed nut.

Clutch pedal adjustment
Clutch pedal adjustment with aftermarket quadrant and cable: I like to have the clutch completely disengaged and still have about 1.5” travel left before the pedal hits the floor. This means that I have only about 1” of free play at the top before the pedal starts to disengage the clutch. Keep in mind that these figures are all approximate. When properly adjusted, there will not be any slack in the clutch cable. You will have 4-15 lbs preload on the clutch cable.

Adjustable clutch cable tips:
Loosening the cable adjustment nut (throwout bearing arm moves to the rear of the car) moves the disengagement point towards the floor.

Tightening the cable adjustment nut (throwout bearing arm moves to the front of the car) moves the disengagement point towards the top of the pedal.

Firewall adjuster tips
Turning the firewall adjuster IN makes the engagement point closer to the floor since it loosens the cable. You have to push the pedal to the floor to disengage the clutch. Too loose a cable and the clutch won't completely disengage and shifting will be difficult. Gears will grind and you may have difficulty getting the transmission in first gear when stopped.

Turning the firewall adjuster OUT makes the engagement point farther from the floor since it tightens the cable. You push a short distance to disengage the clutch. Too tight a cable will cause clutch slippage.

Aftermarket solutions to the problem:
The quadrant needs to be replaced if you use any type of aftermarket cable or adjuster. My preference is a Ford Racing quadrant, adjustable cable and Steeda firewall adjuster. The adjustable Ford Racing cable is just as good as the stock OEM cable. It allows a greater range of adjustment than a stock cable with a aftermarket quadrant and firewall adjuster. Combined with the Steeda adjuster, it lets you set the initial cable preload and then fine tune the clutch engagement point to your liking without getting under the car.

Using a stock OEM cable, firewall adjuster and a single hook quadrant may result in not having any free pedal travel before the clutch starts to disengage. I found this out the hard way.

See Summit Racing - High Performance Car and Truck Parts l 800-230-3030 for the following parts.

Ford Racing M-7553-B302 - Ford Racing V-8 Mustang Adjustable Clutch Linkage Kits - Overview - SummitRacing.com Cable and quadrant assembly $90

The Ford Racing Adjustable cable is available as a separate part:
Clutch Cable, Adjustable, Ford, Mercury, 5.0L, Kit FMS-M-7553-C302_HE_xl.jpg

[url=http://www.summitracing.com/parts/SDA-555-7021/]Steeda Autosports 555-7021 - Steeda Autosports Firewall Cable Adjusters - Overview - SummitRacing.com
Steeda firewall adjuster. $40



http://www.steeda.com/images/watermarked/1/detailed/7/ford-racing-mustang-v8-and-v6-topside-clutch-adjuster-79-04-161-m-7554-a.jpg

Fix for the quadrant end of the cable popping out of the quadrant when installing a replacement cable courtesy of Grabbin' Asphalt


The fancy 2 and 3 hook quadrants are for use with stock length cable and a firewall adjuster. Use the firewall adjuster and screw in and out to take the slack out of the cable and get the clutch engagement point just where you want it.[/url]

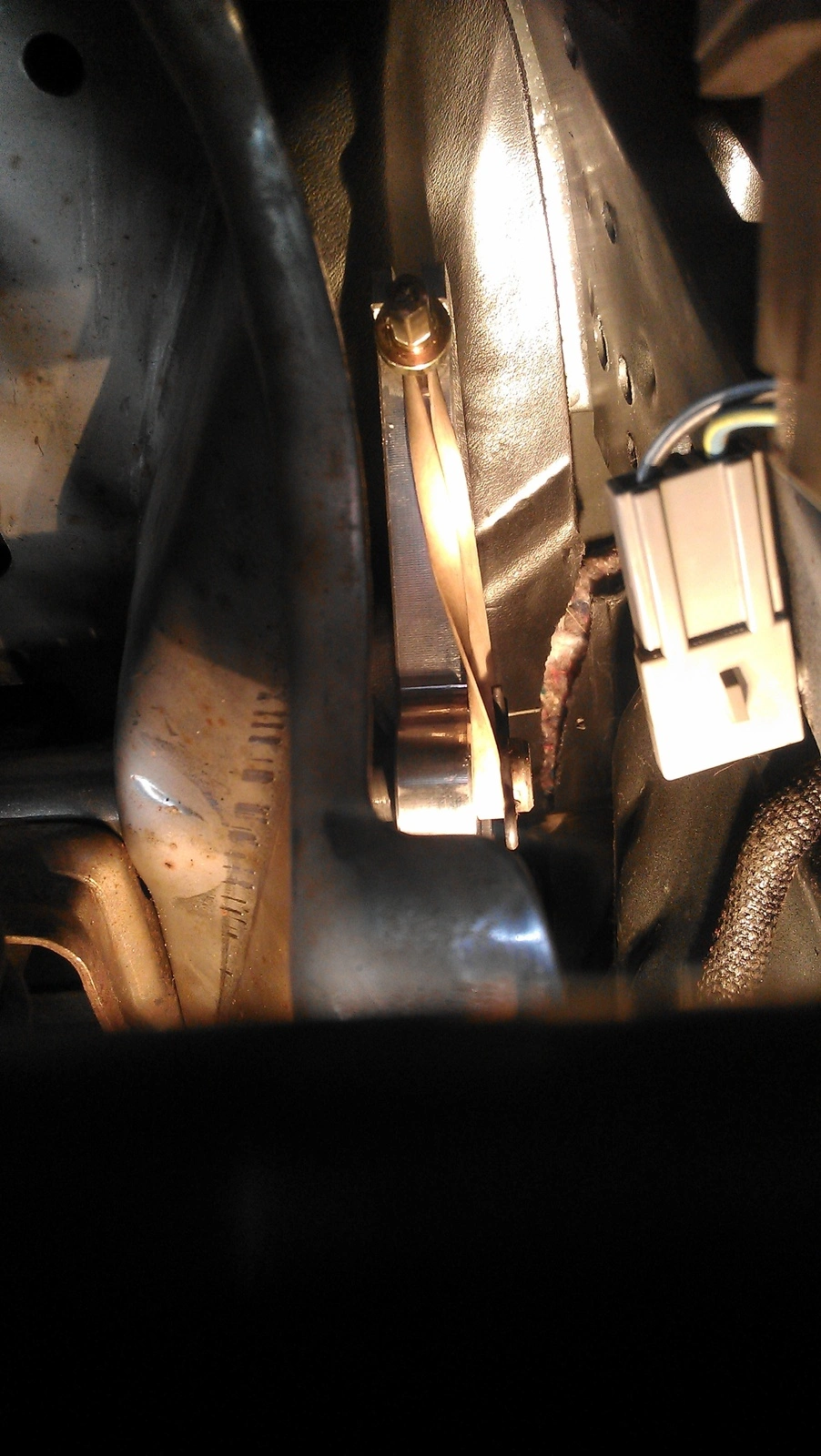

Well turns out I have a bbk quadrant with stock cable and I pulled pedal towards me and it didn't help my cable is so loose it's off the quadrant I have about an 1/4 of cable before it touches the quadrant??

I put the rubber band on there and it stays now but still not enough to even engage the clutch. I will be buying a firewall adjuster this Friday. Any ideas on how it became so loose?

I put the rubber band on there and it stays now but still not enough to even engage the clutch. I will be buying a firewall adjuster this Friday. Any ideas on how it became so loose?

It stretched. It happens. That's why the factory quad is self adjusting. Slap the firewall adjuster on and roll.

Same thing happened to me. Moron previous owner hadn't installed the adjustable clutch cable properly, so it came loose. Look on the trans side and see if you can adjust it there before spending cash on other solutions. Sounds fishy that it happened suddenly. Should've gotten worse to the point where it had gotten really heavy.
