Turn signal issue

  • Sponsors(?)


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
14,947
4,723
193
polk county florida
Ok, lets do this: with the mfs plugged in, find the ground wire and test it for ground with the test light, with the test light connected to the ground wire, activate the turn signal, does the test light flash?
Looking for a bad ground or a power feed to ground (best I can explain it)
Make sure you locate the ground for the turn signals. The switch may have more than one ground wire.


SHOme

Active Member
Nov 16, 2018
56
39
28
51
Maryland
Ok, lets do this: with the mfs plugged in, find the ground wire and test it for ground with the test light, with the test light connected to the ground wire, activate the turn signal, does the test light flash?
Looking for a bad ground or a power feed to ground (best I can explain it)
Make sure you locate the ground for the turn signals. The switch may have more than one ground wire.

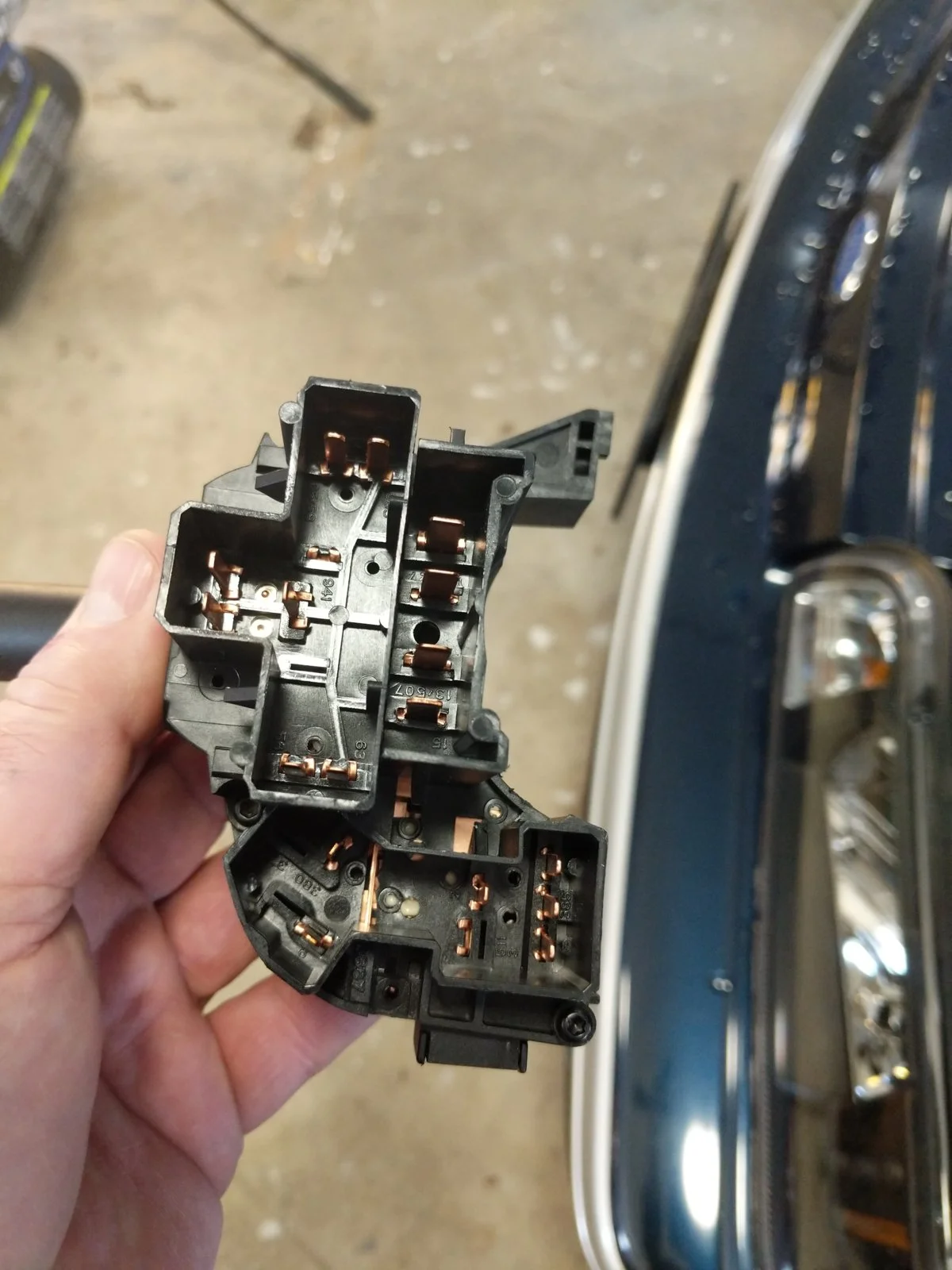

Not sure which is ground. It looks like all the turn signal grounds are at the turn signals. Would it be on the other plug in the MFS?


SHOme

Active Member
Nov 16, 2018
56
39
28
51
Maryland
Not sure which is ground. It looks like all the turn signal grounds are at the turn signals. Would it be on the other plug in the MFS?
I don't know if this is the same test. I went to left front turn signal and disconnected it and put a test light from power to battery negative. No flash.


SHOme

Active Member
Nov 16, 2018
56
39
28
51
Maryland

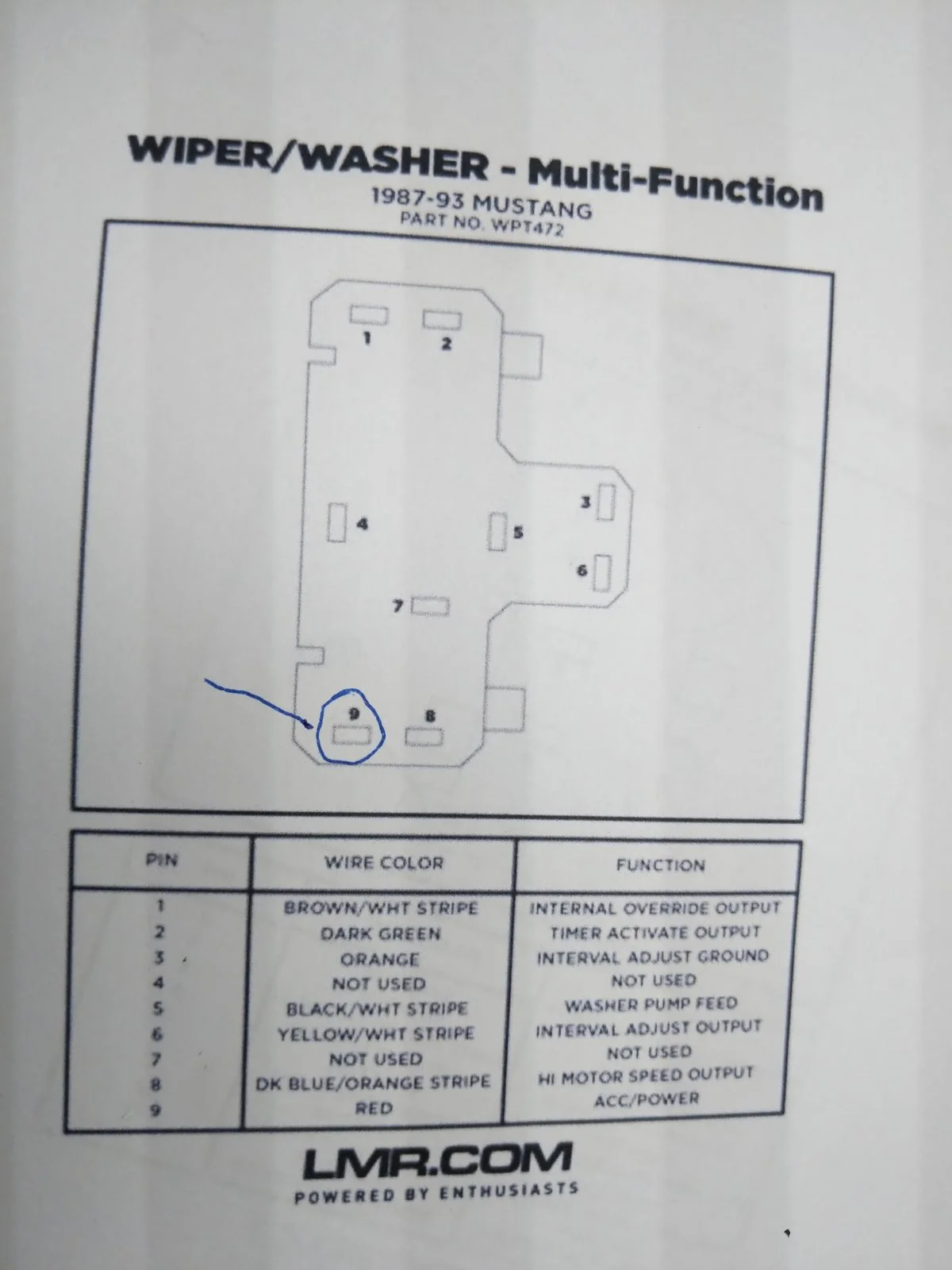

The red wire from this plug is missing. It's labeled ACC/Power. What is ACC/power on the MFS? I'm thinking the previous owner has been in here. Hoping anyway.


SHOme

Active Member
Nov 16, 2018
56
39
28
51
Maryland

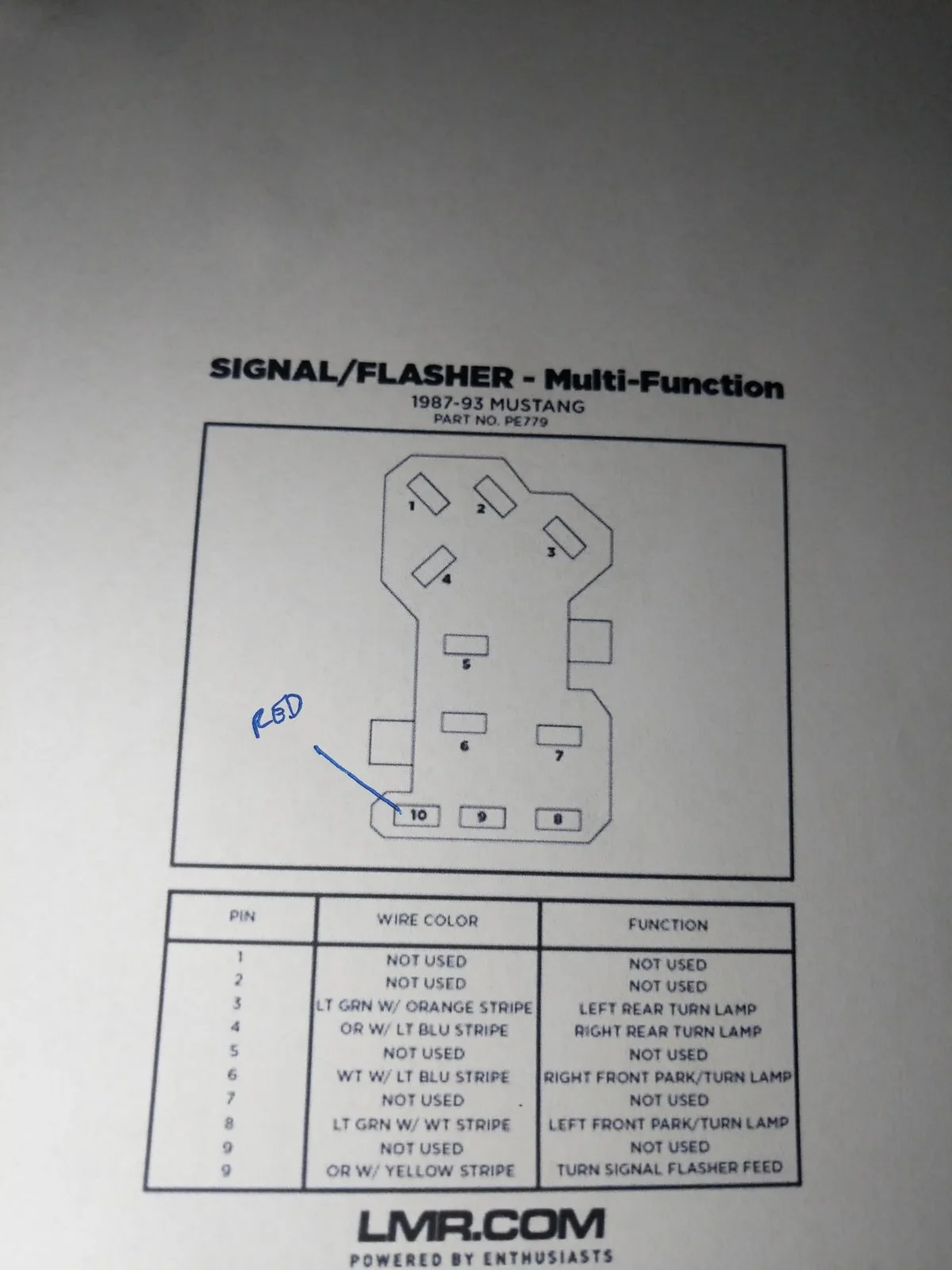

FIXED!!!! Thanks to all of you. General Kartheif got me on the trail by looking for the ground. It requires me to search the pinouts which led me to find the red ACC/power wire running to the spot the o/y was supposed to be. Then I checked the next connector and low and behold no red wire. I had not tried wipers yet but I'm betting they would not have worked either. That was a tough one. I guess I'll get my daughter and let her take me for a spin
