Vortech air inlet through shock tower and fender

Foot Hill

Active Member
Dec 9, 2014
75
46
28

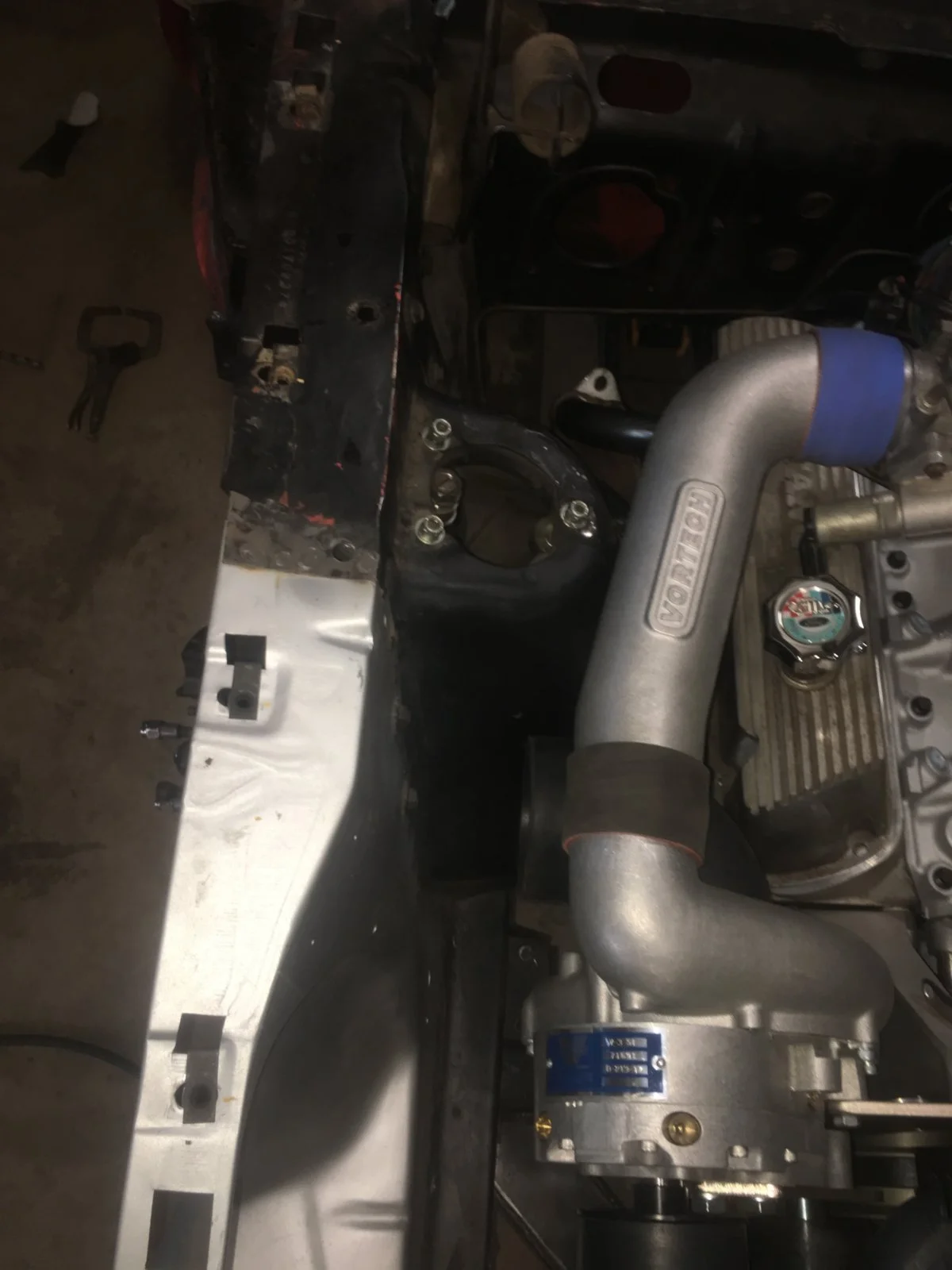

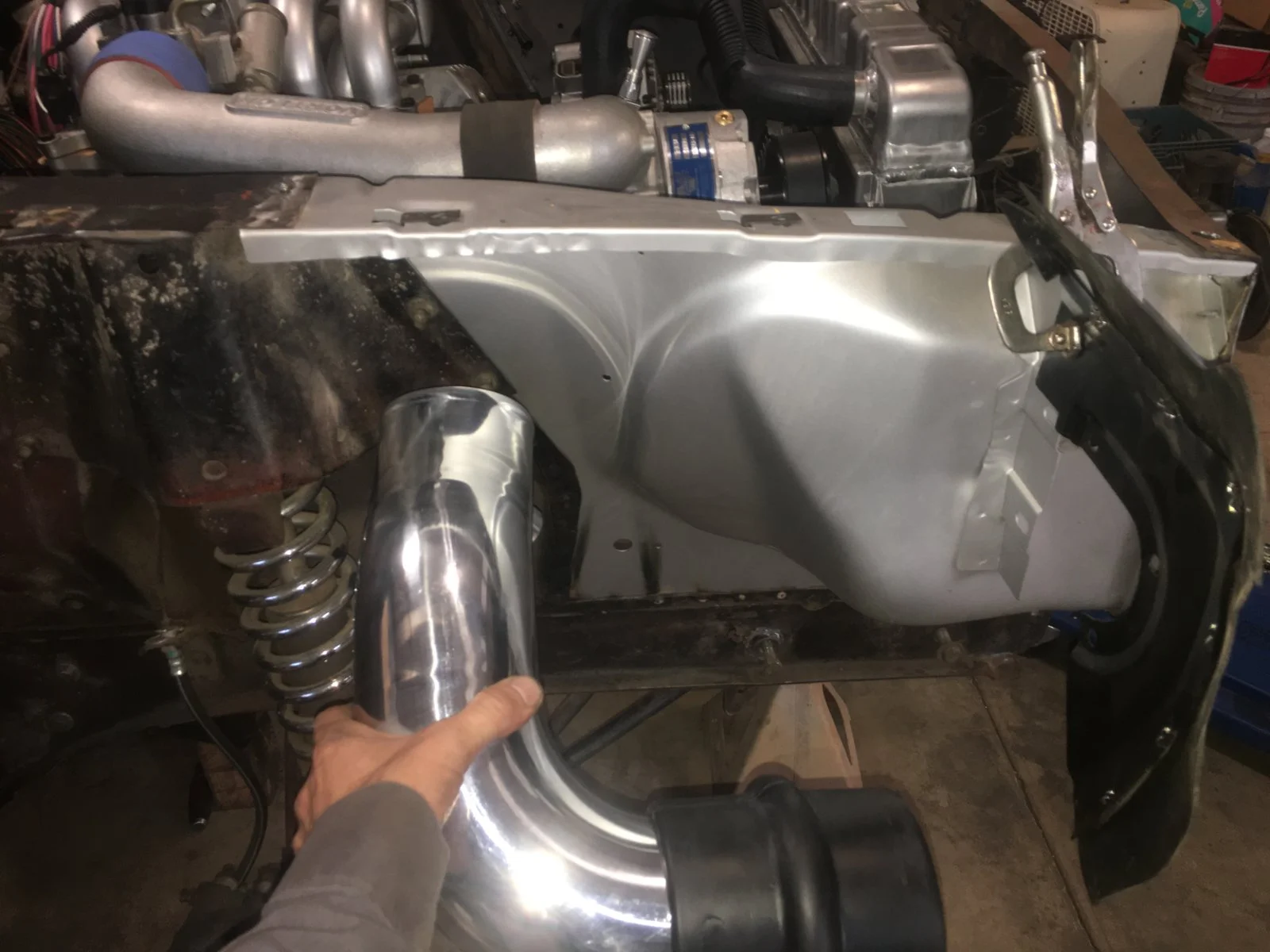

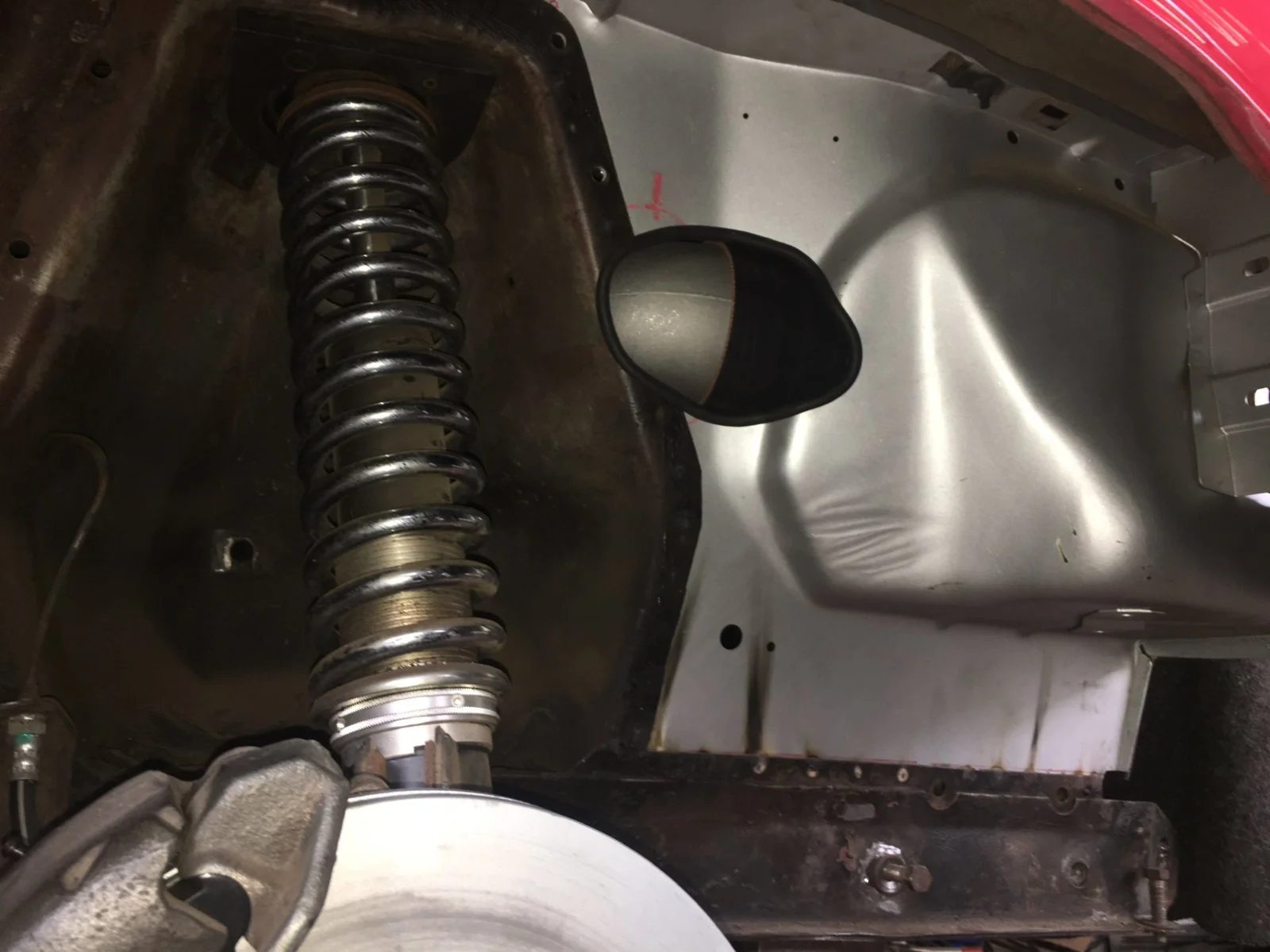

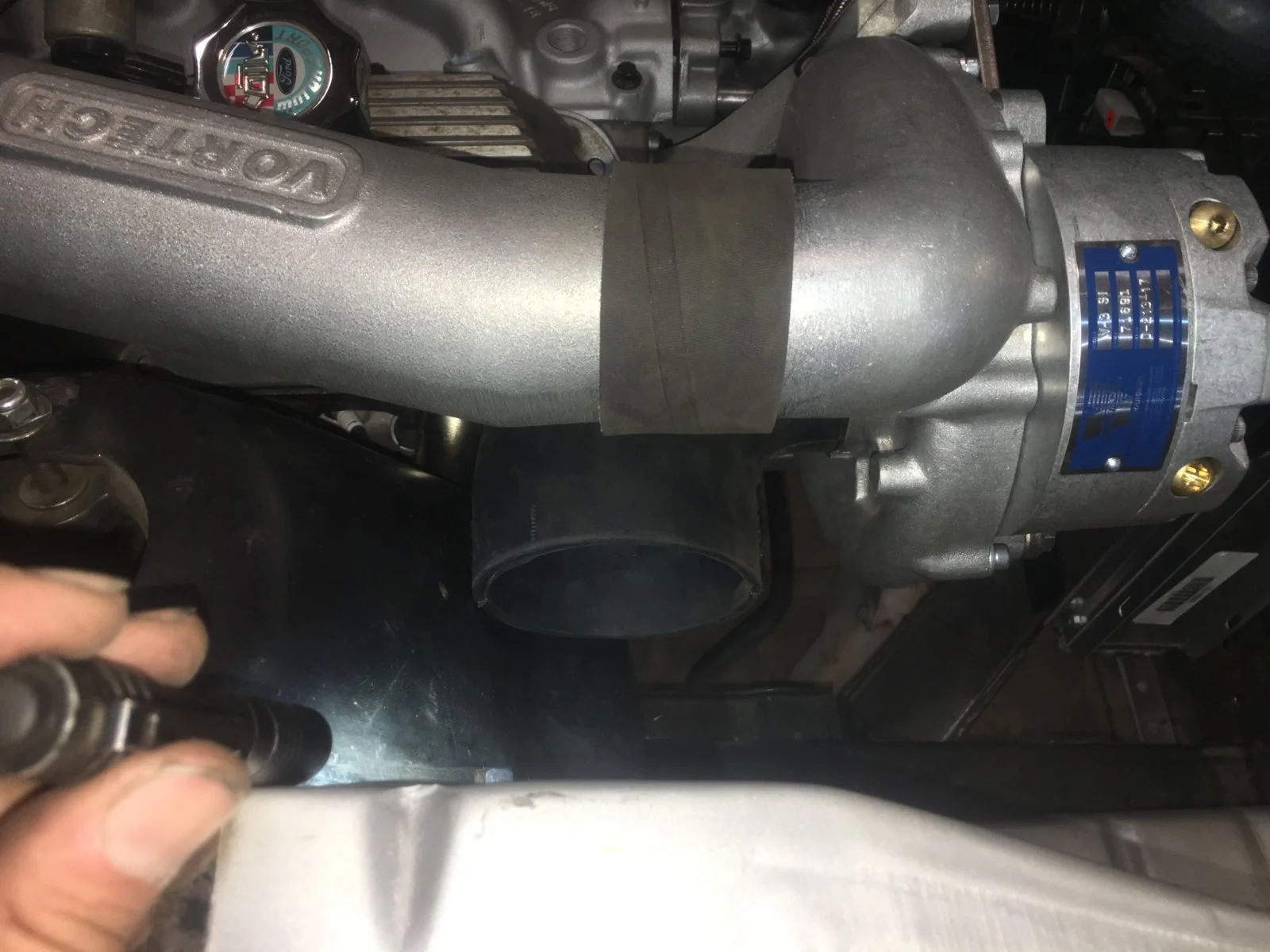

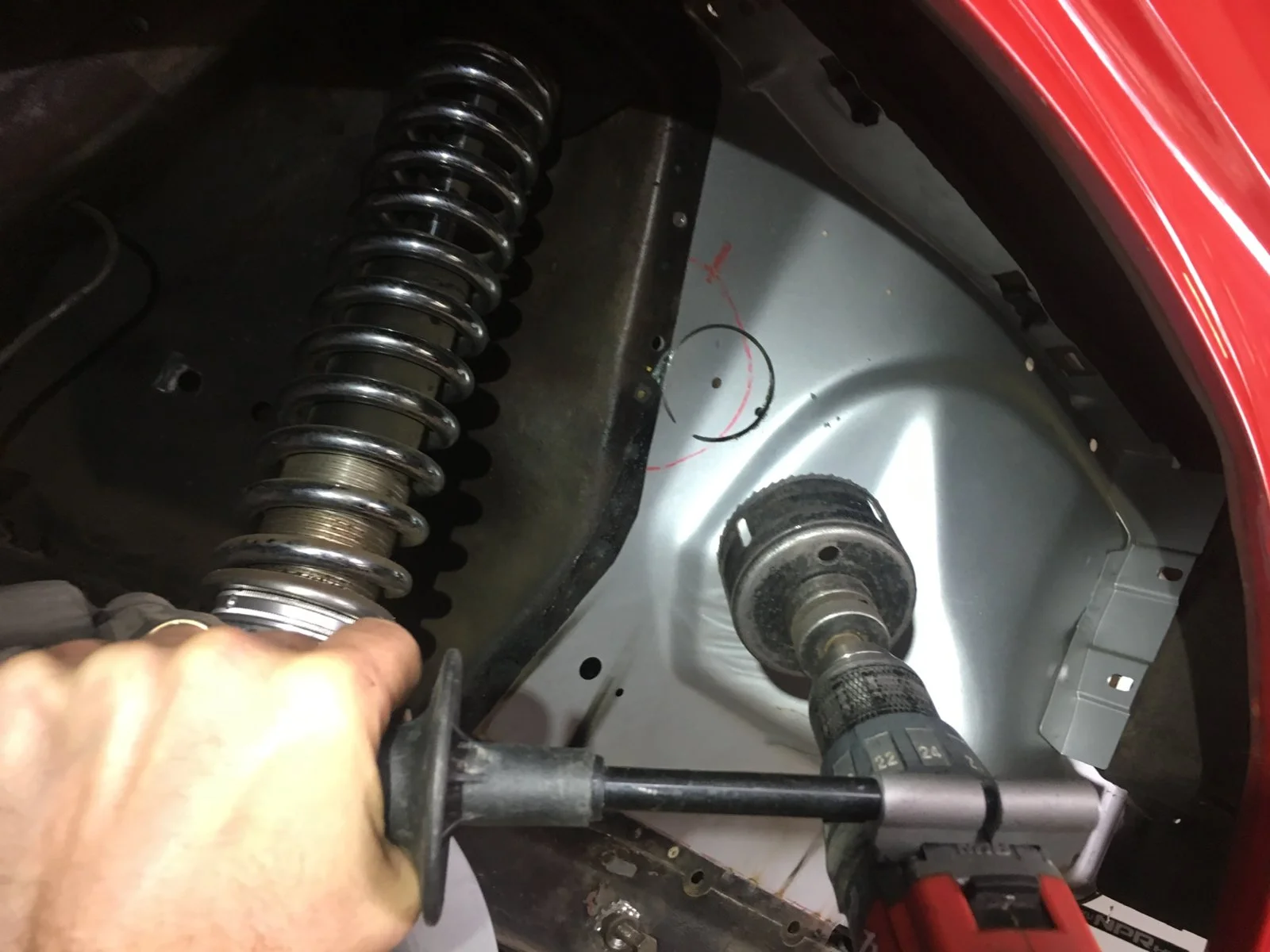

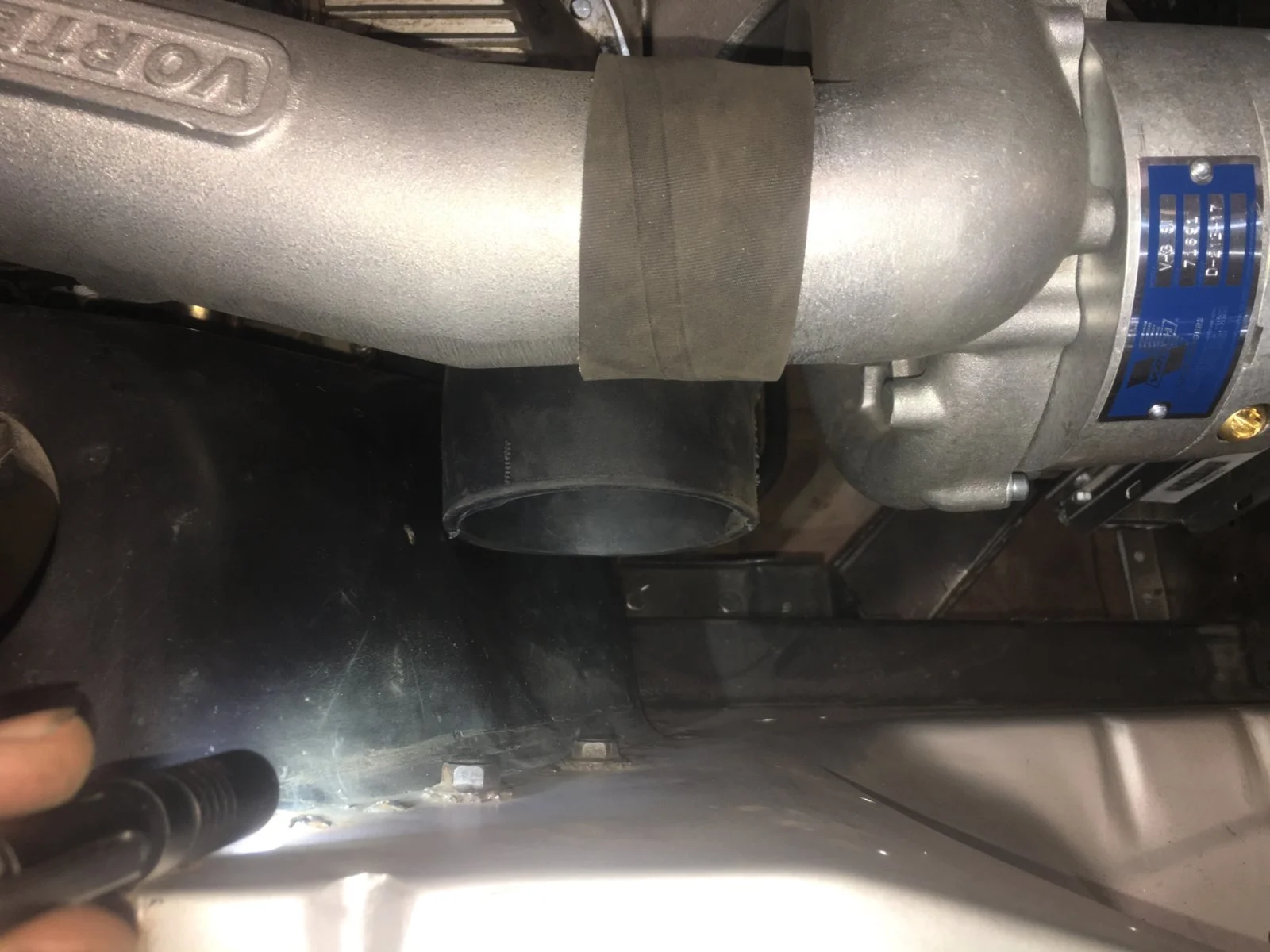

Here is my issue. Note position of 90* inlet pipe that has to enter fender well but goes through small section of shock tower in my 65 fastback The powerpipe is 4” dia and I’m thinking of cutting @5” hole and welding in section of 4.5-4.75 Id. Pipe and trimming it to fit the curve transaction between fender and shock tower Just never seen that done and wondering if it should work of any other suggestions?

Last edited by a moderator:
  • Sponsors(?)


Olivethefet

Slap me as well as point and laugh
May 17, 2018
1,275
803
123
39
Enterprise AL
A 65 fastback with a supercharger on it will be one mean ride! Your saying that you are going to weld in a section of pipe to help support the shock tower and fender. I dont see how it would compromise the tower. It's not like you are cutting a big hole in it and not supporting it.

I see that you have converted to coil over suspension. I've seen where people convert the front suspension and completely remove the shock towers.

This is just my opinion based on no real world experience.


Foot Hill

Active Member
Dec 9, 2014
75
46
28
Yes, I have coil overs so no upper control arm. And your totally right in that I could actually remove larg amount of my shock towers to help with clearance of headers and make spark plug changes easier lol.
I’m just wondering if anyone has experience with cutting hole in greatly changing angles and how that Turned out.
Also I’m sort of afraid to cut into my car. Just because.... it’s a big deal to me.
I was originally wanting to modify it just enough that I could go back to stock if I or next owner (hopefully by 5 year old son ) wanted too.
But it’s mine now. So I think I’m going to make it mine and cut away.
I think it will actually loook pretty good if the hole is lined with thin wall pipe and everything is ground to match contours.
In other words you won’t actually see a pipe. Just a pass through hole supported by pipe.

  • Like
Reactions: Olivethefet

Olivethefet

Slap me as well as point and laugh
May 17, 2018
1,275
803
123
39
Enterprise AL
I understand the hesitation to start cutting on the car. It would make me very nervous.
I've got a 65 that has been passed down to me from my dad. It's a basket case project at the moment. I'm looking forward to putting back together with my 3 year old son. I hope to pass it down to him one day as well.
Good luck with the fabrication! Do you have a build or progress thread going on this car?


Foot Hill

Active Member
Dec 9, 2014
75
46
28
“Do you have a build or progress thread going on this car?”

Now that I think about it. I think I do!?
If so I really need to update it lol.
That would probably help to keep me organized and focused (something I’m not really good at)
Going to check if I’ve posted on this forum a build thread now.


How cool you have your dads mustang!
My 6cyl 65 coupe was gifted to me my by grandfather when I was 12 and that car will go to my 9yo daughter
My 5yo son will get my fastback/when I’m ALL done with it ;)

  • Friendly
Reactions: 2Blue2

Olivethefet

Slap me as well as point and laugh
May 17, 2018
1,275
803
123
39
Enterprise AL
I do have a progress thread going. This is it.


Not a lot going on with it at the moment. I'm currently trying to get my Fox to a stopping point, or at least a point that I'm so focused on it. Here is the thread to that one.


Looking back at your post you were just responding to my question. You get links to my junk anyway! lol

  • Like
Reactions: 2Blue2

Foot Hill

Active Member
Dec 9, 2014
75
46
28
Thanks. Yes. I had my build thread going but it had been a while so since you reminded me about it I’ve been slowly adding to it to keep it up-to-date I just have a few minutes today to add to it so that’s what I’ve been doing
I had an 89GT few years out of high school about 25 years ago and took that car to the local drag strip quite a bit
fell in love with the fox body engine and all the available upgrades so that’s why am putting that in my 65 fastback
There may be better ways of making power but I’m just doing what I want and with what I’m familiar with
That’s cool you have a classic and a fox body

  • Like
Reactions: Olivethefet

2Blue2

will be trying this sex one when I can find it
Mar 5, 2019
1,502
835
123
52
Oahu
The hole with support ring is sounding ok but too bad you can't pipe it to front of car instead for a ram air effect (I know you no need with blower but)


Foot Hill

Active Member
Dec 9, 2014
75
46
28
Got this finished
Thanks for all the help and suggestions

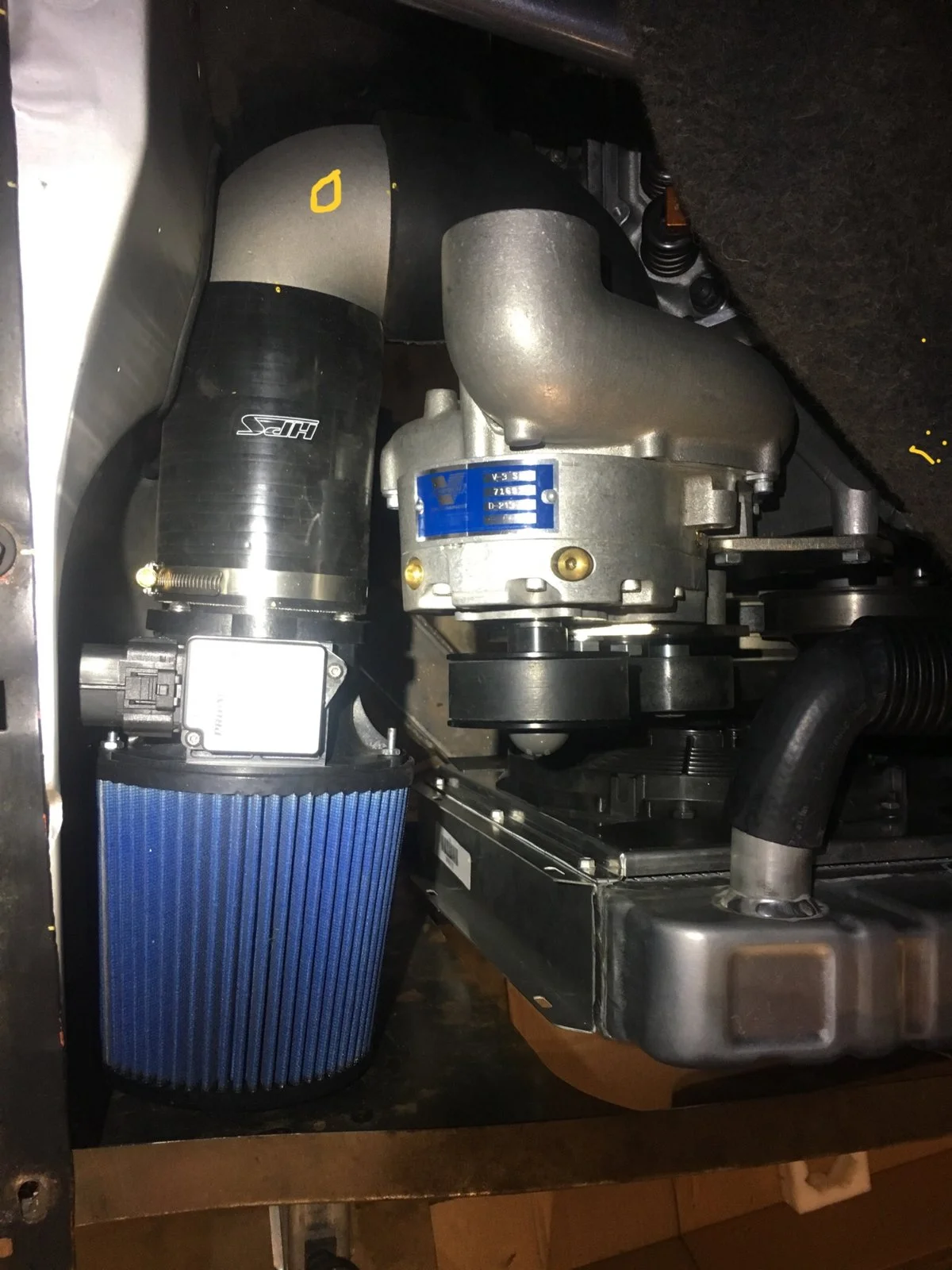

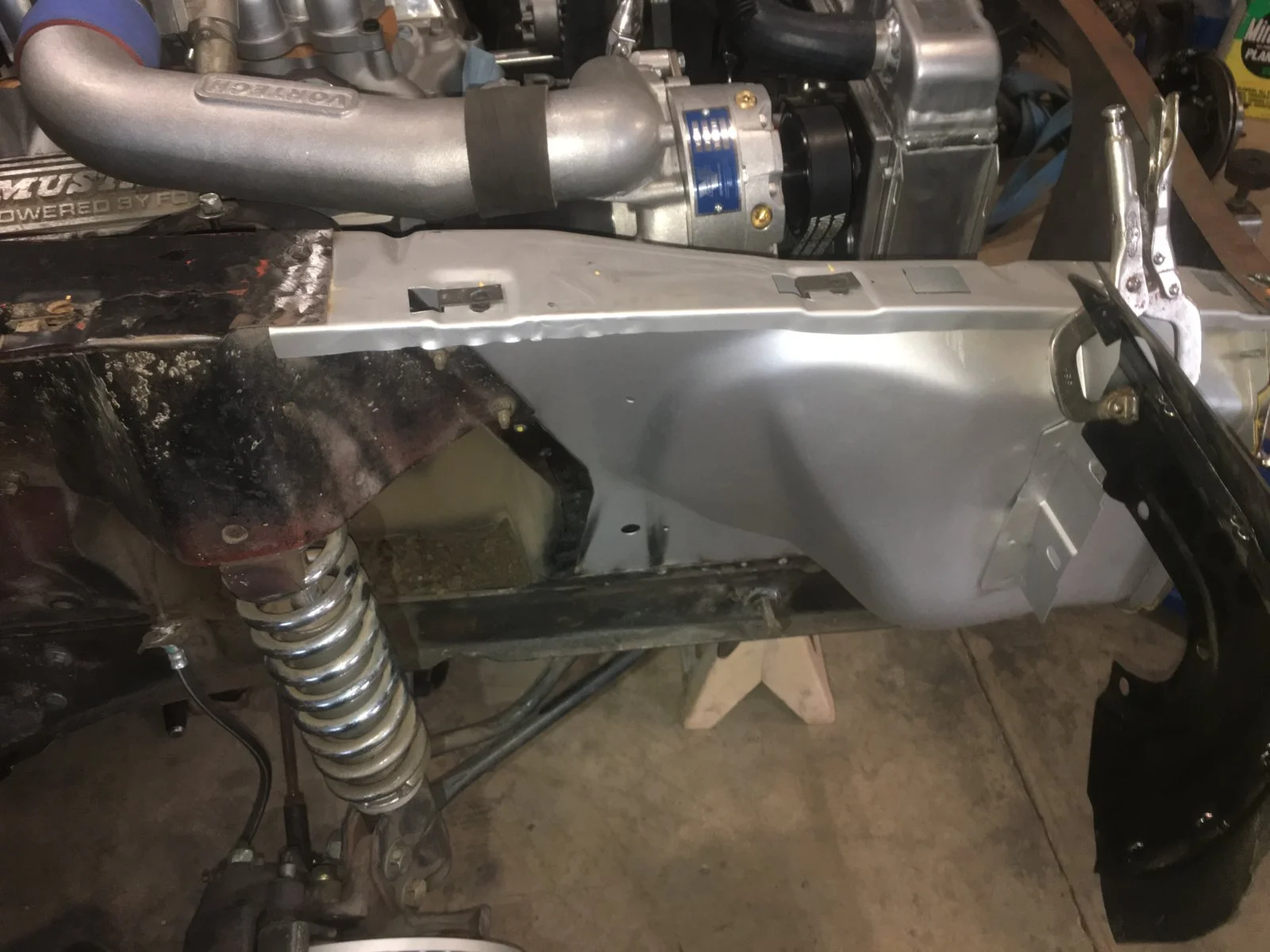

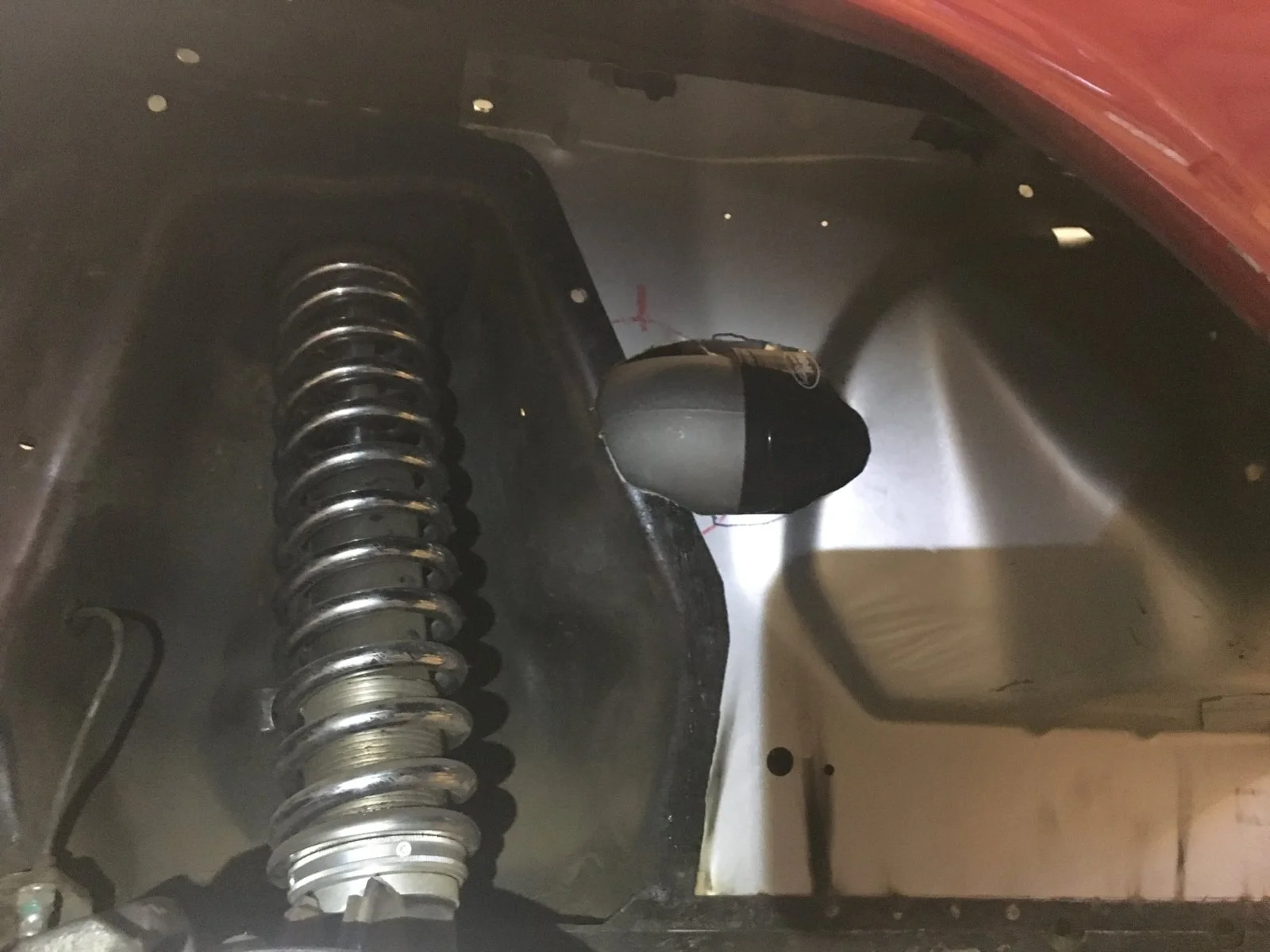

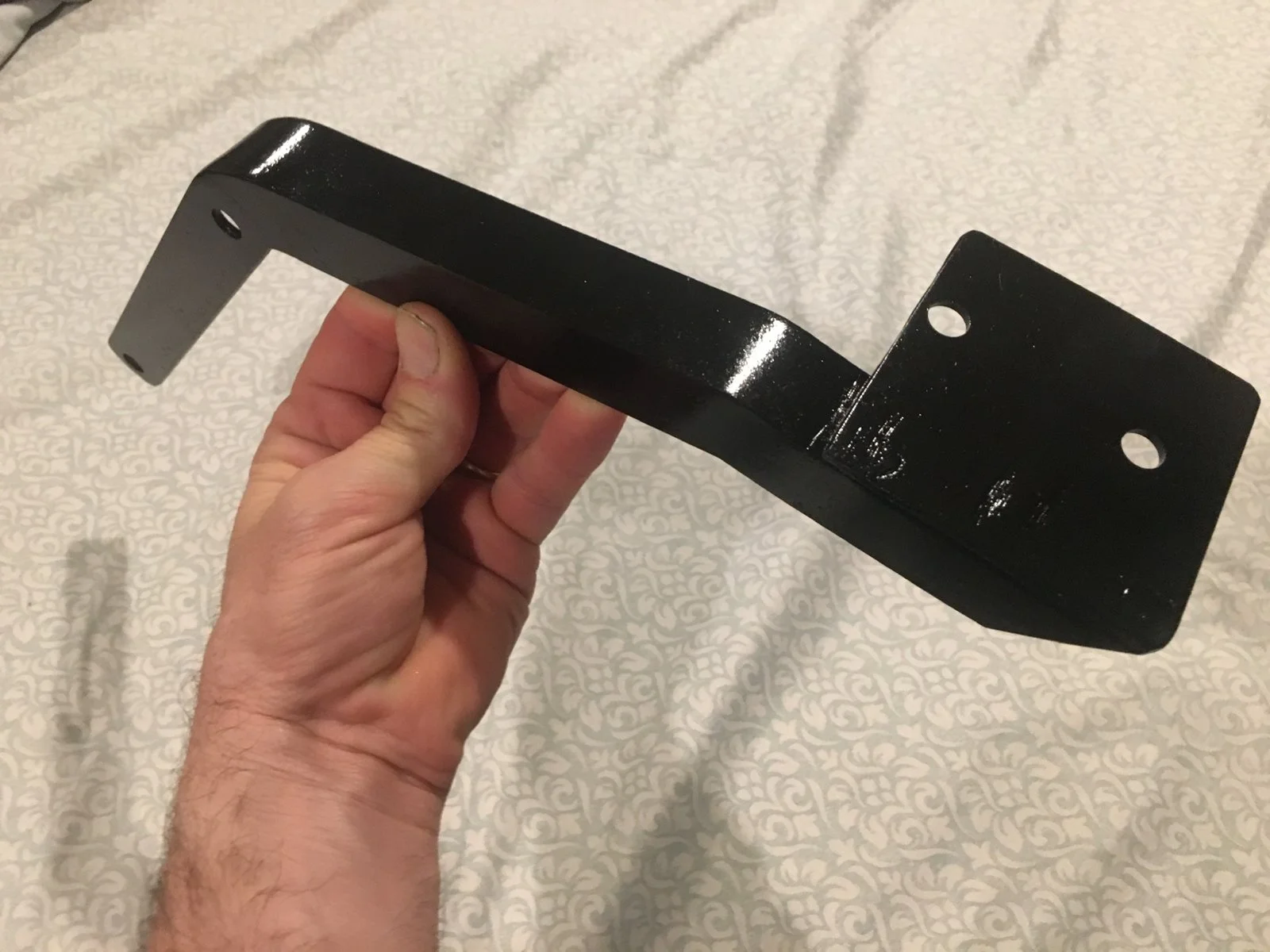

I ended up using to 90° elbow’s couple together and made up a mass air meter support to basically mount mass air meter and filter to the engine to keep it from shaking too much had to do a light trim on fender apron that I
