Where does this go?

[65poppy]

OK, so when I disassembled my car, I carefully put this away and thought I would remember how to attach it. But alas, it has been such a long time I don't remember and can't seem to get it to line up with any of the existing holes. I know it protects the under dash wires from the wiper actuator. But I can't figure out how it goes back on the car. Does anyone have a good picture of exactly where this thing is under the dash?

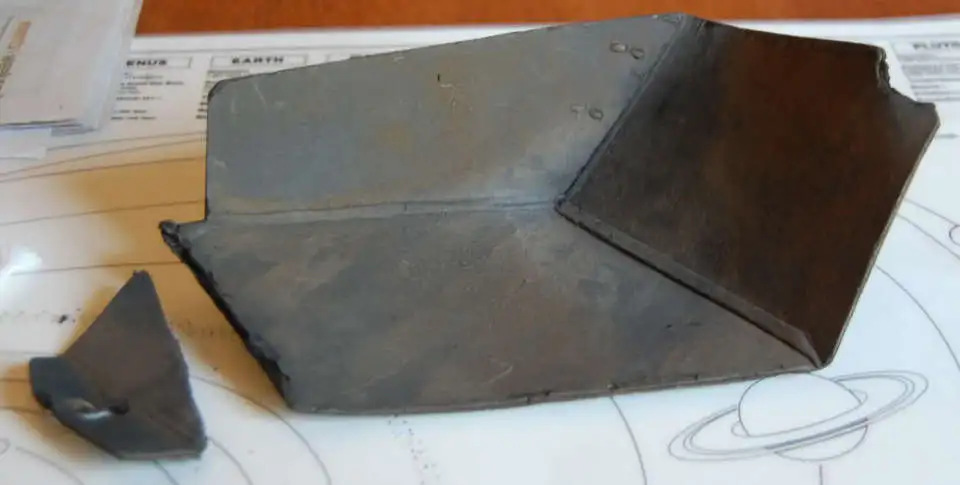

Here's the part:

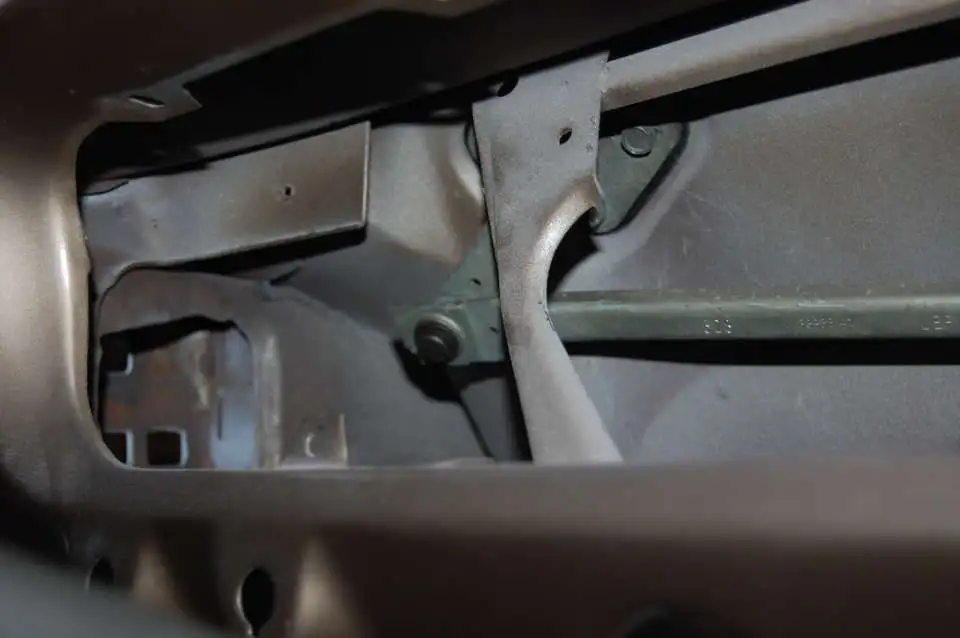

And here's the area under the dash where it goes. It is supposed to protect the wires from rubbing against the wiper are actuator.

I'm going to get some boardstock and make a new one. But I can't seem to figure out where this one attaches. It has 2 screws that fasten it, oneon each end. I've looked in several assembly books, wiring diagrams, exploded views, etc and nothing shows this piece. Can anyone help?

Thanks,
Steve-o



[golf4283]

That's actually the glove compartment insert. And from the looks of it you need a new one cause that's all torn up.



[65poppy]

That's actually the glove compartment insert. And from the looks of it you need a new one cause that's all torn up.

Thanks, but nope....not the glove compartment insert. This is only about 8 inches long and only has three sides.



[sparx]

That is the protector for under dash wiring adjacent to the wiper linkage as mentioned.

One of the fresh air intake nuts holds it in place, and once you align that one then the other should self explain. (I recall two fasteners)

I took mine out some months ago to refinish the drivers side fresh air "top hat" and that is why I know. I bought a new one for about $10.00 from Glazer Nolan.

Sparx
