Anybody familiar with those 3 cylinder Yanmar diesel engines that come in [lots] of stuff?

Does anybody happen to know what the output pressure should be on the lift pump?

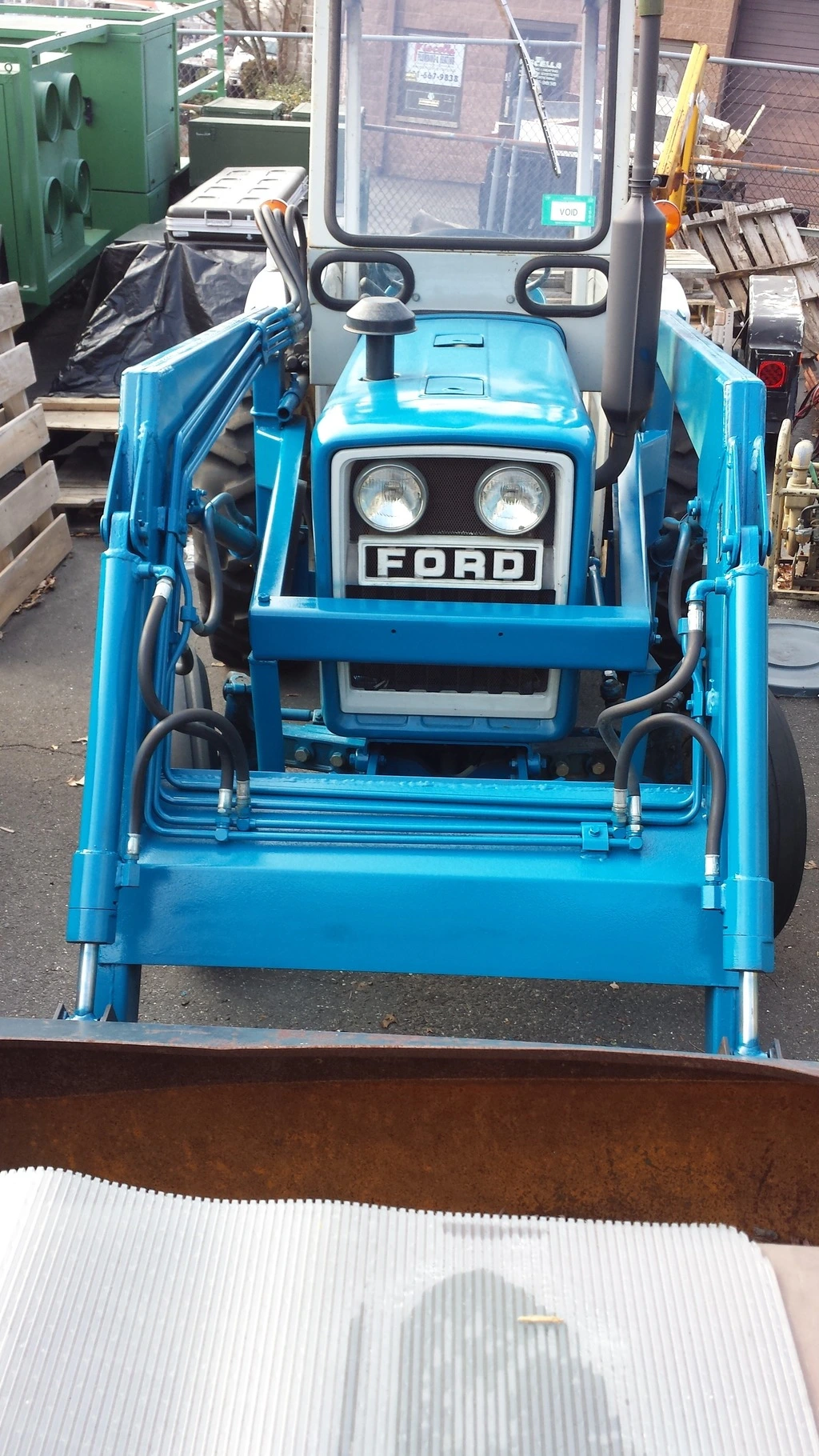

I've got a Ford CM-274 with this diesel in it and lately, it's been having an issue where the throttle just falls off. The thing nearly stalls and then it'll recover.

I've put an in-line fuel pressure gauge between the filter and injector assy, and I'm reading [zero]. Very odd that it runs just fine at other times

The pump ain't cheap. Trying to verify a bad pump before ordering.

Thanks!


89ripper

Founding Member
Jun 3, 2002
926
308
103
Rockford, Illinois
Sep 1, 2024
#2
  • Sep 1, 2024
  • #2
Unfortunately no. Have no experience with diesel engines. Is this on a tractor?


Noobz347

Stangnet Facilities Maint Tech... Er... Janitor
Admin Dude
Jan 4, 1985
42,933
21,109
234
Box behind Walmart
Sep 1, 2024
#3
  • Sep 1, 2024
  • #3
89ripper said:
Unfortunately no. Have no experience with diesel engines. Is this on a tractor?
Click to expand...
Yep...




Everybody and their brother uses the same Yanmar engines for "stuff". Polaris, Gator, John Deere, New Holland, Kubota, Etc...


89ripper

Founding Member
Jun 3, 2002
926
308
103
Rockford, Illinois
Sep 1, 2024
#4
  • Sep 1, 2024
  • #4
Ok. Sorry couldnt help any. I often find myself wanting to bump posts in hopes someone else can chime in....im lucky my mustang even has been running this long!


Noobz347

Stangnet Facilities Maint Tech... Er... Janitor
Admin Dude
Jan 4, 1985
42,933
21,109
234
Box behind Walmart
Sep 1, 2024
#5
  • Sep 1, 2024
  • #5
89ripper said:
Ok. Sorry couldnt help any. I often find myself wanting to bump posts in hopes someone else can chime in....im lucky my mustang even has been running this long!
Click to expand...

Ha! That's a good portion of my job around here.

Here's a secret... You want fast and multiple responses? Post something that is incorrect.

Reactions: 89ripper

LILCBRA

I wish I didn't have all of these balls in the air
Mod Dude
Dec 6, 2005
6,330
5,300
194
Corn County USA
Sep 1, 2024
#6
  • Sep 1, 2024
  • #6
Story time!

In my 20s, I drove delivery trucks all around northern and eastern Iowa - an early 90s (I think....) GMC Topkick, diesel, 6 speed lo/hi. One day, on a route in Cedar Rapids, I went to leave a stop light and it had absolutely no power. It would idle fine, but when trying to accelerate it would just fall on it's face. I limped it around the corner and into the nearest gas station's parking lot, called the office and they brought another truck, helped me swap my cargo from one truck to the next, then had the GMC towed into the nearest shop. It turned out that their mechanics were just checking the box for the air cleaner when doing the PM. I was shown the air filter and it was collapsed on itself - a new filter was installed and the truck was back in service the next week.

This is related because you said you installed a fuel pressure gauge after the filter and it's reading 0 PSI? How old is the filter? It might not be a bad idea to just install a new one even if it's relatively new - at least you could rule that out as a culprit. Just a suggestion....


Noobz347

Stangnet Facilities Maint Tech... Er... Janitor
Admin Dude
Jan 4, 1985
42,933
21,109
234
Box behind Walmart
Sep 1, 2024
#7
  • Sep 1, 2024
  • #7
Brand new filter. First thing I thought of.

Reactions: LILCBRA

CAMTWO1070

Active Member
Dec 17, 2021
232
76
38
NY
Sep 7, 2024
#8
  • Sep 7, 2024
  • #8
Im more familiar with the 7-10hp single cylinder types but have some friends that have hd bad luck with their 3 cyl gennies and the problems are attributed to the middle cylinder kicking a headgasket due to a warped engine block when casted..

According to the manual the pressure should be 422 psi at the mechanical and 6-8psi at the electric lift pump..




As far as the tractor itself it should of been dealer prepped and tuned....

In my Yanmar engines I had to stack shims under the pump until I got the flow rate right.............


Good Luck



My Ford tractor has a gas 4 cylinder in it...LOL


Reactions: 89ripper

Noobz347

Stangnet Facilities Maint Tech... Er... Janitor
Admin Dude
Jan 4, 1985
42,933
21,109
234
Box behind Walmart
Sep 7, 2024
#9
  • Sep 7, 2024
  • #9
CAMTWO1070 said:
6-8psi at the electric lift pump..
Click to expand...

This is what I figured and I've got zero from the lift pump. New pump is on the way.


Noobz347

Stangnet Facilities Maint Tech... Er... Janitor
Admin Dude
Jan 4, 1985
42,933
21,109
234
Box behind Walmart
Sep 7, 2024
#10
  • Sep 7, 2024
  • #10


Those are cool! You say they are single cylinder diesel?
