Yellow wire on starter solonoid,,, melted

  • Thread starter Thread starter DREAMZOFHIRPM
  • Start date Start date Oct 30, 2007
D

DREAMZOFHIRPM

New Member
Sep 25, 2007
40
0
0
BROOOOOOOKLYNN
Oct 30, 2007
#1
  • Oct 30, 2007
  • #1
today i was getting ready to do my heater core change.... i walke dover to my garage..took off the battery wires,, took of the glove box,,, as i walked back to the front of the car i went to look at the wire for my stupid friggin stere system and when i moved that wire it somehow burshed the battery wire and it hit the terminal,,, i said to myself ,,***,,,, i put the wires back on jus to see if i screwed something up and to my dismay as i tried to star the car i noticed smoke billowing out from my driver side.. shut it down... sent to start it again n flew out the car to see where the smoke was coming from.... yellow wire coming from wire harness to a fuse link that well once was attached to the rest of the wir that was connected to the starter solonoid,,but the wire was melted to hell,,,, i put the wire back to the starter solonoid for a second..turned it over for a second a split second jumpe dout grabbed the yellow wire,,reddd friggin hot,,, i dont know man but lately if the problem deals with smoke... its my problem,, heater core now this ****,,having a miserable day,,juss trying to get this damn thing straight n problem free before i can put this supercharger on,,but its like the cars fighting me not wanting to be straigtened out,,grrrrrrrrrr


HISSIN50

"How long does it take to get help in here?
15 Year Member
Nov 29, 1999
31,179
33
129
Oct 30, 2007
#2
  • Oct 30, 2007
  • #2

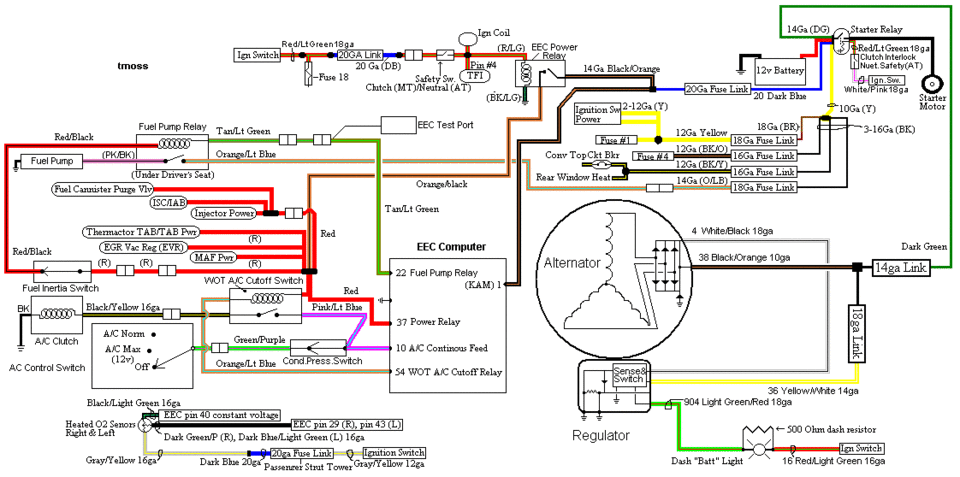

See the top right corner of the diagram (courtesy of S&2B's and Tom Moss, site host and author, respectively):



Attachments

  • fuel-alt-links-ign-ac.gif
    83.1 KB · Views: 188
D

DREAMZOFHIRPM

New Member
Sep 25, 2007
40
0
0
BROOOOOOOKLYNN
Oct 30, 2007
#3
  • Oct 30, 2007
  • #3
It burned out the fuse that was there. The fuse said 20ga..
