I can also rule out the ignition switch. After a lot of reading, I have found that the +12v start wire into the TFI module tells the distributor to ignore the spout - therefor reverting me to base timing. If the ignition switch was to go bad and be stuck 'on', I should be seeing a solid 10° timing, no matter what (@Boosted92LX ). That is not the case. I'm half tempted to try another distributor and see if that's the issue... again. It's not the MS, it's not the TFI, it's not the ignition switch.



[CarMichael Angelo]

I can also rule out the ignition switch. After a lot of reading, I have found that the +12v start wire into the TFI module tells the distributor to ignore the spout - therefor reverting me to base timing. If the ignition switch was to go bad and be stuck 'on', I should be seeing a solid 10° timing, no matter what (@Boosted92LX ). That is not the case. I'm half tempted to try another distributor and see if that's the issue... again. It's not the MS, it's not the TFI, it's not the ignition switch.

All of you.....

All of you need EDIS in your future.



[hoopty5.0]

All of you.....

All of you need EDIS in your future.

I bought a fancy 351W cam position sensor and had some LS coils donated by a generous member here



[RaggedGT]

I can also rule out the ignition switch. After a lot of reading, I have found that the +12v start wire into the TFI module tells the distributor to ignore the spout - therefor reverting me to base timing. If the ignition switch was to go bad and be stuck 'on', I should be seeing a solid 10° timing, no matter what (@Boosted92LX ). That is not the case. I'm half tempted to try another distributor and see if that's the issue... again. It's not the MS, it's not the TFI, it's not the ignition switch.

Can you put your mustang distributor in your truck and verify all the things that are supposed to have power etc work in a stock setup?
(if that's a really dumb question I'll go ahead and apologize before Steve shuns me... .)



[90sickfox]

I've been searching on the great interweb trying to help find a solution.

Have you checked your dwell settings in TS ?

There have been a couple people that had issues with ford TFI....seems to { maybe } be a latency issue....time frame between MS, coil fire, and spark at plug. I am very new to MS and have no way to decipher anyones data log....I struggle terribly with my own.

One guy said he set his dwell to " fixed " and his car ran a lot better. He seemed to have some knowledge so I assume he wasn't talking about fixed timing.



[CarMichael Angelo]

sumabish I've been looking for this answer for almost 2 years now. The damn thing sounds like a goose

Edit* Like this?

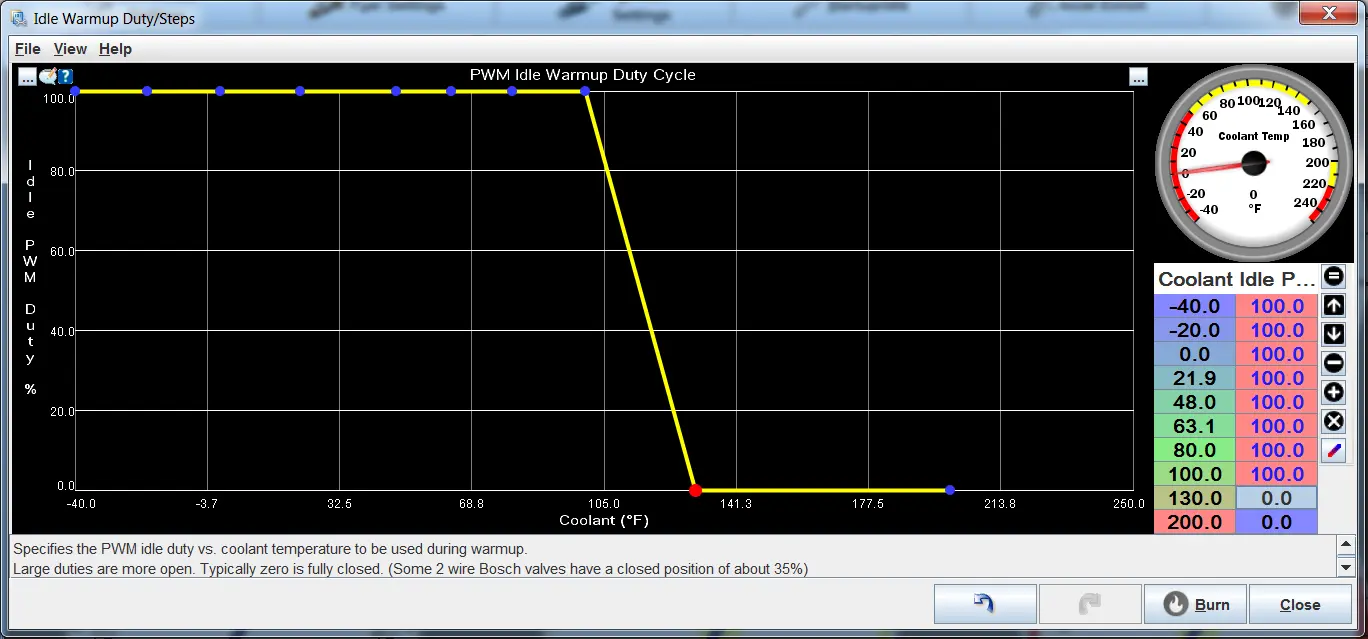

How did you take a picture of that screen?



[hoopty5.0]

Can you put your mustang distributor in your truck and verify all the things that are supposed to have power etc work in a stock setup?
(if that's a really dumb question I'll go ahead and apologize before Steve shuns me... .)

Great idea, but no. The truck has a remote TFI



[hoopty5.0]

How did you take a picture of that screen?

Ohhhhhhhhh student become teachaaa ha ha ha round eye



[CarMichael Angelo]

Ohhhhhhhhh student become teachaaa ha ha ha round eye

I have a nasty spray to control house hold pests....... grass hopper.



[hoopty5.0]

@madmike1157

Cntrl + prntscrn
Open paint
Cntrl + v
Select what you want with select tool
Cntrl + x
Open new paint, select don't save when asked
Cntrl + v
File -> save as
Insert into SN.


Whole process takes +\- 7 seconds



[hoopty5.0]

I have a nasty spray to control house hold pests....... grass hopper.



[CarMichael Angelo]

@madmike1157

Cntrl + prntscrn
Open paint
Cntrl + v
Select what you want with select tool
Cntrl + x
Open new paint, select don't save when asked
Cntrl + v
File -> save as
Insert into SN.


Whole process takes +\- 7 seconds

I ain't doin that.



[hoopty5.0]

I ain't doin that.

Seriously... 7 seconds.



[stanglx2002]

I ain't doin that.

I don't blame you, since that's the long way of doing it.

Windows key
Type snipping tool
Enter to open program
Click new and drag a box over on the screen
Then you can save it



[hoopty5.0]

...these kids and their new fangled technologies



[CarMichael Angelo]

I don't blame you, since that's the long way of doing it.

Windows key
Type snipping tool
Enter to open program
Click new and drag a box over on the screen
Then you can save it

Ohh ohh look at me!!.....I'm a Millennial



[stanglx2002]

...these kids and their new fangled technologies

I wish I was still a kid.

It's just comes from working for software company for years. Have to teach old farts in the utility industry how to use computers all the time.



[a91what]

Yes I use the snipping tool as well...


@90sickfox I set all of our dwell times to fixed 50% when I built the tunes for you. This is per the MS documentation



[a91what]

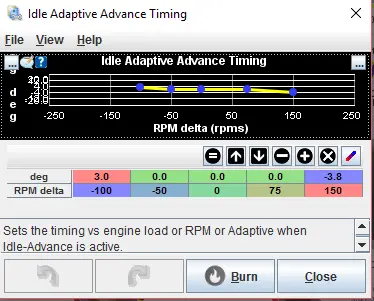

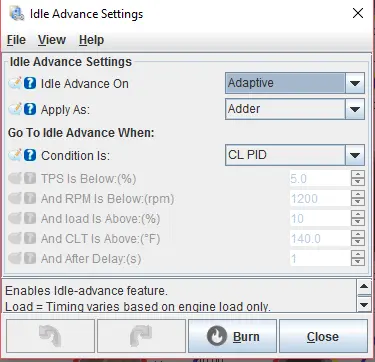

Steve, do you mind helping with this. I am planning on trying to get Closed-Loop to work this weekend and the YouTube video you did this is the only screen I didnt see.

don't forget to put the negative prefix on some of the values I have outlined in this picture......

PRO TIP
don't go to aggressive with these numbers use what I have put in or you will experience surging...



[90sickfox]

Merry Christmas, Steve !!!! and everyone else !

I reloaded the tune you made for me but I cant get the fuel stoich. The previous datalog was after I screwed around with the ve and afr tables. My WB is pegged at 22.4 and I cant seem to bring it down without seriously messing with the tune. What is the best way to make adjustments for this ?

I tried the normal adjustments in ve table around the idle point but it doesn't do much. Some of that is in this log. I'm at a loss.....been researching and researching but I cant find anything on this that helps. I did check for leaks but there are none. Plugged the tail pipes and smoked the hell out of this thing. It was idling at the correct ratio with the other tune but like you said the vtables were way off. Should I mess around with the injector size calculation to try and bring it down ?

Edit...Something else I noticed is that my AFR table in Megalogviewer and the one in Tunerstudio are different.... lower left in megalogviewer 11.8 to upper right 8.4....Tunerstudio is 14.8 lower left to 11.4 upper right. Smh.....UH Oh !!! Seems like corruption.
