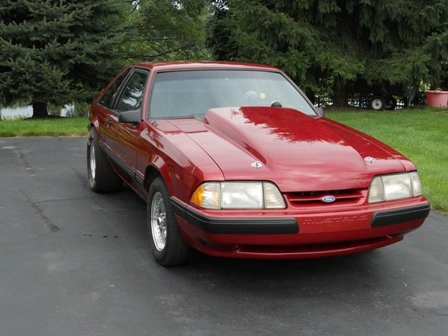

1990 LX 5.0 Hatchback, Wild Strawberry Red, Original Owner, Purchased brand new August 1990 (20 years). Daily driven for 5 years before converted to drag car. Runs mid 10’s @130mph on motor. Car comes with Rebellious Open Deck Car Trailer.

New H.O. Fibertrends 3 inch cowl fiberglass hood painted to match car. Original hatch was recently repaired and repainted.

Engine
•1971 351W Block, Bored to 0.030, Eagle Stroker Kit, 383 CID, 14:1 Compression Ratio, Short Block Balanced and Assembled by Holbrook Racing Engines in Livonia, MI.
•Speed Pro File Fit Rings
•Canton Pan and Pick-up
•Comp Cams Solid Roller Cam (696/672) Lift, (298/312) Duration at 0.020
•Comp Cams Roller Lifters
•Edelbrock Victor JR heads (Fully ported), recently installed new valve springs.
•Edelbrock Super Victor Intake (Ported)
•Comp Cams Roller Rockers
•Jo-Mar Stud Girdles
•Griffin Aluminum Radiator
•Aerospace Components Electric Water Pump
•Hooker Super Comp Headers

Fuel System
•Holley 950 HP, Set-up for engine by Allstate Carburetor
•Holley Black Fuel Pump
•-8 Braided Line
•Sumped Tank

Transmission
•Dynamic Transmissions Super Comp C4, Full Roller, Solid Drum, Small Bell.
•9 Inch Dynamic Converter 5,500 Stall.
•Cheetah Shifter, Reverse Pattern, Shifter Cover (Switches mounted in cover).

Electrical
•MSD 6AL Ignition Box
•MSD Coil, Wires, Distributor
•High Torque Starter
•Battery Relocated to Trunk with Shut-off switch.

Body and Misc•Autometer Gauges – Water Temp, Oil Pressure and Amps in Gage Cage.
•Autometer Monster Tachometer with Shift Light.
•H.O. Fibertrends 3 inch fiberglass cowl hood.
•Line lock
•Convo Pro Wheels – Hoosier Drag Slicks 28X10
•Lakewood 90/10s
•Powerslot Rotors with EBC Pads
•6 Point Roll Bar
•Flaming River Manual Rack
•Southside Lower Control Arms
•Wolf Racecraft Upper Adjustable Control Arms with Spherical Bushings
•Moroso Front Trick Springs
•Pinion Angle set by Skinny Kid Race Cars.
•Torque Boxes Reinforced / Welded.
•TA Differential Cover
•Motorsport Aluminum Driveshaft
•33 Spline Axles, Spool, Axle Housing straightened and 9 inch ends installed in Jig, 4.88:1 gear ratio.
•New Black Carpet and aluminum cover for rear seat delete.
•Racing Bucket – Driver installed have passenger bucket.

Trailer

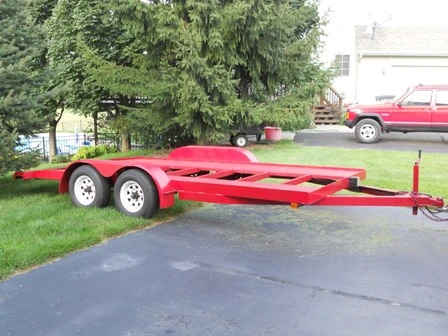

•Rebellious Open Deck Car Trailer, recently repainted red by local body shop, trailer wiring all new with emergency brake, spare tire, excellent shape.
Have paperwork (Title, Engine Build Sheet, etc...) and receipts from over last 20 years. Paint is original, had a few door dings but no accidents.

Car is located in Michigan. Tom (630)962-2195 Email [email protected]
$15,000 may consider trade for late model Mustang GT (2005+).
