1995 5.0 wiring...HELP!!

[jdl95stang]

That would be awsome to have someone who has done it all before. I have the computer and computer harness from a 5.0 5-speed car installed already. With any luck i'll be able to get a few pics on here.



[jdl95stang]

View attachment 234836 Ok guys, so this is a pic of the connections i am having trouble with right now. The wires come from the bottom of the fuse box in the engine compartment. Any ideas where they go?



[jdl95stang]

Also, where does the charging harness connect? It is connected to the alternator but dont know where the connections on the other end go



[94GTCoupe]

View attachment 234835

the alt wire conects to the fuse box.

*edit*
that pic is the alt wire,all that plugs into the alt.



[94GTCoupe]

heres a pic of the other end of the charging wire.

i also took a few more quick pick,maybe those will help you out alittle.
wiring pictures by kennithcole28 - Photobucket



[jdl95stang]

Ok. What about the two plugs and the other ring terminal that are in the harness coming from the alternator?



[94GTCoupe]

the side in your pic attaches to the alt,theres only one way they can go in.

the side in my pic,
ring connector to fuse box,
round 4-pin connector to connection right under fuse box,
2-wire rectangle connector to a/c compressor.



[jdl95stang]

Ok. I will check it out and see what i can do with it



[jdl95stang]

Sorry everybody, havent had a chance to work on the car at all. Have to work a 24hr shift tomorrow so ill get on it friday......just an update



[jdl95stang]

So i finally got a chance to check out this car and turns out i just forgot to remove the 6 cyl charging and grounding harnesses. I put the v8 harnesses in their places and it is really coming along great now. I just need help with one more plug. This flat plug is in the charging harness and is on the end by the battery. It has 2 wires with 2 pins in the connection. I dont see any place it can go. Can anybody help?



[94GTCoupe]

Posted via Mobile Device
A/C compressor.



[jdl95stang]

That very well may be it. Goin out to take a look in just a few minutes. Hope thats it. Thanks a lot!!



[jdl95stang]

Yup that was it. Have to put in the fuel tank, make the AN fuel lines, and tighten everything up now. Comin along nicely now. Thank ya'll



[Adam95GT]

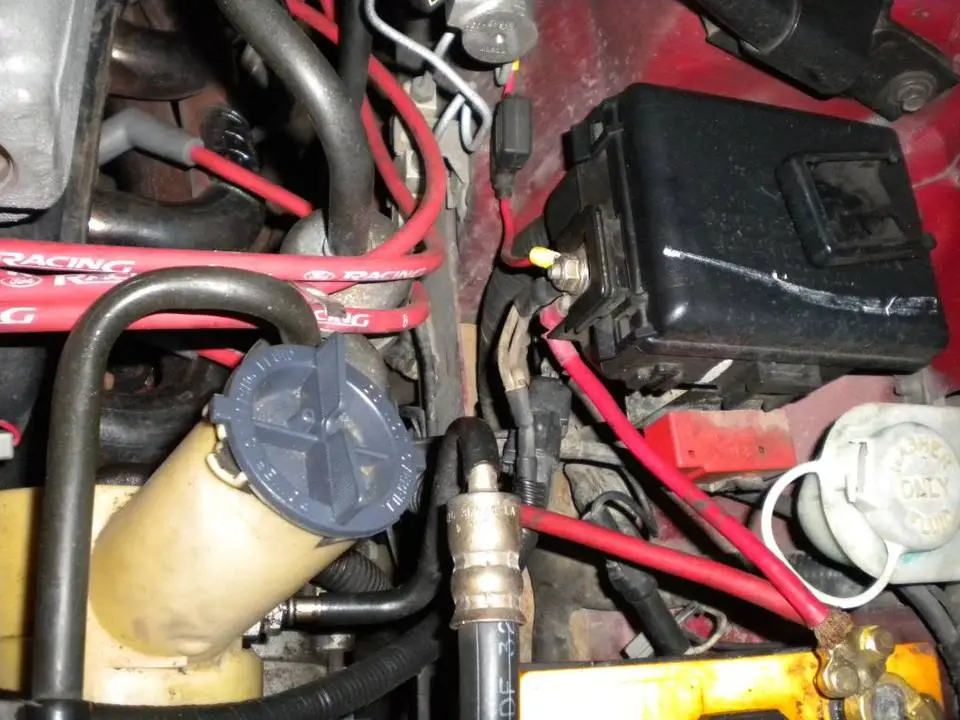

Just found this on my photobucket i know its late but figure if someone searches this may help
View attachment 233510
