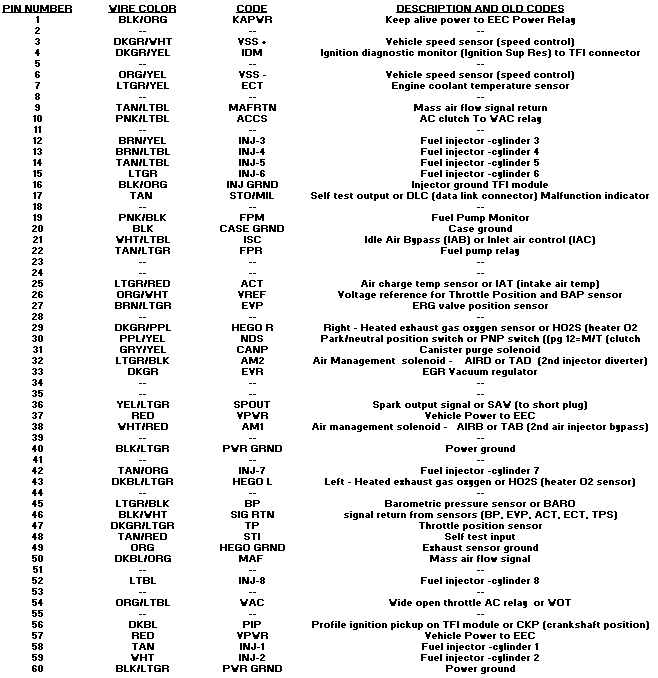

89-91 EEC pinout.GIF


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
33,610
9,896
224
Massachusetts
4 injectors, but 8 spark plugs.

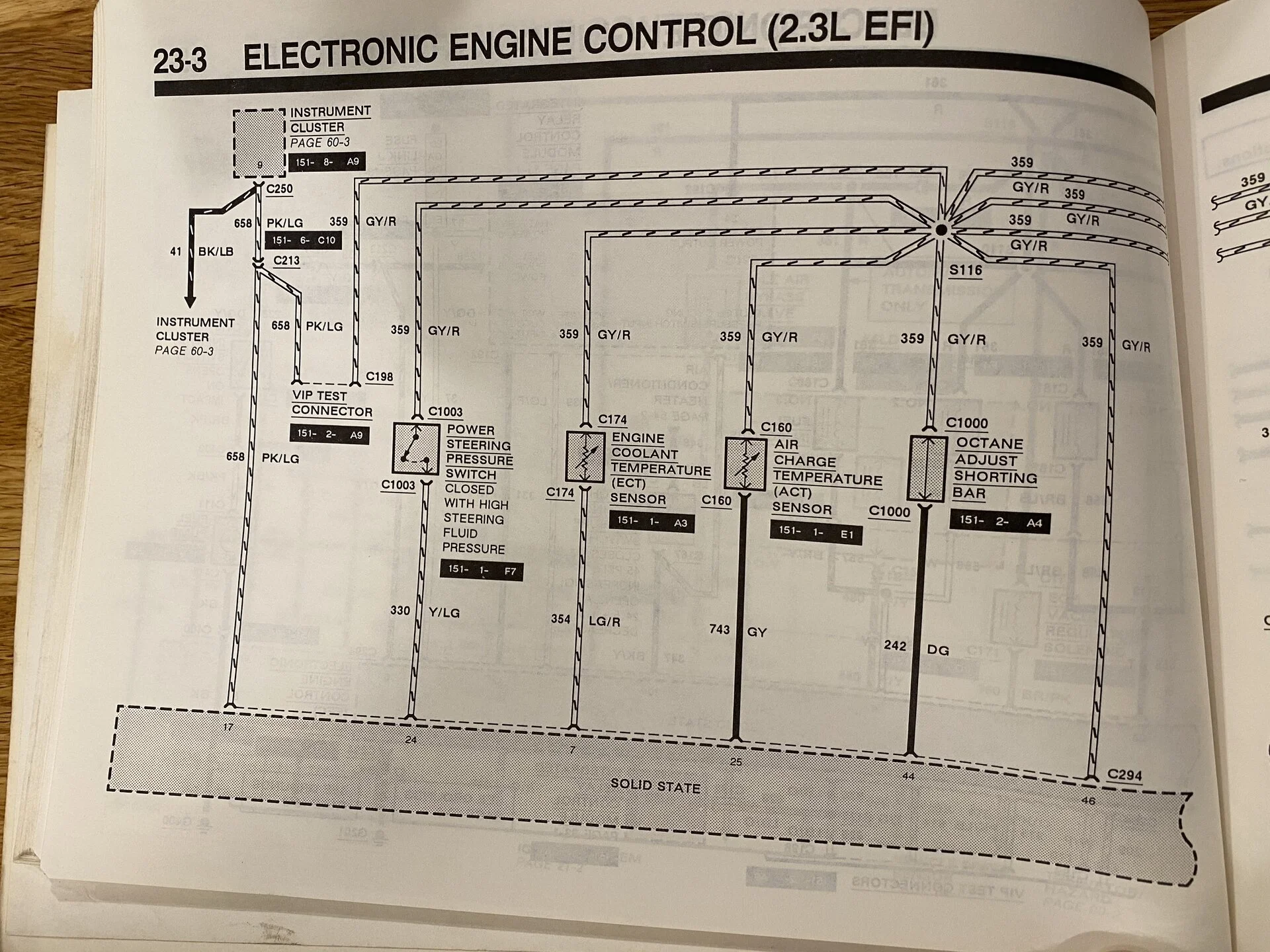

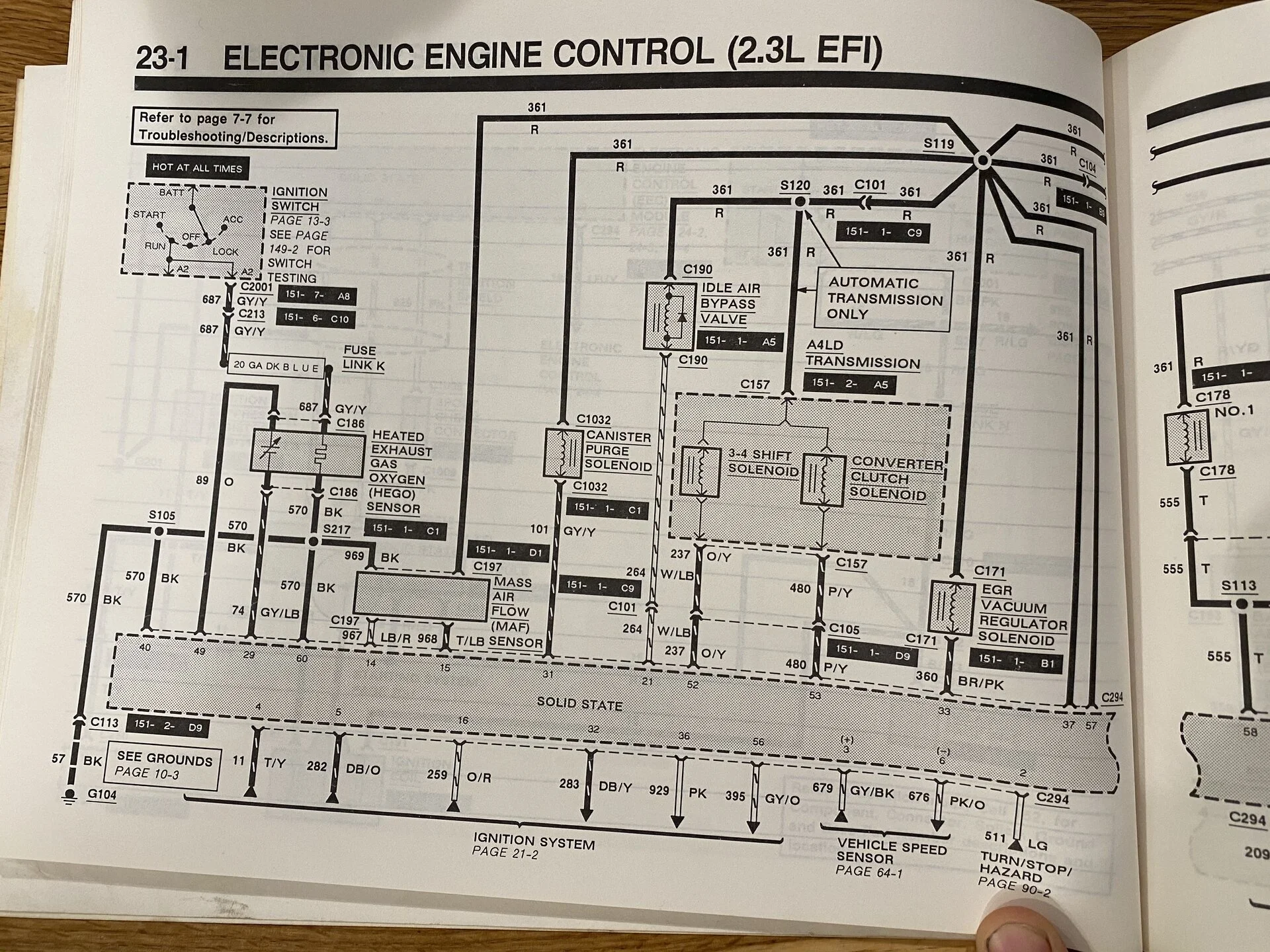

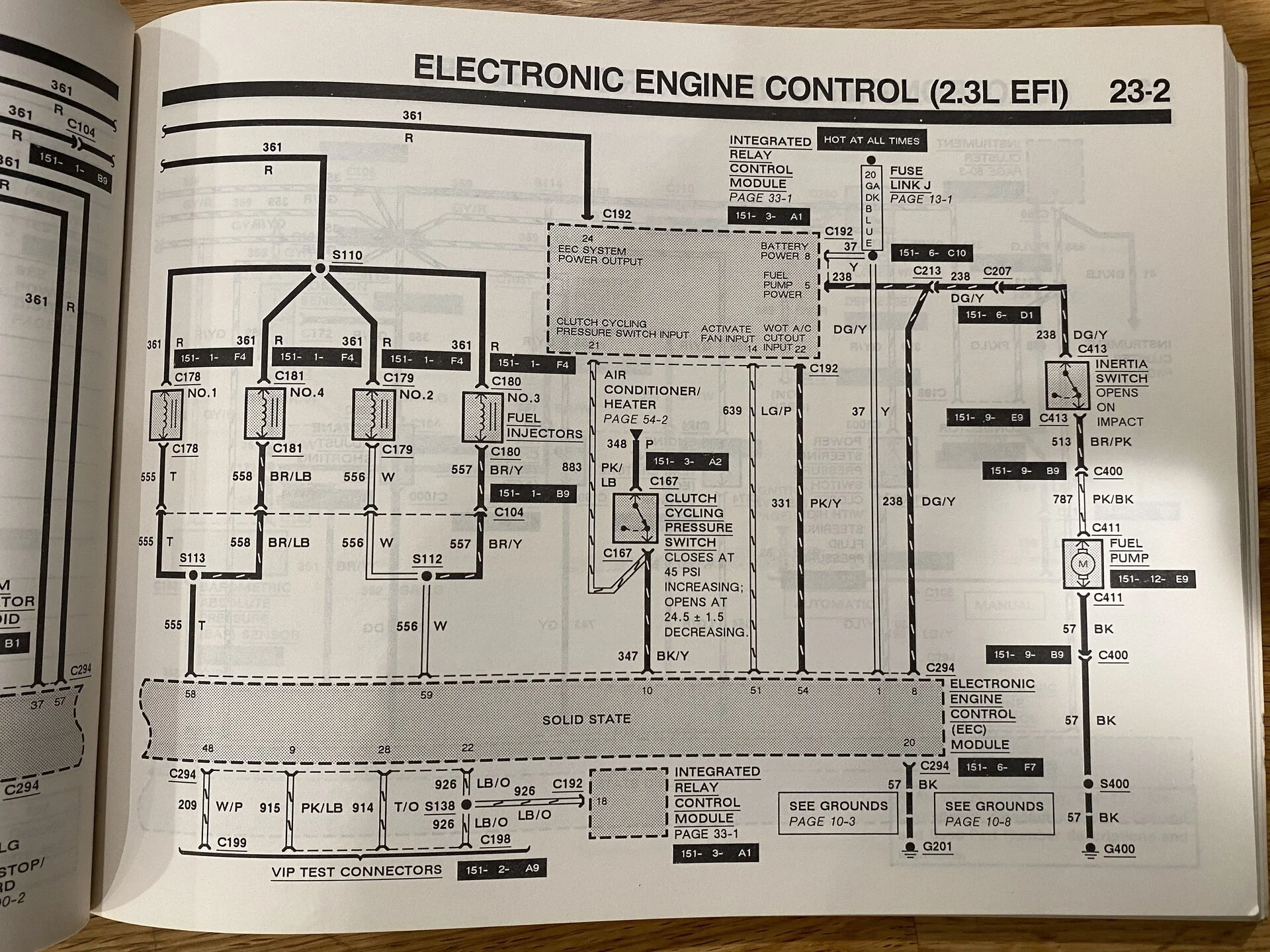

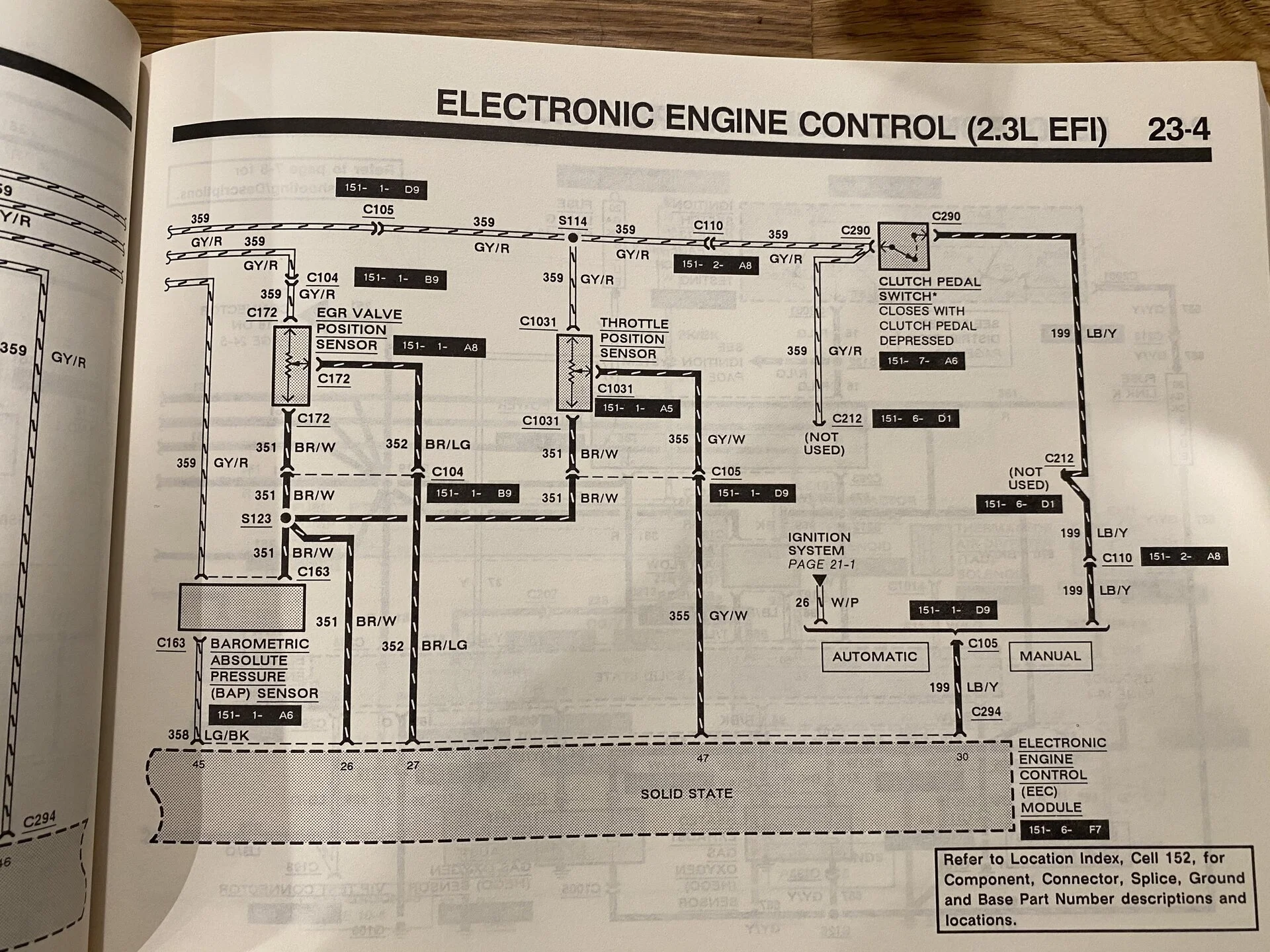

Your really going to want an EVTM here. Too many pages to snap pics of what would be relevant to you.
