Z Zeke1995 Member Jun 15, 2025 15 2 13 North Carolina Jan 11, 2026 #1 Jan 11, 2026 #1 Hey everybody, I was curious if anybody had the wiring diagram for a 91 radio harness. I have to replace all the speakers and put a new radio in my 91 LX Hatch.
Hey everybody, I was curious if anybody had the wiring diagram for a 91 radio harness. I have to replace all the speakers and put a new radio in my 91 LX Hatch.

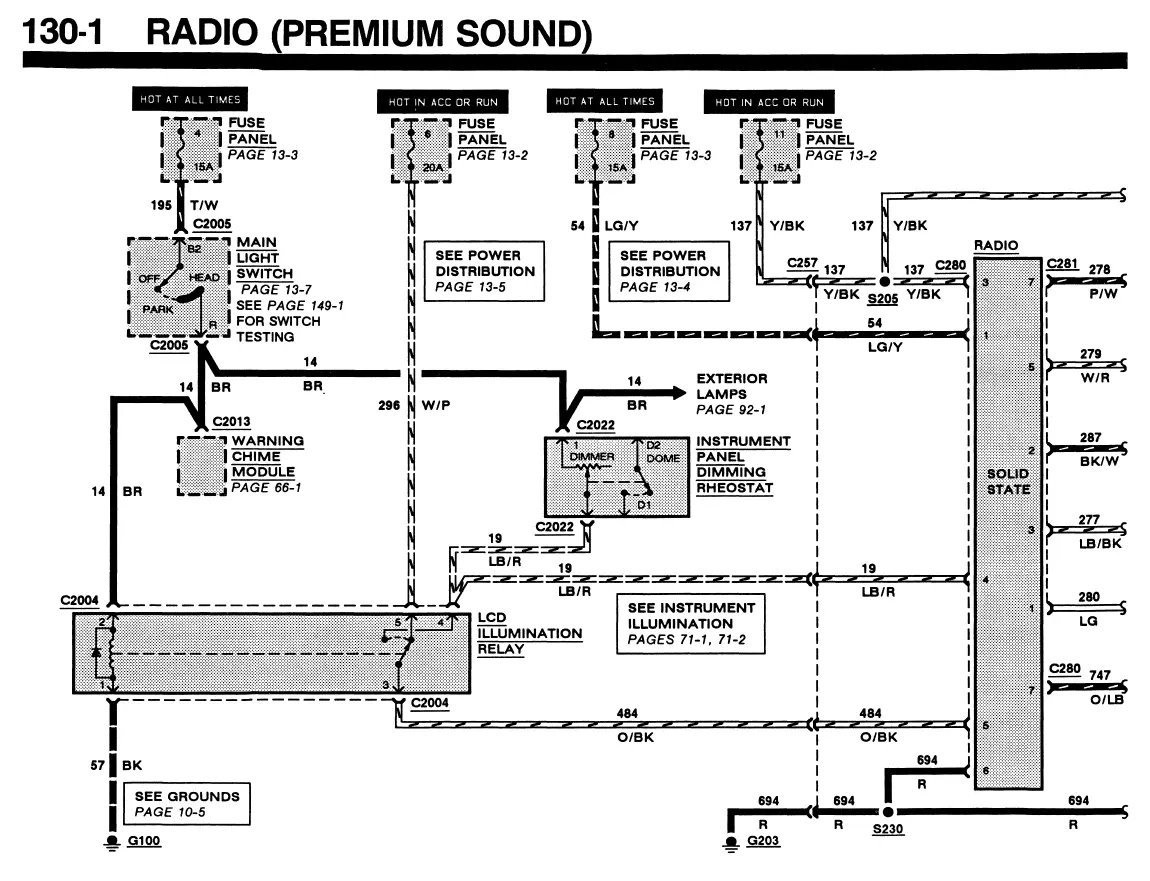

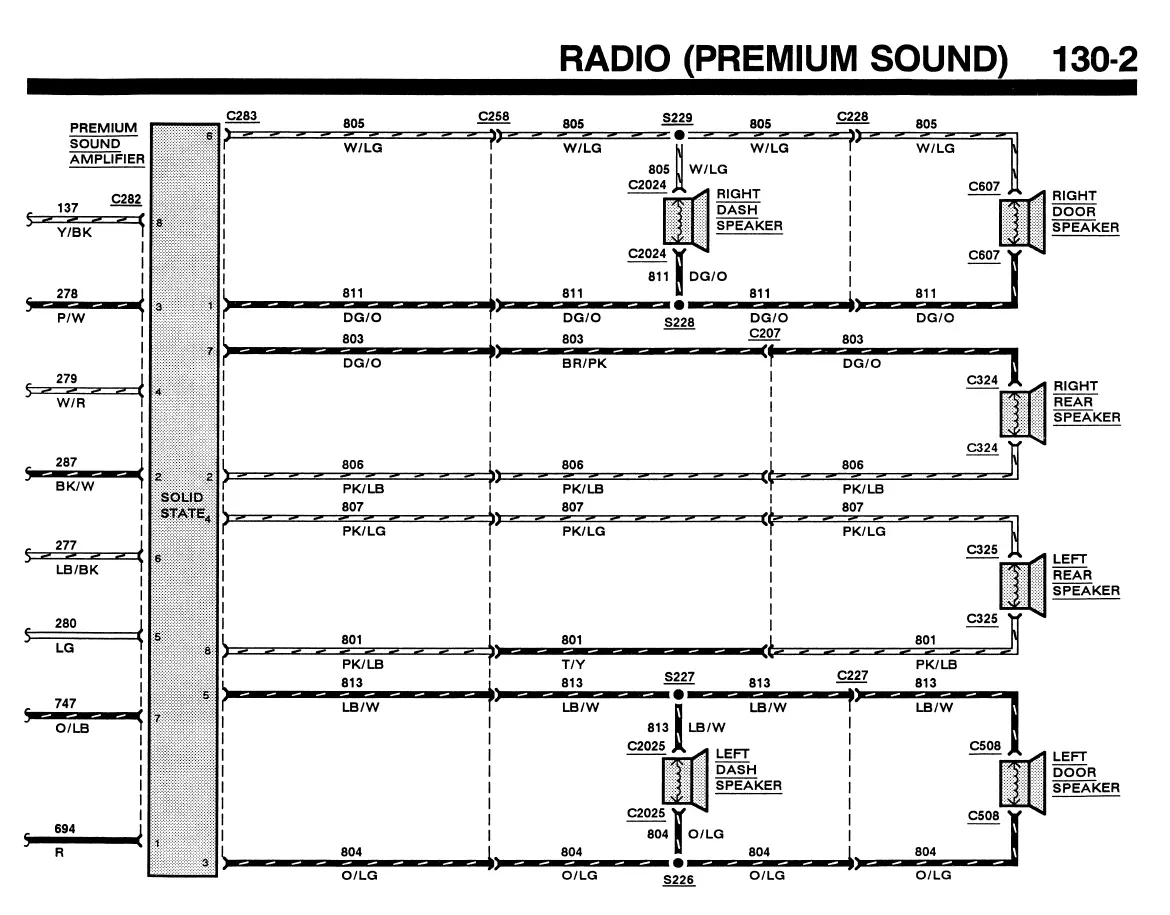

Mustang5L5 That is…until I whipped out my Bissell Mod Dude Feb 18, 2001 43,215 17,898 224 Massachusetts Jan 12, 2026 #2 Jan 12, 2026 #2 1991 Premium Sound Reactions: Zeke1995

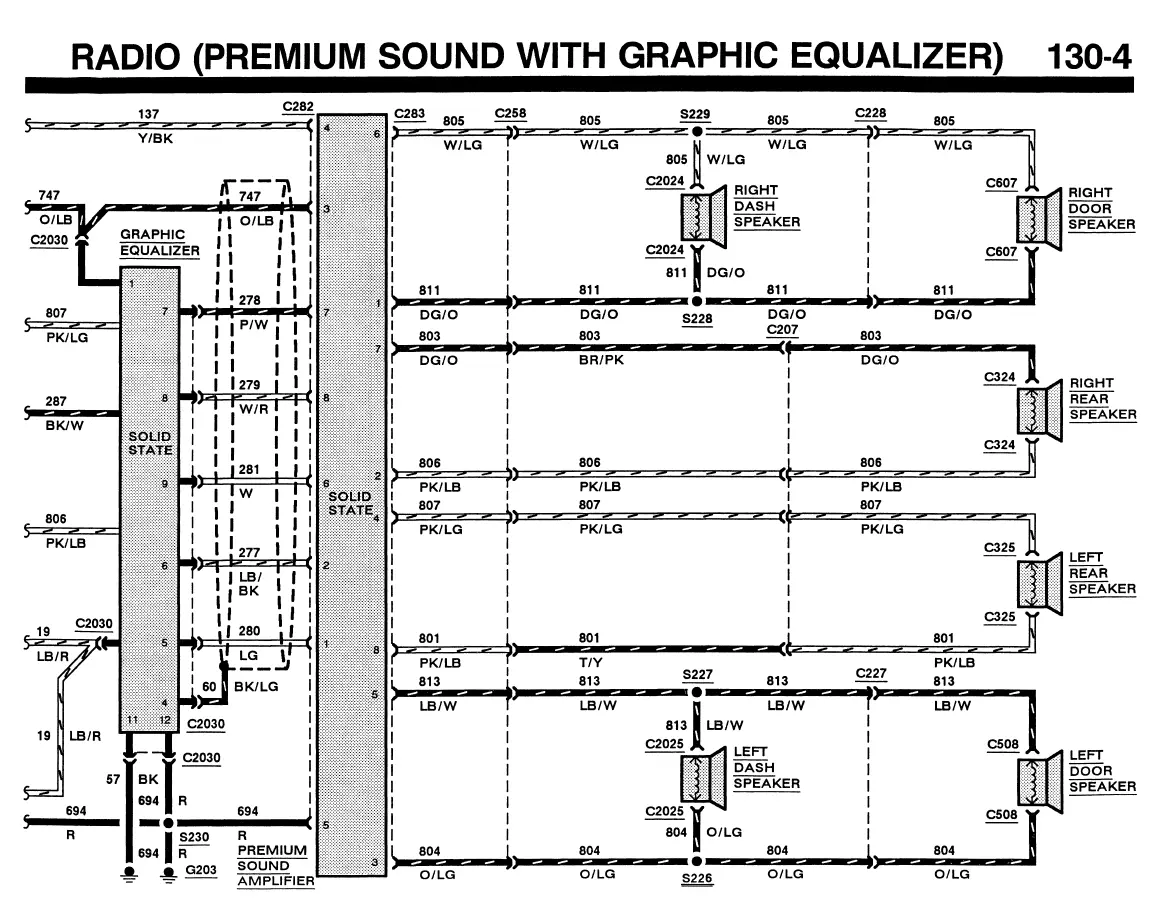

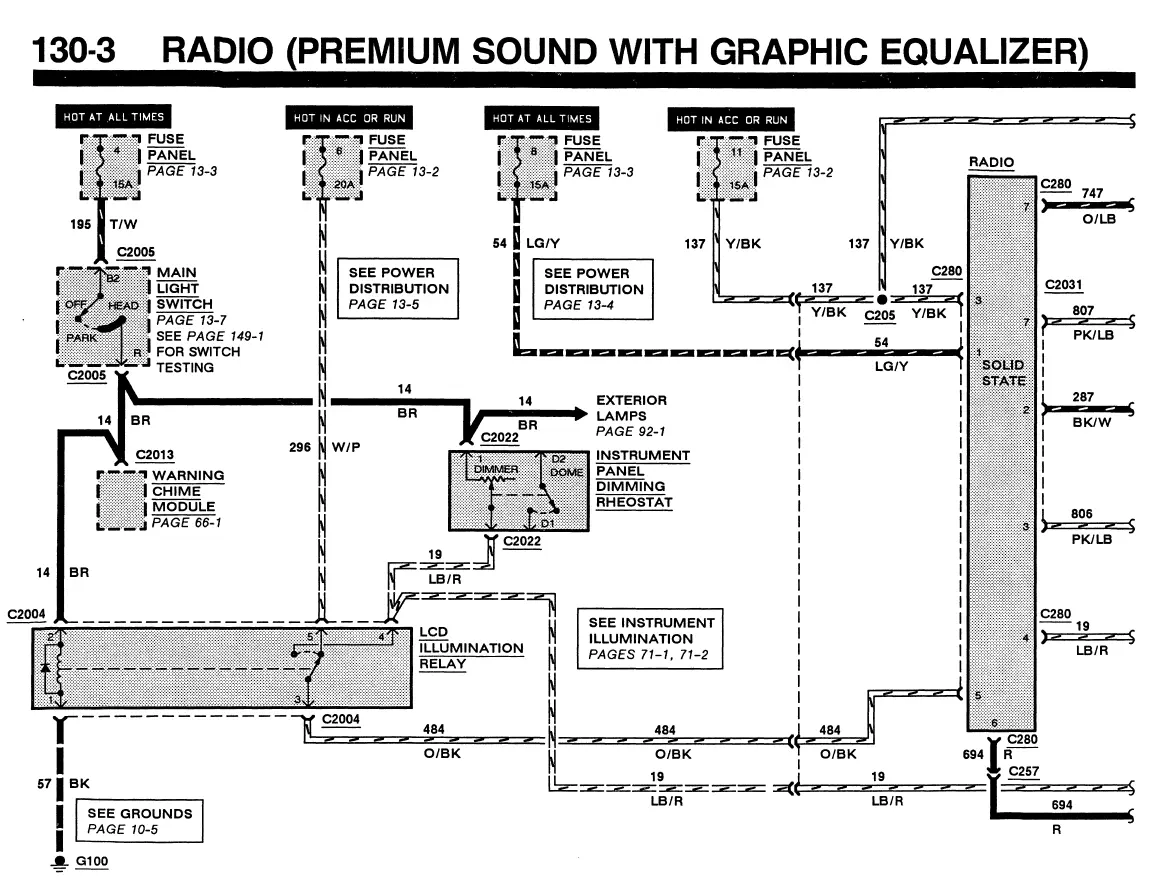

Mustang5L5 That is…until I whipped out my Bissell Mod Dude Feb 18, 2001 43,215 17,898 224 Massachusetts Jan 12, 2026 #3 Jan 12, 2026 #3 1991 Premium Sound with EQ Reactions: Zeke1995

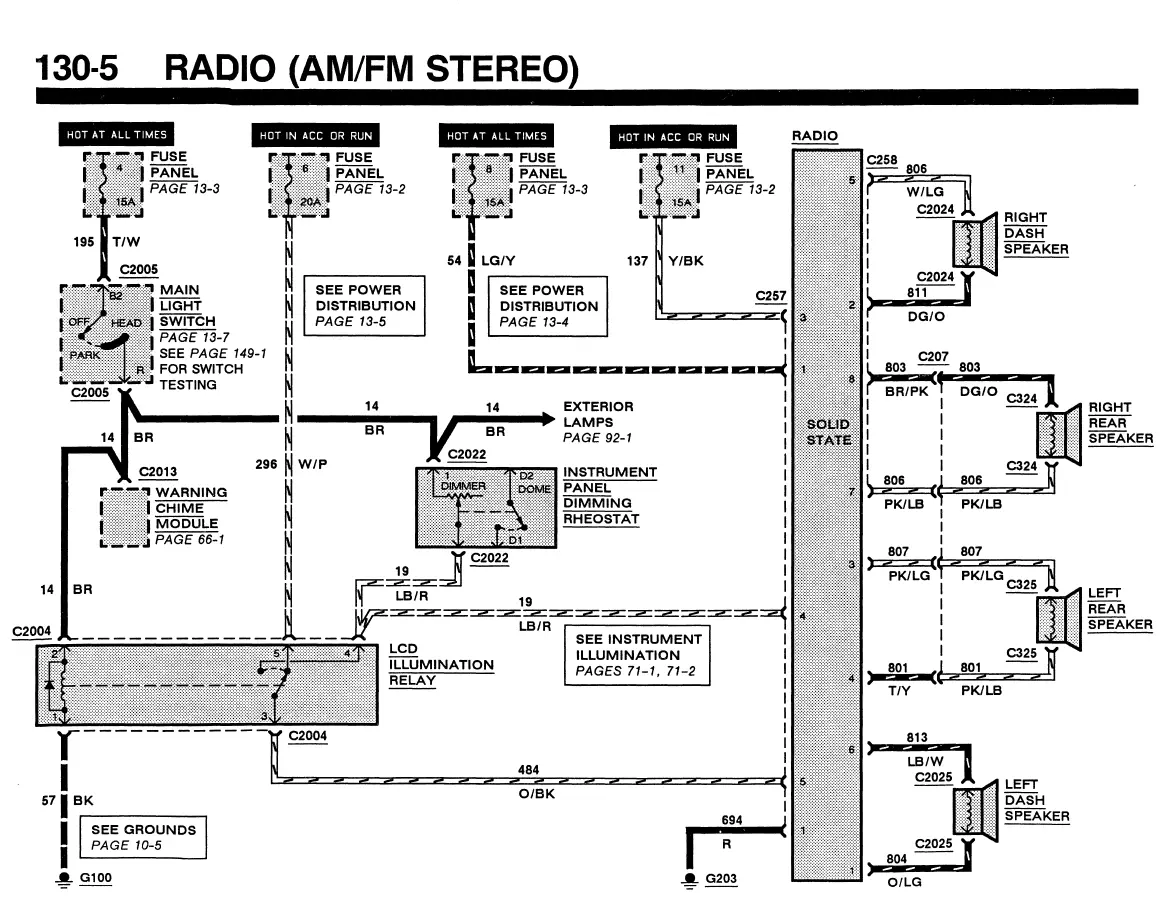

Mustang5L5 That is…until I whipped out my Bissell Mod Dude Feb 18, 2001 43,215 17,898 224 Massachusetts Jan 12, 2026 #4 Jan 12, 2026 #4 1991 Base Radio Reactions: Zeke1995

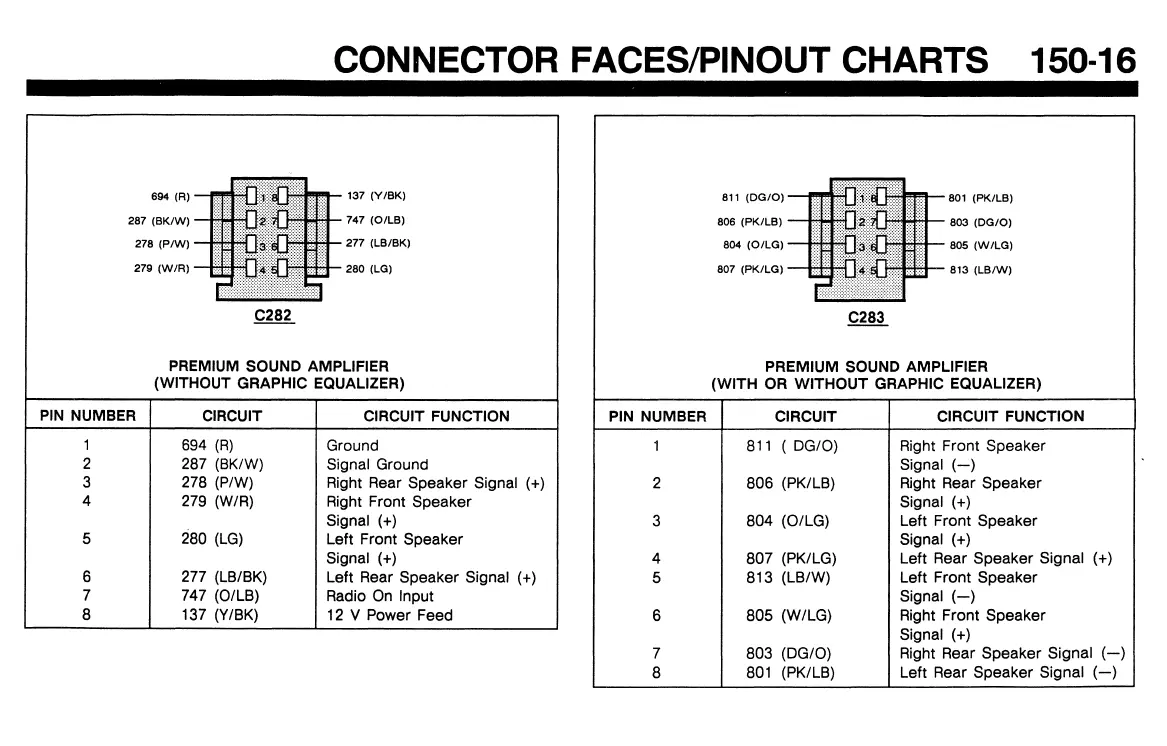

Mustang5L5 That is…until I whipped out my Bissell Mod Dude Feb 18, 2001 43,215 17,898 224 Massachusetts Jan 12, 2026 #5 Jan 12, 2026 #5 1991 Premium Amp connections

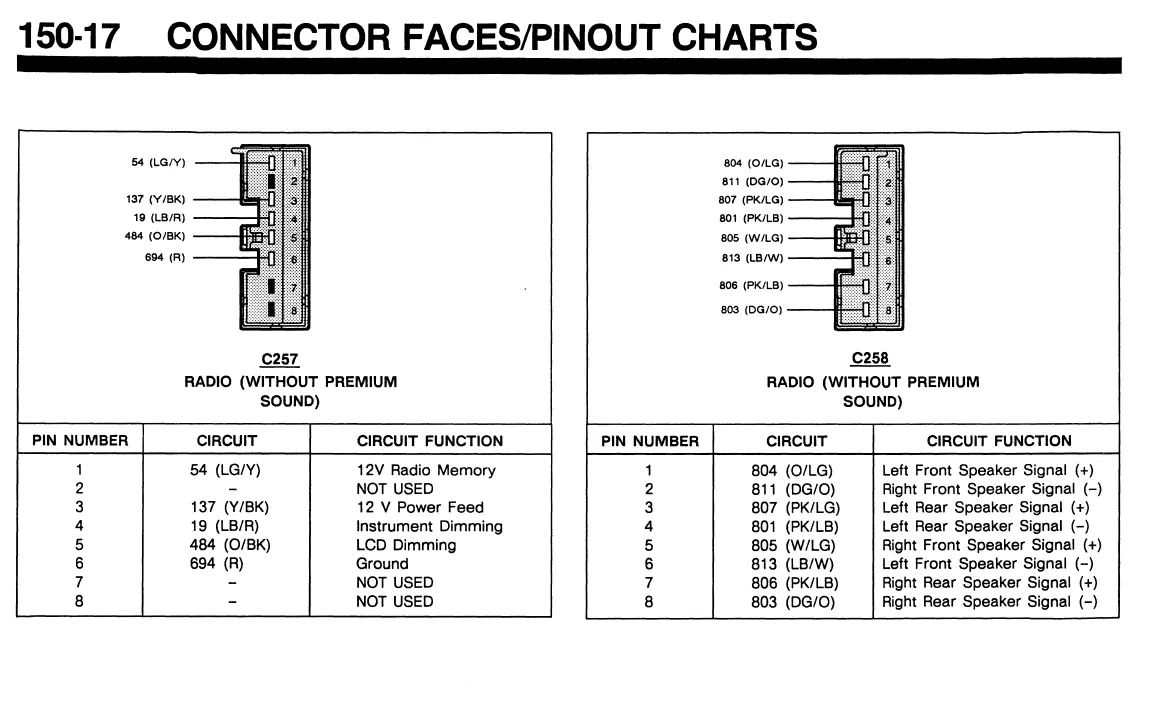

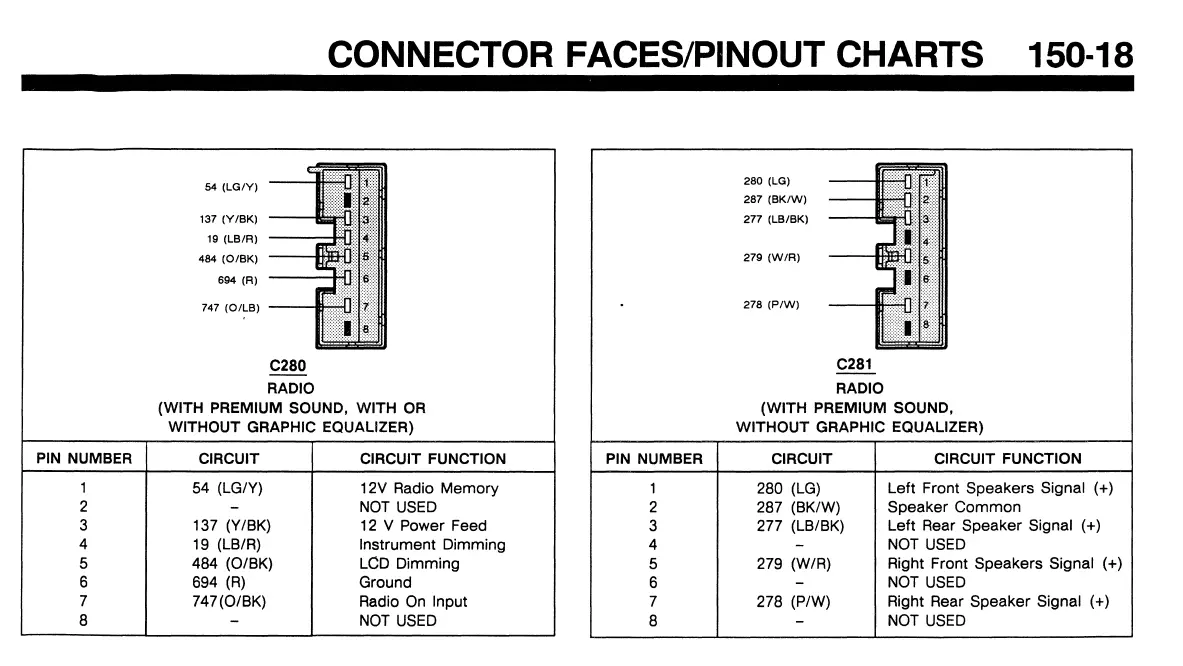

Mustang5L5 That is…until I whipped out my Bissell Mod Dude Feb 18, 2001 43,215 17,898 224 Massachusetts Jan 12, 2026 #6 Jan 12, 2026 #6 Radio interface connections Reactions: Mcmahst
Z Zeke1995 Member Jun 15, 2025 15 2 13 North Carolina Jan 12, 2026 #7 Jan 12, 2026 #7 Mustang5L5 said: 1991 Premium Sound Click to expand... Thank you man!
Z Zeke1995 Member Jun 15, 2025 15 2 13 North Carolina Jan 12, 2026 #8 Jan 12, 2026 #8 Mustang5L5 said: Radio interface connections Click to expand... Thank you!
Z Zeke1995 Member Jun 15, 2025 15 2 13 North Carolina Jan 12, 2026 #9 Jan 12, 2026 #9 Mustang5L5 said: 1991 Premium Sound with EQ Click to expand... Thanks!
