Fox 1993 LX 2.3 Wiring
- Thread starter Coyoteswap93
- Start date

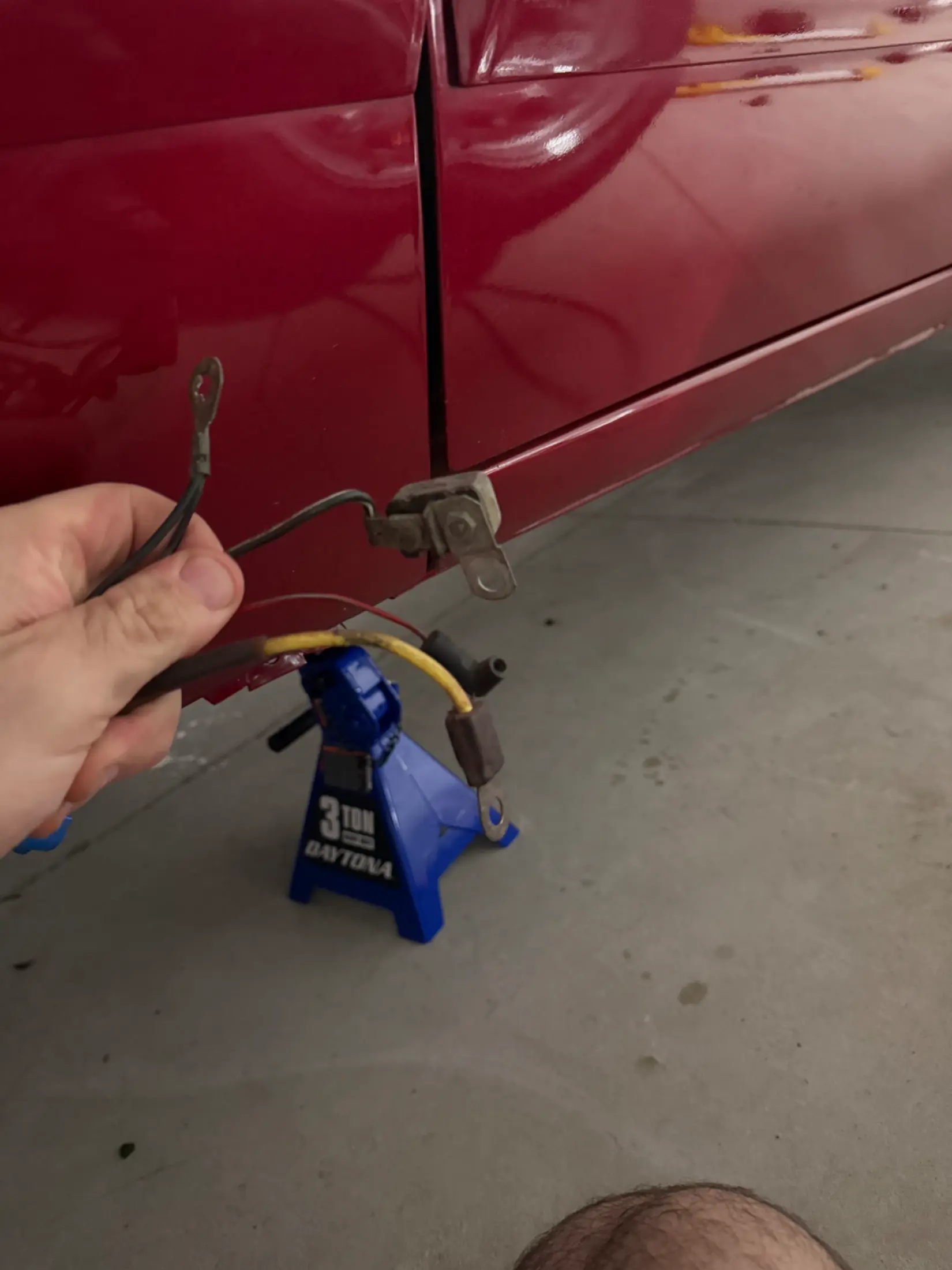

Left to right
ECU ground. Circuit breaker for power windows/locks. Red wire is the starter solenoid trigger wire.

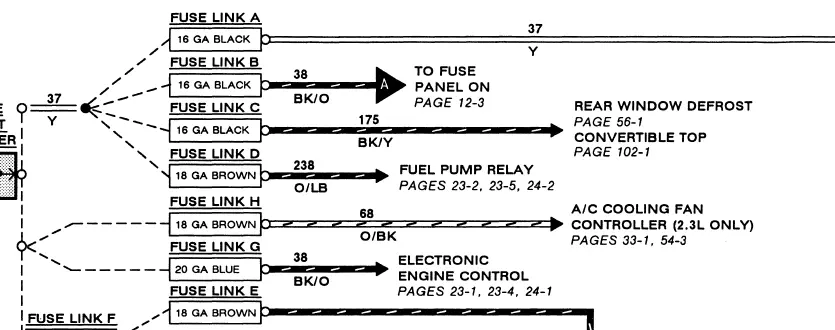

Yellow feeds power to bunch of stuff
Appreciate that! So for that portion I only need the yellow power wire then, car has manual windows and manual locks. Thanks!
Left to right
ECU ground. Circuit breaker for power windows/locks. Red wire is the starter solenoid trigger wire.
Yellow feeds power to bunch of stuff
keel
Active Member

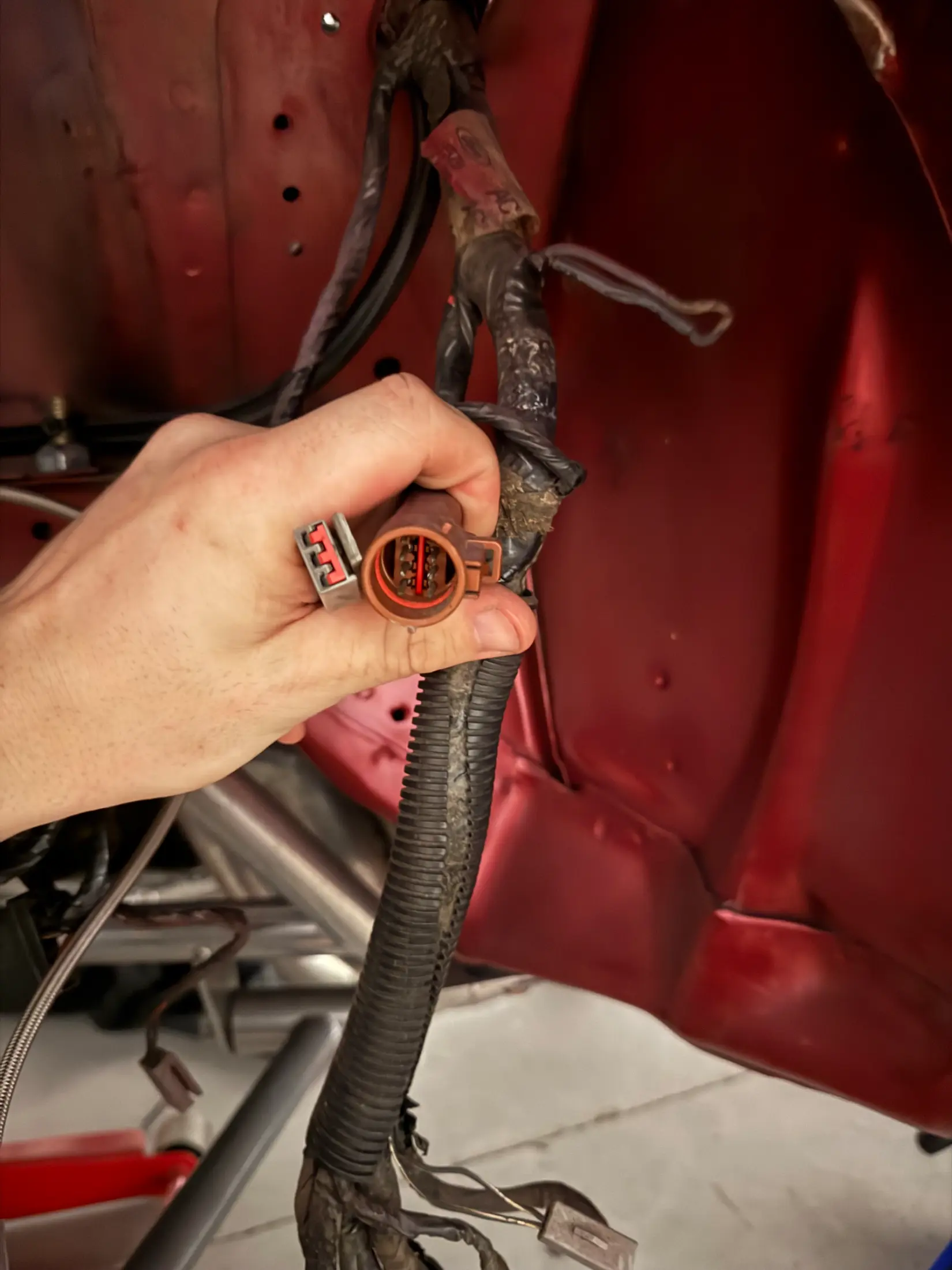

Brown 8-pin plug in the first pic connects the engine harness and body harness I believe for signals to the gauges. Usually this is routed through the firewall and into the engine bay and not out into the fenderwell so maybe the previous owner did a wire tuck? Same goes for all the wires shown in the second pic.

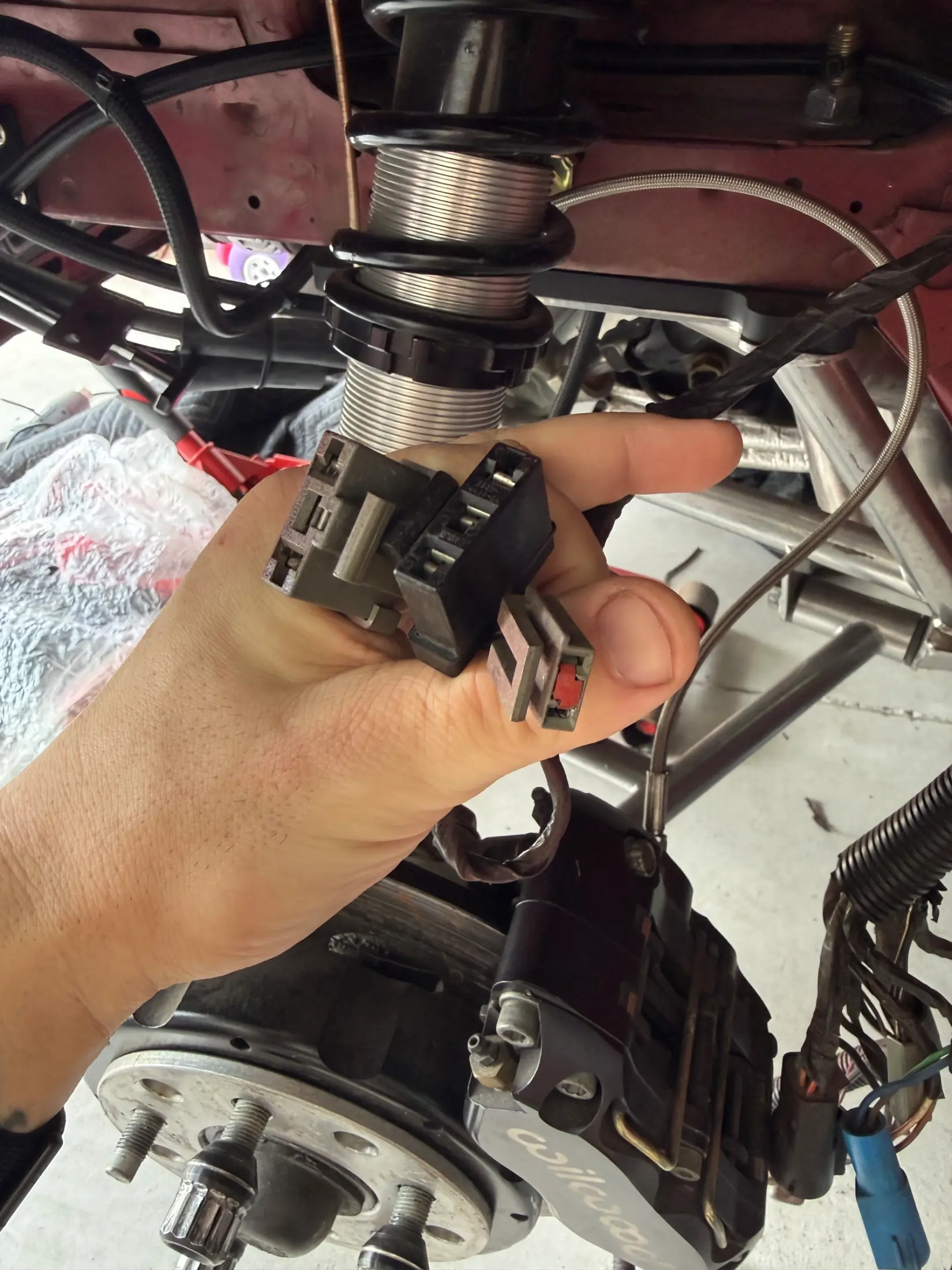

Third pic it's hard for me to tell if those wires belong in the bay or in the fenderwell. I think the flat looking black 2 pin connector is for the windshield washer motor but that is all I can say with any confidence.
Third pic it's hard for me to tell if those wires belong in the bay or in the fenderwell. I think the flat looking black 2 pin connector is for the windshield washer motor but that is all I can say with any confidence.

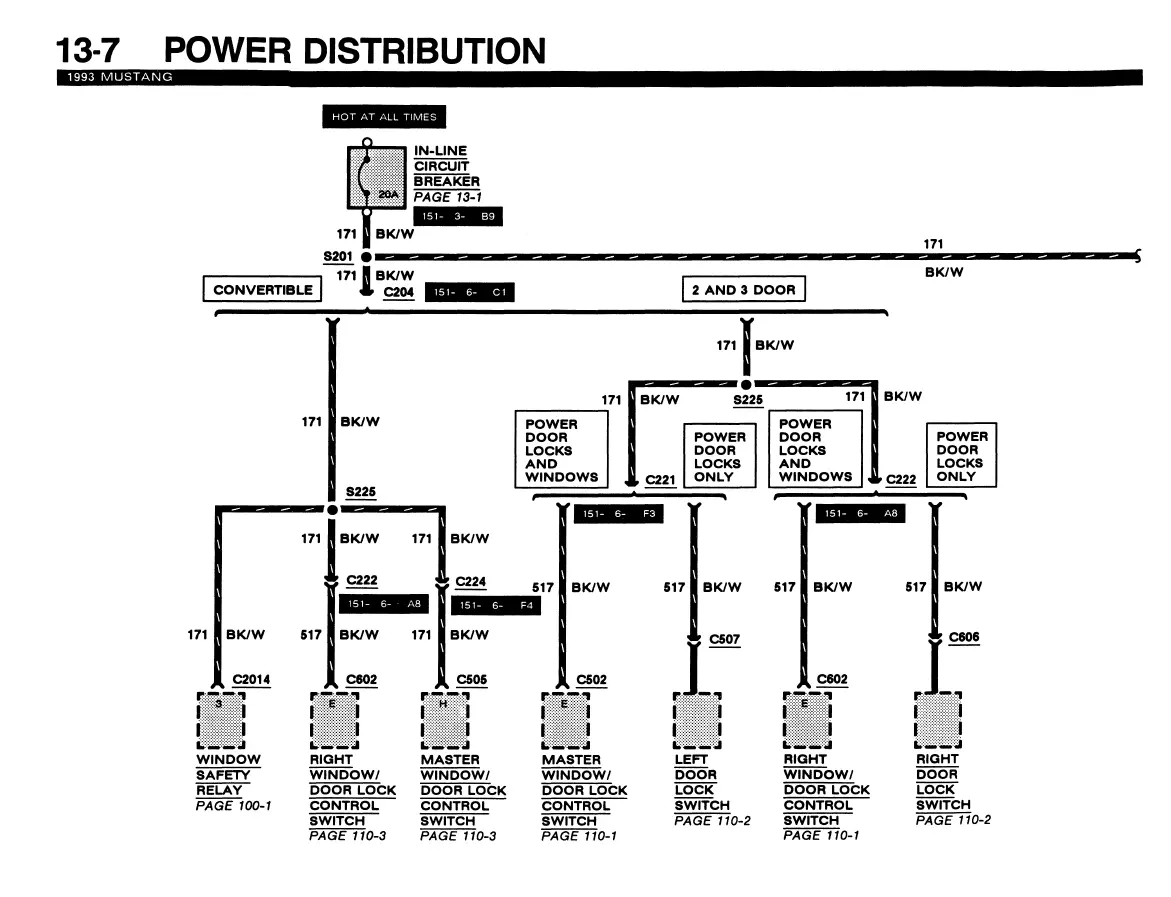

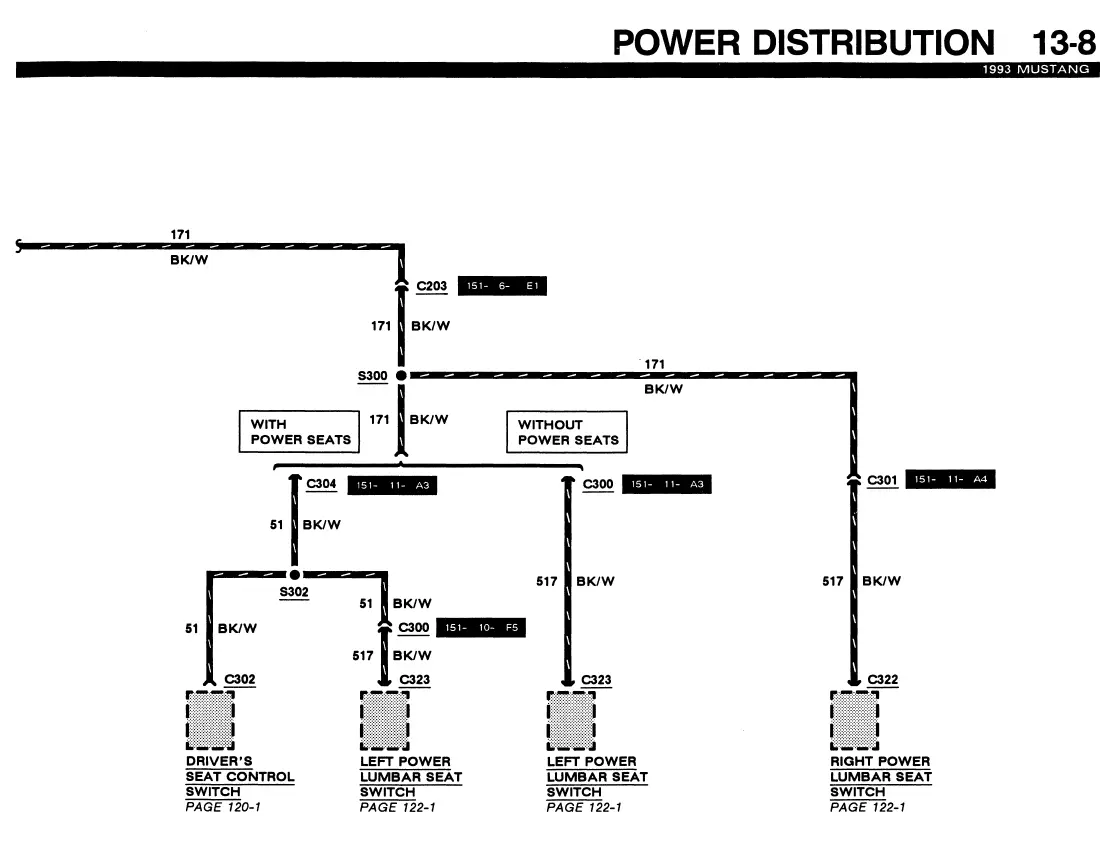

The circuit breaker also does the plug under the seats that would send power to the power lumbar or drivers seat track

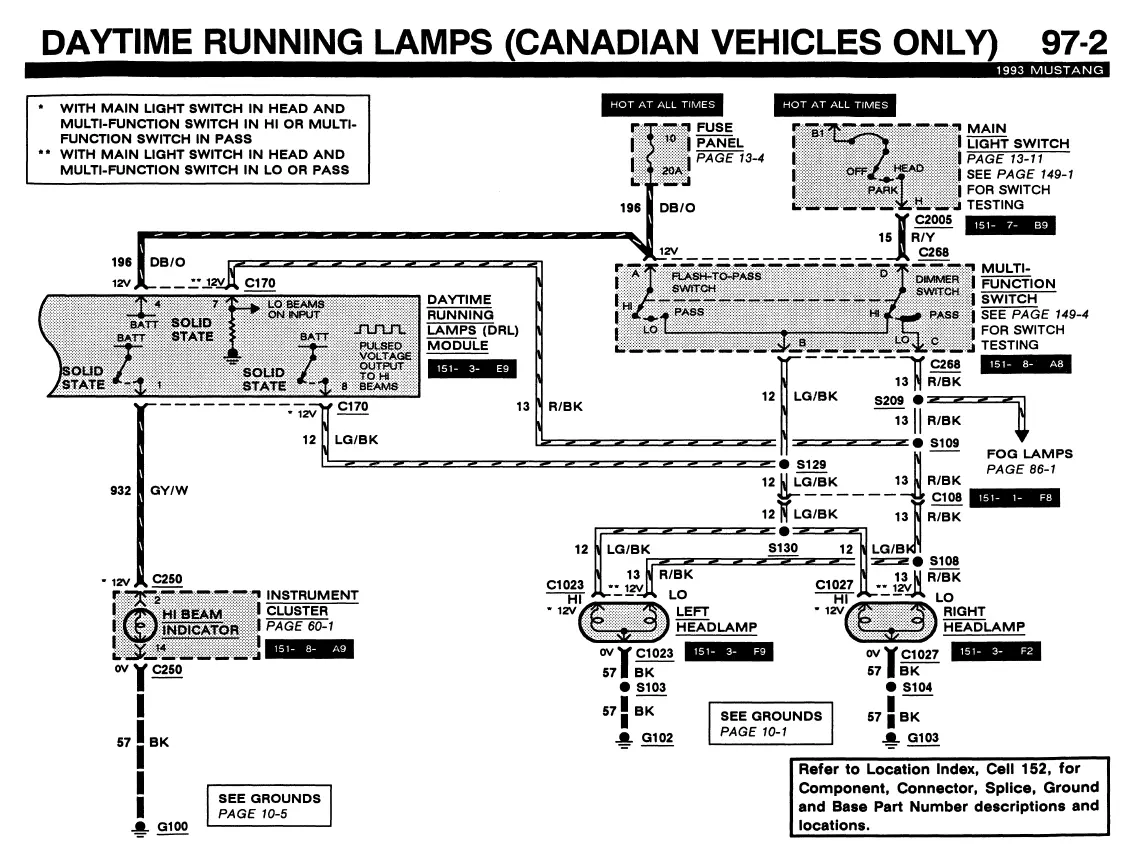

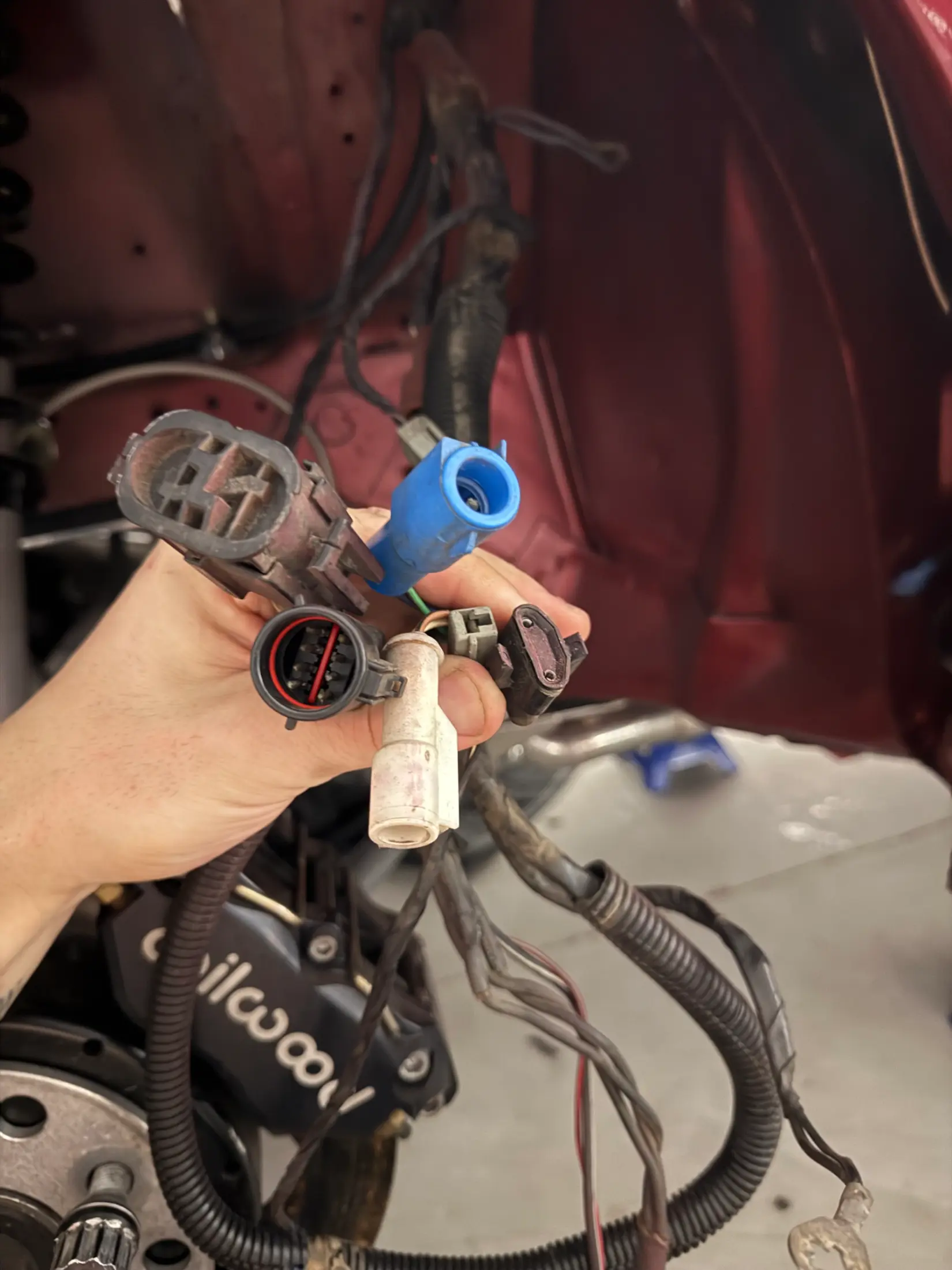

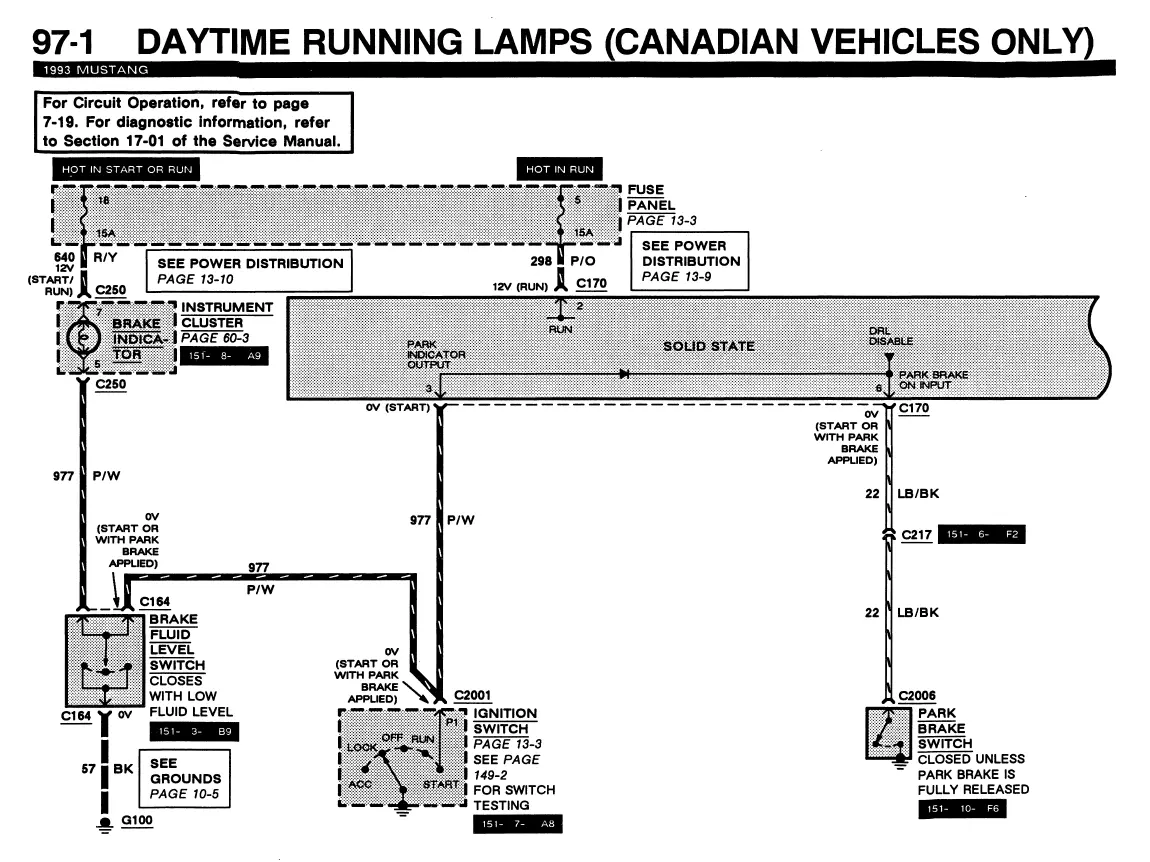

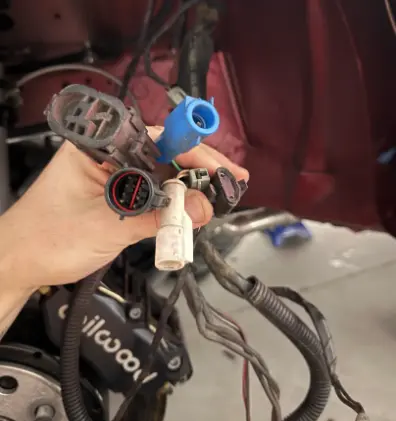

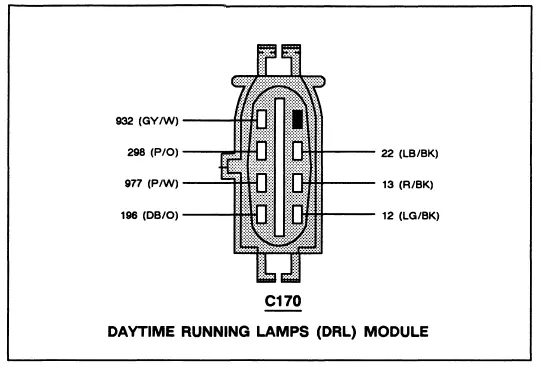

Big one at top left corner is the DRL shorting plug. On canadian cars, there is a module here. On US cars they get a shorting plug, which is what you have. You can likely cut it out provided you ID what wires short to what and keep those connections intact in the harness. I would just leave it alone and tuck it.
2pin plug at 3 o-clock is windshield washer pump motor.
I believe all air-bag related plugs on the 90-93 cars are blue which would be the one at 12 o-clock.
Little three pin connector is the low fluid plug for the master cylinder reservoir. The other plug i believe connects to the original engine harness and go across the firewall pinch weld. You prob don't need that now.
I think Mustang5L5 has you covered but the complete wiring diagrams for the 1993 are here:
