5.0 Aode Into 57 Wagon Swap Questions

[big vic]

Hi I have 57 wagon that I put a 95 5.0 and AODE ino I have the complete doner car and want to hook up all the harnesses so it will be easy to fix or diagnose the Mustang GT was totaled but ran great all the mechanicals of the swap have been done I need help with the easiest way to get it running



[General karthief]

This may not be the place for this inquiry, I think I'll move it to the tech thread. Sounds like you got a good jump on the swap, if it helps there are some wiring diagrams for 95 mustangs on veryuseful.com.



[big vic]

took some pics today



[big vic]

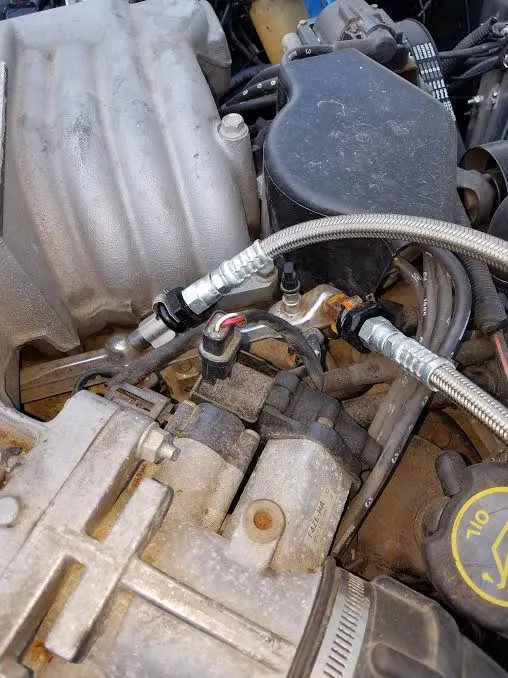

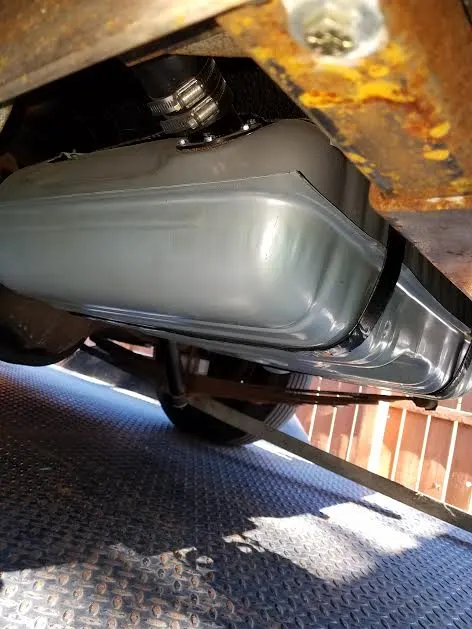

1. the tank pic is the new tanks inc tank with internal fuel pump and braided teflon lines all the way to the fuel rails feed line with a filter and return line both #6 custom tank to fit with fill line mated up to the stock location fuel door

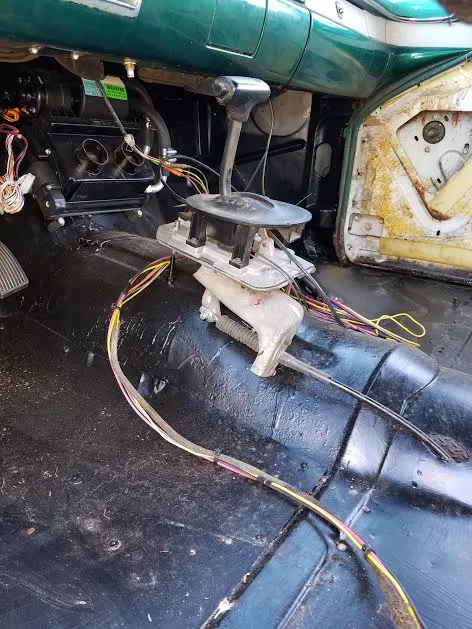

   shifter pic is shifter from the mustang mounted to the trans tunnel i will build a counsol around it

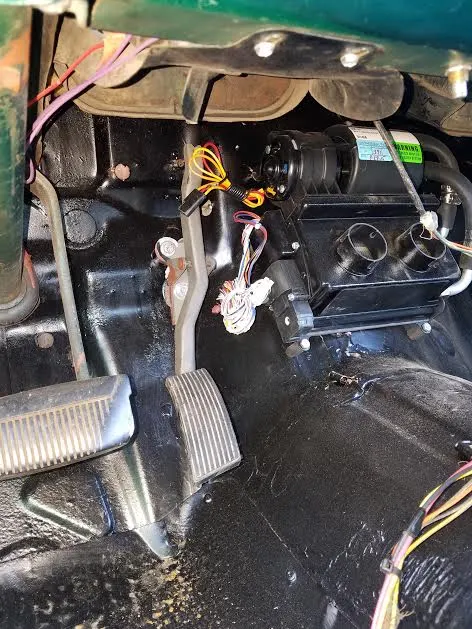

   pedal pic is pedal from the mustang mounted and using the stock cable

   i used the correct belt for AC deleat and a new stock tensioner

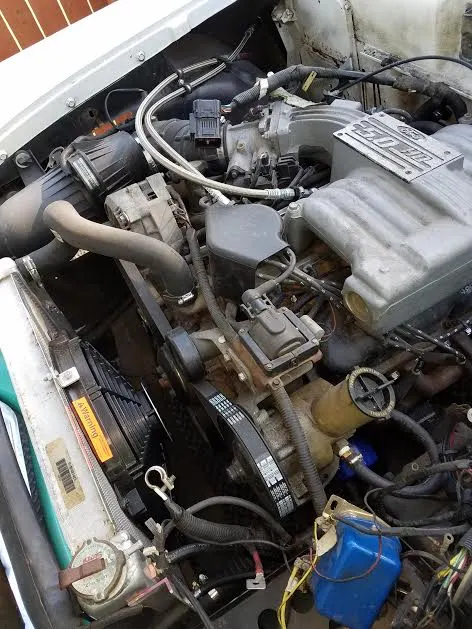

   huge be cool radiator fitted into the core support took all night of cutting to make it look good but it look great

   huge cooling fan with relay set up on a switch so i can control the coodown or warmup

   to fit the 95 motor into the 57 frame i needed a 67 mustang pan and oil pickup with front sump to give me the clearance for the steering linkage

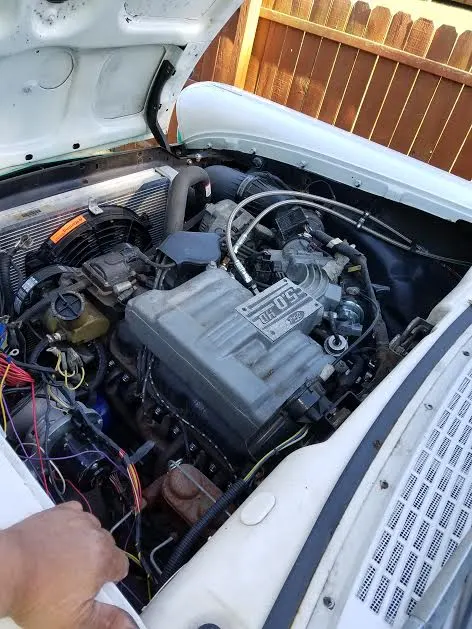

   stock headers fit perfectly with only 1 small dent to clear the steering box the passenger side was a perfect fit

   to fit the AODE trans i moved the stock crossmember back 3 inches and welded a plate at the height needed for correct pinion angle

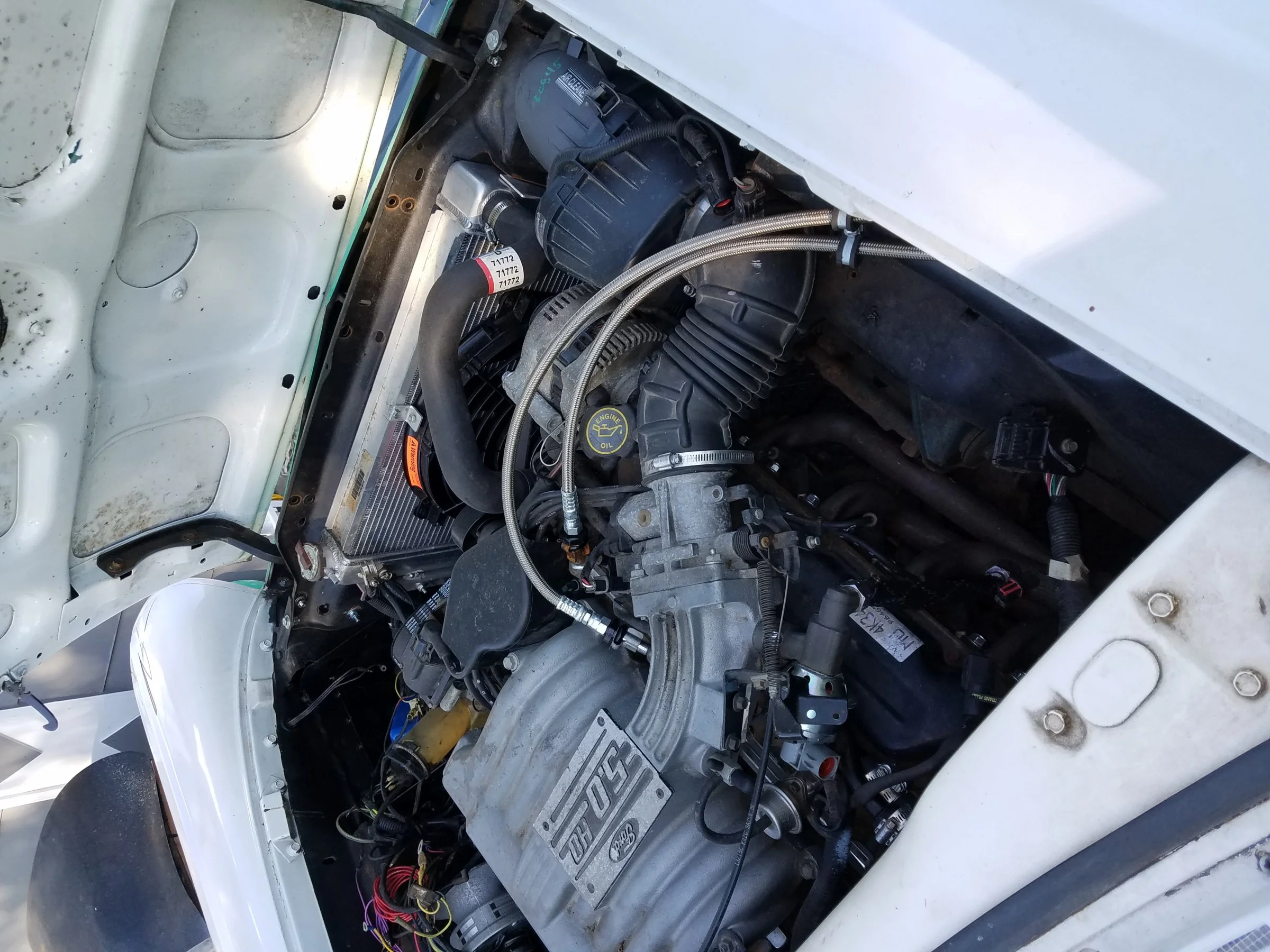

   to mount the stock airbox I cut out a section of inner fenderwell and ran the snorkle into the fender

   i had a custom driveshaft made

   i had to raise the floor in the back to fit the tank but its under the pare tire well and you can till fit a spare i also installed a trap door in the floor to service the fuel pump
   spent all winter on the project working around my 60 hr a week job now all i need is to get the harness hooked up
   the engine harness in on the engine and i have all the wireing and modules from the doner car 95 GT I jut dont know where to go from here i was hoping someone would be able to tell me what to hook up to get it running

   #6big vic, Today at 9:08 PM
   Edit
   + Quote Reply


2.

   DavedacarpainterThat's MISS Susie Homemaker to you mister!
   SN Certified Technician
   OMG, that is so freaking cool!



[jrichker]

Here are some essential diagrams that will help you with the electrical wiring. This is just short list, the actual site has a lot more...


See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring; http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.


TFI module wiring for 94-95 Mustang GT
http://www.veryuseful.com/mustang/tech/engine/images/Mustang-94-95-IgnitionControlModule.gif

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 88-90 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

O2 sensor wiring harness
http://www.veryuseful.com/mustang/tech/engine/images/mustangO2Harness.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pin out
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

Mustang 5.0 Lights and Radio schematic, by TMoss:
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxLights-Radio_diag.gif

87-92 power window wiring
http://www.veryuseful.com/mustang/tech/engine/images/mustang87-92 PowerWindowWiring.gif

93 power window wiring
http://www.veryuseful.com/mustang/tech/engine/images/mustang93PowerWindows.gif

T5 Cutaway showing T5 internal parts
http://www.veryuseful.com/mustang/tech/engine/images/5_Speed_Cutaway_Illustrated.jpg

Visual comparison of the Ford Fuel Injectors, picture by TMoss:
http://www.veryuseful.com/mustang/tech/engine/images/Ford_Injector_Guide.jpg

Convertible top motor wiring http://www.veryuseful.com/mustang/tech/engine/images/mustang88VertTopMotorCkt.gif

Engine mounted fuel injector harness
http://www.veryuseful.com/mustang/tech/engine/images/mustangEngineHarness.gif

Location of the TPS, IAB, and the 10-pin connectors on a 5.0, picture by TMoss:
http://www.veryuseful.com/mustang/tech/engine/images/TPS_IAB_Pic.jpg

Starter circuit
http://forums.stangnet.com/attachment.php?attachmentid=21328&d=1080916057

Alternator diagram for 94-95 Mustangs.
http://www.veryuseful.com/mustang/tech/engine/images/Mustang



[big vic]

thanks



[General karthief]

Ships ahoy! Don't you need a captains license to drive that inside the city limits?
Man whatta ride, love those things!
Do you still have the donor car?



[big vic]

I have every single harness and miule from bumper to bumper but the rest is gone
