Electrical 88 mustang all lights work except REAR signals

plantmeister

Active Member
Dec 17, 2016
87
6
28
FL
Hi all,

My car was recently taken completely apart by a body shop, and as it's been put back together, we've run into a bewildering problem.

All front lamp lights work, including hazards, turn signals, everything. On the rear, I've got running lights, brake lights and reverse. However, when we turn on the hazards or turn signals, the relay works and the bulbs up front flash. No turn signals or hazards work at the back.

Where do I even begin tracing the problem? Do I look for a wire, or at a multifunction switch? Have no clue.
Any help is appreciated! It's the last thing holding up my car being finished. Thanks!

  • Sponsors(?)


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,243
2,594
234
74
Dublin GA
lowendmac.com
Hi all,

My car was recently taken completely apart by a body shop, and as it's been put back together, we've run into a bewildering problem.

All front lamp lights work, including hazards, turn signals, everything. On the rear, I've got running lights, brake lights and reverse. However, when we turn on the hazards or turn signals, the relay works and the bulbs up front flash. No turn signals or hazards work at the back.

Where do I even begin tracing the problem? Do I look for a wire, or at a multifunction switch? Have no clue.
Any help is appreciated! It's the last thing holding up my car being finished. Thanks!
What year car? The wiring changed several times between 1979 and 1995.


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
33,265
9,572
224
Massachusetts

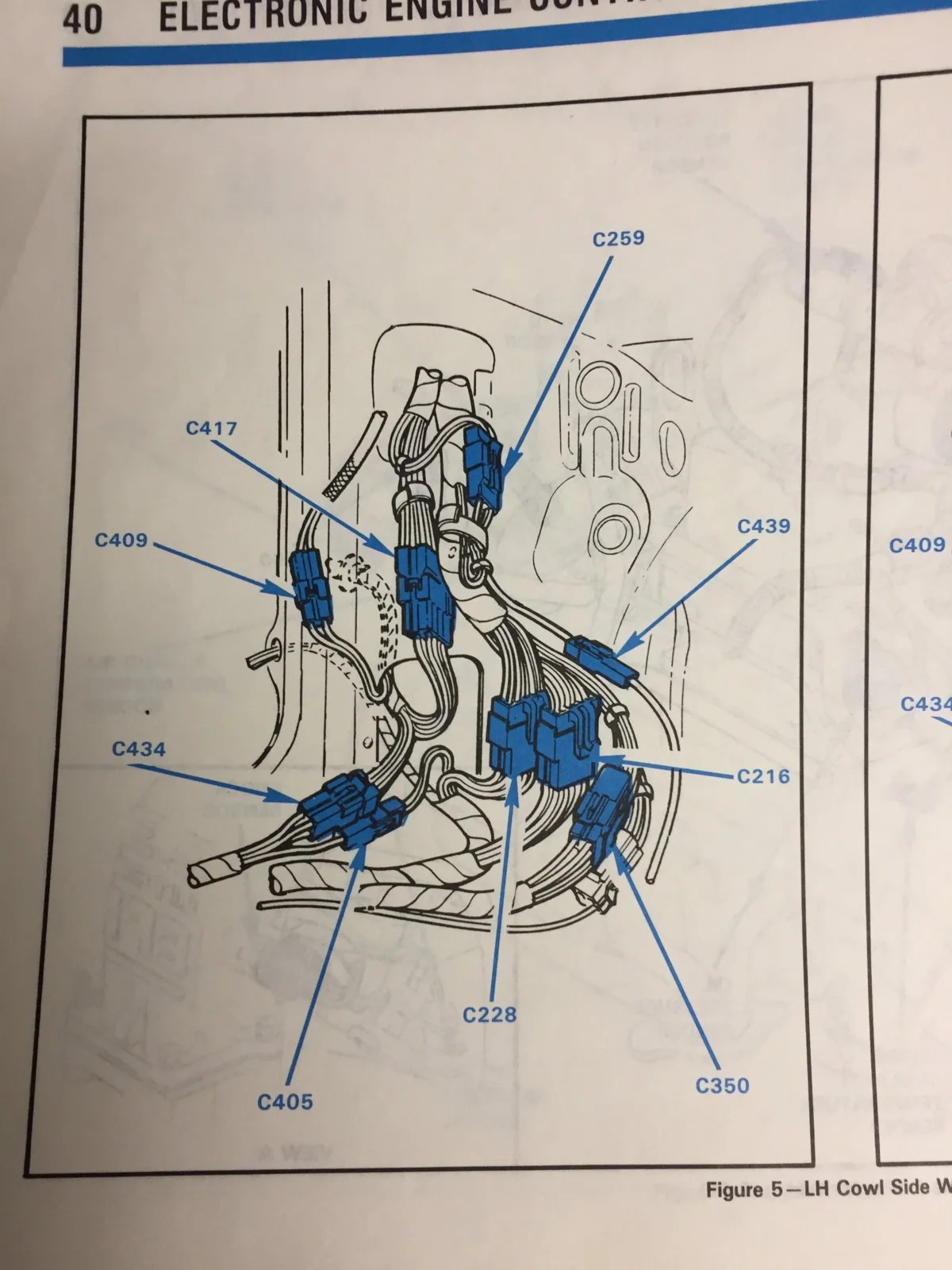

Turn signals run down the left side of the car. Off the turn signal switch, both the rear parking lights, license plate lights and turn signals run through c216 located in the drivers kick panel area. It's a gray, 8-pin connector. You'll want to prove here to see if you have power going rearward to the turn signals


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
33,265
9,572
224
Massachusetts

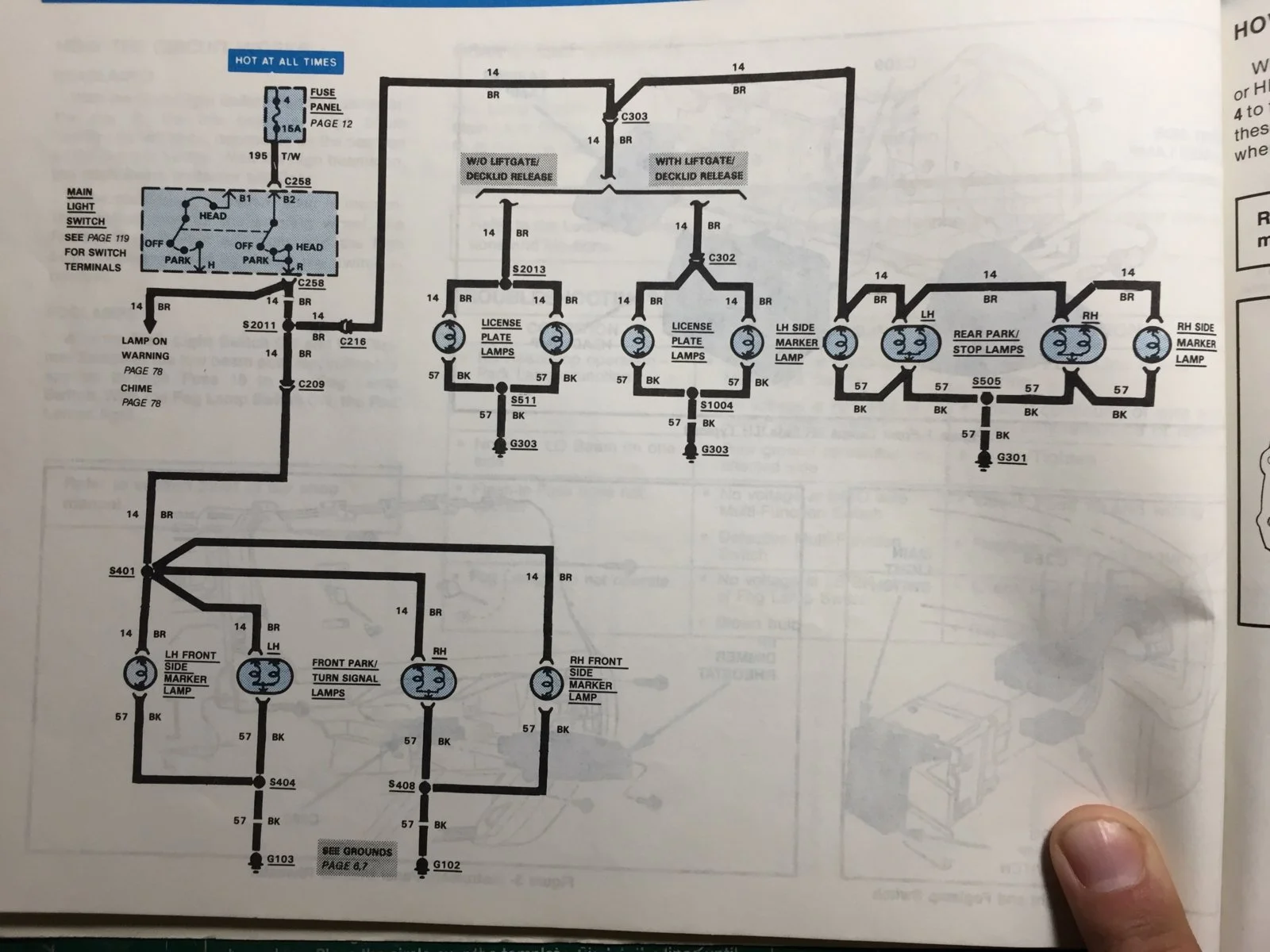

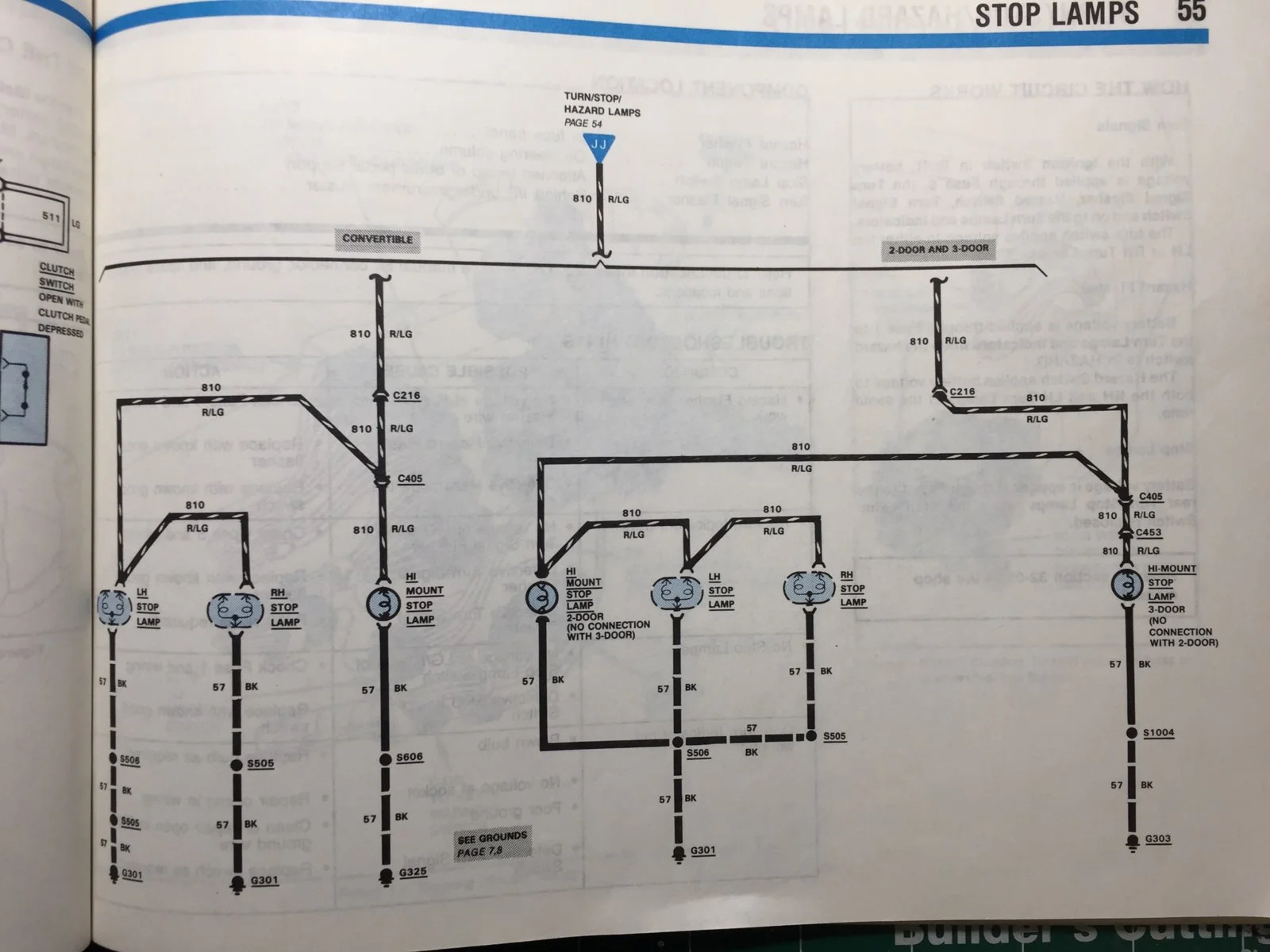

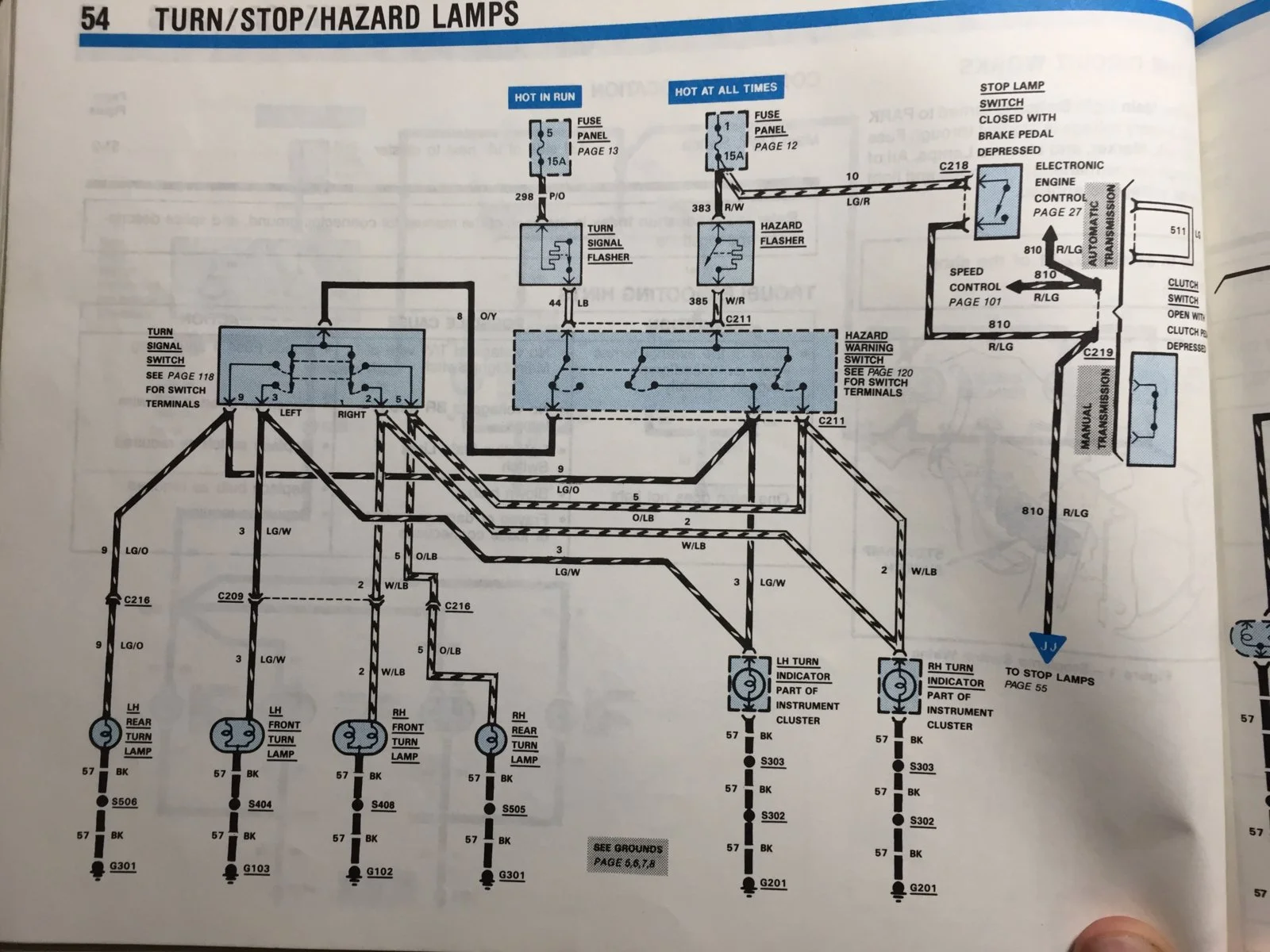

Here are the various wiring diagrams for the rear lighting elements. If you zoom in you should see wire colors

If you can't see them let me know


Mustang5L5

i'm familiar with penetration
Mod Dude
Feb 18, 2001
33,265
9,572
224
Massachusetts

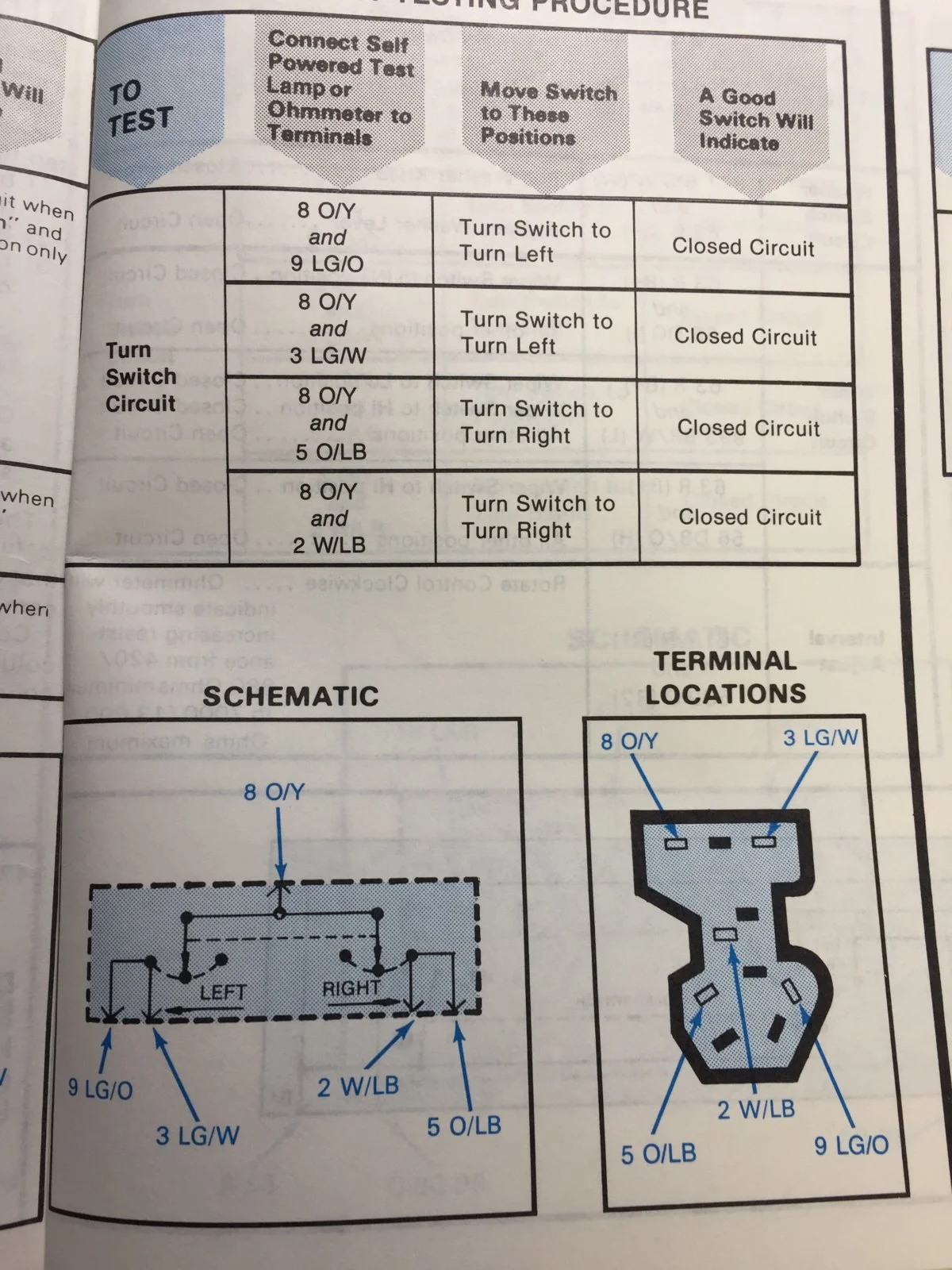

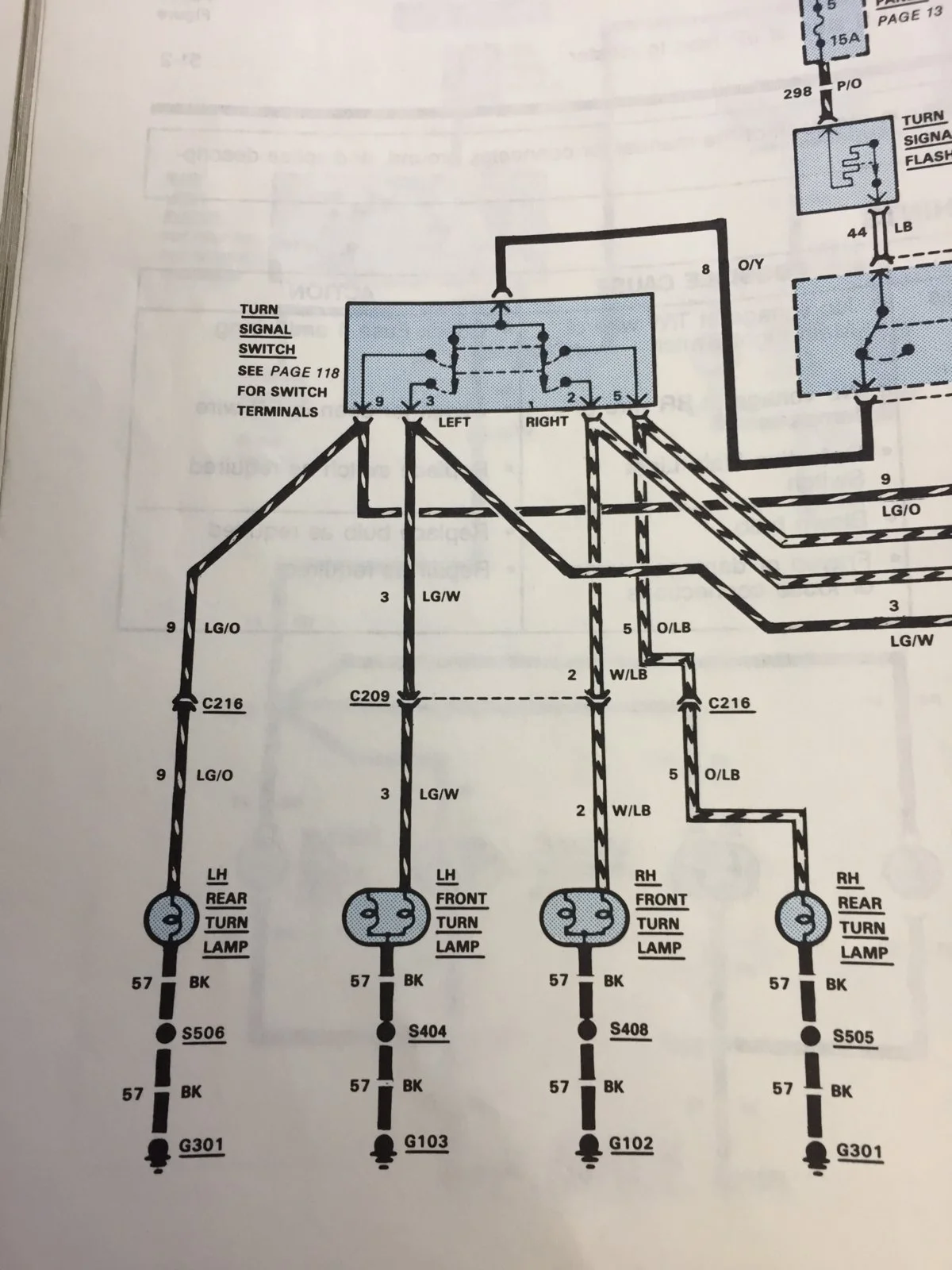

Finally, it appears the front and rear turn signals each come from the turn signal stalk on different wires. You'll want to check these as well. Power to the turn signals is fed from the hazard switch




plantmeister

Active Member
Dec 17, 2016
87
6
28
FL
Great, thank you so much! We are going to start with the kick panel wires and work our way back. These diagrams are perfect. We'll et you know the outcome!


plantmeister

Active Member
Dec 17, 2016
87
6
28
FL

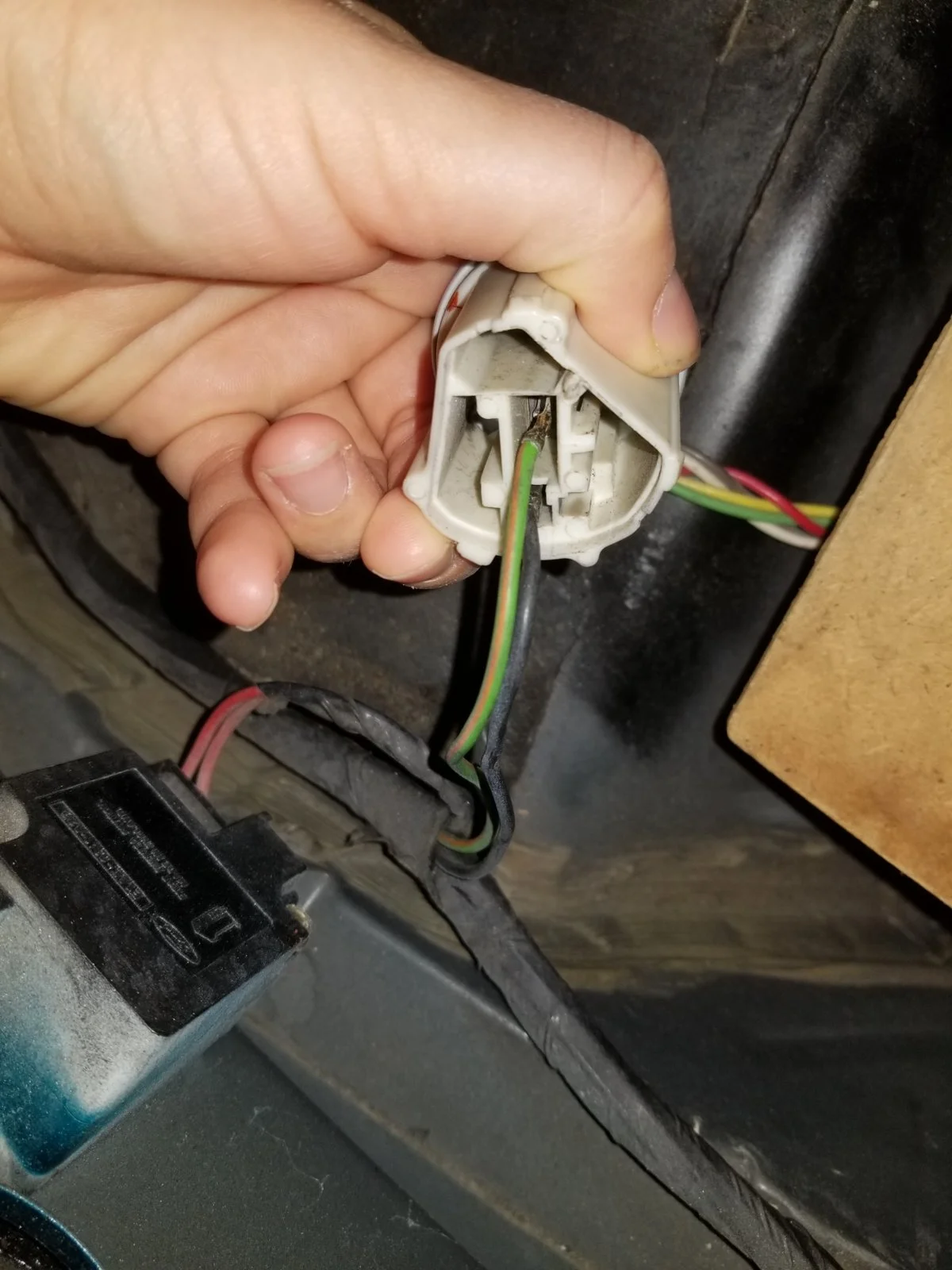

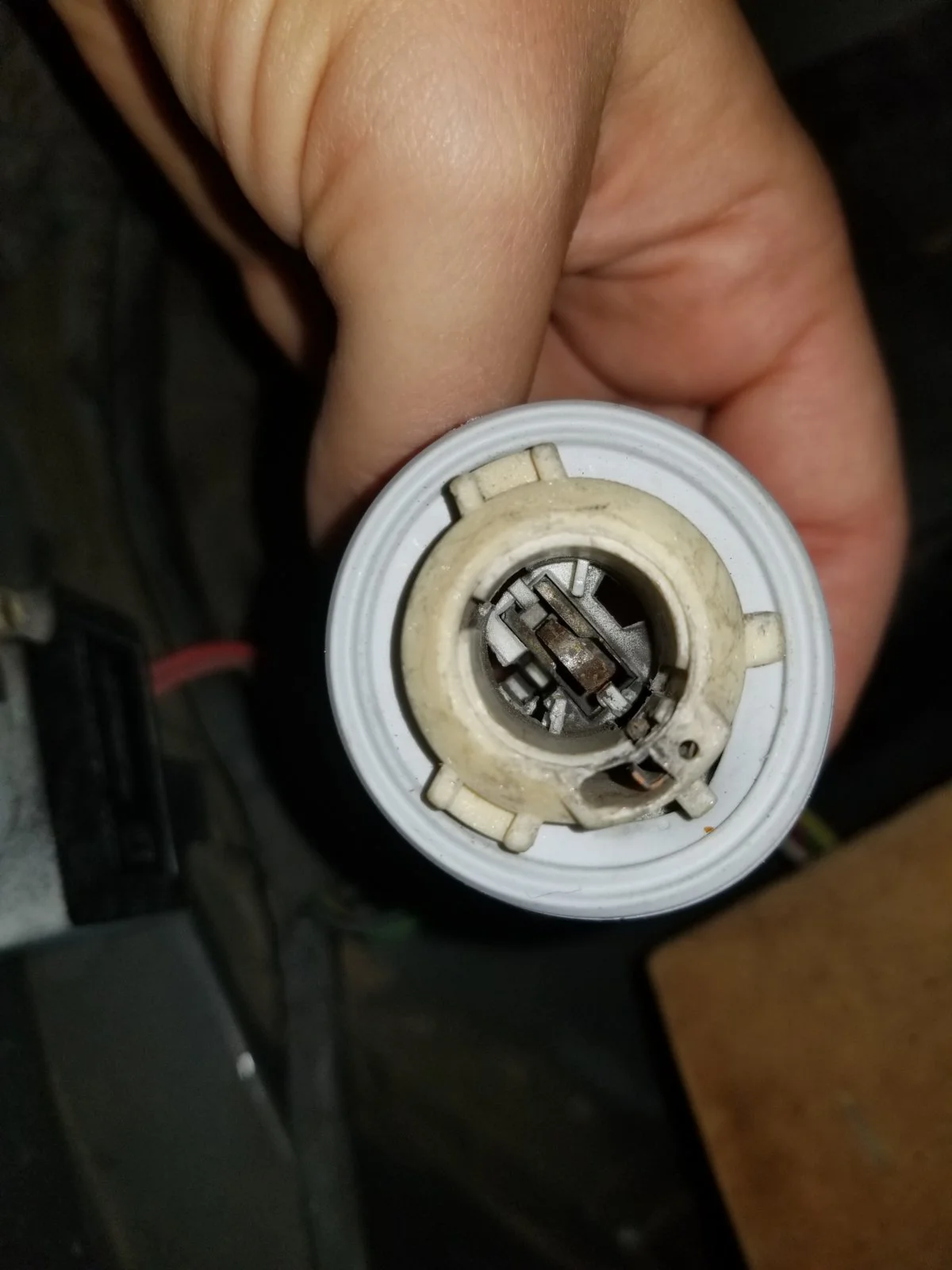

After looking at the harness diagrams, we realized we were testing the wrong ones. I wiggled the right rear socket and it came on! So I knew there was power back there. We switched bulbs and still only the right rear was working, no left rear. We checked the left rear socket and discovered a broken ground inside the socket. We checked the ground going to it and everything was good, so it has to be the sockets that are bad or going bad. Earlier when he checked the power to the socket, he must not have been pushing the pin on the tester far down enough.
I'll try to get ahold of a new set of sockets tomorrow and wire them in for a final check!
