Electrical 88 mustang dash harness pig tails

toco004

New Member
Mar 19, 2020
3
0
1
Bay Area

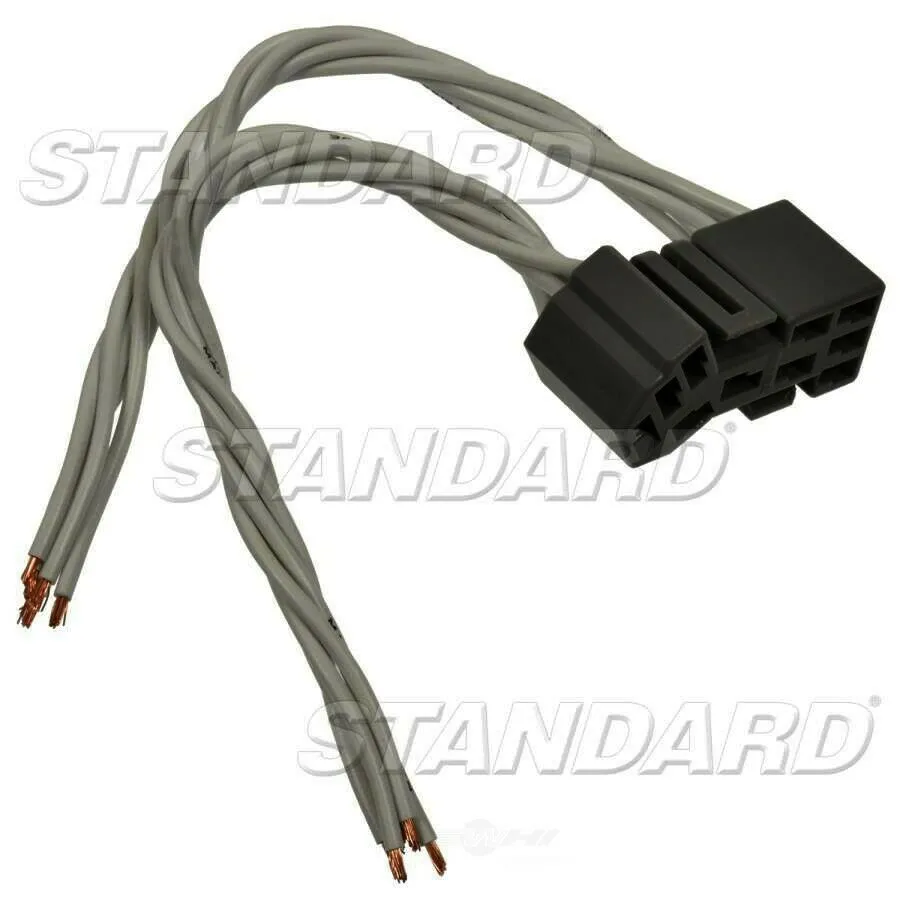

Sup Stangnet , i recently bought a used dash harness on ebay but some of the plugs seem to be damaged and would like to replace them. just like the photo i attached.
i was wondering if anyone has ever seen any kits for sale for the dash harness?

also anyone know where i can find the dash harness diagrams?


Attachments

  • s-l1600 1.jpg
    s-l1600 1.jpg
    47.7 KB · Views: 69
  • Sponsors (?)


If you can take pictures of your connectors we could probably tell you what they go to. Would make them a lot easier to find.

  • Like
Reactions: 1 user
Sup Stangnet , i recently bought a used dash harness on ebay but some of the plugs seem to be damaged and would like to replace them. just like the photo i attached.
i was wondering if anyone has ever seen any kits for sale for the dash harness?

also anyone know where i can find the dash harness diagrams?
What year car? No mention of what year Mustang; the wiring changed several times between 1979 and 1995.

The connector picture you posted is the multifunction switch (turn signal, high beams, etc.)

You will need the Adobe Acrobat viewer which is a free download – http://get.adobe.com/reader/


Attachments

  • Instrument cluster 87-93.pdf
    467.9 KB · Views: 322
