Here is alot better right up on it....Im sure I am still missing a few items

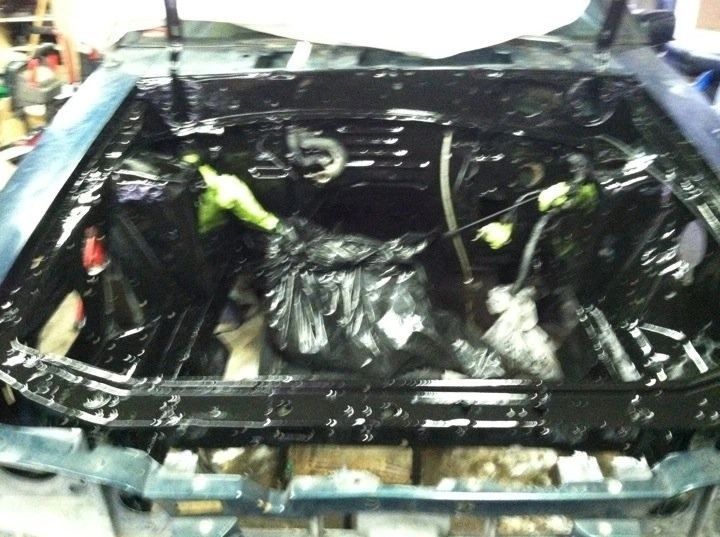

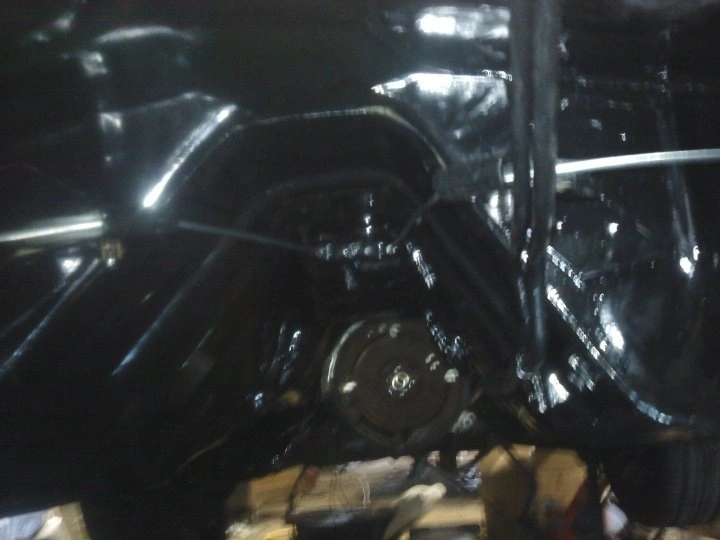

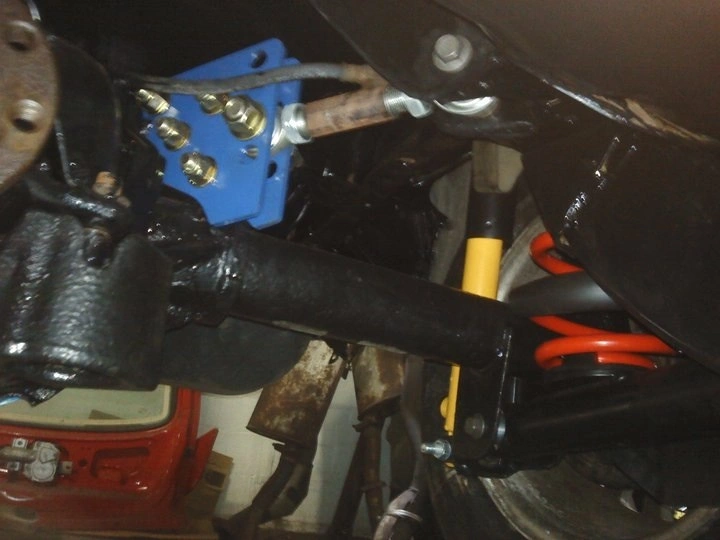

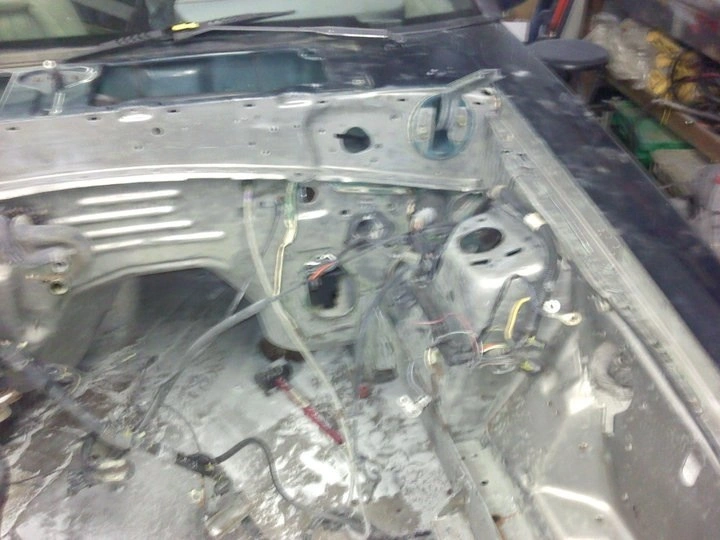

This is my 7 up mustang project car. I bought this car in 2009 drove it for about 10,000 miles installed a new convetible top and then started to restore it. I disasembled the complete underbody and engine bay and coated it with por15. I also welded in full length subframe connectors. and reinforced the battle boxes and control arm mounts. I restored the fuel tank and also coated it with por15 and installed a walbro 255lph fuel pump. all the brake/ fuel lines are coated in por15. The underbody looks imaculate. I regbuilt the rearend swapping the 2.73 gears for 3.73 and installed 95 5 lug axles with rebuilt gt brakes. the rear suspension I redid also with H and R springs, Koni DA shocks, eibach swaybar, and Maxiumum motors sports LCA and bumpstop. For the front suspension I installed a Kenny brown K member also with H and R springs, Koni DA shocks and stock control arms with urethane bushings and new ball joints, Eibach sway bar, I boxed in the sway bar body mounts and welded in studs to mount the swaybar, I did the 5 lug swap up front with spindles from a 95gt and installed 14'' cobra R brakes with red powder coated calipers. that come with braided steel lines, I also installed a axle to body MM braided line in the rear and completed the brake plumbing in the rear. I have a Wilwood proportion valve not installed yet. For brake plumbing the front brakes need plumbed and the rear line needs plumbed from the fender area to the mastercylinder. The master cylinder and brakebooster is rebuilt from a 93 cobra mustang. The engine bay I sodablasted before painting and also covered the A/C inlet in the bulkhead along with a few holes. I bought a shortblock that was completed by a machine shop with stock cleaned up crank. Eagle H beam rods, SRP flat top forged pistons. Engine was line honed bored .040 over, cracked checked ect... I have a brand new Ford F cam. New Moroso 7qt dual sump oil pan, with matching pick up, fordracing oil pump ARP oil shaft, gasket with steel inserts, new oil pan bolts. I Converted this car from an automatic I installed the clutch pedal assembly, completely rebuilt a T5 for it. I have taken the interior out minuus the dash to restore it, the exterior is a little rough with a few ding and a rear fender flare dented. New top and hardware.
