Ac Blower Blows In Floor And Defroster. What The Heck??

[Ben Jamin]

anybody got any ideas. its a 86. thanks



[Noobz347]

You have broken vacuum lines. Either up against the firewall (passenger side, I think) or under the dash.

Could also be the vacuum operated door actuator but it's usually lines.



[5.0ttops87]

anybody got any ideas. its a 86. thanks

check the vacuum line to upper intake (from the tree that leads inside the car and to the vacuum reservoir... the little black ball in the passenger fender well)



[mikestang63]

open the vents



[jrichker]

The following are diagrams courtesy of Tmoss & Stang&2birds


Vacuum diagram 89-93 Mustangs

HVAC vacuum diagram

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring; http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.


TFI module wiring for 94-95 Mustang GT
http://www.veryuseful.com/mustang/tech/engine/images/Mustang-94-95-IgnitionControlModule.gif

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 88-90 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

O2 sensor wiring harness
http://www.veryuseful.com/mustang/tech/engine/images/mustangO2Harness.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

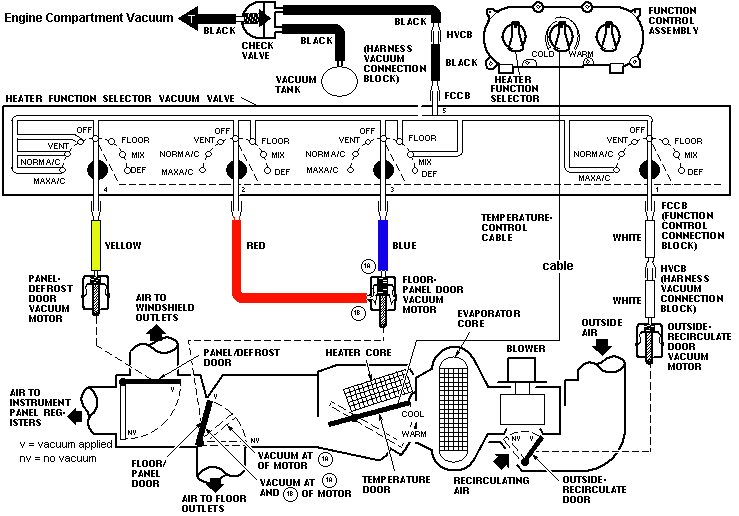

HVAC vacuum diagram
