AOD Help needed

[STP72]

I had everything laid out to shim and add spacers for the TV valve assy
Turns out someone in my house decided to move the valve assy by mistake

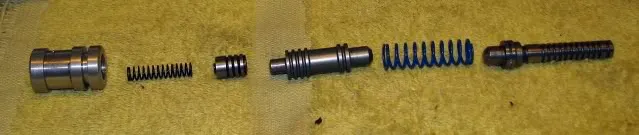

Here is a pic does this look right?

I was told by baumann for the best adjustment they have seen is (2) 0.55 spacers and one 0,032" shim. Where do the shims and spacers go?

Thanks



[white 89 GT]

You have those laid out just the way they go, but that is not where the spacers go.
What you are showing a picture of there is the (throttle (tv) valve).
The spacers go in (TV limit valve) a totally different valve.



[STP72]

Thanks for the clarification Wade I got it now. I feel like an idiot now
Thanks for the help much appreciated
