blow thru mass air wiring

[Beasly B]

Just installed my 42lb injectors this evening waiting on my procharger kit, went to hook up the pro-m blow-thru mass air meter and the factory plug doesn't fit the new meter. The meter comes with a plug that has 4 leads off of it to splice into the factory harness. I have the diagram for the pro-m side of the plug, I need to know what to hook it to on the factory side of the harness. What color on represents what on the factory side?



[jrichker]

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/

http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

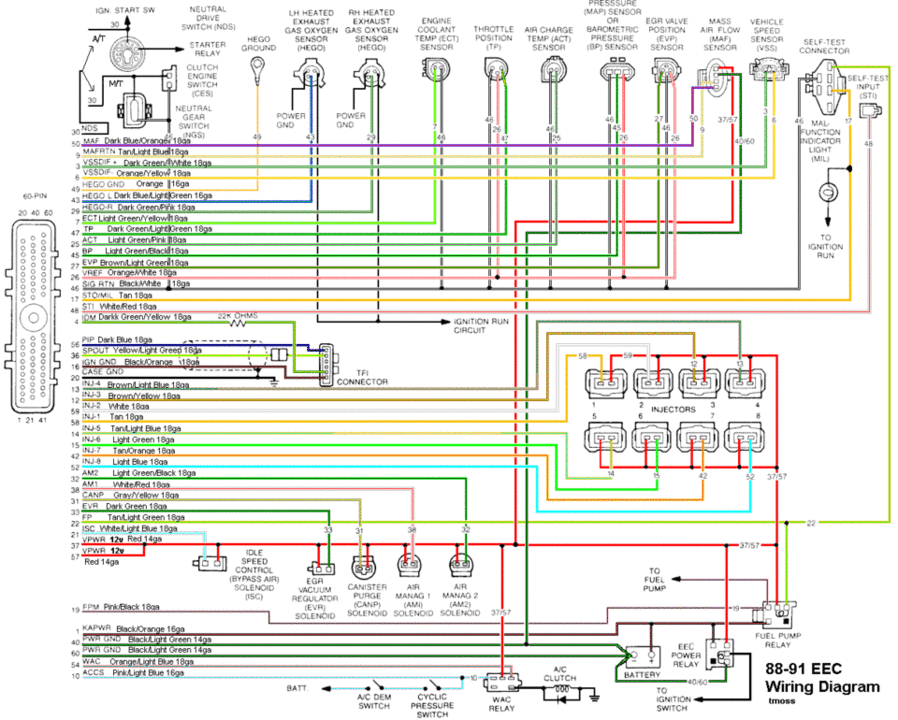

http://www.veryuseful.com/mustang/tech/engine/images/88-91eecPinout.gif

Diagram courtesy of Tmoss & Stang&2birds
