Can somebody snap a pic for me?

[Prime Lord]

Bolting this engine back in, and the donor motor didn't have a throttle linkage on the TB. can someone snap a picture of what I'm looking for in my garage of parts??? Its the linkage right before the Throttle body and has the extra bits for cruise.

/thx as always



[ryan218]

ill grab a picture for you when i get home of the TB ect.



[Prime Lord]

Sweet dude...much appreciated



[mob]

you just need a picture of the throttle body linkage? How its setup?



[mob]

I took this pic while i was taking apart my intake, is this what you need?



[Prime Lord]

maybe??

is that mounted to the EGR spacer? I have the plastic endpiece that goes onto the cruise cable, but I can't really tell what else I'm missing from that. Looks like the bracket, but how does that tie to the throttle body?



[mob]

yes thta part is connected to the egr spacer, if you look to the right of the picture, right where the throttle cable ends it is connected to a yellow plastic thing, that has a metal thing inside it, and you push that up into the little ball thing that the t/b has.



[Strype]

yes thta part is connected to the egr spacer, if you look to the right of the picture, right where the throttle cable ends it is connected to a yellow plastic thing, that has a metal thing inside it, and you push that up into the little ball thing that the t/b has.

:Word:


Snaps onto a small ball joint on the TB



[ryan218]

still need some more pictures?



[Prime Lord]

Yeah, a little further back from that other one. I'm having a hard time visualizing what parts I'm looking for.



[ryan218]

Yeah, a little further back from that other one. I'm having a hard time visualizing what parts I'm looking for.

its a little dirty but what do you expect for 230k+

if you need a different picture of a little further back just let me know and ill go grab one.

thanks, Ryan



[mob]

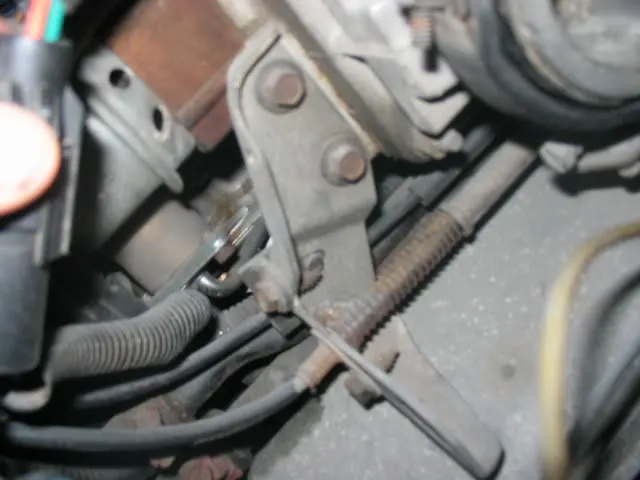

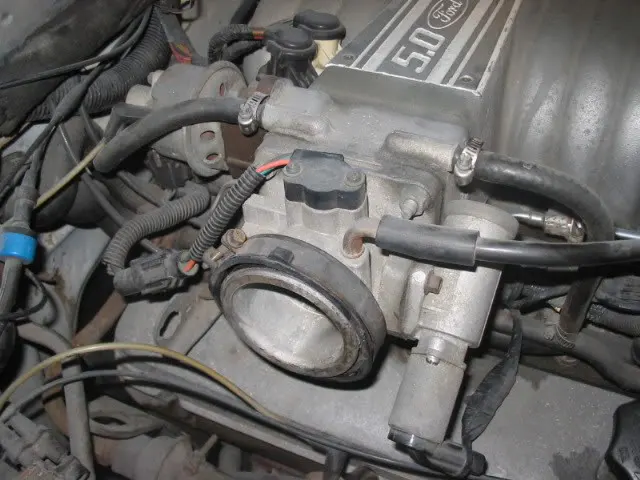

Still kinda confused as to what it is exactly you need so i just went and snapped a bunch of pictures of the t/b linkage.



[Prime Lord]

Saved my ass dude. thx alot. That tells me exactly what I'm looking for.



[mob]

no problemo good luck



[grey5.0beast]

yeah, he got kodak power FTWlol



[RsStanG1987]

Mobs pics just smacked ryans out of the water Nick FTW..



[mob]

Mobs pics just smacked ryans out of the water Nick FTW..

hahaha the little guy tried to help

and go kodak!



[25thmustang]

Ryan did more than I could... I dont have a camera or a 5.0 near me!
