Dash swap help needed!

[irish]

I'm putting a 1993 black dash in my 1988 GT. I have a 140 mph cluster from a 1991 GT, I have been told I will need to re-arrange the wires on the plug for the cluster to make everything work right. Is this true? If true which wires go where?
Schematics would help as I am not a wiring expert by any means!
thanks
Matt



[cjones]

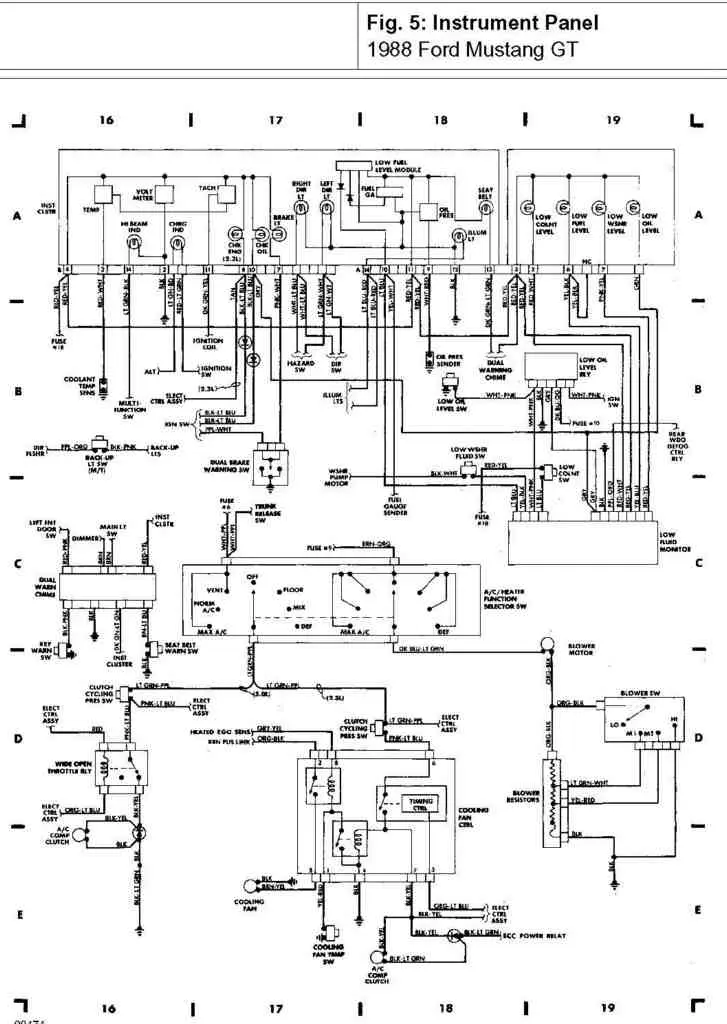

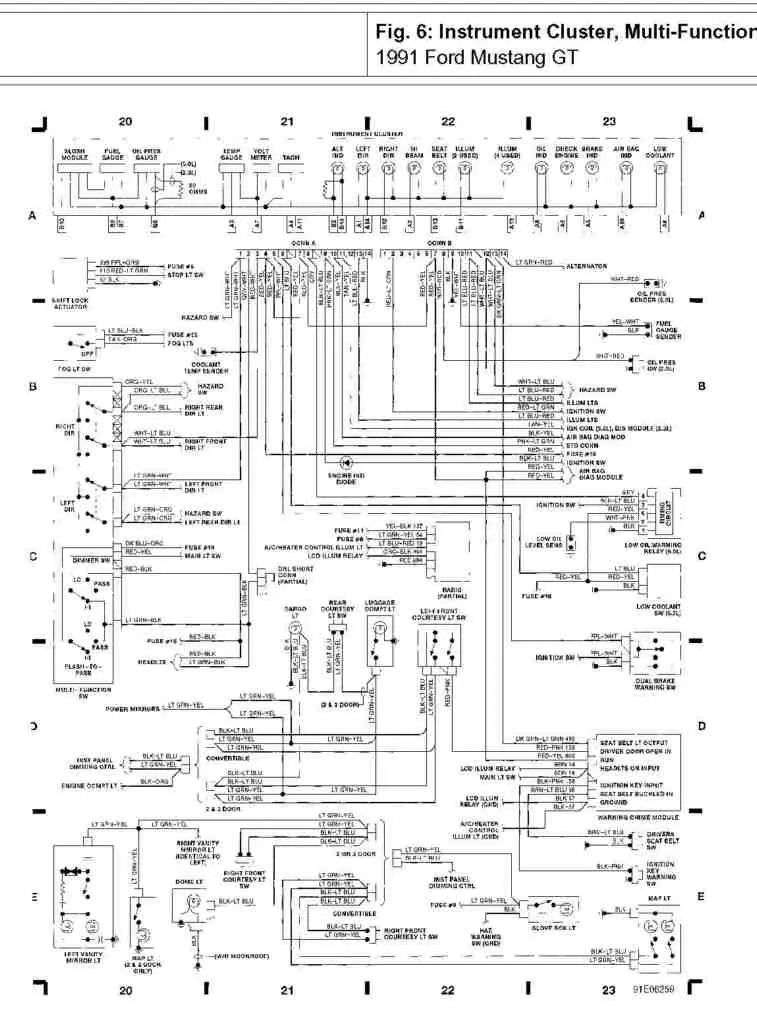

here are the diagrams for the 88 and 91.

let me know if you need the 93. also, let me know if you would like a clearer PDF file of these diagrams. they're about 160kb and the max upload here is 78kb.

i'll email them if you want.



[irish]

thanks

I pm you, so it is true that repinning the plug is needed?



[Mustank]

Didn't the 91's have airbags? Are you sure the guage cluster will fit with your current steering column?



[cjones]

I pm you, so it is true that repinning the plug is needed?

you've got mail



[93tealcobra]

I know that in 90 they implemented the airbag. so 90 and above is different than 87-89. I pulled the dash on my 93 and it was simple, but there are two different groups of wiring. Give it a try, you can always put the old dash back. I would aquire a used wiring harness before switching pins and connectors. Might be a bit tricky.

CB



[TC93]

When doing a 4 cyl swap on an 87 we used an all 91 black interior and ran into this problem. This was on a buddies 4 to 8 efi swap... what we did, was swap the circut panels from one cluster to the other. Been so long ago(about 6 years) can't remember exactly if we had to swap any gauges, but want to say we didn't...



[Mustang5L5]

I just did it the easy way and swapped the 140MPH speedo into my 1988 cluster and then slapping in some gauge face overlays. No rewiring necessary
