First... Is it safe to remove smog and keep cats.... (highflows)

Some people say the smog cools down the cats.... others disagree...

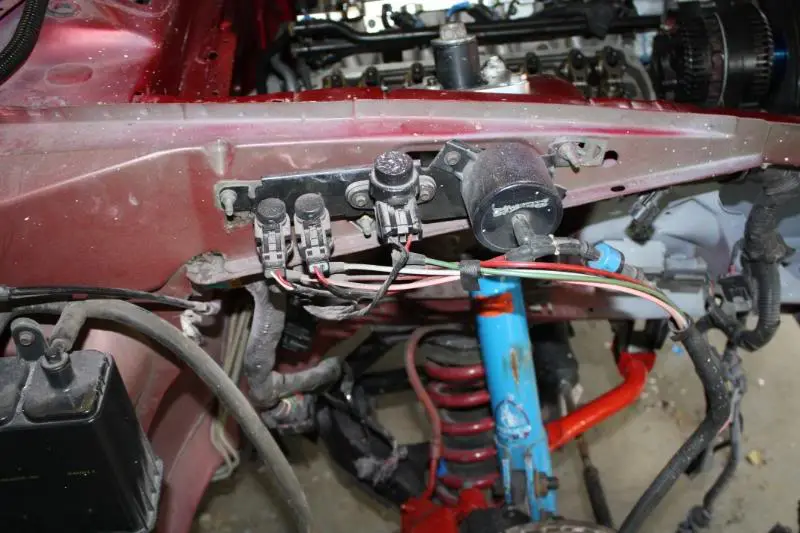

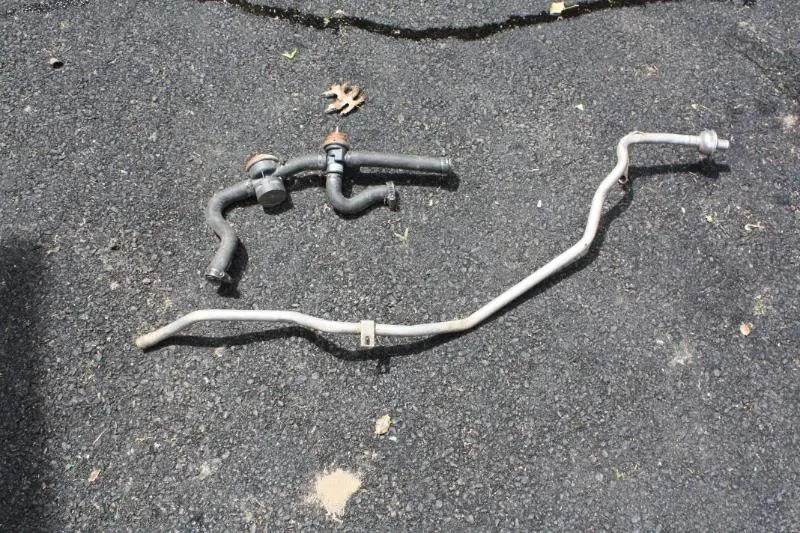

IS this all smog stuff???




All this vac stuff???


what about the tube on the back of the heads???


Im keeping EGR fox style....

This helped a bit:
http://www.allfordmustangs.com/techarticles/Smog2.pdf

Also i found this:
Ok, there are a lot of points here to tackle:

+ The function of the smog pump is simple; it pumps air into the exhaust system ONLY after a cold start to help light off the cats. (Catalysts need to heat up to 300 to 400 deg C before they can react.) The first stage pushes air through the heads into the exhaust ports to light the pup cats (coupled close to the header), then it switches to the main cats (under-floor). The engine typically runs rich during this period to give the exhaust unburned HC to mix and burn with the oxygen from the smog pump in the catalyst brick. The smog pump does NOT continuously pump air into the exhaust system. If it did, your cat would melt down half way through the first WOT.

+ Removing the smog pump will not cause any problems other than hurt your cold start emissions. It won't wear out your catalysts early or anything of the sort.

+ There is definitely some torque to be had by removing it, but the actual amount is debatable. The pump is just dumping the air after the cold start procedure has completed. This load is minimal compared to pumping it into the exhaust.

The final decision is kind of a judgment call. If you have to pass emissions tests, removing it will probably hurt your chances if their test is half-ways decent and involves a cold start. If you are running an off-road H/X pipe then you might as well pull it because it isn’t doing anything.

If you do pull it off make sure to cap all of the lines/ports securely. Fresh air making it into the exhaust system will throw off your O2 sensor signal and bias your combustion air/fuel to the rich side. Also, a continuous fresh air leak into or upstream of the cats will ultimately hurt the cats because they will run much hotter than normal.

I hope this helps!


And this:

Yes, the air from the pump basicly works like a blast furnace. It pumps air into the cats to cause the fuel in the cats to burn hotter and "burn off". You remove the air from the pump to the cats and that fuel does not burn off (higher smog numbers) and run a MUCH greater risk of having that unburned fuel stay in the cat. That un-burned fuel can build up and greatly reduce the life of the cat.



Unsure what is true....

I have also heard if you remove the smog stuff, you can burn up the cats more quickly.

From my understanding, that is all the smog stuff; plus the smog/air pump located under the alternator.

The tube on the back of the heads is for the Thermactor, I believe, and I am not 100% sure it is part of the smog stuff.

Change the cats to ones that do not require the air tube.

I can say from experience that without the air tube cats will load up and cause the car to run like butt.... When I was trying to change my midpipe originally the manifold bolts were frozen solid with rust (I eventually broke 3/4 studs). The moral is that I had disconnected the mid-pipe and drove teh car to work the next day and after about 35 miles the car started running horrid and power went out the window. After sitting for a couple hours the car would run fine again for a while. I vote to change the style of cat if you plan to ever run them and not have the smog pump....
