Fox Does this look normal? Also what are these 2 connections?

Feb 26, 2017
70
3
8
24
Connecticut
#1

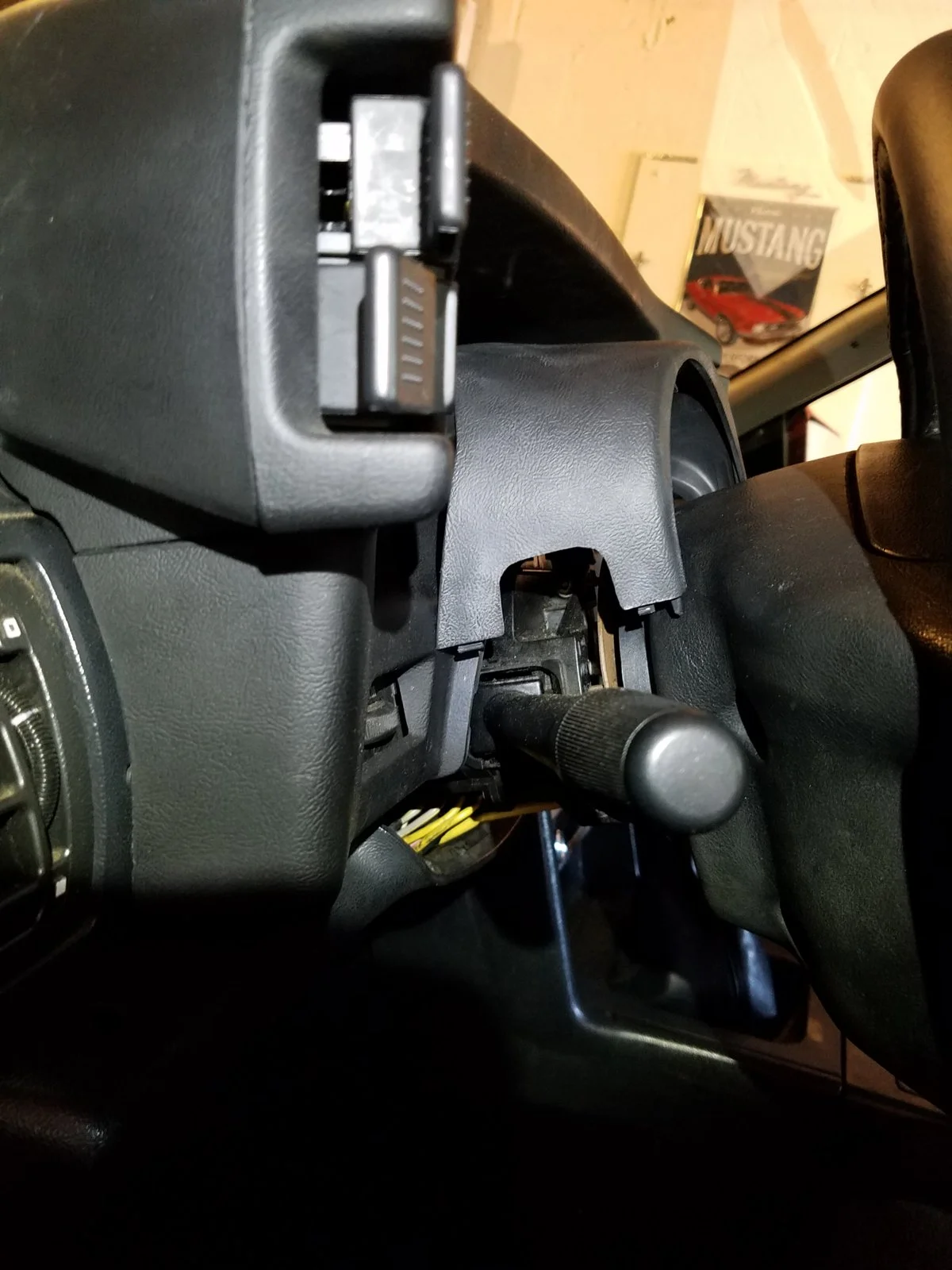

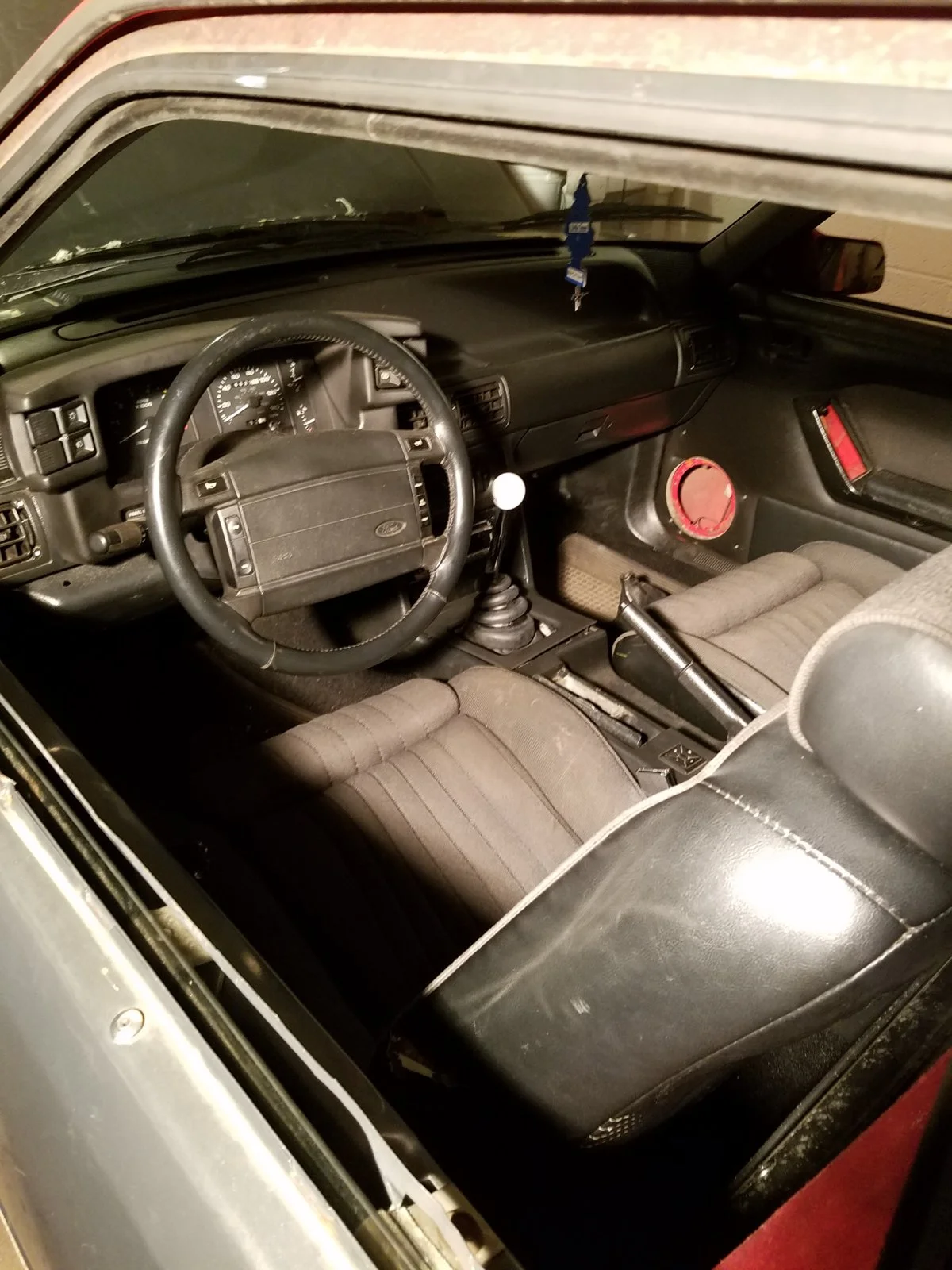

First question. Does the placement of the steering wheel look fine? I can't get the column cover over it

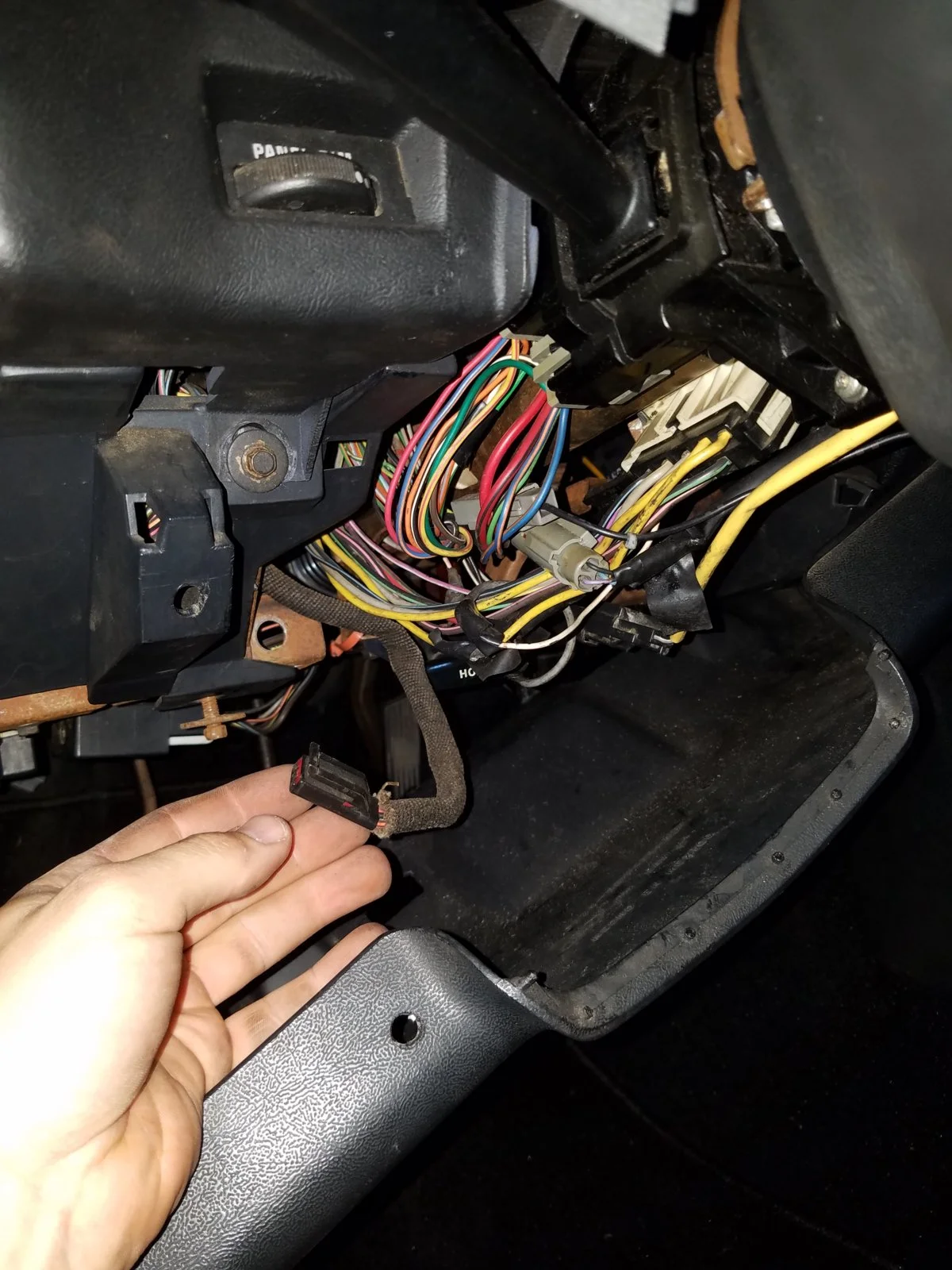

Second what are these two connections for? I have a 93 lx coupe


  • Sponsors (?)

Mustang5L5

Car used in adult film "Highway Gangbang-InDaButt"
SN Certified Technician
Feb 18, 2001
27,987
5,234
224
Massachusetts
#2

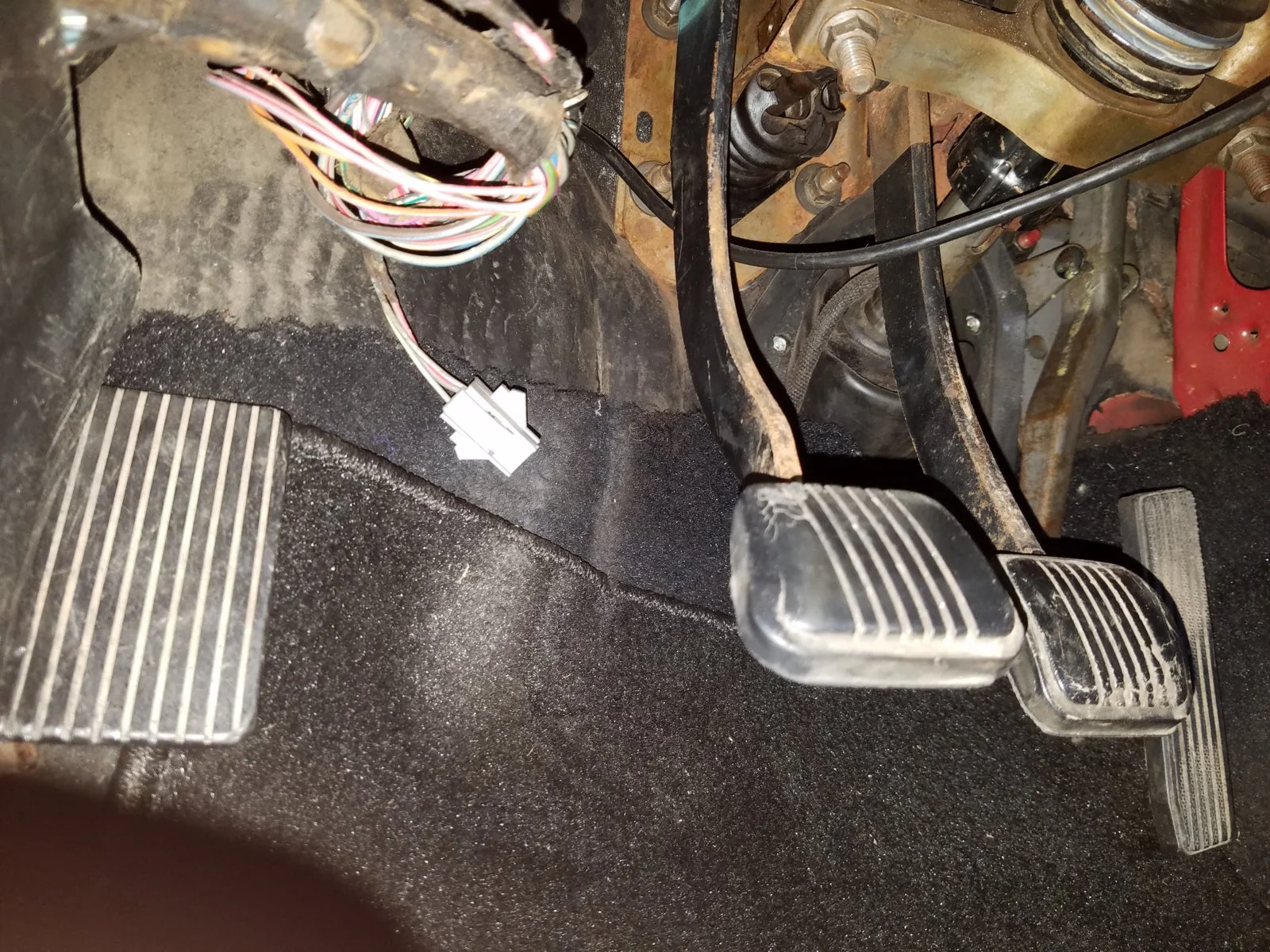

Bottom pic is the NGS circuit that connects to the switch on the clutch pedal. Should be hooked up


BlakeusMaximus

Mustang Master
Jul 12, 2017
804
228
83
#4

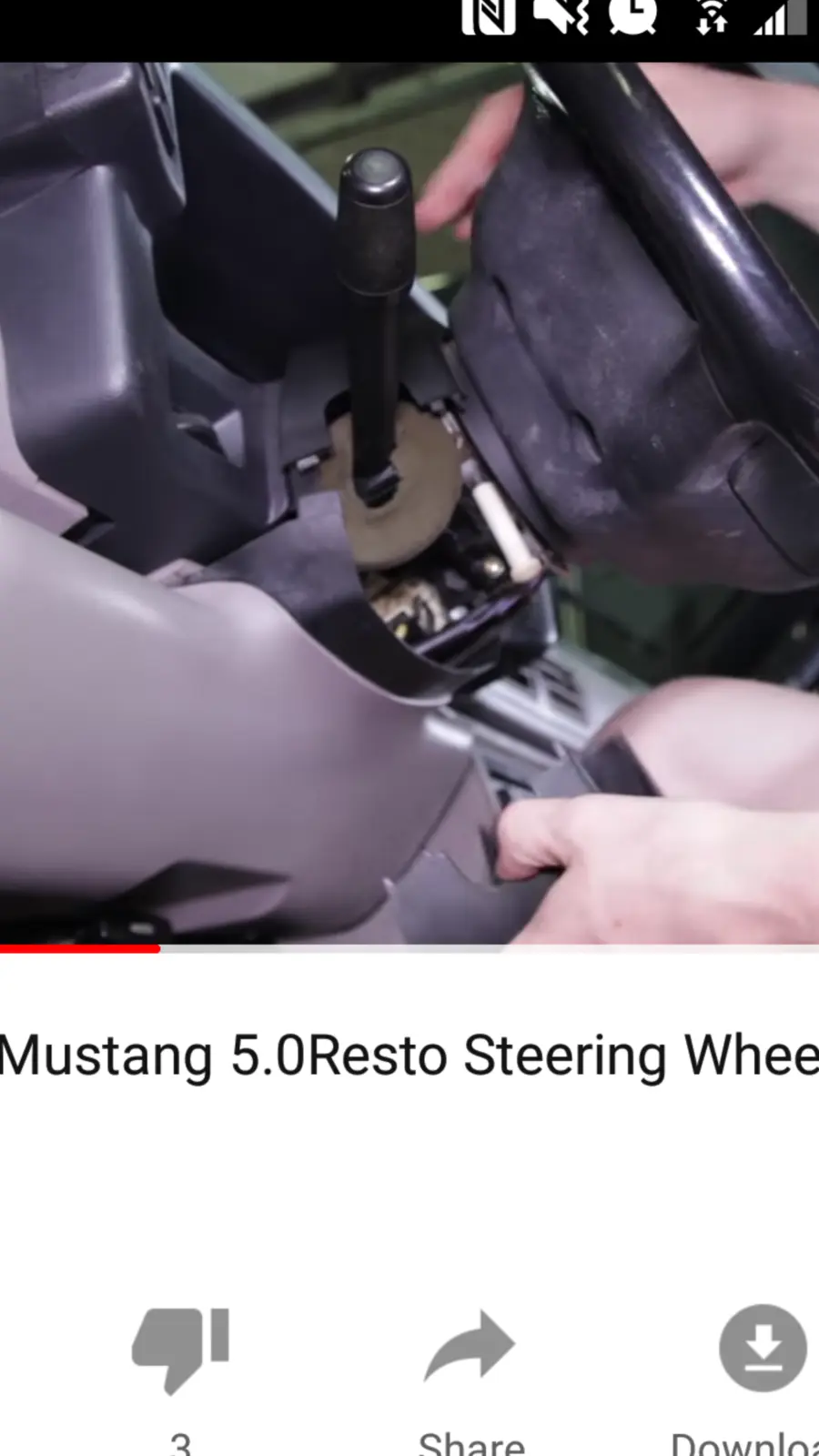

Is it me guys or does that steering wheel look like a newer one, like SN95? I have an 88 and don’t remember with the side of the airbag steering wheels look like. @James V, we’re the covers always there? Upload a pic of the front of the wheel. Something looks off.

Feb 26, 2017
70
3
8
24
Connecticut
#6
Is it me guys or does that steering wheel look like a newer one, like SN95? I have an 88 and don’t remember with the side of the airbag steering wheels look like. @James V, we’re the covers always there? Upload a pic of the front of the wheel. Something looks off.
Is it me guys or does that steering wheel look like a newer one, like SN95? I have an 88 and don’t remember with the side of the airbag steering wheels look like. @James V, we’re the covers always there? Upload a pic of the front of the wheel. Something looks off.

Feb 26, 2017
70
3
8
24
Connecticut
#7

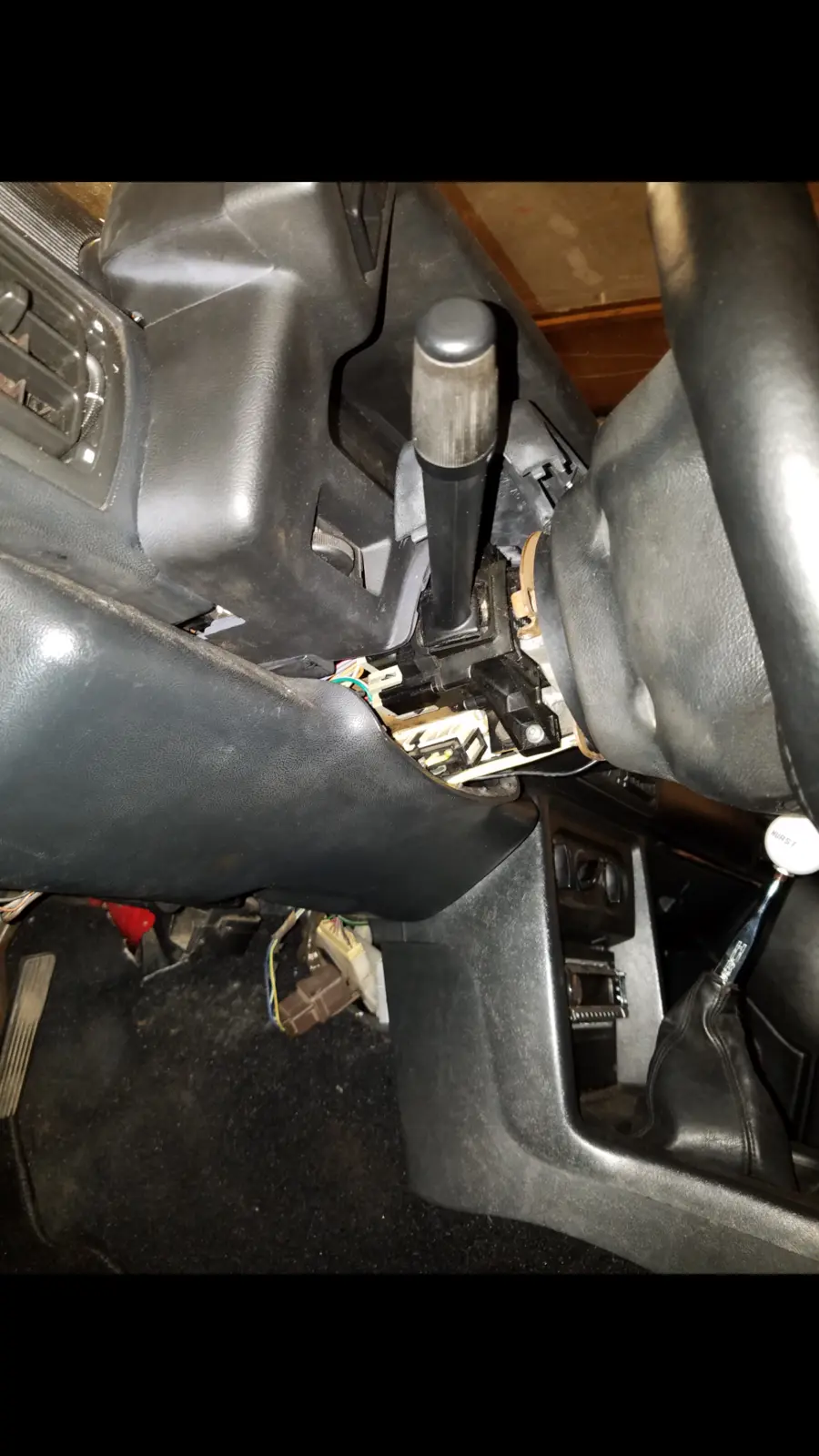

Just noticed it looks like my turn signal switch is closer to the gauges than it should be. What would cause this


Mustang5L5

Car used in adult film "Highway Gangbang-InDaButt"
SN Certified Technician
Feb 18, 2001
27,987
5,234
224
Massachusetts
#8
I actually see something plugged into the clutch already and don't see where this would plug
Two plugs plug into the switch. The other wire is the starter interrupt circuit.

They plug in side by side

Feb 26, 2017
70
3
8
24
Connecticut
#12
Two plugs plug into the switch. The other wire is the starter interrupt circuit.

They plug in side by side
Ok so basically a safety feature. I'll plug that back in. Do you by any chance know what the other connection by the steering column that I posted above is?


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
7,998
2,640
193
polk county florida
#16
Then your column is correct, the instrument housing is wrong.
this is a common occurrence, a 4cyl to v8 swap is a daunting job and most are not done correctly resulting in flipping the project to pass the headache on to someone else. Do you know what what harnesses were used?

Last edited:
Feb 26, 2017
70
3
8
24
Connecticut
#17
Then your column is correct, the instrument housing is wrong.
this is a common occurrence, a 4cyl to v8 swap is a daunting job and most are not done correctly resulting in flipping the project to pass the headache on to someone else. Do you know what what harnesses were used?
I'm not sure what harnesses were used, is there a way to check?


Mustang5L5

Car used in adult film "Highway Gangbang-InDaButt"
SN Certified Technician
Feb 18, 2001
27,987
5,234
224
Massachusetts
#18
Post some more pics of the gauges and cluster surround and other parts nearby so we can se if anything stands out as being mismatched


Boostedpimp

5 Year Member
May 8, 2003
490
80
59
NJ
#19

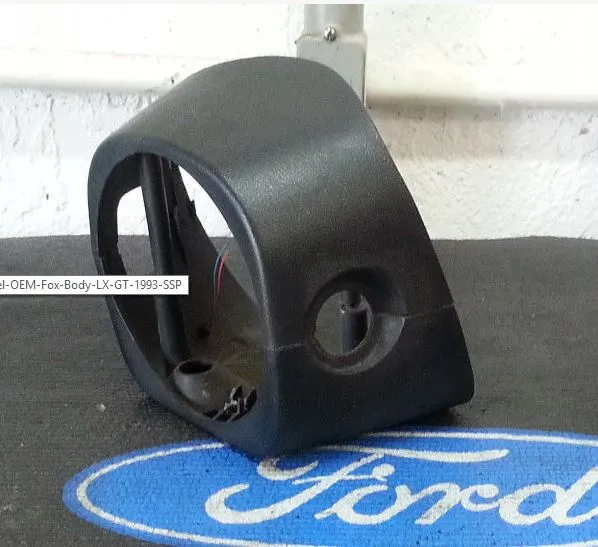

The harness hanging in the second picture is the shift lock actuator and here's a pic of the steering column trim out of a 93. You have the 90-93 steering wheel, and cluster surround so I would think the column trim would fit.
car.


Mstng93SSP

You have a nice rear end there Dave.
10 Year Member
Nov 29, 1999
988
1,163
154
Mililani, Hawaii
#20

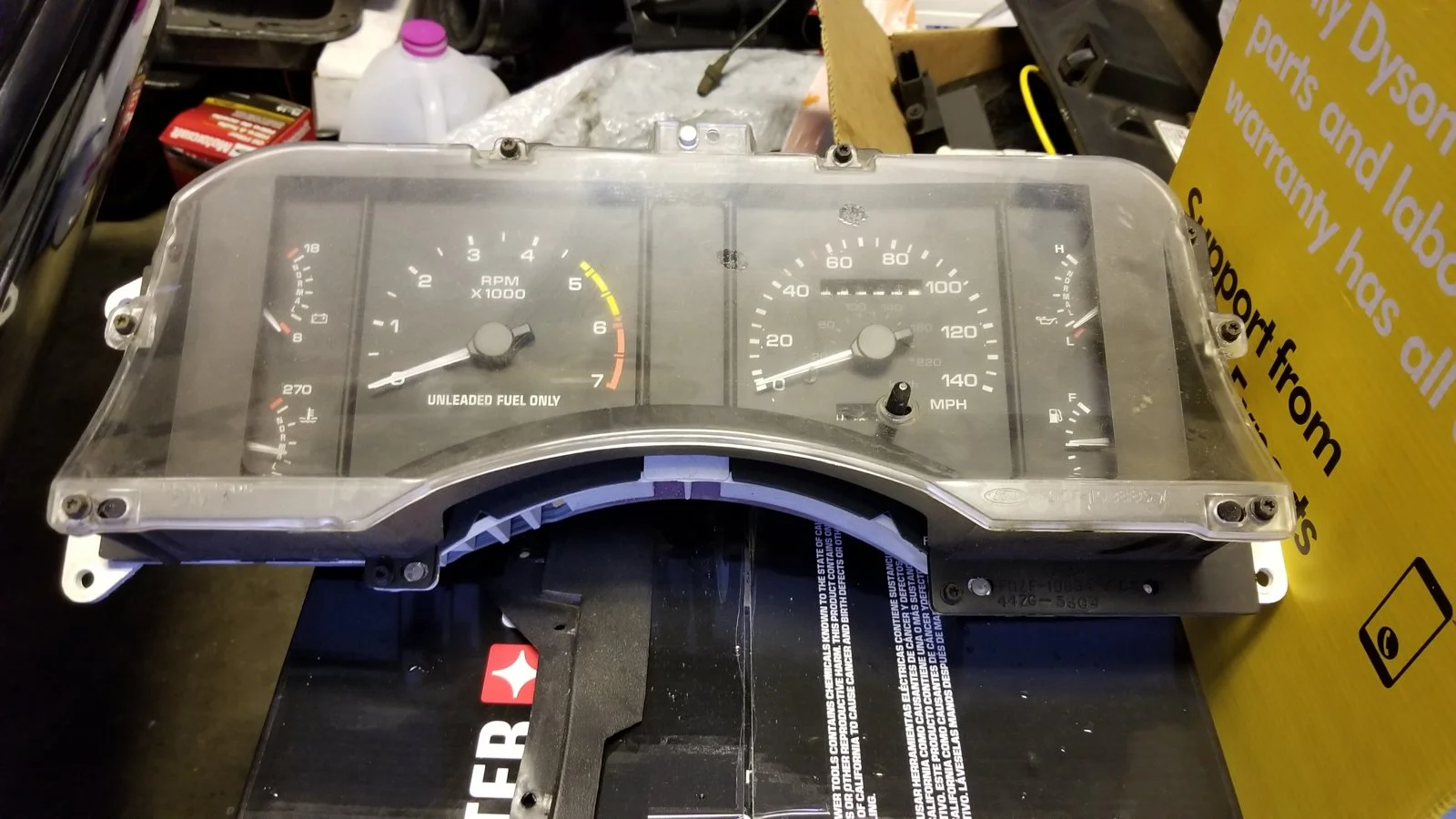

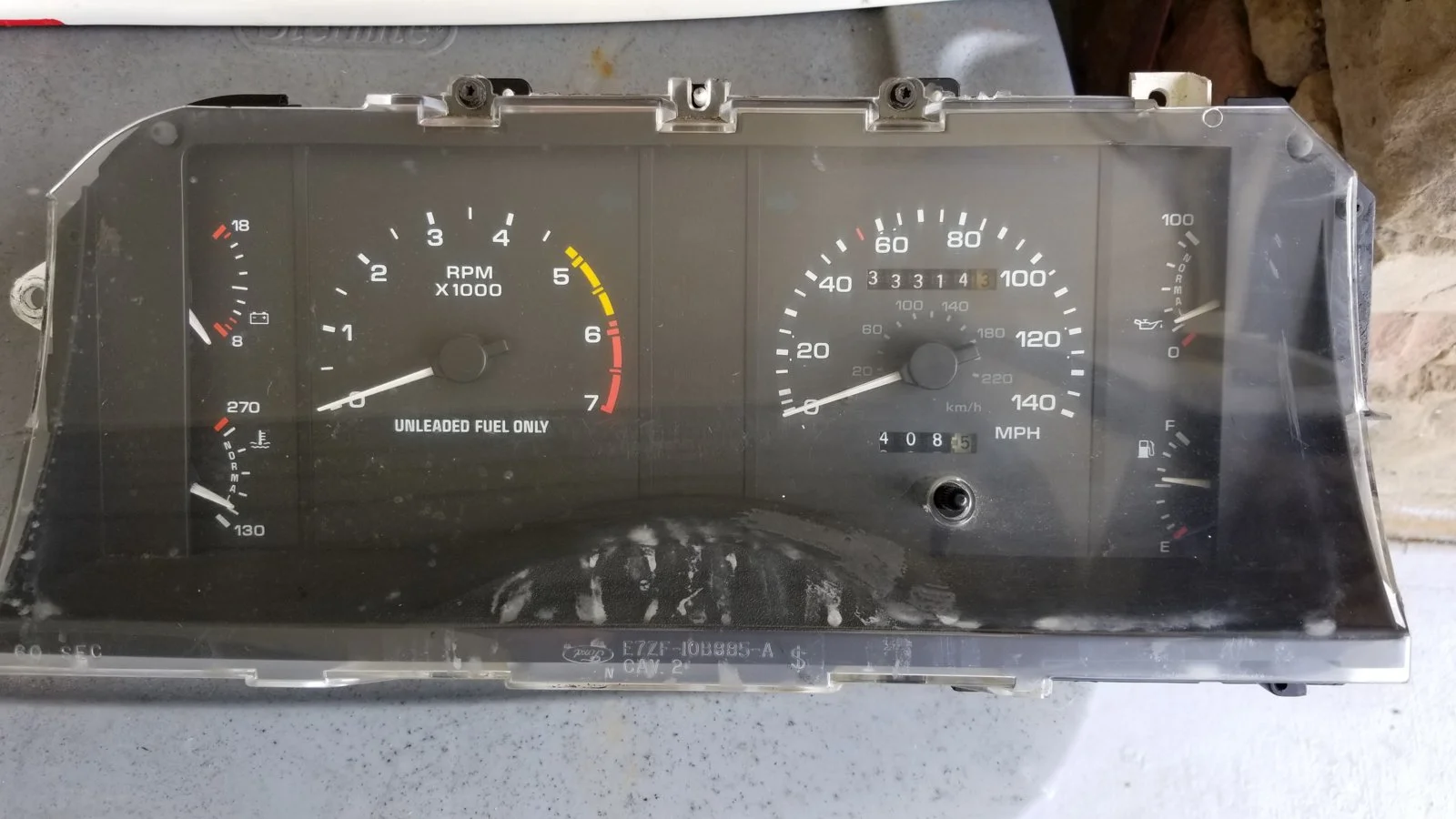

If your gauge cluster is flat across the bottom it is the wrong one. The 87-89 are flat on the bottom. The 90-93 are rounded due to the airbag steering wheel. I bet yours is flat and that's what is causing this issue. Other than the bottom the clusters look the same. The top picture is an 87-89 cluster. The bottom is a 90-93.
