Can I still pass smog (thru the tails) if I don't run the EGR spacer/EGR set up? Can I even run all the rest of the smog equipment if I don't run the EGR set up?
EGR questions??
- Thread starter STREETFIGHTER50
- Start date
It may be possible to pass emissions without an EGR. That depends on several things.
1.) No visual inspection, or inspection by someone who doesn't know what he is looking for.
2.) You have a low compression ratio engine or have retarded timing to reduce the NOx emissions.
Some basic theory to clarify how things work is in order…
The EGR shuts off at Wide Open Throttle (WOT), so it has minimal effect on performance. The addition of exhaust gas drops combustion temperature, increases gas mileage and reduces the tendency of the engine to ping. It can also reduce HC emissions by reducing fuel consumption. The primary result of EGR usage is a reduction in NOx & CO emissions.
The EGR system has a vacuum source (line from the intake manifold) that goes to the EVR, computer operated electronic vacuum regulator. The EVR is located on the back of the passenger side shock strut tower. The computer uses RPM, Load. and some other factors to tell the EVR to pass vacuum to open the EGR valve. The EGR valve and the passages in the heads and intake manifold route exhaust gas to the EGR spacer (throttle body spacer). The EGR sensor tells the computer how far the EGR valve is open. Then computer adjusts the signal sent to the EVR to hold, increase or decrease the vacuum. The computer adds spark advance to compensate for the recirculated gases and the slower rate they burn at.
There should be no vacuum at the EGR valve when at idle. If there is, the EVR (electronic vacuum regulator) mounted on the backside of the passenger side wheelwell is suspect. Check the vacuum line plumbing to make sure the previous owner didn’t cross the vacuum lines.

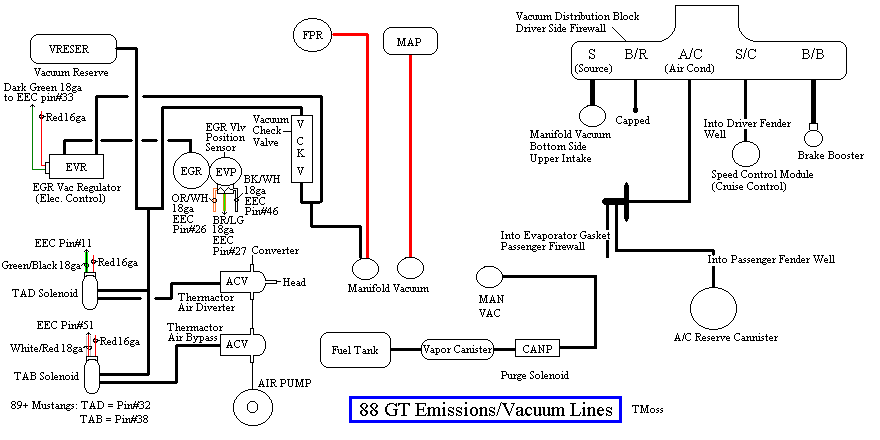

Diagram courtesy of Tmoss & Stang&2birds.
The EGR sensor is basically a variable resistor, like the volume control on a radio. One end is 5 volt VREF power from the computer (red/orange wire). One end is computer signal ground (black/white), and the middle wire (brown/lt green) is the signal output from the EGR sensor. It is designed to always have some small voltage output from it anytime the ignition switch is the Run position. That way the computer knows the sensor & the wiring is OK. No voltage on computer pin 27 (brown/lt green wire) and the computer thinks the sensor is bad or the wire is broken and sets code 31. The voltage output can range from approximately .6-.85 volt.
EGR test procedure courtesy of cjones
to check the EGR valve:
bring the engine to normal temp.
connect a vacuum pump to the EGR Valve
apply 5in vacuum to the valve.
if engine stumbled or died then EGR Valve and passage(there is a passageway through the heads and intake) are good.
if engine did NOT stumble or die then either the EGR Valve is bad and/or the passage is blocked.
if engine stumbled, connect vacuum gauge to the hose coming off of the EGR Valve
snap throttle to 2500 RPM (remember snap the throttle don't hold it there).
did the vacuum gauge show about 5in vacuum?
if not, check for manifold vacuum at the EGR vacuum valve.
if you have manifold vacuum then connect vacuum gauge to the EGR valve side of the vacuum valve and snap throttle to 2500 RPM.
should read about 5in vacuum
Some tips on how to pass emissions testing:
1.) Make sure all the emissions gear the car was made with is present and connected up properly. That includes a working smog pump and cats.
2.) Make sure that you have fresh tune up with spark plugs, plug wires, cap, rotor, fuel & air filters. An oil & filter change is a good idea while you are at it.
3.) Dump the codes and see what the computer says is wrong…
Here's the link to dump the computer codes with only a jumper wire or paper clip and the check engine light, or test light or voltmeter. I’ve used it for years, and it works great.
See http://www.troublecodes.net/Ford/
OR
See http://www.mustangworks.com/article...c-iv_codes.html
IF your car is an 86-88 stang, you'll have to use the test lamp or voltmeter method. There is no functional check engine light on the 86-88's except possibly the Cali Mass Air cars.
Codes have different answers if the engine is running from the answers that it has when the engine isn't running. It helps a lot to know if you had the engine running when you ran the test.
Trouble codes are either 2 digit or 3 digit, there are no cars that use both 2 digit codes and 3 digit codes.
For those who are intimidated by all the wires & connections, see http://www.actron.com/product_detail.php?pid=16153 for what a typical hand scanner looks like. Normal retail price is about $30 or so at AutoZone or Walmart.
Or for a nicer scanner see http://www.midwayautosupply.com/det...iption.asp?3829 – It has a 3 digit LCD display so that you don’t have to count flashes or beeps.. Cost is $33.
4.) Post the codes and get help to fix them. Don’t try to pass with codes not fixed. Clearing the computer just temporarily removes them from memory, it doesn’t fix the problem that caused the code to be set.
5.) Be sure to do the testing on a hot engine. Drive for 15-20 minutes prior to taking the test to get operating temps up into the normal range. Do not shut off the engine while waiting for your turn on the test machine. An engine up to full operating temperature puts out fewer emissions.
High NO - high combustion temps - retard timing, check EGR for operation.
High CO - EGR isn't working - fix it.
High HC - fuel mixture too rich - check O2 sensors, smog pump, and cats. Clean MAF element. Do the ethanol thing as suggested.
1.) No visual inspection, or inspection by someone who doesn't know what he is looking for.
2.) You have a low compression ratio engine or have retarded timing to reduce the NOx emissions.
Some basic theory to clarify how things work is in order…
The EGR shuts off at Wide Open Throttle (WOT), so it has minimal effect on performance. The addition of exhaust gas drops combustion temperature, increases gas mileage and reduces the tendency of the engine to ping. It can also reduce HC emissions by reducing fuel consumption. The primary result of EGR usage is a reduction in NOx & CO emissions.
The EGR system has a vacuum source (line from the intake manifold) that goes to the EVR, computer operated electronic vacuum regulator. The EVR is located on the back of the passenger side shock strut tower. The computer uses RPM, Load. and some other factors to tell the EVR to pass vacuum to open the EGR valve. The EGR valve and the passages in the heads and intake manifold route exhaust gas to the EGR spacer (throttle body spacer). The EGR sensor tells the computer how far the EGR valve is open. Then computer adjusts the signal sent to the EVR to hold, increase or decrease the vacuum. The computer adds spark advance to compensate for the recirculated gases and the slower rate they burn at.
There should be no vacuum at the EGR valve when at idle. If there is, the EVR (electronic vacuum regulator) mounted on the backside of the passenger side wheelwell is suspect. Check the vacuum line plumbing to make sure the previous owner didn’t cross the vacuum lines.
Diagram courtesy of Tmoss & Stang&2birds.
The EGR sensor is basically a variable resistor, like the volume control on a radio. One end is 5 volt VREF power from the computer (red/orange wire). One end is computer signal ground (black/white), and the middle wire (brown/lt green) is the signal output from the EGR sensor. It is designed to always have some small voltage output from it anytime the ignition switch is the Run position. That way the computer knows the sensor & the wiring is OK. No voltage on computer pin 27 (brown/lt green wire) and the computer thinks the sensor is bad or the wire is broken and sets code 31. The voltage output can range from approximately .6-.85 volt.
EGR test procedure courtesy of cjones
to check the EGR valve:
bring the engine to normal temp.
connect a vacuum pump to the EGR Valve
apply 5in vacuum to the valve.
if engine stumbled or died then EGR Valve and passage(there is a passageway through the heads and intake) are good.
if engine did NOT stumble or die then either the EGR Valve is bad and/or the passage is blocked.
if engine stumbled, connect vacuum gauge to the hose coming off of the EGR Valve
snap throttle to 2500 RPM (remember snap the throttle don't hold it there).
did the vacuum gauge show about 5in vacuum?
if not, check for manifold vacuum at the EGR vacuum valve.
if you have manifold vacuum then connect vacuum gauge to the EGR valve side of the vacuum valve and snap throttle to 2500 RPM.
should read about 5in vacuum
Some tips on how to pass emissions testing:
1.) Make sure all the emissions gear the car was made with is present and connected up properly. That includes a working smog pump and cats.
2.) Make sure that you have fresh tune up with spark plugs, plug wires, cap, rotor, fuel & air filters. An oil & filter change is a good idea while you are at it.
3.) Dump the codes and see what the computer says is wrong…
Here's the link to dump the computer codes with only a jumper wire or paper clip and the check engine light, or test light or voltmeter. I’ve used it for years, and it works great.
See http://www.troublecodes.net/Ford/
OR
See http://www.mustangworks.com/article...c-iv_codes.html
IF your car is an 86-88 stang, you'll have to use the test lamp or voltmeter method. There is no functional check engine light on the 86-88's except possibly the Cali Mass Air cars.
Codes have different answers if the engine is running from the answers that it has when the engine isn't running. It helps a lot to know if you had the engine running when you ran the test.
Trouble codes are either 2 digit or 3 digit, there are no cars that use both 2 digit codes and 3 digit codes.
For those who are intimidated by all the wires & connections, see http://www.actron.com/product_detail.php?pid=16153 for what a typical hand scanner looks like. Normal retail price is about $30 or so at AutoZone or Walmart.
Or for a nicer scanner see http://www.midwayautosupply.com/det...iption.asp?3829 – It has a 3 digit LCD display so that you don’t have to count flashes or beeps.. Cost is $33.
4.) Post the codes and get help to fix them. Don’t try to pass with codes not fixed. Clearing the computer just temporarily removes them from memory, it doesn’t fix the problem that caused the code to be set.
5.) Be sure to do the testing on a hot engine. Drive for 15-20 minutes prior to taking the test to get operating temps up into the normal range. Do not shut off the engine while waiting for your turn on the test machine. An engine up to full operating temperature puts out fewer emissions.
High NO - high combustion temps - retard timing, check EGR for operation.
High CO - EGR isn't working - fix it.
High HC - fuel mixture too rich - check O2 sensors, smog pump, and cats. Clean MAF element. Do the ethanol thing as suggested.
