Welcome to my laboratory from this point forward is the m90 portion of the experiment. To jump ahead to my M112 install use this link.

https://www.stangnet.com/mustang-fo...-install-installing-the-blower.884767/page-66

Enjoy

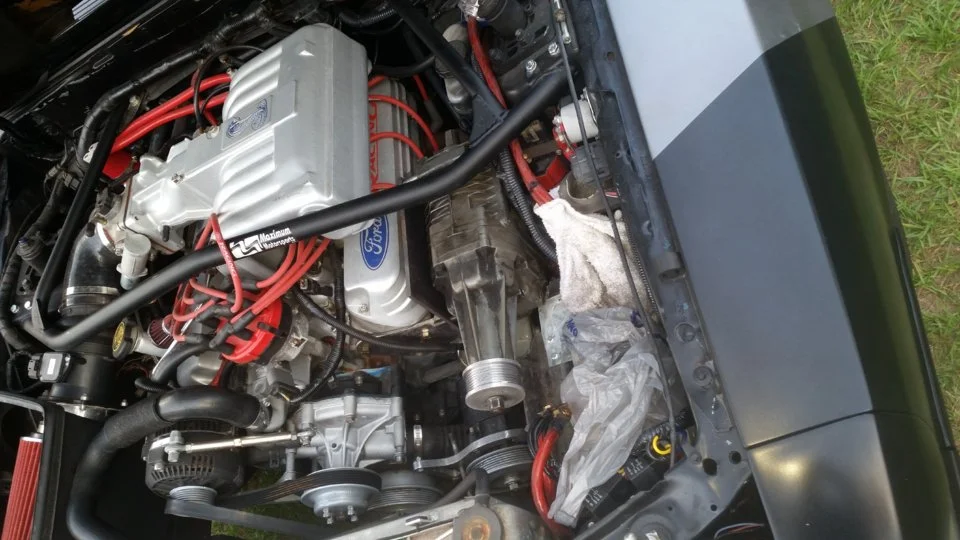

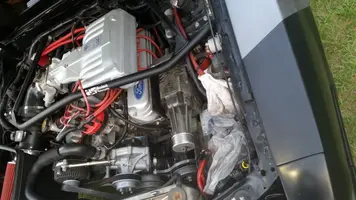

Hi all I have been away for a while working on family stuff. Well I am now bringing an old build idea back from the dead, M90 5.0.... I have already mounted the charger and am working on the inlet and outlet adapters. This will be side mounted on the driver side, battery relocated and coil/solenoid as well. My plan calls for a large fmi. Right now my biggest issue is the maf sensor. The car is setup for a 90mm lmaf.. I'm not sure whether to draw thru blow thru or just megasquirt the car and do away with it.... keep in mind my budget for this build is 1k. The charger was 250. Fmi kit was 200. So I have 550 to play with.
Comments concerns ideas. Thanks.


Attachments

  • 20150513_193227.jpg
    106.4 KB · Views: 1,214
Last edited:
  • Like
Reactions: 1 user
  • Sponsors (?)


90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
6,559
5,634
203
Back from the dead it is.... I'd use a blow through slot style maf. I bought a lightening m112 to install on an older project. Guy stopped making intake (disappeared) ... So I've got this rebuilt supercharger and no way to put on the car.


90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
6,559
5,634
203
Yup...joey was the name....figured one day I'd get around to making a kit with an air to water intercooler. I'm also familiar with Alex's thread. Very cool stuff. I liked the idea of it sitting on top of the motor better.... That way I could keep my a/c.


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,724
6,949
214
Hillsborough county

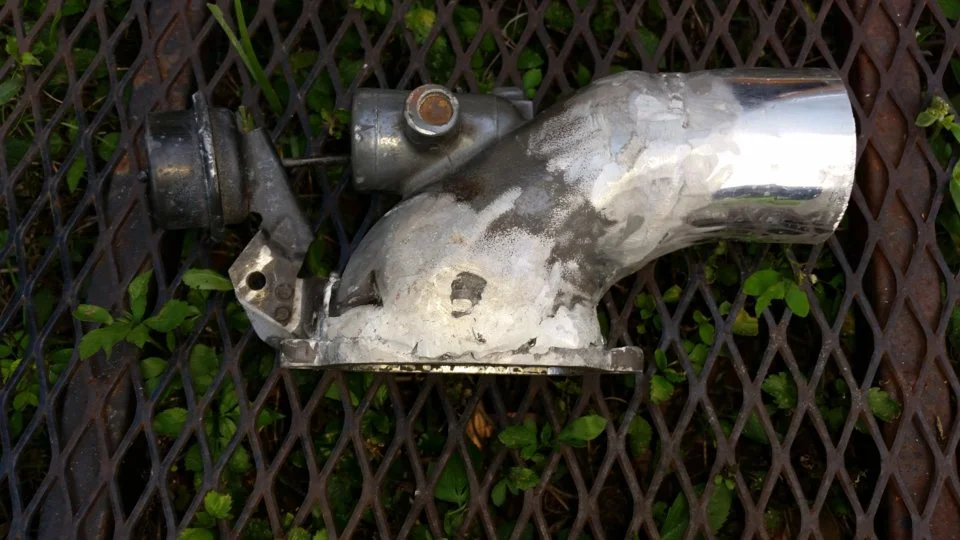

My ac was deleted anyway so there it went. I got the inlet fabbed up today, took and hacked the original to pieces and rearranged the parts mated to 3" pipe. Looks pretty good and ported out nicely. I am more of a grinder than a welder, I only have mig for aluminum so all the extra metal has to come off. A skim coat of jb weld will ensure no pinholes as this won't be seeing any boost. Pics tomorrow


90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
6,559
5,634
203
JB Weld works miracles. Lol. My motor now puts out about 425 on a Mexican block... When I build my 393 I'll get back into trying to make the Eaton work. The motor I have was built for a power adder but I guess I out did myself. Should've bought an aftermarket block....you live and learn. smh.


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,724
6,949
214
Hillsborough county
I am hoping for 325ish to the tires. And loads of torque.. it's a convertible so the extra grunt will be nice. If nothing else it will be unique. I don't think that number Is to far out of reach the motor is built already.


90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
6,559
5,634
203
I had to put my Vert to rest....I went to fix some rust in the strut towers and found stress cracks all over the passenger side. She was too sick to save.smh I had a 10 point cage and full length subframe connectors but I guess it wasn't enough for what I was doing. Was just about to order spider braces from stifflers.


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,724
6,949
214
Hillsborough county

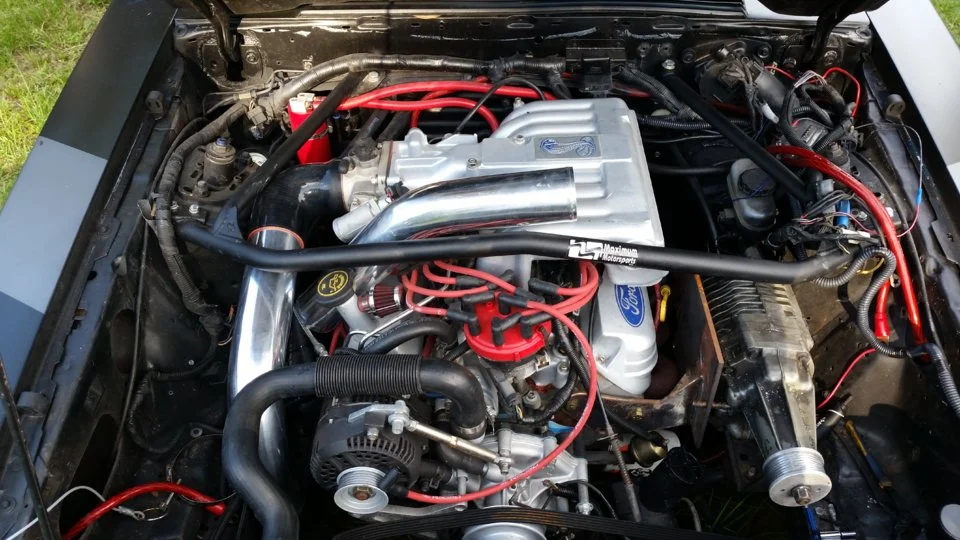

OK so progress has been rather stagnent, work is crazy 14 hr days are a norm when mosaic wants there plant back up and running. They loose something around 1 million an hour when it's down, anyhooo here is a small update. I removed some more clutter in the engine bay and am trying to decide whether my El cheapo oil catch can will stay or not. Also any ideas on how to route the pipe for the cold side would be appreciated I'm trying to keep the tower brace. There is just not enough room behind the engine, I have about 4.5 inches of room between the hood and the intake.

  • Happy
Reactions: 1 user

a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,724
6,949
214
Hillsborough county

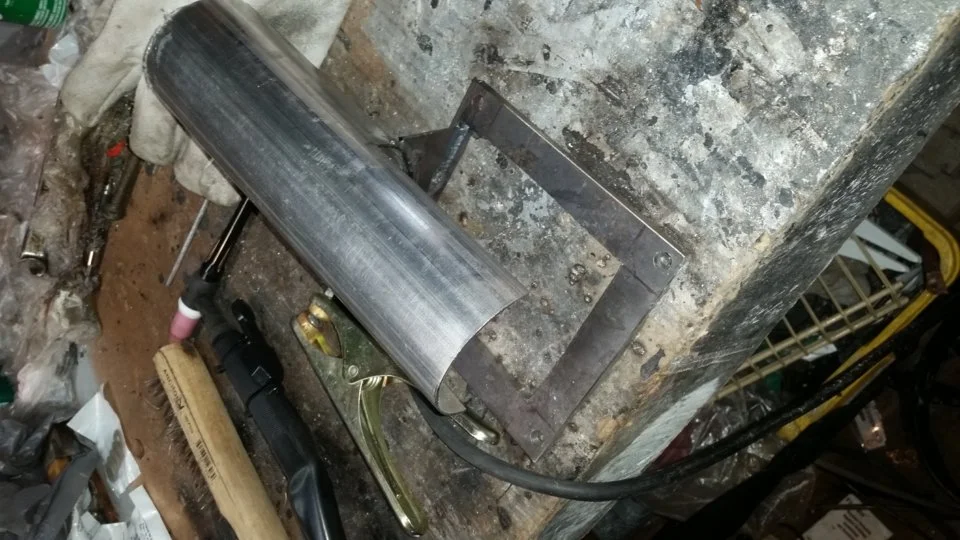

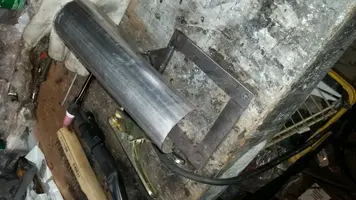

OK so today I started building the hat for the charger. It's coming along well enough it may change a few times before it's done. This one is steel so I was able to try out my cheapo tig welder, I cut the pipe in half so it's not just a box with a pipe.


Attachments

  • 20150606_173100.jpg
    117.5 KB · Views: 987

a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,724
6,949
214
Hillsborough county

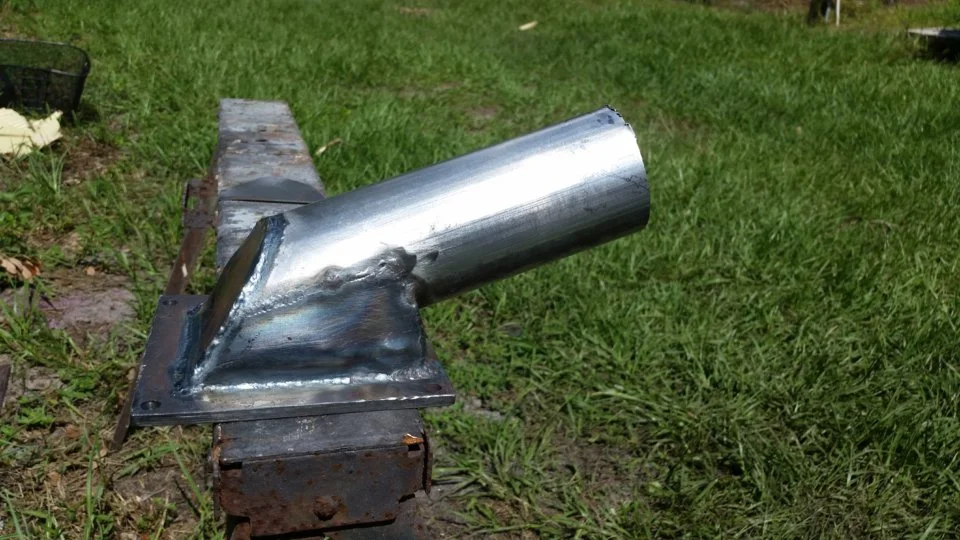

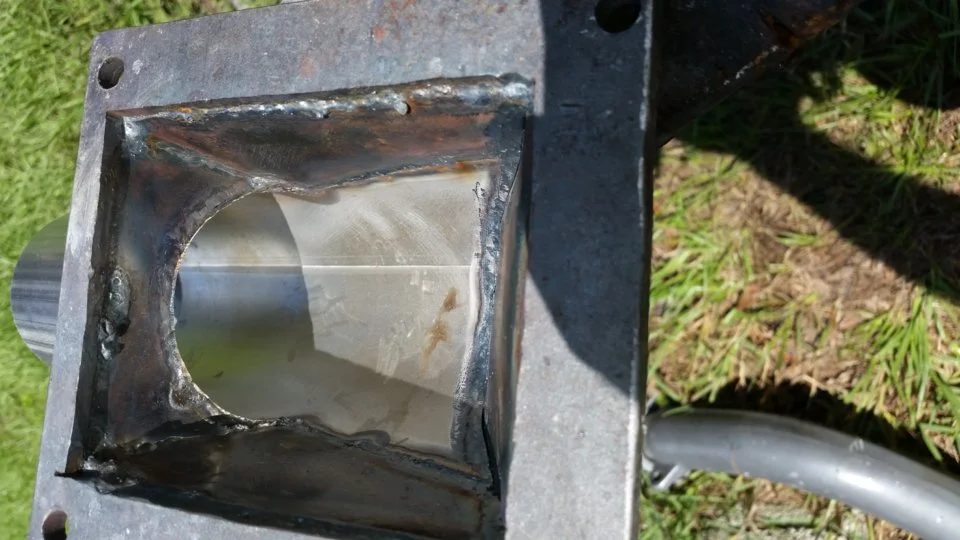

OK so the hat is done!:nice: it took one try too (I know amazing considering my newb skills with the tig) I don't have a foot pedal so sometimes the heat was a little high, I warped the flange ever so slightly nothing a little time on a belt sander won't fix:rolleyes:.

  • Like
Reactions: 1 users

a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,724
6,949
214
Hillsborough county
OK so big question will the throttle body be OK in the stock position??? I was planning on running it this way but now that I have a feel for welding to aluminum should I consider moving the tb before the charger?

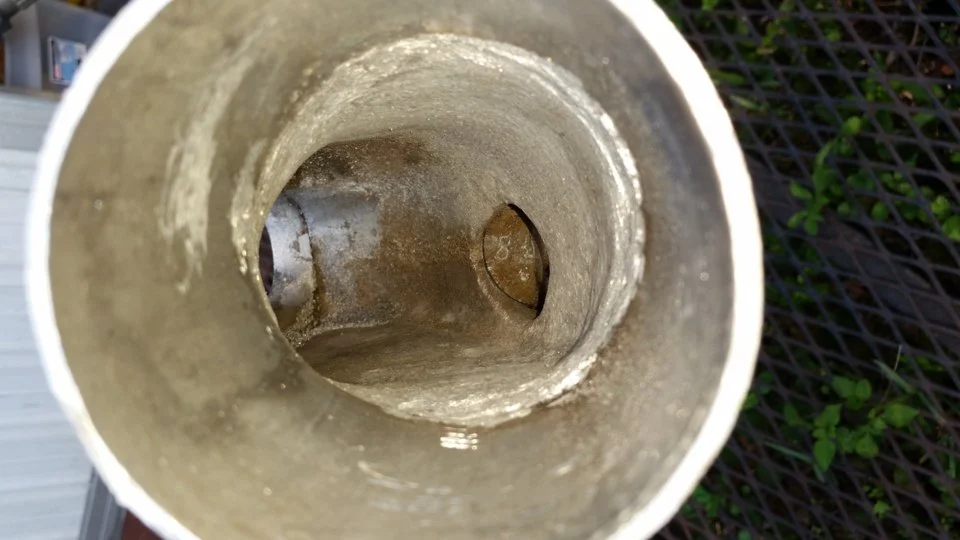

Also, the inlet plenum for the charger is pieced together from the old parts. The flange is sort of "bull nosed" on the inside of the plenum there is not enough material on the flange to get a decent radius. Should I leave it as is OR epoxy the inside to build up a smooth flow path??? Any issues with epoxy inside the plenum?


a91what

SendMeUrDataLog
Mod Dude
Apr 6, 2011
10,724
6,949
214
Hillsborough county
Epoxy in the plenum?... and does anyone know if there is a larger crank pulley I can get for this cheap? I need to overdrive the charger a little more to get into the optimum boost range for its map. I already have a over drive pulley on the charger. Thanks
