finding out what's been done....

[vadim]

well here is a slew of questions for you guys, if you can help please do, i was looking for the eec test conector in my stang and there dosn't seem to be one, i have had a few fords and have a auto x ray scanner, but for the life of me cannot find it, second what color are the stock injectors? and i will have to get pics for this one, but the front struts have these big nuts on them with a flat head screw driver thing that looks to be a adjuster, the struts are yellow and have a blue lable of some sort, cannot make it out. there is also this read bar that goes from one side to the other, behind about 2 feet behind the stabalizer. there also what looks to me is a under drive pully on the crank only, it is a really dark purple like color, i think i will have to get pics of this stuff if anyone wants them, i have been planning on throwing some cash at this car, but if there has been other stuff done, kinda be a waste.

now as for the heads if i take the valve cover off is there any numbers to find out what they may be? they are cast iron, so they could just be stock. feels like i'm banging my head off the wall today. the check engine light is either diabled or burnt out, i havn't had time to tear apart the cluster yet.

Sorry for all the questions, but you guys who have been around these cars alot longer than i have thats for sure.

Once again, thanks for any input.

Mike........Vadim.



[vadim]

ok, i found out the orange ones are stock 19#, does anyone know the stock diameter of the crank pully?

I feel stupid, answering my own questions, duh.



[Boostedpimp]

i was looking for the eec test conector in my stang and there dosn't seem to be one

Should be on the driver side closes to the firewall behind the strut tower

what color are the stock injectors?

orange

the front struts have these big nuts on them with a flat head screw driver thing that looks to be a adjuster, the struts are yellow and have a blue lable of some sort, cannot make it out.

Yes that means there adjustable and the yellow/blue scheme makes me want to say Bilsteins

there is also this read bar that goes from one side to the other, behind about 2 feet behind the stabalizer. there also what looks to me is a under drive pully on the crank only, it is a really dark purple like color

You should take pics of these for other people to help you ID



[vadim]

Should be on the driver side closes to the firewall behind the strut tower

what color are the stock injectors?

orange



Yes that means there adjustable and the yellow/blue scheme makes me want to say Bilsteins



You should take pics of these for other people to help you ID[/QUOTE]

ok thanks, i went out and found the darn conector, it was wedged down under the harness, first time i have seen one hiding so well. i will get some pics up in the near future, have to find out were the wife put the camera, or one of my little ones ran off with it lol. thanks!! this site is amazing.

i hooked my scanner up and got the following codes 82-something about the thermactor air circuit,and 41 indicating lean not swithcing, must be a bad o2??



[Maryland Stang]

The red bar on the K member may be a version of the Steeda G-trac K frame stiffener.

Steeda G-trac Bar - '79-'04 Ford Mustang



[vadim]

The red bar on the K member may be a version of the Steeda G-trac K frame stiffener.

Steeda G-trac Bar - '79-'04 Ford Mustang

yeah thats what it is, you nailed that one, thanks at least i know what it is now.



[Maryland Stang]

now as for the heads if i take the valve cover off is there any numbers to find out what they may be? they are cast iron, so they could just be stock. feels like i'm banging my head off the wall today.

does anyone know the stock diameter of the crank pully?

GT-40 heads will be 3 verticle bars on the front of the heads.
GT-40P heads will have 4 verticle bars on the front of the heads
E7TE (stock) can't be identified with the head on the engine. It will say E7TE on the underside of the head towards the cam.

The stock crank pulley is about 6".



[vadim]

GT-40 heads will be 3 verticle bars on the front of the heads.
GT-40P heads will have 4 verticle bars on the front of the heads
E7TE (stock) can't be identified with the head on the engine. It will say E7TE on the underside of the head towards the cam.

The stock crank pulley is about 6".

thanks marylandstang, here's a bit of a stupid one, do you mean on the front were the accessories mount or in front under the valver covers, i know it sounds like a stupid question, i'll go out and look on my hunch and see what i can figure out. gotta get some pics of that crank pully. thanks again.



[vadim]

some pics of the stuff....

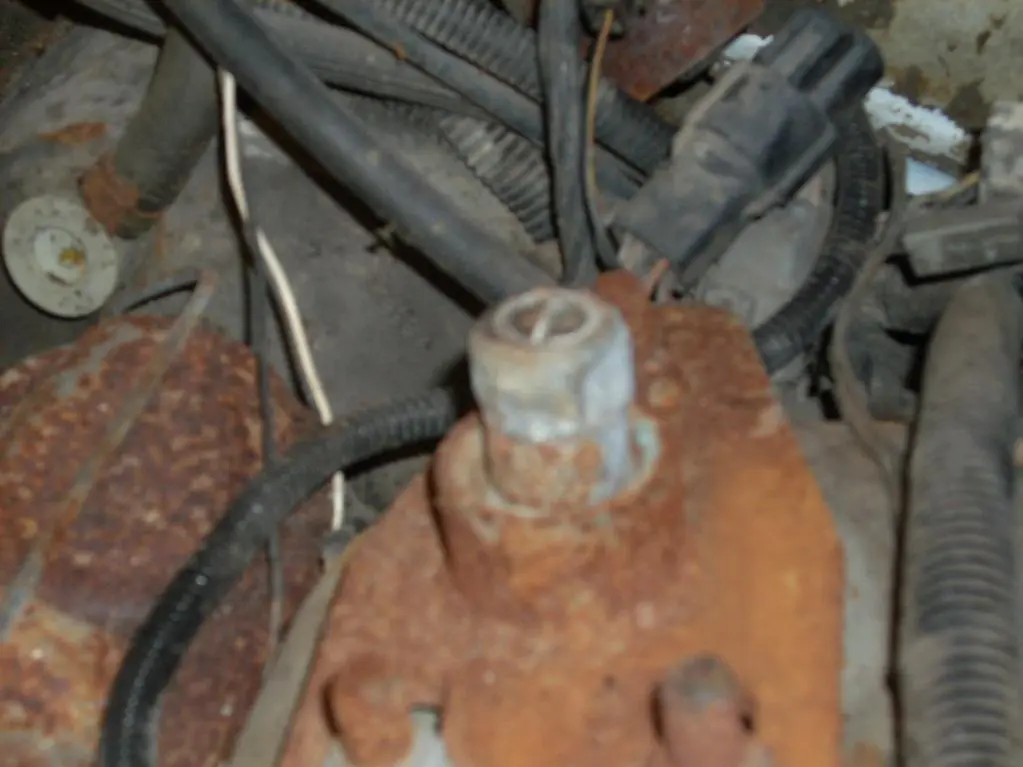

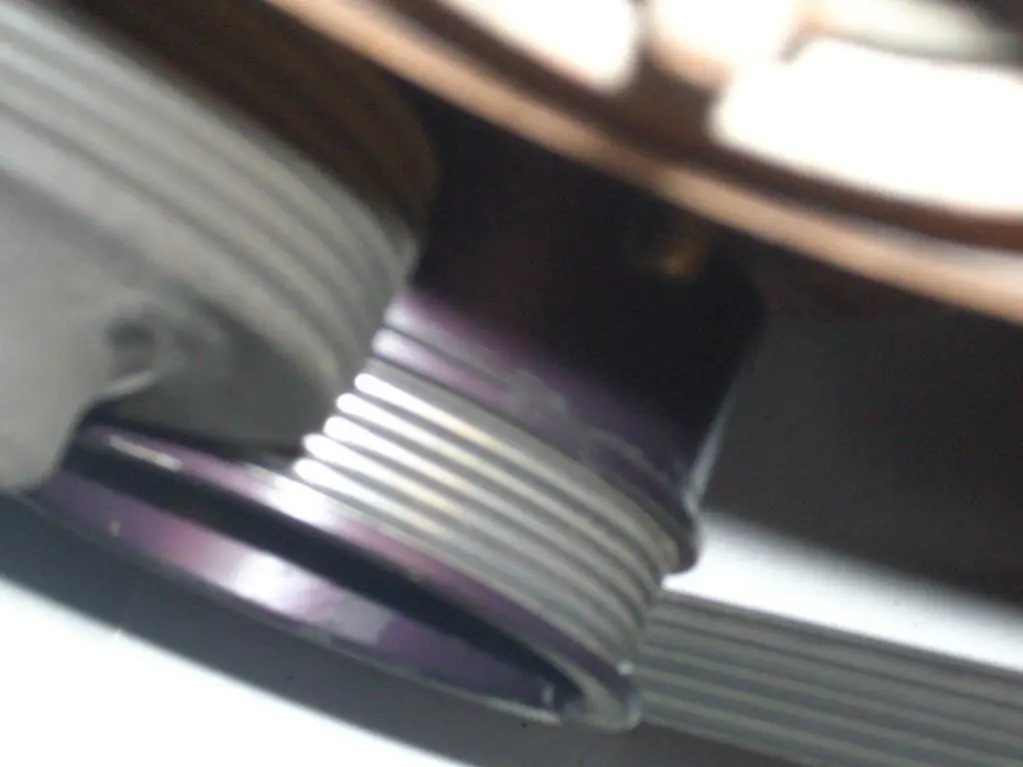

ok here are the pics of the strut tower and pully, i know little surface rust, but she has been sitting in a garage for close to 5 years. i'll clean her up... anyhow let see if i can attach photos... rust looks 10x worse in pics, holy crap..



[Maryland Stang]

thanks marylandstang, here's a bit of a stupid one, do you mean on the front were the accessories mount or in front under the valver covers,

On the front of the head where the accessories mount. They'll be plainly visable.

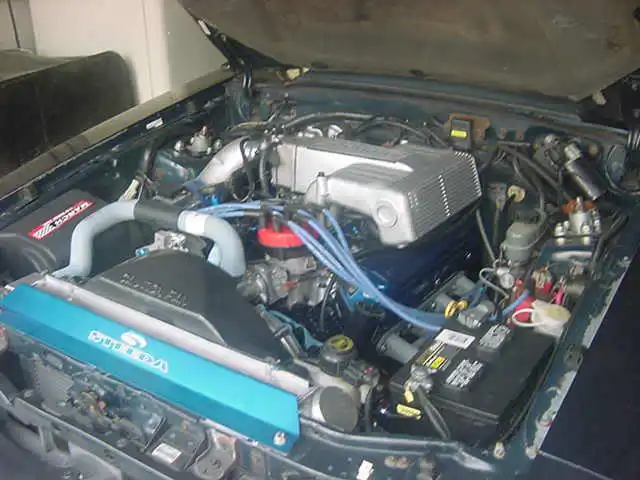

You can see them in this pic. Just look at the front of the head and you'll see the 4 bars.
