FREAKY headlights

Hello, Patrick Sullivan, NOOB here trying to use my Fox Body to Auto Cross Here in Colorado! & I am trying to correct a BUTT load of problems, mechanical as well as electrical. So, 1st problem, my FREAKY headlights stay, on all the time. In my 89 Lx convertible + someone took out the light switch and pulled all the wires out of the holder & is MIA (missing in action). Need a game plan/pin out with wire color & location in the back of the switch. Or any other suggestions - Thanks in advance...
89 Mustang !.jpg

  • Sponsors (?)


KRUISR

5 Year Member
Apr 16, 2015
1,382
616
133
Pick up either the factory service manuals or I would recommend the Chilton's manual for your year. The wiring diagrams show the connector, wire colors, wire gauge and wire location in the connector.


Back in the mid 90's I installed a complete 88 dash in an 83, reconnecting and making everything functional.

  • Useful
Reactions: 1 user
Thank You KRUISR.

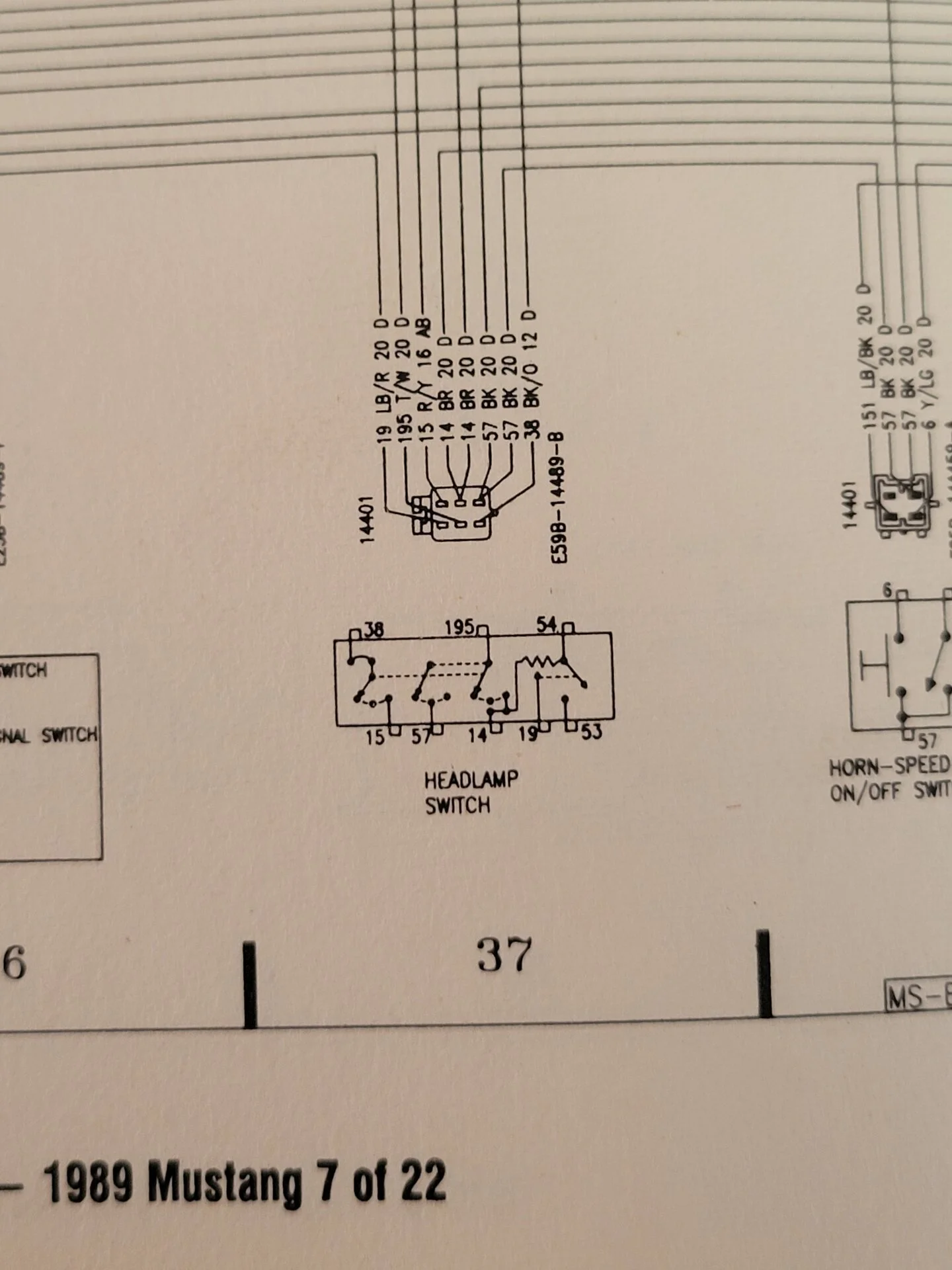

The attachment you sent. is exactly what I needed. Headed over to pick up NEW solderless connectors (I'll solder them too), to rewire my switch. Plus I am on the lookout for, (Factory Service Manual) or Chilton's. Again, Thanks for the help.
