Fox Front Springs Install Question

[rhannigan]

Hello Everyone, I have a 1990 5.0 Foxbody.

I'm in the process of doing my first front spring install. I have done research and have come up with this list of procedures to complete the job, please let me know if this sounds right:

1. Jack up front of car and put on jack stands
2. Remove tire
3. Remove brake caliper and hang it out of the way
4. Remove front sway bar end link
5. Put a jack under the A-arm
6. Remove the two strut bolts at spindle
7. Lower jack
8. Remove Spring
9. Install new spring
10. Use jack to compress new spring
11. Install the two strut to spindle bolts
12. Install sway bar end link
13. Remount brake caliper
14. Put tire back on

Let me know if this is correct.

Thanks.



[FoxMustangLvr]

Looks pretty close to me if the world was perfect. To me, if you are removing a stock spring, it never comes out after lowering the jack and if it does you better get out of the way. It still is normally stuck in there under tension and ready to shoot out at you when I do it. Heck it was even a PITA to get my Eibach pro's wedged back in there without isolators. Another bit of advice is to only jack up and work on one side of the vehicle at a time.



[rhannigan]

Looks pretty close to me if the world was perfect. To me, if you are removing a stock spring, it never comes out after lowering the jack and if it does you better get out of the way. It still is normally stuck in there under tension and ready to shoot out at you when I do it. Heck it was even a PITA to get my Eibach pro's wedged back in there without isolators. Another bit of advice is to only jack up and work on one side of the vehicle at a time.

FoxMustanfLvr thanks for the quick response! I know all of this sounds perfect, do you recommend spring compressors? If so, do you have a preference? I friend of mine said that he has heard of the front end lifting off the jack stands when the spring uncompresses, is that why you recommend only jacking up the side that will be worked on?



[mikestang63]

do yourself a favor and spend $20 and buy the max motorsports spring tool. It holds the spring in place in the A arm so you can jack it up and not have to worry about it popping out.



[rhannigan]

do yourself a favor and spend $20 and buy the max motorsports spring tool. It holds the spring in place in the A arm so you can jack it up and not have to worry about it popping out.

Mikestang6, I'm ahead of you on that one, already purchased and waiting to be used!



[rd]

Great idea, got to order one of those!



[deathb4dismount]

do yourself a favor and spend $20 and buy the max motorsports spring tool. It holds the spring in place in the A arm so you can jack it up and not have to worry about it popping out.

This and check out the LMR video



[General karthief]

Please don't hang the calipers by the hose. Use zip tie or a piece of wire.
Gotta get me one of the mm things, fix'n to do mine soon.



[krazedstang]

do yourself a favor and spend $20 and buy the max motorsports spring tool. It holds the spring in place in the A arm so you can jack it up and not have to worry about it popping out.

Almost ordered one of those but I already ordered a spring compressor the day before.



[rhannigan]

Almost ordered one of those but I already ordered a spring compressor the day before.

Which spring compressor do you recommend?


Sent from my iPhone using Tapatalk



[krazedstang]

I just bought one on Amazon that had good reviews, I'll post the link later if it works well, but I won't know until this weekend lol. I don't want to recommend a tool if it turns out to be garbage.



[Black1987]

Which spring compressor do you recommend?


Sent from my iPhone using Tapatalk

The free one . Go to advance auto and rent one. They put a charge on your credit/debit card while you have the tool checked out. When you return it, they refund it, no cost.

3 pluses to this,
1. If your a speed perks member you get either the 5 dollar or 20 dollar coupon on crap in the store (parts,rtv, oil, brake cleaner, etc) even tho you are returning it (loophole)
2. If you damage it or break it, its their problem not yours.
3. Oh you don't spend any additional money on something you will need once in a blue moon.

Carry on



[rhannigan]

Do you guys recommend separating the ball joint from the tie rod as well?



[krazedstang]

You shouldn't need to.



[FoxMustangLvr]

I have the MM spring tool too. It keeps the bottom of the spring in place because the bottom of the spring likes to pop out during install. You still want to use both the MM tool and a pair of spring compressors to make life easier. I've done it with only the MM tool and a 3ft pry bar on top of the spring which works too.

I've done this many many times and now I'm happy to say I have Maximum Motorsports coil overs and will never have to deal with those frickin springs again!!!



[rhannigan]

I have the MM spring tool too. It keeps the bottom of the spring in place because the bottom of the spring likes to pop out during install. You still want to use both the MM tool and a pair of spring compressors to make life easier. I've done it with only the MM tool and a 3ft pry bar on top of the spring which works too.

I've done this many many times and now I'm happy to say I have Maximum Motorsports coil overs and will never have to deal with those frickin springs again!!!

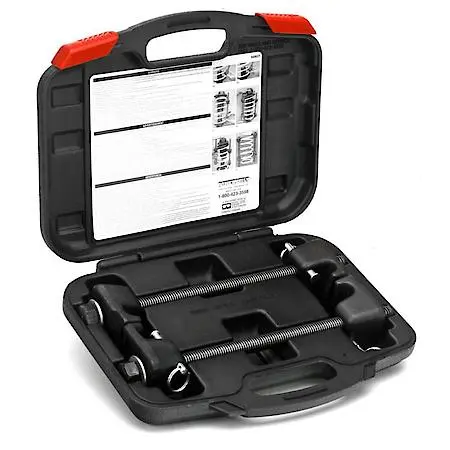

FoxMustangLvr, Which type of spring compressor do you recommend? I included a pic of the three types I can rent locally in Las Vegas.



[FoxMustangLvr]

FoxMustangLvr, Which type of spring compressor do you recommend? I included a pic of the three types I can rent locally in Las Vegas.

The bottom pic is the one i'd use. I prefer to use the external type with locking pins. Honestly mine do not have the safety pins which is always a risk but I've used them dozens of times without issue. The only time I didn't feel safe with my spring compressors was when I tried to use them on my F-150 springs when I installed my adjustable Bilsteins. I ended up outsourcing that job to a shop.



[FoxMustangLvr]

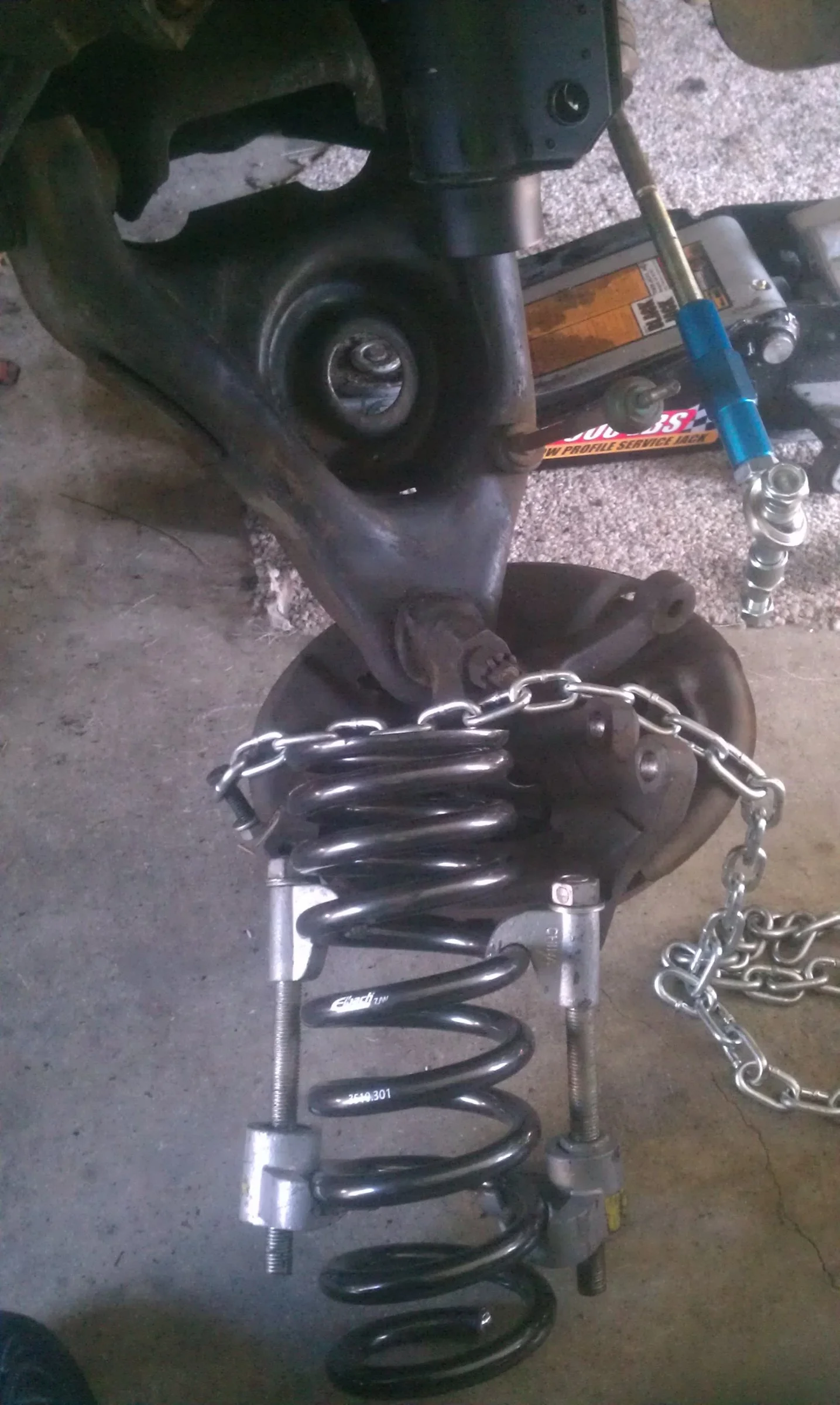

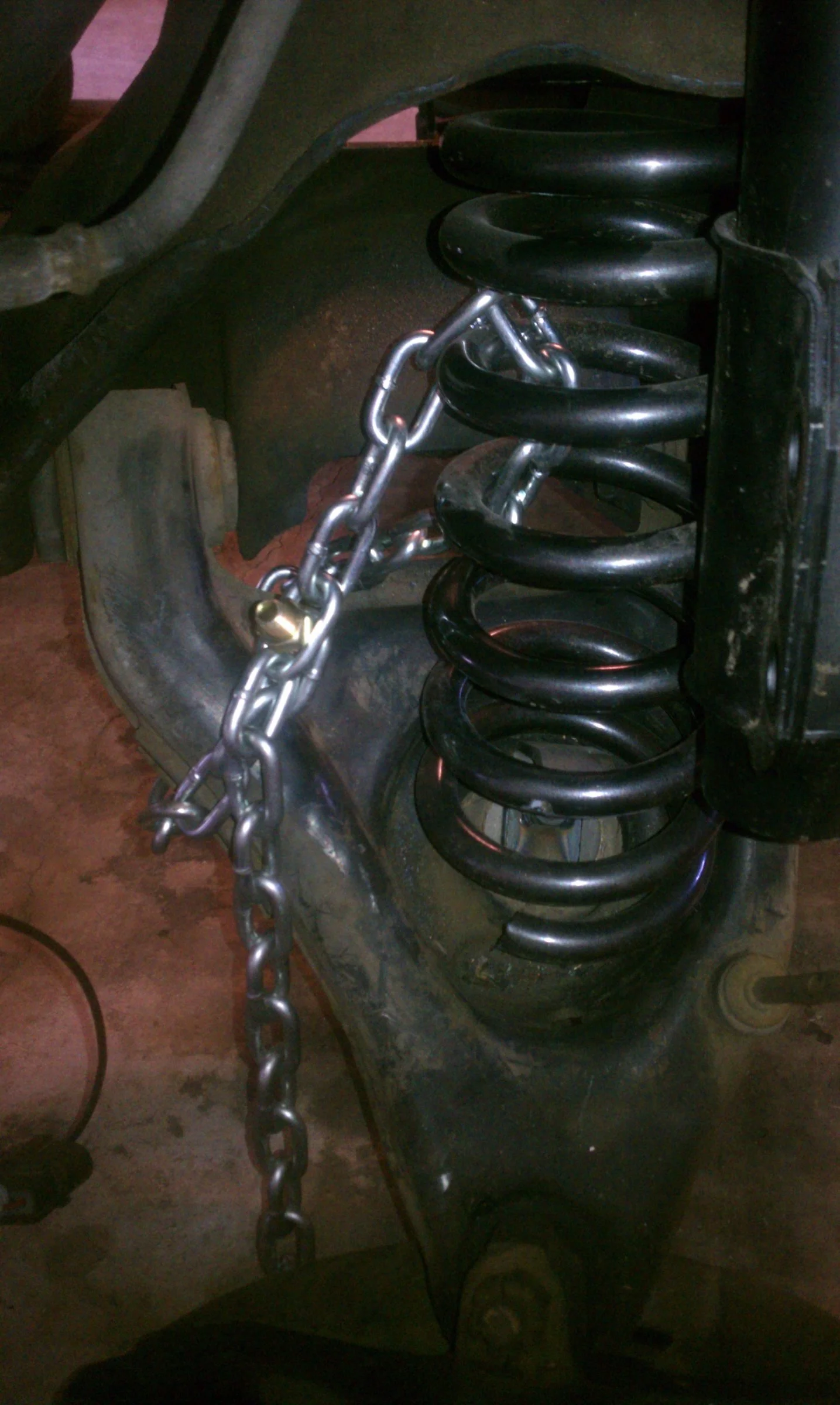

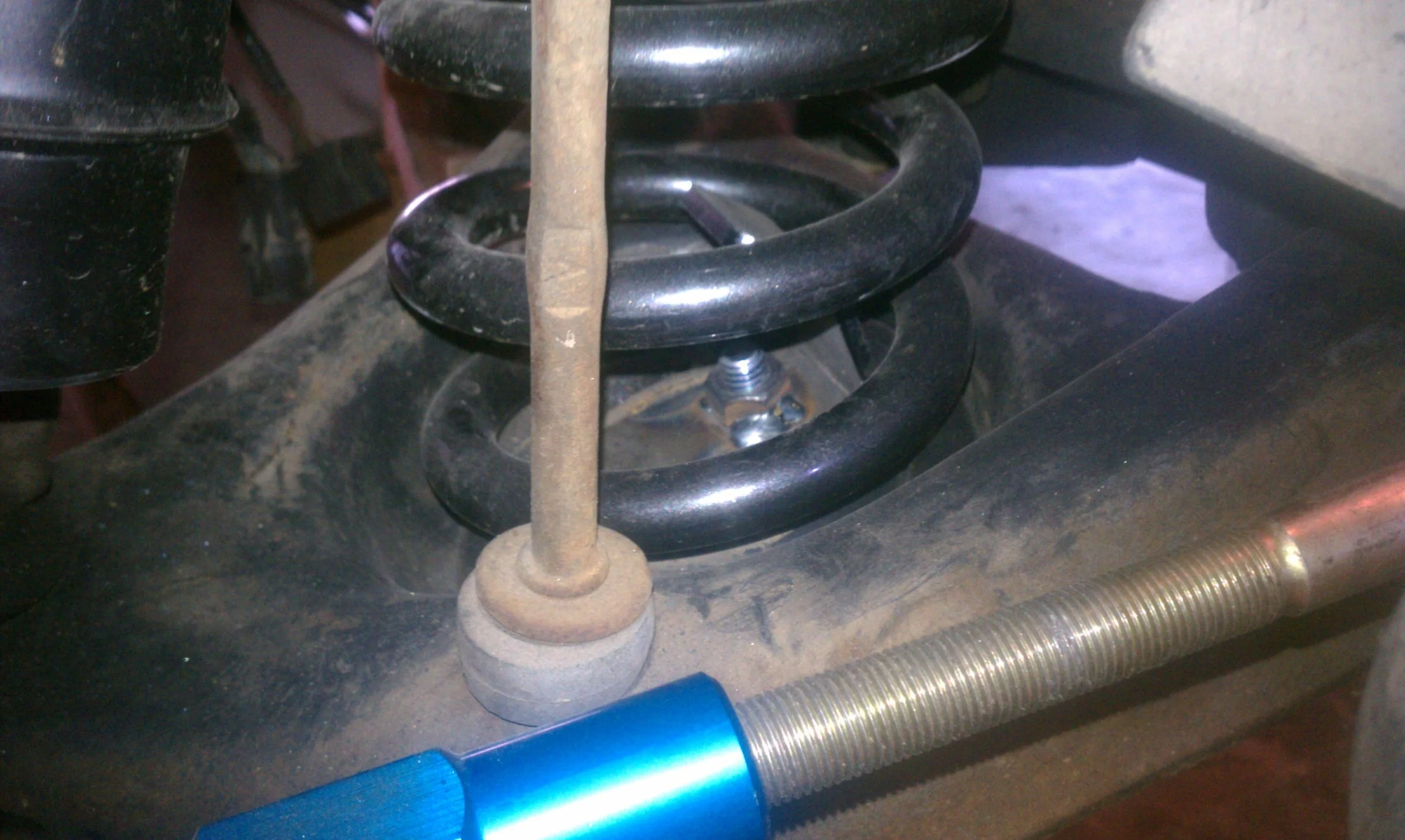

My way of doing this job. Yes, I prefer to wrap a chain around the spring in case it decides to pop out on me. Safety bro!



[rhannigan]

My way of doing this job. Yes, I prefer to wrap a chain around the spring in case it decides to pop out on me. Safety bro!

Thanks for the pics, big help. Chain is a good idea. I see that you separated the ball joint from the tie rod, in your opinion is this necessary?


Sent from my iPhone using Tapatalk



[FoxMustangLvr]

Thanks for the pics, big help. Chain is a good idea. I see that you separated the ball joint from the tie rod, in your opinion is this necessary?


Sent from my iPhone using Tapatalk

Absolutely. And you really need to jack the car up high enough to have the control arm hang free and able to push down with your foot all the way down to get the spring in/out. The steering tie rod will limit that if left connected.
