Hey guys. Need some help from someone with a 92 or 93 5.0.

I've got a friend that has a fuel issue. Car will start and run sometimes. He replaced the fuel relay, distributor with Motorcraft, checked all grounds, replaced PCM relay, replaced Fuel Pump, and I hooked it up to my break out box. This was a few years ago so all I know is all the pins tested good. All tests came back like nothing was wrong. Car would not start.

It had a code 96 which has to do with the fuel pump circuit. He lost interest and I moved out of state. Well, now he's back on a roll after driving Scarlet Rose.

I remember telling him about checking a fuel pump connector behind the drivers kick panel. I think the wire color is green / yellow but can't be sure.

Does anyone have a picture of the connector or know, for sure, what color wires are in it ?

  • Sponsors (?)


91AOD5.0LX

I have a slight sag in my rear
Feb 20, 2021
430
266
73

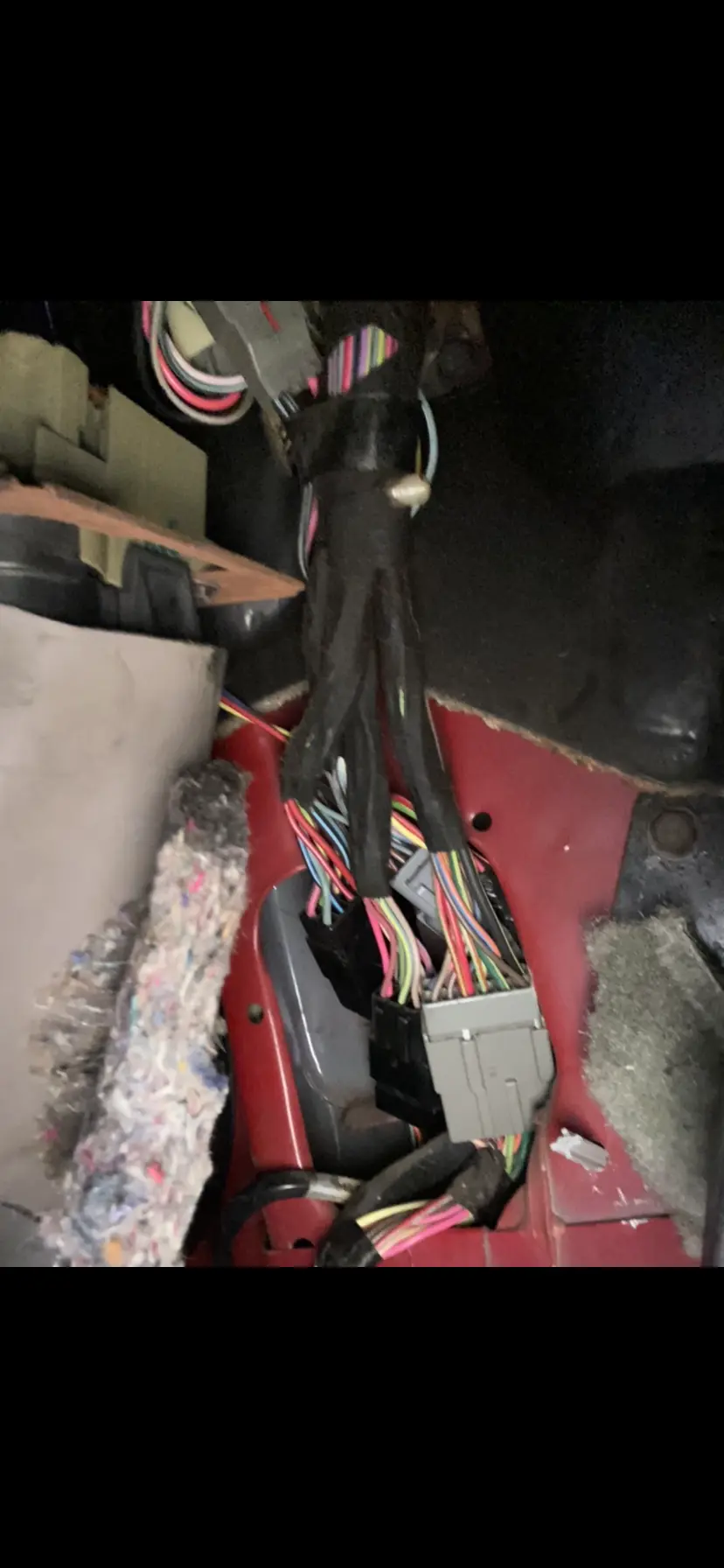

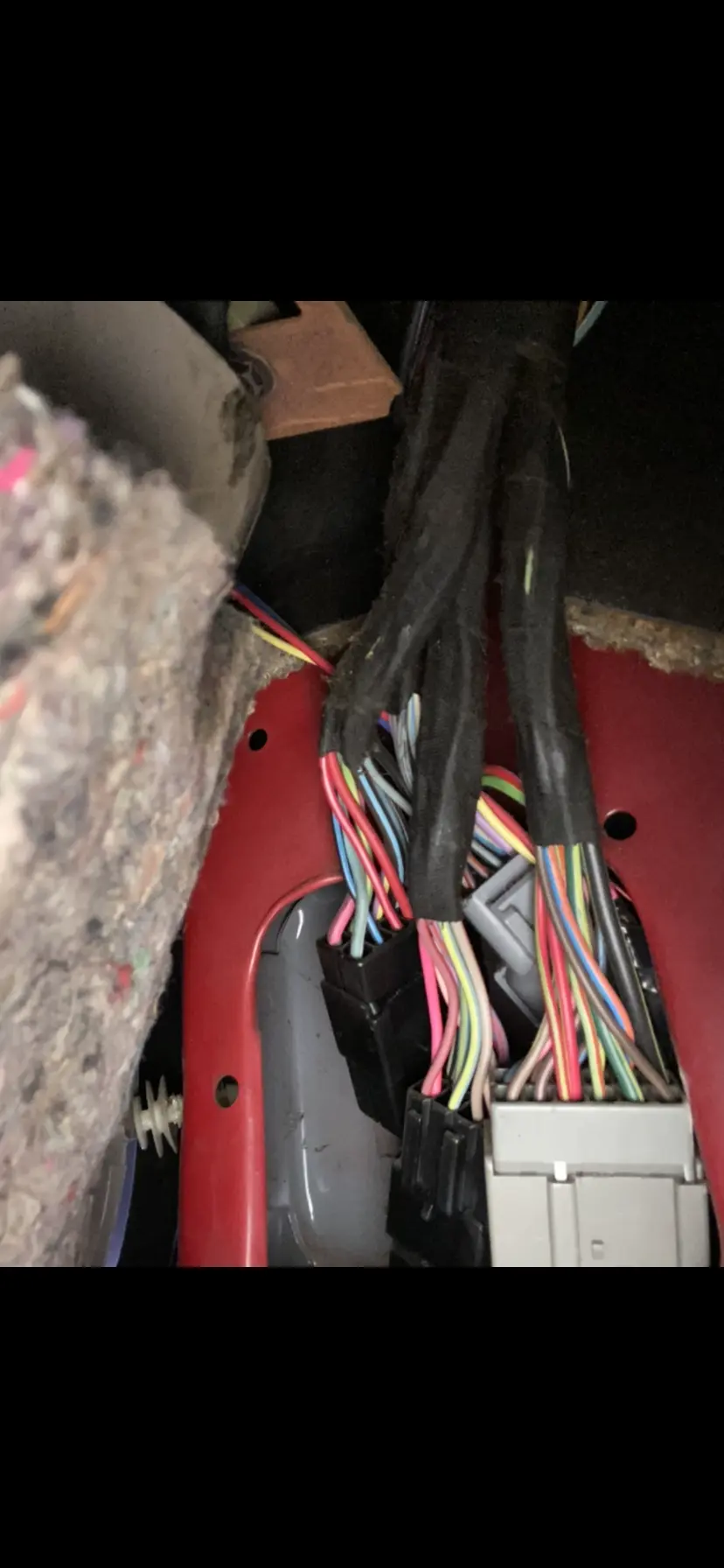

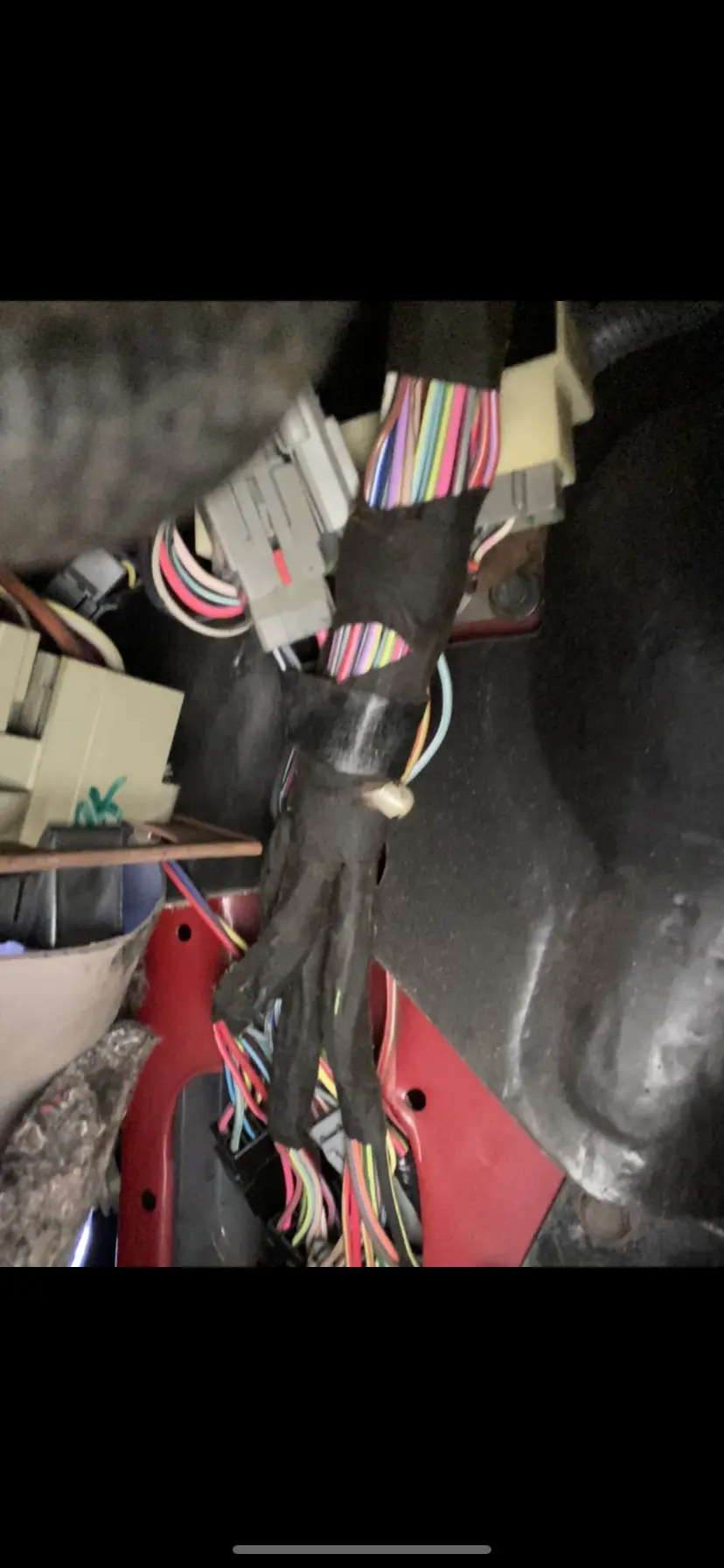

I’m not sure if this will be helpful because it’s from a 1991 (5.0) and I’m not sure which is the fuel pump connector if any at all but in an effort to help you, these are a few pics from behind my driver side kick panel:


90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
6,473
5,553
203
I’m not sure if this will be helpful because it’s from a 1991 (5.0) and I’m not sure which is the fuel pump connector if any at all but in an effort to help you, these are a few pics from behind my driver side kick panel:
Thank you. I think I see the wire in the gray connector that has wires leading to under the carpet going towards the back.
