heater core hoses

[warriorpluto]

anybody have a pic on which way the heater hoses are supposed to be plugged?



[warriorpluto]

and where does this so called restrictor go?



[Duncan McDougal]

If you have an 87-89 this is the book for you. The 90-93 is very similar but there is wiring differences. I have this manual and it is the real ford service manual. It is approximately 3000 pages of every piece of the car.


It is only $26

Ford Service Manual


View attachment 274575



[warriorpluto]

i might try that book come friday.



[Maryland Stang]

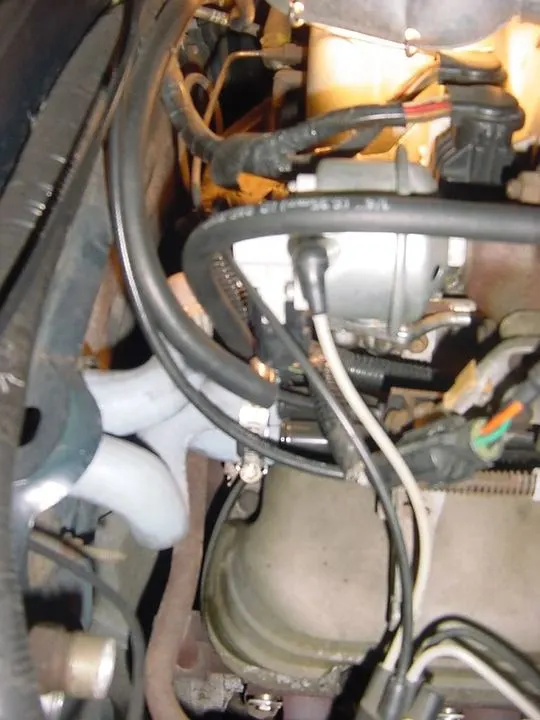

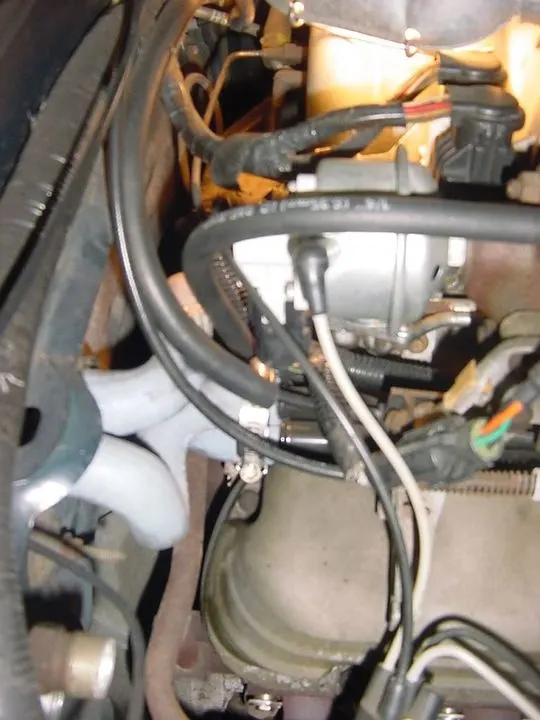

This pic will help. I believe the restrictor goes in the hose towards the drivers side of the firewall as viewed in this pic..



[89nascar]

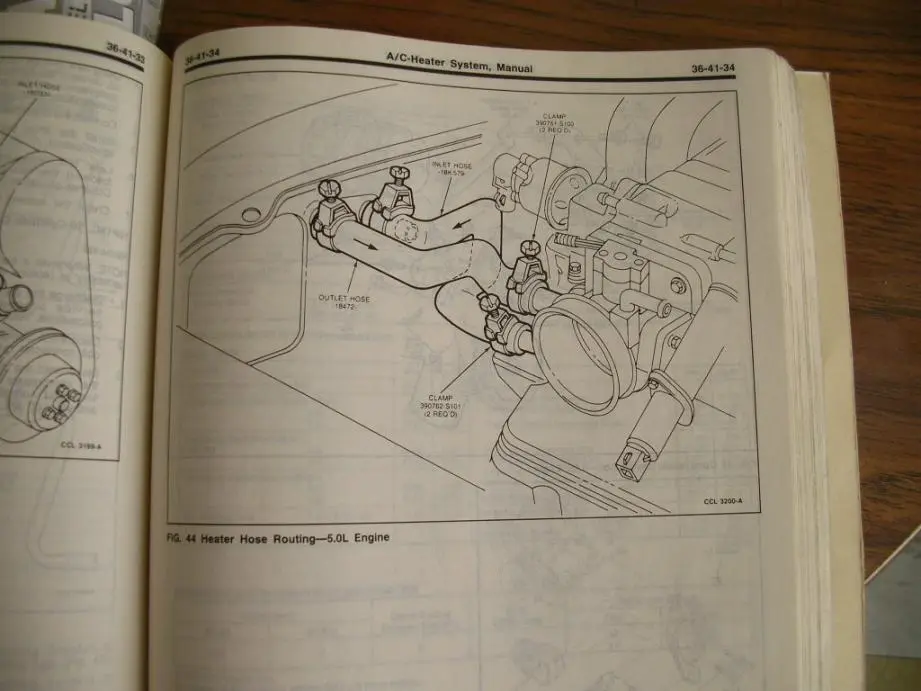

from a 1990 ford mustang shop manual



[Djstorm100]

from a 1990 ford mustang shop manual

What is the size of the restrictor? I know I don't have one in mine and I just replaced the heater core I don't want to bust it due to too much pressure



[4G-KDMP]

To give you an idea of the size, some people use a 3/8 drive 13mm socket as a restrictor.



[warriorpluto]

oh ok. thank you very much guys. those pictures really helped. they were hooked wrong way by the previous installer. i got it right though.



[jrichker]

See http://home.netcom.com/~skent/mustang/1990/heater_core/hcore.html for more information on the restrictor and how to make one if you don't already have one.
