Barrett66 New Member Jul 28, 2010 27 0 2 Upstate N.Y. May 19, 2013 #1 May 19, 2013 #1 My car was converted to elec. fan before I got it. I believe this diagram would have been on the shroud. My Hayes book doesn't have it. Thanks for the help.
My car was converted to elec. fan before I got it. I believe this diagram would have been on the shroud. My Hayes book doesn't have it. Thanks for the help.

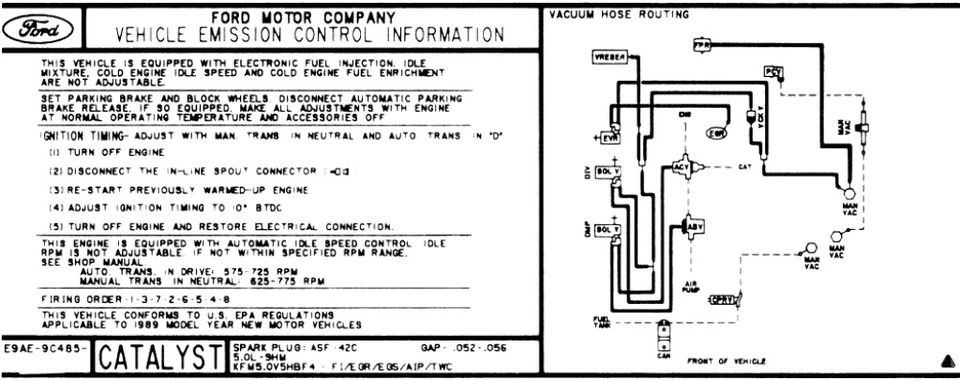

4G-KDMP 10 Year Member Jul 23, 2005 935 19 39 CA May 19, 2013 #2 May 19, 2013 #2 Here yeah go... 1989.

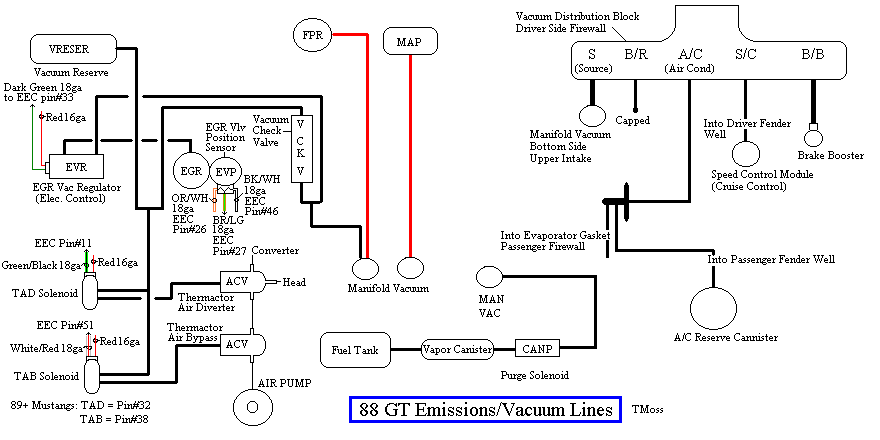

RacEoHolic330 I like to dress like a pretty girl 15 Year Member Mar 4, 2003 4,014 1,698 203 Allentown, PA May 19, 2013 #3 May 19, 2013 #3 Here are the diagrams from TMoss for some more clarity:
