So I recently did a turbo 408 stroker swap and full wire tuck on my 89 lx hatch and now I'm getting no spark. I built police car and wire them up for a living so I'm pretty good with electrical. I've done my resistance text from the dark green and yellow wire and checked out good. I e tested my pip, tfi, and coil on a bench test and everything is fine. When doing the resistance test ok the spout wire (yellow green strip) I have no resistance between ground. I've went back and double checked my grounds and wires and everything looks good. Can anyone help me with this issue. Thanks in advance

  • Sponsors(?)


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,396
2,845
234
74
Dublin GA
lowendmac.com
Cranks OK, but No Start Checklist for Fuel Injected 5.0 Mustangs model years 1986-1995



A word about this checklist before you start: it is arranged in a specific order to put the most likely failure items first. That will save you time, energy and money. Start at the top of the list and work your way down. Jumping around will possibly cause you to miss just what you need to see to find and fix the problem. Don’t skip any steps because the next step depends on the last step working correctly.

Revised 26-Jul-2017 to add fuse link diagram.

All text applies to all models unless stated otherwise.

Note: 94-95 specific changes are in red

1.) Remove push on connector (small red/blue wire) from starter solenoid and turn ignition switch to the Run position. Place car in neutral or Park and set the parking brake. Remove the coil wire from distributor & and hold it 3/8” away from the engine block. Jumper the screw to the big bolt on the starter solenoid that has the battery wire connected to it. You should get a nice fat blue spark.

Most of the items are electrical in nature, so a test light, or even better, a voltmeter, is helpful to be sure they have power to them.

No spark, possible failed items in order of their probability:

A.) MSD, Crane, or other ignition box if present - Bypass it and return to stock configuration if possible. Do this as a temporary measure to eliminate it as a possible problem source.
B.) PIP sensor in distributor. The PIP sensor supplies the timing pulse to trigger the TFI and injectors. A failing PIP sensor will sometimes let the engine start if the SPOUT is removed. See paragraph 5A – Using a noid light will tell if the PIP is working by flashing when the engine is cranking.
C.) TFI module: use a test light to check the TFI module. Place one lead of the test light on the red/green wire on the ignition coil connector and the other lead on the dark green/yellow wire on the ignition coil connector. If the TFI is working properly, the test light will flash when the engine is cranked using the ignition switch.
D.) Coil
E.) No EEC or computer power - EEC or computer relay failure
86-93 models only: EEC relay next to computer - look for 12 volts at the fuel injector red wires.
94-95 models only: EEC or PCM power relay in the constant control relay module. Look for 12 volts at the fuel injector red wires.
Both 86-93 and 94-95 models: No 12 volts with the ignition switch in the run position on the fuel injector red wires. The relay has failed or there is no power coming from the ignition switch. Make sure that there is 12 volts on the red/green wire on the coil before replacing the relay.
F.) No EEC or computer power - fuse or fuse link failure
86-93 models only: Fuse links in wiring harness - look for 12 volts at the fuel injector red wires. All the fuse links live in a bundle up near the starter solenoid. Look for a 20 gauge blue fuse link connected to 2 black/orange 14 gauge wires.
94-95 models only: 20 amp EEC fuse in the engine compartment fuse box. Look for 12 volts at the fuel injector red wires.
G.) Ignition switch - look for 12 volts at the ignition coil red/lt green wire. No 12 volts, blown fuse link or faulty ignition switch. Remove the plastic from around the ignition switch and look for 12 volts on the red/green wire on the ignition switch with it in the Run position. No 12 volts and the ignition switch is faulty. If 12 volts is present in the Run position at the ignition switch but not at the coil, then the fuse or fuse link is blown.
Note: fuses or fuse links blow for a reason. Don’t replace either a fuse or fuse link with one with a larger rating than stock. Doing so invites an electrical fire.
Ignition fuse links may be replaced with an inline fuse holder and 5 amp fuse for troubleshooting purposes.
94-95 models only: Check inside fuse panel for fuse #18 blown – 20 amp fuse
H.) Missing or loose computer power ground. The computer has its own dedicated power ground that comes off the ground pigtail on the battery ground wire. Due to it's proximity to the battery, it may become corroded by acid fumes from the battery.
In 86-90 model cars, it is a black cylinder about 2 1/2" long by 1" diameter with a black/lt green wire.
In 91-95 model cars it is a black cylinder about 2 1/2" long by 1" diameter with a black/white wire.
You'll find it up next to the starter solenoid where the wire goes into the wiring harness
I.) Computer. Don’t replace the computer just because you don’t understand how it works. Computers seldom fail, it usually is a sensor or wiring problem that causes the problems.
J.) Bad or missing secondary power ground. It is located between the back of the intake manifold and the driver's side firewall. It supplies ground for the alternator, A/C compressor clutch and other electrical accessories such as the gauges.
K.) Engine fires briefly, but dies immediately when the key is released to the Run position. Crank the engine & when it fires off, pull the small push on connector (red/blue wire) off the starter relay (Looks like it is stuck on a screw). Hold the switch in the crank position: if it continues to run there is a problem with either the ignition switch or TFI module. Check for 12 volts at the red/green wire on the coil with the switch in the Run position. Good 12 volts, then replace the TFI.

See the Ignition switch wiring diagram for more information on the ignition wiring fuse link because it is the next thing to be tested. You will need a Multimeter or DVM and know how to use the Ohms function to check continuity between the red/green wire on the ignition coil and the red/green wire on the ignition switch. Make sure that the ignition switch is in the off position when you do the check. You should see less than 1 Ω (Ohm) between the red/green wire on the coil and the red/green wire on the ignition switch. More than 1 Ω means that the fuse link may have blown open and needs to be replaced. If you get 1 Ω or less means the fuse link is OK and the ignition switch is bad.

Wiring Diagrams:
See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring Mustang FAQ - Engine Information Everyone should bookmark this site.


Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 94-95 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/94-95_5.0_EEC_Wiring_Diagram.gif

AutoZone wiring diagrams: You can navigate to the diagrams yourself via Repair Info | AutoZone.com and select the car year, make, model and engine. That will enable you to bring up the wiring diagram for your particular car.

2.) Spark at coil wire, pull #1 plug wire off at the spark plug and check to see spark. No spark, possible failed items in order of their probability: [/b]
A.) Moisture inside distributor – remove cap, dry off & spray with WD40
B.) Distributor cap
C.) Rotor
D.) Spark Plug wires
E.) Coil weak or intermittent - you should see 3/8" fat blue spark with a good coil

3.) Spark at spark plug, but no start.
Next, get a can of starting fluid (ether) from your local auto parts store: costs a $1.30 or so. Then pull the air duct off at the throttle body elbow, open the throttle, and spray the ether in it. Reconnect the air duct and try to start the car. Do not try to start the car without reconnecting the air duct.
Two reasons:
1.) If it backfires, the chance for a serious fire is increased.
2.) On Mass Air cars, the computer needs to measure the MAF flow once the engine starts.
If it starts then, you have a fuel management issue. Continue the checklist with emphasis of fuel related items that follow. If it doesn’t, then it is a computer or timing issue: see Step 4.

Clue – listen for the fuel pump to prime when you first turn the ignition switch on. It should run for 2-4 seconds and shut off. To trick the fuel pump into running, find the EEC test connector and jump the connector in the Upper RH corner to ground. The EEC connector is near the wiper motor and LH hood hinge.



If the relay & inertia switch are OK, you will have power to the pump. Check fuel pressure – remove the cap from the Schrader valve behind the alternator and depress the core. Fuel should squirt out, catch it in a rag. Beware of fire hazard when you do this. In a pinch, you can use a tire pressure gauge to measure the fuel pressure. It may not be completely accurate, but you will have some clue as to how much pressure you have. If you have any doubts about having sufficient fuel flow/pressure, rent a fuel pressure test gauge from the auto parts store. That will tell you for sure if you have adequate fuel pressure.

4.) No fuel pressure, possible failed items in order of their probability:
A.) Tripped inertia switch – Coupe & hatch cars hide it under the plastic trim covering the driver's side taillight. Use the voltmeter or test light to make sure you have power to both sides of the switch
B.) Fuel pump power relay – located under the driver’s seat in most stangs built before 92. On 92 and later model cars it is located below the Mass Air Flow meter. Look for 12 volts at the Pink/Black wire on the fuel pump relay.
C.) Clogged fuel filter
D.) Failed fuel pump
E.) 86-90 models only: Blown fuse link in wiring harness. Look for 12 volts at the Orange/Lt Blue wire on the fuel pump relay.
91-93 models only Blown fuse link in wiring harness. Look for 12 volts at the Pink/Black wire on the fuel pump relay.

The fuse links for all model years 86-93 live in the wiring harness near the starter solenoid.




94-95 models only: 20 amp fuel pump fuse in the engine compartment fuse box. Look for 12 volts at the Dark green/yellow wire on the constant control relay module.
F.) Engine seem to load up on fuel and may have black smoke at the tailpipe. Fuel pressure regulator failed. Remove the vacuum line from the regulator and inspect for fuel escaping while the pump is running. If fuel is coming out the vacuum port, the regulator has failed. Check the regulator vacuum line for fuel too. Disconnect it from the engine and blow air though it. If you find gas, the regulator has failed.

5.) Fuel pressure OK, the injectors are not firing.
A.) The PIP sensor in the distributor tells the computer when to fire the injectors. A failing PIP sensor will sometimes let the engine start if the SPOUT is removed.
A noid light available from any auto parts store, is one way to test the injector circuit to see if the injectors are firing. The noid light plugs into the fuel injector harness in place of any easily accessible injector. Plug it in and try to start the engine: it will flash if the injector is firing.
I like to use an old injector with compressed air applied to the injector where the fuel rail would normally connect. I hook the whole thing up, apply compressed air to the injector and stick it in a paper cup of soapy water. When the engine cranks with the ignition switch on, if the injector fires, it makes bubbles. Cheap if you have the stuff laying around, and works good too.
B.) Pull an injector wire connector off and look for 12 volts on the red wire when the ignition switch is on.
C.) No power, then look for problems with the 10 pin connecter (salt & pepper shakers at the rear of the upper manifold).

See the graphic for the 10 pin connector circuit layout.

The injector power pin is the VPWR pin in the black 10 pin connector.


D.) No power and the 10 pin connections are good: look for broken wiring between the orange/black wire on the EEC relay and the red wire for the 10 pin connectors.
E.) TPS voltage exceeds 3.7 volts with the throttle closed. This will shut off the injectors, since the computer uses this strategy to clear a flooded engine. Use a DVM, a pair of safety pins, and probe the black/white and green wires to measure the TPS voltage.
On a 94-95 Mustang, probe the black/white and grey/white wires to measure the TPS voltage.
It should be .5-.1.0 volts with the key on, engine not running. Note that if the black/white wire (signal ground) has a bad connection, you will get some strange readings. Make a second measurement using the battery post as the ground to eliminate any ground problems. If the readings are different by more than 5%, you may have a high resistance condition in the black/white signal ground circuit.

6.) Spark & fuel pressure OK.
A.) Failed IAB or improperly set base idle (no airflow to start engine). Press the throttle ¼ way down and try to start the car. See the "Surging Idle Checklist for help with all your idle/stall problems.
B.) Failed computer (not very likely)
C.) Engine ignition or cam timing off: only likely if the engine has been worked on recently. If you removed the distributor, there is a good probability that you installed it 180 degrees out of time.
D.) Firing order off: HO & 351 use a different firing order from the non HO engines.
HO & 351W 1-3-7-2-6-5-4-8
Non HO 1-5-4-2-6-3-7-8
E.) No start when hot - Press the throttle to the floor & try starting it, if you get this far. If it starts, replace the ECT.
F. ) Engine that has had the heads off or valves adjusted. Do a compression test to make sure the valves are not adjusted too tight. You should have a minimum of 90 PSI on a cold engine.

Last edited:

Antsboosted87hatch

New Member
May 30, 2019
5
0
1
30
Hayward, Ca
I did all of the above test and nothing. If I jump the yellow and lt green wire from the tfi straight to the signal side of the coil I get spark. My 22kohm resistor is good. And all of my fuse links are good. I have power to injectors and coil with key in run position and also the the tfi, and power at tfi when cranking, would not having my intake in sensors on and hooked up cause a no spark issue. That and the alternator aren't in the car yet do to needing the room for checking harness


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,396
2,845
234
74
Dublin GA
lowendmac.com
I did all of the above test and nothing. If I jump the yellow and lt green wire from the tfi straight to the signal side of the coil I get spark. My 22kohm resistor is good. And all of my fuse links are good. I have power to injectors and coil with key in run position and also the the tfi, and power at tfi when cranking, would not having my intake in sensors on and hooked up cause a no spark issue. That and the alternator aren't in the car yet do to needing the room for checking harness
How the TFI ignition works in 86-93 model Mustangs:

Revised 2 June 2017 to add canned air cooling test

Tools needed: DVM, noid light, safety pin.

Theory of operation:
The TFI ignition in 86-93 Mustangs has 4 main components: the ignition switch, the coil, the TFI module and the PIP sensor inside the distributor.

The ignition switch gets power from the two yellow wires that are supplied power by a fuse link located in the wiring harness that connects to the starter solenoid.

Diagram courtesy of Tmoss & Stang&2birds


I.) The coil is mounted on the driver’s side strut tower on most EFI Mustangs. It gets power from a red/green wire and a brown/pink wire from the ignition switch. That wire from the ignition switch feeds a 20 gauge blue fuse link that connects to the red/green wire. The fuse link protects the wiring and the ignition switch, since the fuse link for the two yellow power supply wires has a much higher current rating. Without the smaller fuse link protecting the smaller wiring used in the ignition circuit, a short there would cause the red/green wire to overheat and burn up.

A bad TFI module or a bad PIP sensor have similar problem symptoms - a high speed miss on a warm engine. It can be difficult to tell which one may be the problem cause of the high speed miss on a warm engine.

II.) The TFI module is mounted on the side of the distributor and supplies the ground for the coil. Every automotive power supply circuit uses the ground as the return path to carry power back to the negative side of the battery. The TFI switches the tan/yellow wire coming from the coil to ground. It gets power from the red/green wire when the ignition switch is in the Run position. The red/lt blue wire supplies a signal to turn on more power (dwell time) when the engine is cranking. The increased dwell can cause excessive current draw if the red/blue wire remains energized when the ignition switch is in the Run position. The trigger signal comes from the PIP sensor when cranking and the computer when the engine is running. The SPOUT jumper plug enables computer controlled spark advance. When the SPOUT is removed, spark advance is locked at the setting determined by the mechanical position of the distributor.

III.) The PIP sensor is in the bottom of the distributor under the shutter wheel. It is a Hall effect magnetic sensor that senses a change in the magnetic field when one of the slots in the shutter wheel uncovers the sensor. Then it supplies a pulse that triggers the TFI module to provide a ground to the ignition coil and tells the computer to trigger the fuel injectors. A bad PIP will often set code 14 in the computer and cause hot start problems. The fuel pump control looks for the PIP pulse to keep the fuel pump control circuit turned on and keep the fuel pump running. Replacing the PIP sensor requires removal of the distributor and pressing the gear off the distributor shaft to expose the sensor. For most people, a remanufactured distributor ($55-$75) is the solution, since they may not have access to a press.

IV.) Troubleshooting the ignition system – no spark or weak spark. All the tests are done with the ignition switch in the Run position unless specified otherwise. A safety pin may be used to probe the wiring connectors from the back side.
1.) Check for 12 volts at the yellow wires on the ignition switch. No 12 volts and the fuse link near the starter solenoid has open circuited.
2.) Check for 12 volts on the red/green and brown/pink wires coming out of the ignition switch. No 12 volts, replace the ignition switch.
3.) Check for 12 volts at the ignition coil. No 12 volts and the blue 20 gauge fuse link has open circuited.
IV.) Troubleshooting the ignition system – no spark or weak spark. All the tests are done with the ignition switch in the Run position unless specified otherwise. A safety pin may be used to probe the wiring connectors from the back side.
  1. Check for 12 volts at the yellow wires on the ignition switch. No 12 volts and the fuse link near the starter solenoid has open circuited.
  2. Check for 12 volts on the red/green and brown/pink wires coming out of the ignition switch. No 12 volts, replace the ignition switch.
  3. Check for 12 volts at the ignition coil. No 12 volts and the blue 20 gauge fuse link has open circuited.
  4. Check for 12 volts at the red/green wire on the TFI module. No 12 volts and you have wiring problems.
  5. Remove the small red/blue wire from the starter solenoid (looks like it is stuck on a screw). This is a safety measure to keep the engine from turning while you are making measurements. Have a helper turn the ignition switch to Start and look for 12 volts on the red/lt blue wire on the TFI module. No 12 volts and you will have starting problems, but push starting the car will work OK. No 12 volts, replace the ignition switch. Be sure to reconnect the red/blue wire to the starter when you finish.
  6. Check the red/blue wire to make sure that it has less than 8 volts when the ignition switch is in the Run position.
  7. A noid light available from any auto parts store, is one way to test the PIP pulse. The computer uses the PIP signal to trigger the fuel injectors. The noid light plugs into the fuel injector harness in place of any easily accessible injector. Plug it in and it will flash if the PIP is working. No flash from the noid light and the PIP is suspect. To confirm the PIP is being the source of the non flashing noid light, look for 12 volts on the red injector wiring. Good 12 volts and no flashing noid light means the PIP has failed.
  8. Remove the SPOUT plug from the harness and try to start the engine. If it starts, replace the PIP. This is a common no start condition when the engine is hot.
  9. The TFI module is a go/no go item when you have a no spark/weak spark condition on a cold engine. It either works or it doesn’t.
    The TFI failure mode on a running car is usually a high speed miss on a warm engine. Many auto parts stores will test your TFI module for free. Bring along a hair dryer to get it hot while testing it and run several test cycles, since it often gets weak when it heats up.
    Spraying the TFI module with “canned air” used to dust computer keyboards while the engine is hot and misfiring is one way to check the TFI. Turn the can upside down and spray away; this will cool the TFI of quickly. If it stops missing, the TFI is the likely suspect.

    The coil is somewhat more difficult to pinpoint as a problem. A good coil will make a nice fat blue spark 3/8”-1/2” long. The problem is that one person’s perception of a fat blue spark looks like may not be accurate enough to spot a weak coil. The coil is cheap enough ($13-$16) that having a known good working spare might be a good idea.

    diagram courtesy of Tmoss & Stang&2Birds




    [URL='http://i1114.photobucket.com/albums/k527/jrichker/TFIModuletroubleshooting.jpg%5b/IMG'][U] https://www.stangnet.com/mustang-forums/attachments/tfi-module-troubleshooting-gif.585284/?temp_hash=4f86032fc5066aee9ce1fec512e238e5 [/IMG[/U][/URL]]

    See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.

    Ignition switch wiring
    http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

    Fuel, alternator, A/C and ignition wiring
    http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

    Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
    http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

    Vacuum diagram 89-93 Mustangs
    [URL='http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg'][U]http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg[/U][/URL]

    HVAC vacuum diagram
    [URL='http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif'][U]http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif[/U][/URL]

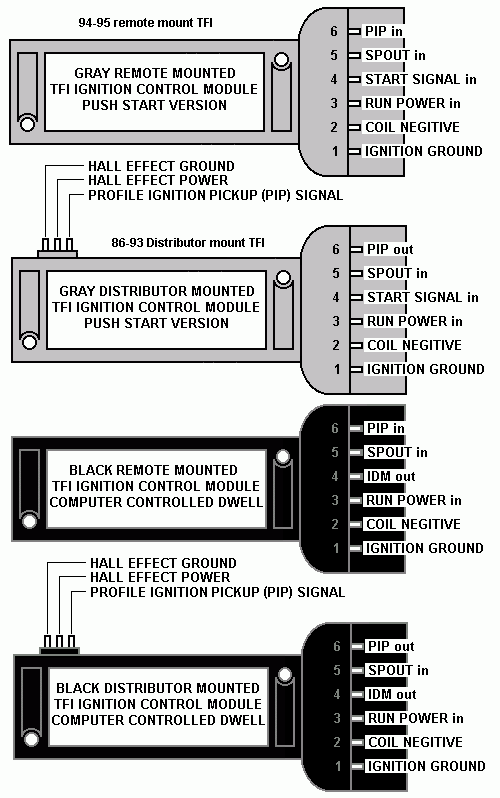

    TFI module differences & pinout
    [URL='http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif'][U]http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif[/U][/URL]

    [/LIST]


Antsboosted87hatch

New Member
May 30, 2019
5
0
1
30
Hayward, Ca
So tfi is good, Pip is good and coil is good, still no resistance from yellow lt green wire and ground at tfi connector. Does anyone have any idea what else could be the problem


Antsboosted87hatch

New Member
May 30, 2019
5
0
1
30
Hayward, Ca
I checked the ohms from tfi to computer on, blue wire .5, green yellow wire 21k, and yellow with lt green 1.5. The only thing that's not giving me reading is yellow lt green to ground I have no resistance. If I run a wire from the yellow lt green to the negative side of my coil directly I get spark. I did a wire tuck on the car but went back through and cant find any grounds no hooked up or anything like that. Is there anyone I can talk to over the phone about my issue I need to figure this out asap. Thanks


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,396
2,845
234
74
Dublin GA
lowendmac.com
The yellow/green wire is the SPOUT; it is not a ground.. It runs between the TFI module and computer pin 36. Measure the resistance between pin 36 on the computer and the yellow/green wire on the TFI module. Make sure that the SPOUT jumper is in when you make the test measurements. You should see less than 1.5Ω resistance.

If you had dumped the codes, you might have seen the following code.

Code 18 - SPOUT out or wiring fault - look for short to ground in SPOUT wiring going
back to the computer. Possible bad TFI or defective 22 K resistor in the IDM wiring

Use a timing light to check the timing: remove the SPOUT and observe that the timing retards at least 4 degrees. Put the SPOUT back in place and observe that the spark advances at least 4 degrees.
This code can disable spark advance and reduce power and fuel economy.

Remove the passenger side kick panel and disconnect the computer connector.
There is a 10 MM bolt that holds it in place.
Disconnect the TFI module connector from the TFI and the measure the resistance between the yellow/lt green wire and ground.
You should see greater than 100 K (100000) ohms.
Check the resistance from Pin 4 on the computer connector (dark green/yellow) and the dark green/yellow wire on the TFI connector. You should see 20-24 K Ohms (20,000-24,0000 ohms).


Resistor location: A big thanks to liljoe07 for this information:

Check over by the brake booster. Its not in the harness on the TFI, its on the main part of the harness over by the plugs that connect to the dash harness. About 6" or so from that, going back toward the EEC.

If I remember right, the resistor is covered in a shrink tubing that is sealed to the wires. So, you won’t be able see any markings. The shrink tubing is labeled though. It's a 22kohm 1/2 watt resistor.

Here is the location.


Next measure the resistance between the yellow/lt green wire on the TFI module connector and Pin 36 on the computer connector. With the SPOUT plug in place, you should see less than 1.5 ohms.

The following is a view from the computer side of the computer connector.


This diagram is the wire side of the computer connector.


Diagram courtesy of Tmoss & Stang&2birds


Thread starter Similar threads Forum Replies Date
T Spark plug gap Fox 5.0 Mustang Tech 3
E Electrical Cranks but no spark Fox 5.0 Mustang Tech 3
2 1987 fox 5.0 no spark Fox 5.0 Mustang Tech 1
V 1999 Cobra knocking after spark plug blow out 1996 - 2004 SN95 Mustang -General/Talk- 3
79 Fox Spark plug boot melted. What’s going on? 1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk- 3
C Foxbody with no start issues Fox 5.0 Mustang Tech 5
M Electrical Weak spark on #1 cylinder. Suggestions/Help Fox 5.0 Mustang Tech 28
J No spark from coil wire Fox 5.0 Mustang Tech 1
0 Plenty Fuel, No Spark. Car will not start 1996 - 2004 SN95 Mustang -General/Talk- 5
93notchback347! What spark plugs do I use with canfield heads and vortech v1 blower Fox 5.0 Mustang Tech 3
Sirocco110 Engine Spark plug wiring confusion. Fox 5.0 Mustang Tech 9
M No spark cylider 4 Fox 5.0 Mustang Tech 16
G One coilpack not getting spark but does have power at wire SN95 4.6L Mustang Tech 3
Cameron96 Engine Fox engine swap - cranks, fuel, spark and no start! Fox 5.0 Mustang Tech 3
M 1985 Mercury Capri 302 5.0L cranks but wont start Fox 5.0 Mustang Tech 2
Xkuzme1 Engine Spout Question. Fox 5.0 Mustang Tech 19
M Forced Induction Spark plug dilemma... Fox 5.0 Mustang Tech 3
S Nitrous Spark Plug help 1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk- 24
C Pip or ECU failure? Help diagnosing Fox 5.0 Mustang Tech 16
Gunny87 No spark Digital Self-tuning Forum 8
X Spark plug gap on 351w Fox 5.0 Mustang Tech 6
B Coolant eruption... car cranks but won’t start... HELP please! SN95 V6 Mustang Tech 5
H 65 289 spark plug gap/popping! 1965 - 1973 Classic Mustangs -General/Talk- 14
R Spark plugs 1996 - 2004 SN95 Mustang -General/Talk- 2
R 2011 5.0 Wont start have spark 2005 - 2014 S-197 Mustang -General/Talk- 0
J SPARK AND IGNITION The Welcome Wagon 4
F No spark on number 1 cylinder 2.3L (N/A & Turbo) Tech 5
3 1990 fox mustang no spark 1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk- 3
9 Loss of spark? SVT Tech Forum 1
J Gt40P Heads Spark plug Gap. 1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk- 3
D what spark plugs for 05 GT with Voodoo cams open air tuner magna flow exhaust. 2005 - 2009 Specific Tech 1
8 Data log high rpm dip..spark possibly?? no lost sync Digital Self-tuning Forum 2
7 Electrical '68 coupe cranks but no spark. Classic Mustang Specific Tech 1
A spark plugs 1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk- 8
arnie93lx For Sale Taylor 409 Race-Fit Pro Race Spark Plug Wires Engine and Power Adder 0
3 Spark plugs fowling out Digital Self-tuning Forum 4
C Help needed 1994 - 1995 Specific Tech 4
A Spark plugs 2005 - 2009 Specific Tech 1
Barron91lx Engine Spark plug wire corona Fox 5.0 Mustang Tech 5
My92cashtrap Engine Spark plug surprise! Fox 5.0 Mustang Tech 2
Jheater89lx Electrical Looking for pointers intermittent loss of spark Fox 5.0 Mustang Tech 12
Wolf_Fox Electrical One of a kind spark issue? Fox 5.0 Mustang Tech 7
1 Car cranks but doesn't start. Used checklist, have fuel, spark, compression and timing Fox 5.0 Mustang Tech 1
A Electrical No spark from coil Fox 5.0 Mustang Tech 1
G Electrical SN95 vert 3.8L rebuild, no spark, stumped! 1994 - 1995 Specific Tech 0
J 2 coils not sparking 1996 - 2004 SN95 Mustang -General/Talk- 1
H 1993 mustang gt sparks problem!! Fox 5.0 Mustang Tech 4
S Spark plug crossfire SN95 V6 Mustang Tech 4
T Electrical Cranks OK, but No Start 92 Mustang 5.0 Coil Fat Blue Spark per jrichker Fox 5.0 Mustang Tech 2
Potomus Pete Electrical New Momo, No spark Fox 5.0 Mustang Tech 34
Similar threads
