PIC REQUEST: FOX TB Swapped SN-95's

[Adam95GT]

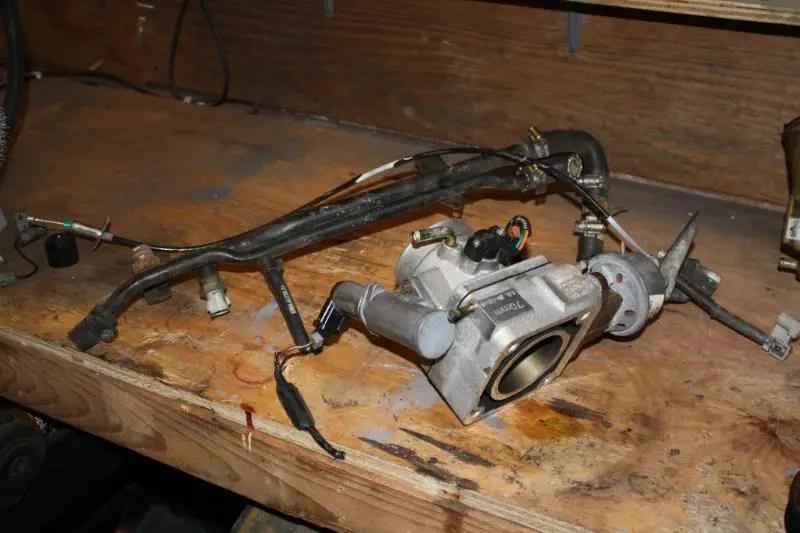

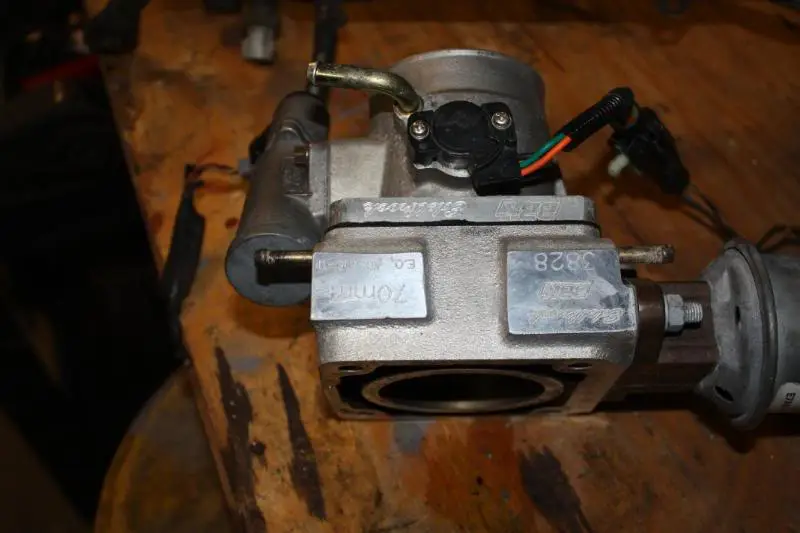

Just want to see where everything lines up at.... I found a guy switching to carb $200 for everything i need 70mm bbk tb and egr.... i also found a 65mm tb and egr as well as iac and egr valve for $100 but would still need the cable and bracket... both seem like a good deal...

I am basically trying to see where everything sits and different CAI set ups... im considering cutting a hole out of my new shaved bay to hide the maf and filter in... and runing a 90* elbow with a strait pipe into the fender...



[turbogt]

I approve this thread



[95strokerPSU]

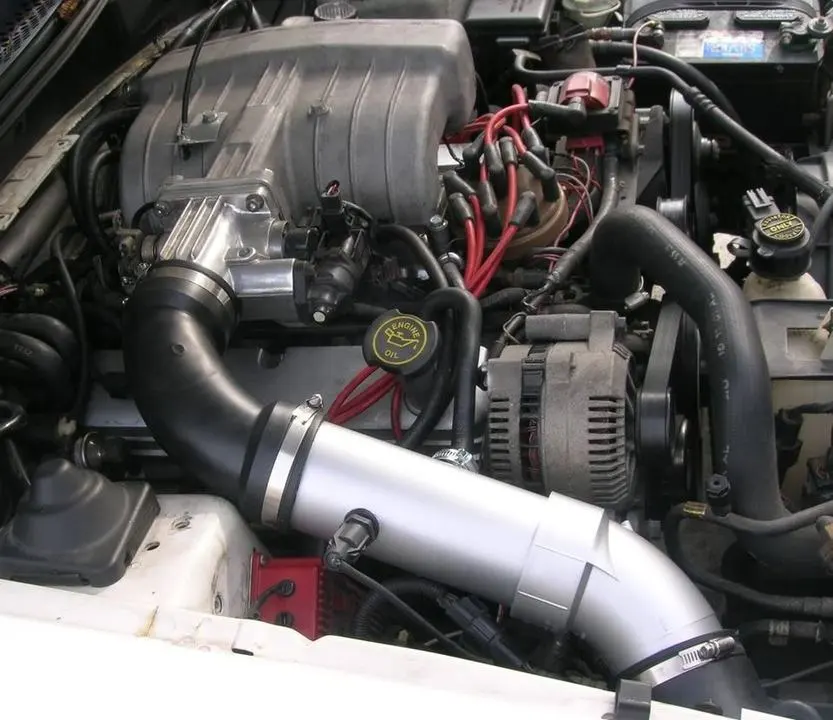

Best pic I have...



[lazy_stang]

WOW
thats a nice F'n clean lookin engine bay. . . WOW



[Adam95GT]

except for them ac lines on the fire wall... LOL

Where you get that elbow from



[Black Stampede]



[fastgtfairlane]

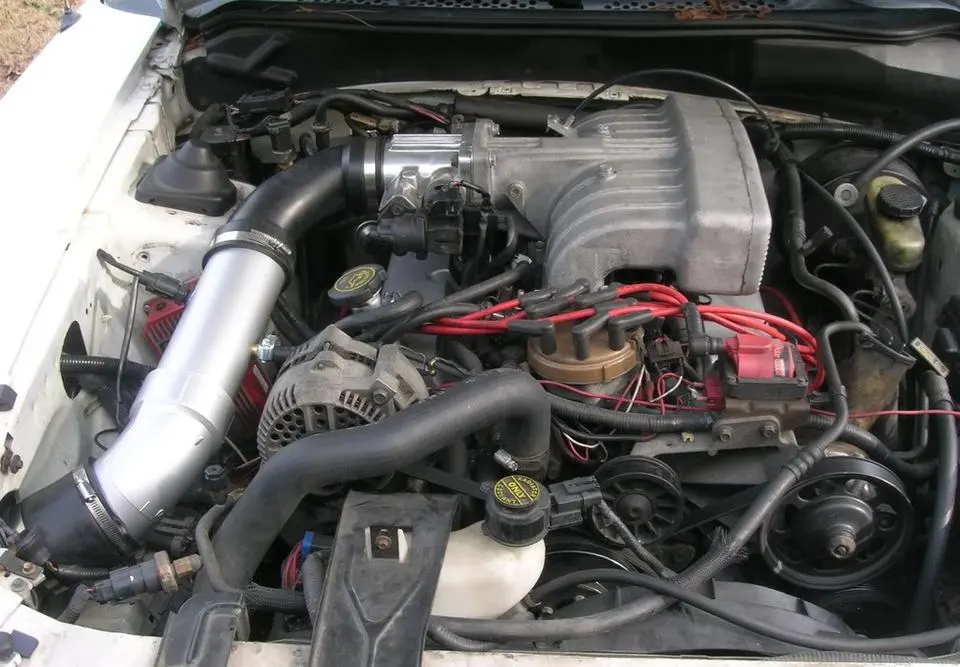

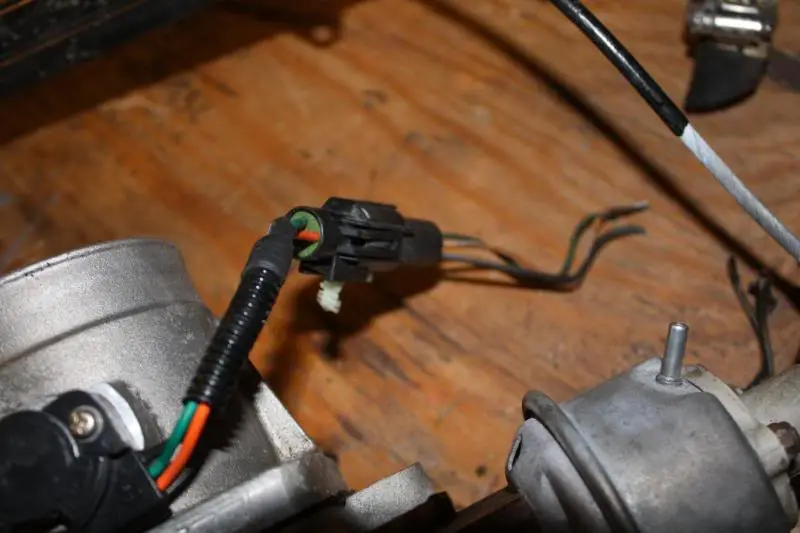

i redrilled the holes on my upper plenum and reused my sn95 tb. i had some 1/8th inch aluminum sheets laying around that i used to make a plate to cover the egr passage and made a bracket for the throttle linkage.



[99FiveOh]

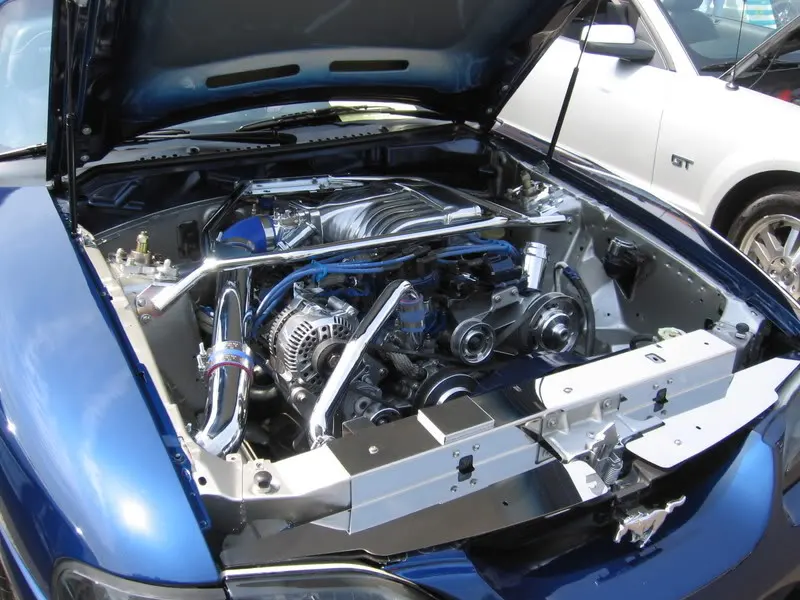

Dave, your car is beautiful! I think you just made up my mind as to the color scheme for my car, blue and silver!

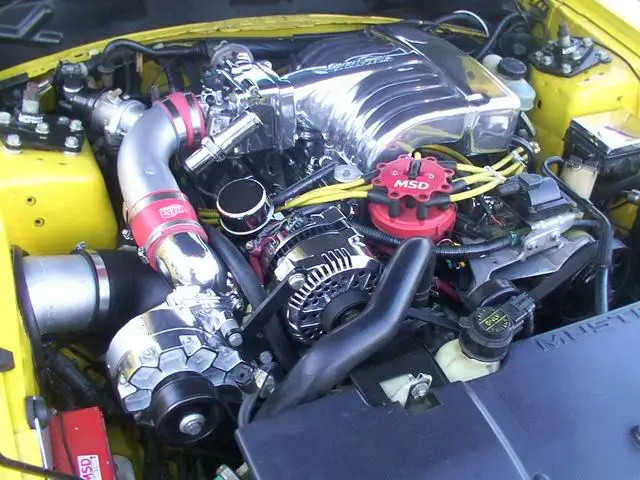

No cold air intake on my previous car, but it shows the possibilities with a supercharger and Fox TB setup:



[RIO5.0]

Oil fill vent & IAT sensor in tubing..

straight shot to fender... 3.5 exh tubing with a Scotch pad scuff..



[96darkhorse]

i redrilled the holes on my upper plenum and reused my sn95 tb. i had some 1/8th inch aluminum sheets laying around that i used to make a plate to cover the egr passage and made a bracket for the throttle linkage.

did you feel a difference going with that setup powerwise?....looks easy to do...only things to do for it is like you stated...or did you just do it for the looks ?



[fastgtfairlane]

it was not the easiest mod to do. it took all day to do with having to make the plate to go between the tb and manifold. i had simple tools that took forever but im sure with some better fabricating tools you could do it much quicker. i used a cutoff wheel and an angle grinder to do it. and i had a drill. i had to line up the tb to the inlet hole, then redrill everything making sure it would match up. then made my own cai. i had to make the throttle linkage as well. for a small fee i will make the necessary parts to make the swap. you will have to drill out the holes on the manifold. i did it cause i put the fox valve covers on and with the elbow i couldnt get the tb off without taking the plenum off. plus its cleaner and runs a lil better



[nmcgrawj]

You got any more pics of your turbo install?



[deftsound]

Are there any advantages to going to the fox tb? HP gains?



[Black Stampede]

You got any more pics of your turbo install?

Yeah I have some, but they are on my buddies computer. All the ones I have are after it was completed. I'll see what I can get up here.



[Hef5.0weisen]

Are there any advantages to going to the fox tb? HP gains?

Man oh man...you're opening a can of worms with that question....:stirpot:

big 'ol debate over that, Killercanary did a comparo, but used different size TB's before and after, turned into like a 4 page thread, some of the responses were entertaining.... :fairyfight:

I think it looks better, I'm gathering the parts to do the swap.



[Adam95GT]

SCORE! $175 For everything... I think someone is buying my elbow and tb for $175 also

I even got the heater hose lines and the bung for the coolant pasage on the lower intake!



[Adam95GT]

Question....

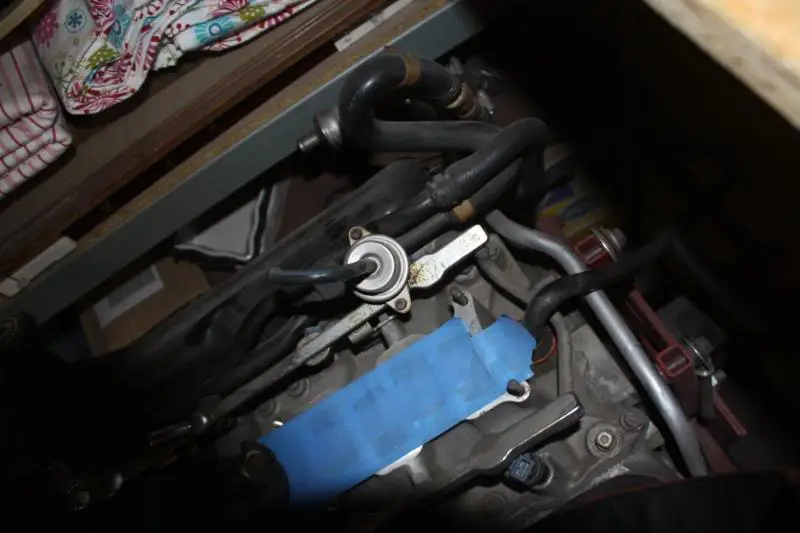

Whats the sensor on the back left corner on the manifold..... as seen here

Also whats the plug for on the right side??? can put the nipple for the coolant line to the egr there??? its the same thread size!!!!



[99FiveOh]

did you forget to post up a pic or something? All I see in that pic is the fuel pressure regulator and an injector.



[GT_green_GT]

Its there. The square pipe style plug. as long as it doesnt go in to a coolant chamber or into a single intake runner id say it might work. its gonna be a pain in the a** to route to there.



[Adam95GT]

Its there. The square pipe style plug. as long as it doesnt go in to a coolant chamber or into a single intake runner id say it might work. its gonna be a pain in the a** to route to there.

I think its a coolant chamber thats what i want it to be atleast i need the coolant line for the egr spacer... Wont be bad to run... ill figure it out
