Picture Request - EGR / Air Pump Vacuum Routing

[Stanger007]

I need digital pictures (not a diagram) of a *stock* vacuum routing for a 94-95 Mustang.

Pictures following the vacuum lines from the tree on the intake, into the fender and back out again to the air pump and EGR would be most helpful.

Thanks!
Wes



[Chads95GT]

ok hang with me here, im going to try to post some pictures:







hope it works


chad

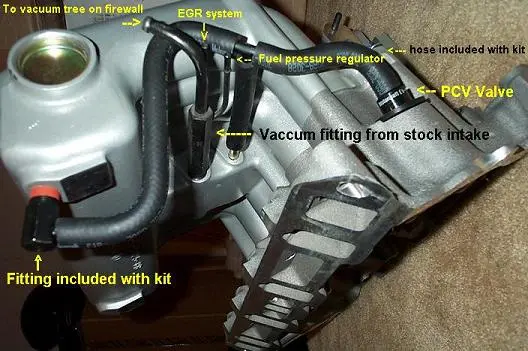

edit: the green vacuum goes to the egr valve and the red one goes to the fpr. the other two i dont think really matter how they get put on the smog pump valves, just as long as they go on there. let me know if u need anything else.



[Chads95GT]

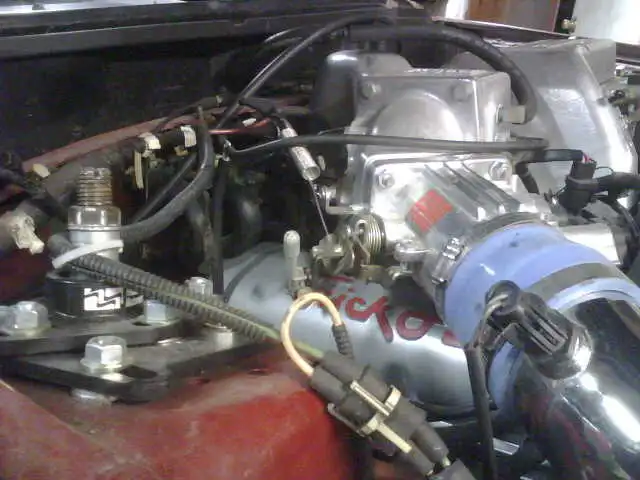

here is another pic i found:



[Touring23]

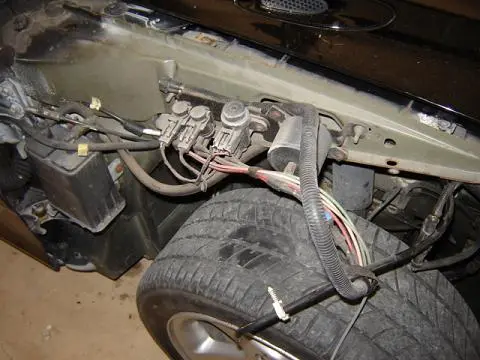

Stanger, does this help? Sorry I forgot the EGR; it connects to one of the two hoses in the top-right of the picture. If that's unclear let me know.



[Touring23]

Hello?



[Stanger007]

Hey thank you guys, those are perfect! Exactly what I needed to pass on to the person interested.

It's getting harder and harder to find people running EGR/Smog.

Thanks again,
Wes
