Questions on convertible rear panels removal, convertible hydraulic component replacement and convertible top replacement

Gs1987GT

Active Member
Sep 25, 2019
484
186
53
MidAtlantic
Hello Gents, good morning,

I looked last night and can see that both of my convertible top hydraulic cylinders are leaking and need replaced.

From what I gather here, it's best to replace all components, at once, pump, lines and cylinders?

How do the rear panels next to the rear seat come out? I see a few screws here and there, but I've never had one apart.

Are the cylinders and lines hard to access to replace? I also noticed last night one of the tops cables was slack\no tension so that's not good either.

Is the top itself hard to replace? I've never done one. I believe lmr has a video for sale that covers it I may buy and review before deciding.

I have above average mechanical aptitude so I'm willing to take this on myself, but if I'm opening a can of worms by doing so, I'll just spend the money to have a shop replace it for me.

Any help or thoughts would be appreciated.

Thanks
Greg

  • Sponsors (?)


90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
6,562
5,639
203
The back seat needs to come out. The side panels are kindof self explanatory. I remove all the screws and pull towards center of vehicle and up. The top cylinders aren't hard and sit on pins that slide out. Should be done with the top down. The tension cables attach to screws and springs behind the frame by the quarter windows. The front end goes in a slot at the front of the top frame. A wire hanger comes in handy to push a new cable through. Make sure not to poke through the top.

  • Like
Reactions: 1 user

ChillPhatCat

5 Year Member
Apr 22, 2002
393
62
48
Syracuse, NY
As far as the top replacement goes, I watched a few Youtube videos and bought a top and an electric staple gun and knocked out the convertible top in about 10 hours all by myself. I have a couple vertical wrinkles in the sail panels, but it looks pretty decent. It was not an overly difficult or complicated task, it's all designed to come apart so that it can be replaced. I am betting that most people that do it themselves will get a couple wrinkles vs getting a professional replacement but it's good enough for me as I rarely drive it without the top down... and I never bought the car to be a show piece. I originally had a busted glass rear window, with the two-piece top and opted to go to a single piece with vinyl window... was blue originally as well which was just too much blue for me.

After top replacement. Hard to tell unless you get up close to it.

  • Like
Reactions: 1 user

Gs1987GT

Active Member
Sep 25, 2019
484
186
53
MidAtlantic
The back seat needs to come out. The side panels are kindof self explanatory. I remove all the screws and pull towards center of vehicle and up. The top cylinders aren't hard and sit on pins that slide out. Should be done with the top down. The tension cables attach to screws and springs behind the frame by the quarter windows. The front end goes in a slot at the front of the top frame. A wire hanger comes in handy to push a new cable through. Make sure not to poke through the top.
Much appreciated. Especially the top on putting the top down for cylinder access. I figured the rear seat had to come out... Just wasn't sure from there besides for removing all the screws. I don't want to break them coming out or going in

I reckon I'll order the lmr video and go from there.


Gs1987GT

Active Member
Sep 25, 2019
484
186
53
MidAtlantic
As far as the top replacement goes, I watched a few Youtube videos and bought a top and an electric staple gun and knocked out the convertible top in about 10 hours all by myself. I have a couple vertical wrinkles in the sail panels, but it looks pretty decent. It was not an overly difficult or complicated task, it's all designed to come apart so that it can be replaced. I am betting that most people that do it themselves will get a couple wrinkles vs getting a professional replacement but it's good enough for me as I rarely drive it without the top down... and I never bought the car to be a show piece. I originally had a busted glass rear window, with the two-piece top and opted to go to a single piece with vinyl window... was blue originally as well which was just too much blue for me.

After top replacement. Hard to tell unless you get up close to it.
Looks Good to me man! Well done. Appreciate the tips and suggestions..

I'm thinking I will give this a shot... But want to watch the video first


foxbodybill89

Active Member
Jan 19, 2020
123
58
38
Sioux Falls, SD
Seat back and cushion come out first, then remove the screws in the side panels and just pull them out. Don't forget to unhook the speaker wires if you have speakers back there. If your lift system is all original I would replace the whole system, it's not too bad, routing the lines and removing/installing the cylinders are a little difficult. When filling the pump put some paper towels down and put the ATF in a squeeze bottle like a gear oil bottle and fill carefully, it will go all over if you overfill. The top is tricky at best, I would leave it to a shop. It won't be cheap either.

  • Like
Reactions: 1 user

Potomus Pete

I'm still waiting for the fully nude shots
Mar 7, 2019
3,002
1,148
143
Sarasota Florida
Top replacement cost me $350 with the staple gun included... could have bought 3 tops and messed up two of them and still come out ahead of having a shop do it. :p
X2...$350 for a new top. It helps when you add up what you have in your car, and how nice it is for the money. Besides it's our hobby. It's what your supposed to do.

  • Like
Reactions: 1 user

Gs1987GT

Active Member
Sep 25, 2019
484
186
53
MidAtlantic
Thanks for the additional comments gents. I appreciate them.

I'm going to buy the lmr top replacement video, watch it and go from there. I've never done one so I'm a little intimidated, but I've not watched the video yet.

For the cylinders, what is the best way to get them in and out? There's a of bracing in the way from what I see. Are there bushings and such that will fall out when they come off? Are there any diagrams out there that show where all the pieces go to reference? U tube is not much help on foxbody hydraulics replacement. CJ pony has one on a 70s mustang, but I didn't see any good videos on foxbody convertible top hydraulic components replacement.

As I noted above, I have one cable that is slack I should probably correct before I do anything else. Looks like it goes into a hole in the top frame, then disappears from there. Not sure where the front connects to? I should probably replace both cables also given one already had an issue. Any suggestions on replacing those?

Thanks again gents, I appreciate the help.


Potomus Pete

I'm still waiting for the fully nude shots
Mar 7, 2019
3,002
1,148
143
Sarasota Florida
I got the video. Used it , and sent it to a kid on this site. Everything is marked on the car and the fabric. The whole job is about where the bow sits, and your first window piece. Make sure you get that right, and your good. I found the job rewarding. No grease, and no bad back.

  • Like
Reactions: 1 user

90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
6,562
5,639
203

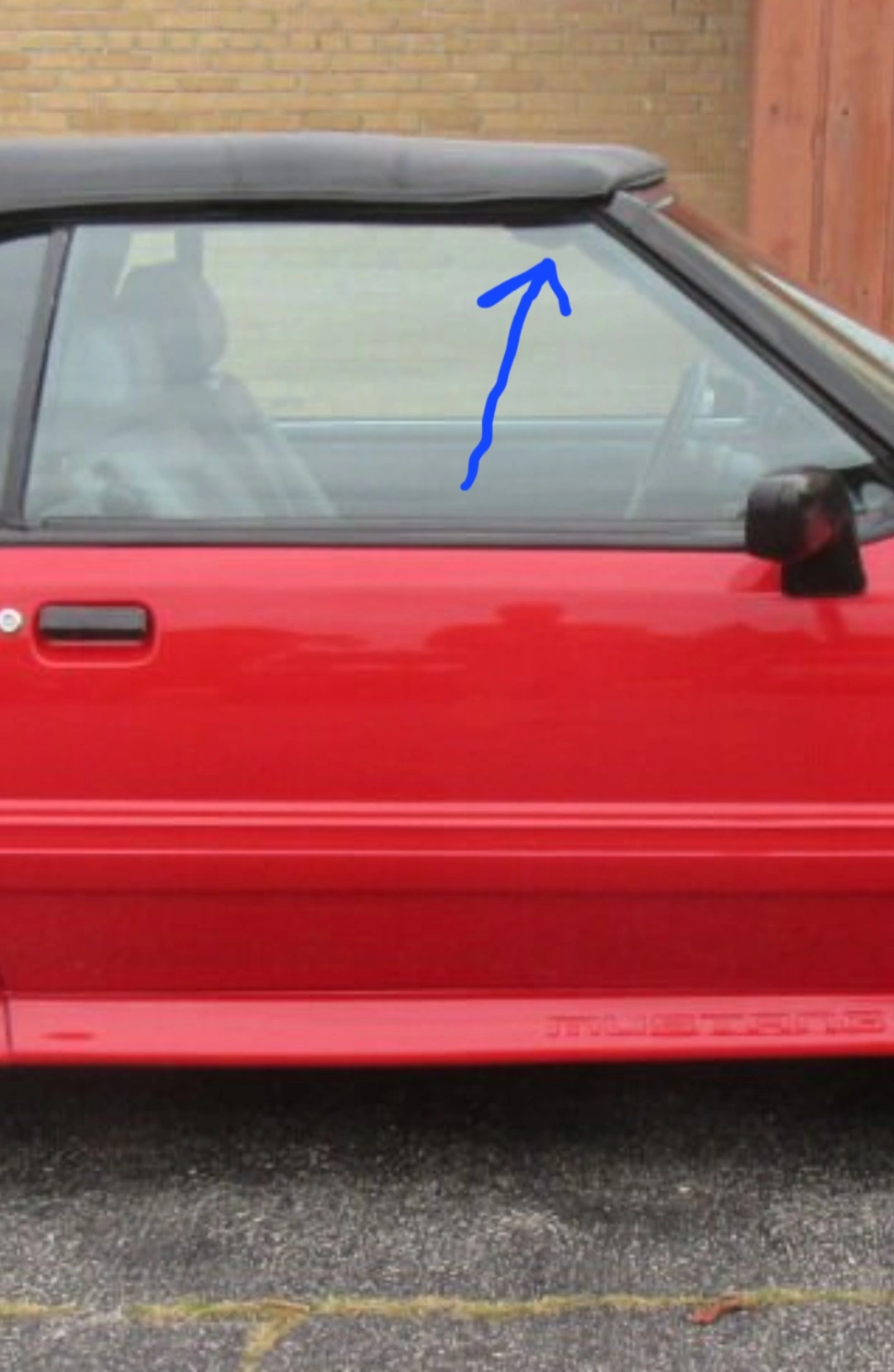

It runs through a channel in the vinyl top itself. It ends under the top material at the first part of the top frame above the corner above the door glass. It's got a stop on the end that fits in a slotted hole. That cable pulls the side of the top down when it's latched. You can usually feel it by squeazing the side of the top.
