I recently picked up an 89 GT with a 347 stroker. After spending some time at a tuner to get it road ready I got to bring it home and noticed some oil leaking on to the header causing a potential hazard and small amounts of smoke.

Most everything has been removed from the engine bay AC / EGR as it is shaved with very easy access to just about every component of the motor.

The issue : Oil leaking from left side of the head (facing the motor. or the passenger side.

Can I get some indepth guidance on what steps I should follow to remove the intake/ headers / manifold and then the heads? Is this a simply step by step porcess of unbolting parts placing then aside?

If these is a simple bolt off task after I get the heads off do I

Clean the surface thoroughly with a razor blade
Apply gasket goo. Peramtex? What is recommended? Apply this liberally or sparingly? What areas exactly?
Place the head back on the fresh clean surface with Permatex
Bolt to spec and then re bolt everything back together the way it came off?
Do I need any additional parts to accomplish this?

The goal is take off put back and fire it up running as it should prior to taking it apart? Is this possible

Thanks for the input!

  • Sponsors(?)


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,437
2,870
234
74
Dublin GA
lowendmac.com
I recently picked up an 89 GT with a 347 stroker. After spending some time at a tuner to get it road ready I got to bring it home and noticed some oil leaking on to the header causing a potential hazard and small amounts of smoke.

Most everything has been removed from the engine bay AC / EGR as it is shaved with very easy access to just about every component of the motor.

The issue : Oil leaking from left side of the head (facing the motor. or the passenger side.

Can I get some indepth guidance on what steps I should follow to remove the intake/ headers / manifold and then the heads? Is this a simply step by step porcess of unbolting parts placing then aside?

If these is a simple bolt off task after I get the heads off do I

Clean the surface thoroughly with a razor blade
Apply gasket goo. Peramtex? What is recommended? Apply this liberally or sparingly? What areas exactly?
Place the head back on the fresh clean surface with Permatex
Bolt to spec and then re bolt everything back together the way it came off?
Do I need any additional parts to accomplish this?

The goal is take off put back and fire it up running as it should prior to taking it apart? Is this possible

Thanks for the input!
Cylinder head removal & replacement

Revised 25-Aug-2014 to update parts list

Plan on 3 days to do the job if you haven't done it before.

Day one gets the heads off in 4-6 hours. Remove the A/C compressor mount bolts and move the compressor out of the way. The A/C compressor swings out of the way without disconnecting any of the lines or losing any refrigerant. Mark all the electrical, smog and vacuum lines with tags to help you remember where to re-connect them. If you have a digital camera, take several pictures.

Day two gets all the gasket surfaces scraped off extra clean and the heads dropped off at the machine shop if you are going to have them reconditioned. Time here is another 4-6 hours. Whatever you do, don't skimp on cleaning the gasket surfaces. New gaskets need to seat against bare metal and not the residue left from the old gaskets in order to seal leak free. This is the most time consuming and tiresome part of the job. Look for little things that need to be replaced like the short hose from the thermostat hosing to the water pump, damaged vacuum lines and hose clamps that are rusted or broken.

Day three starts when you get the heads back from the machine shop. This is the time to pick up all the little odd pieces you found needing replacement on your day two inspection/cleanup. Plan on 6-8 hours to reinstall the heads and reconnect everything. Plan on an additional 2 hours to troubleshoot/adjust everything.

Now for some practical tips:

Tools: a good torque wrench is a must have item. A razor blade scraper that holds a single edge razor blade from Home Depot or Ace hardware is another handy thing. Get a Chilton or Haynes shop manual - you'll need it for the bolt torques and patterns. The intake manifold has an especially odd pattern.

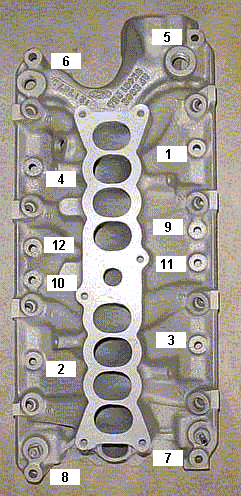

Diagram courtesy of Tmoss & Stang&2birds


The bolts are torqued down in a 3 step process.
Step 1 8 ft/lbs
Step 2 16 ft/lbs
Step 3 23-25 ft/lbs

You'll need access to a timing light to set the timing after you re-stab the distributor. Look in the A/C repair section for the fuel line tools. They look like little plastic top hats. You will need the 1/2" & 5/8" ones. The hat shaped section goes on facing the large part of the coupling. Then you press hard on the brim until it forces the sleeve into the coupling and releases the spring. You may need someone to pull on the line while you press on the coupling. Put some motor oil on them when you put the line back together.

Whatever you do, don't skimp on cleaning the gasket surfaces. New gaskets need to seat against bare metal and not the residue left from the old gaskets in order to seal leak free. This is the most time consuming and tiresome part of the job. Look for little things that need to be replaced like the short hose from the thermostat hosing to the water pump, damaged vacuum lines and hose clamps that are rusted or broken.
Put some cardboard in the lifter valley to help catch the gasket scrapings. Have a shop vacuum handy to suck up the scrapings and any coolant that leaked into the lifter valley.

Plan on cutting the thermostat to water pump hose, or removing the thermostat housing. Also plan on removing the distributor to get clearance to remove the intake manifold. Remove #1 spark plug, stick your finger in the spark plug hole and crank. When your finger gets air moving past it, stop cranking. Turn the engine until the timing marks line up with the pointer. Now you can pull the distributor out. Be sure to put a rag or cap in the block where you removed the distributor. It will save you trouble if something falls into the empty distributor hole.

My favorite trick that saves time and effort is the stay in place gasket. Be sure that you scrape (don't use a wire brush) all the old gasket material off, then clean all the surfaces with acetone or MEK.

When the surfaces are clean, use weather strip adhesive on the head to manifold surface, and on the side of the gasket that mates to the head. Follow the instructions on the tube or can and when it gets tacky, press the gasket down on the head.

Clean the area where the rubber rails mount to the block in front and in the rear with more acetone or MEK and do the same trick with the weather strip adhesive that you did to the heads.

Coat the rubber seals and the gasket area around the water passages with Blue Silicone gasket sealer and put it together. Whoopee! no leaks, and no gaskets that shifted out of place.

Get a tube of anti-seize and coat all the bolt threads and under the bolt heads. That will help insure even torque when you tighten the manifold bolts. Plan on re-torqueing them after a week’s worth of driving

The cylinder head bolts are reusable, but some new ARP bolts are a better plan.
Caution!!! Be aware that the ARP bolts have a radiused shank under the bolt head. The ARP washers have a matching radius machined into them. Be sure that the machined radius of the washer is fitted next to the machined radius on the ARP bolt heads. Forget this little fact and you will never get the head bolts to torque down properly.

Coat the underside of all bolt heads with anti seize and the threads of the long bolts. The short bolts thread directly into the water jacket and need a different treatment. Use Teflon Pipe dope on the threads of the short head bolts. It will prevent any coolant seepage from around the threads. You can get the Teflon pipe dope from the hardware stores, Home Depot or Lowes.

Fuel injector seal kits with 2 O rings and a pintle cap (Borg-Warner P/N 274081) are available at Pep Boys auto parts. Cost is about $3-$4 per kit. The pintle caps fit either injectors with a pin sticking out the injector end or 4 with more tiny holes in the injector end. The following are listed at the Borg-Warner site ( BWD - Home ) as being resellers of Borg-Warner parts:

Parts Plus - Premium Auto Parts & Accessories or Auto Value / Bumper to Bumper Quality Parts & Service - Home of the Aftermarket Auto Parts Alliance Group or Tires, Auto Parts Stores, Brakes & Automotive Parts | Pep Boys or Federated Auto Parts - Automotive Aftermarket

Most of the links above have store locators for find a store in your area.

Use motor oil on the O rings when you re-assemble them & everything will slide into place. The gasoline will wash away any excess oil that gets in the wrong places and it will burn up in the combustion chamber.

Putting the distributor back in is fairly simple. Pull #1 sparkplug, put your finger in the sparkplug hole,
crank the engine until you feel compression. Then line up the TDC mark on the balancer with the pointer
on the engine block.

The distributor starts out with the #1 plug wire lined up at about 12:00 with you facing it. Align the rotor
to about 11:00, since it will turn clockwise as it slides into place.

Align the distributor rotor up with the #1 position marked on the cap, slide the distributor down into the block, (you may have to wiggle the rotor slightly to get the gear to engage) and then note where the rotor is pointing. If it still lines up with #1 position on the cap, install the clamp and bolt. If not, pull it out and turn 1 tooth forwards or backwards and try again. Put the #1 spark plug back in and tighten it down, put the clamp on the distributor, but don't tighten it too much, as you will have to move the distributor to set the timing. Note that if it doesn't align perfectly with #1 position, you can turn the distributor until it does. The only problem is that if you are too far one way or the other, you can't turn the distributor enough to get the 10-14 degree optimum timing range.

At this point hook up all the wires, get out the timing light and start the engine. Set the timing where your car
runs best. Don't forget to disconnect the SPOUT jumper connector when you set the timing, and plug it back
in when you finish.

The HO firing order is 1-3-7-2-6-5-4-8.
Non HO firing order is 1-5-4-2-6-3-7-8



Consumable items:
head gaskets or head gasket kit
Rocker cover gaskets
Upper manifold gasket
Fel Pro 1250 or equal lower manifold gasket set.
Exhaust manifold gaskets.
Short formed hose between thermostat hosing and intake manifold
6 ft 7/64" or 1/8" vacuum hose
2 ft 1/2" heater hose
1 1/2 ft 5/8" heater hose
Blue Silicone sealer
Spray can weather strip adhesive to hold manifold gaskets in place
Acetone or MEK to clean gasket surfaces
1 gallon straight antifreeze (same price as 50/50 mix, but a 90 cent gallon of distilled water makes it 2 gallons at a cheaper price)
1 gallon distilled water
ARP antiseize or equal for the bolts
Teflon Pipe dope
4 each 3/4" hose clamps (spare item in case the old ones are bad)
4 each 1/2" hose clamps (spare item)

Machine shop charges will vary - figure $275-$350 to have heads checked for cracks, cleaned, surfaced, valves ground, valve guides reconditioned, valve springs checked and bad springs replaced.

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring Mustang FAQ - Wiring & Engine Info Everyone should bookmark this site.

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pin out
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

Last edited:

96pushrod

Mustang Master
May 15, 2018
839
506
103
28
Savannah
If oil Appears to be leaking out of the head, it’s most likely actually leaking out of the intake and appears to be leaking out of the head.

I have to ask, because more people lie about this than not: are you sure it’s a 347? Anytime I see someone who buys a supposed 347 from somebody with a stock or gt40 head it never turns out to be a 347.


Ukturf

Member
Mar 20, 2020
24
10
13
37
Oregon
Thanks for the advice gents. The 347 has yet to be confirmed and i doubt it is to be honest. I got a fairly good deal on the car and was willing to take the risk.
I have a 351 waiting to be built so this would be my back up down the road.

After more cleaning and searching I cant see any leaks from the head however I did get a video today which am attempting to load but the file is too big.
Along with a picture. Oil seeps from this area while on the throttle. As rmps increase the oil seeps out more.

Again Im new to this and general guesses would be great so I can get started on a social distancing project.


Attachments

Ukturf

Member
Mar 20, 2020
24
10
13
37
Oregon
Thanks for the advice gents. The 347 has yet to be confirmed and i doubt it is to be honest. I got a fairly good deal on the car and was willing to take the risk.
I have a 351 waiting to be built so this would be my back up down the road.

After more cleaning and searching I cant see any leaks from the head however I did get a video today which am attempting to load but the file is too big.
Along with a picture. Oil seeps from this area while on the throttle. As rmps increase the oil seeps out more.

Again Im new to this and general guesses would be great so I can get started on a social distancing project.

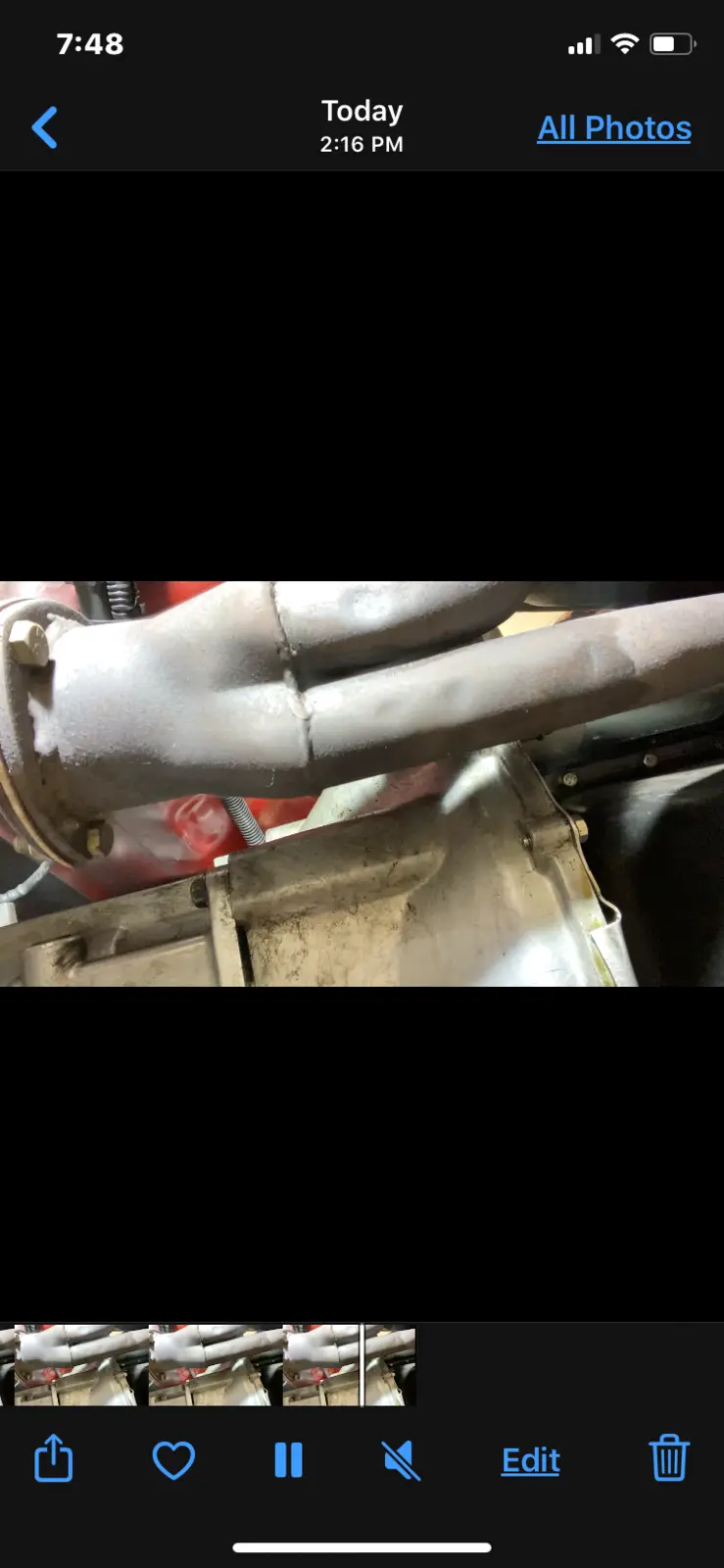

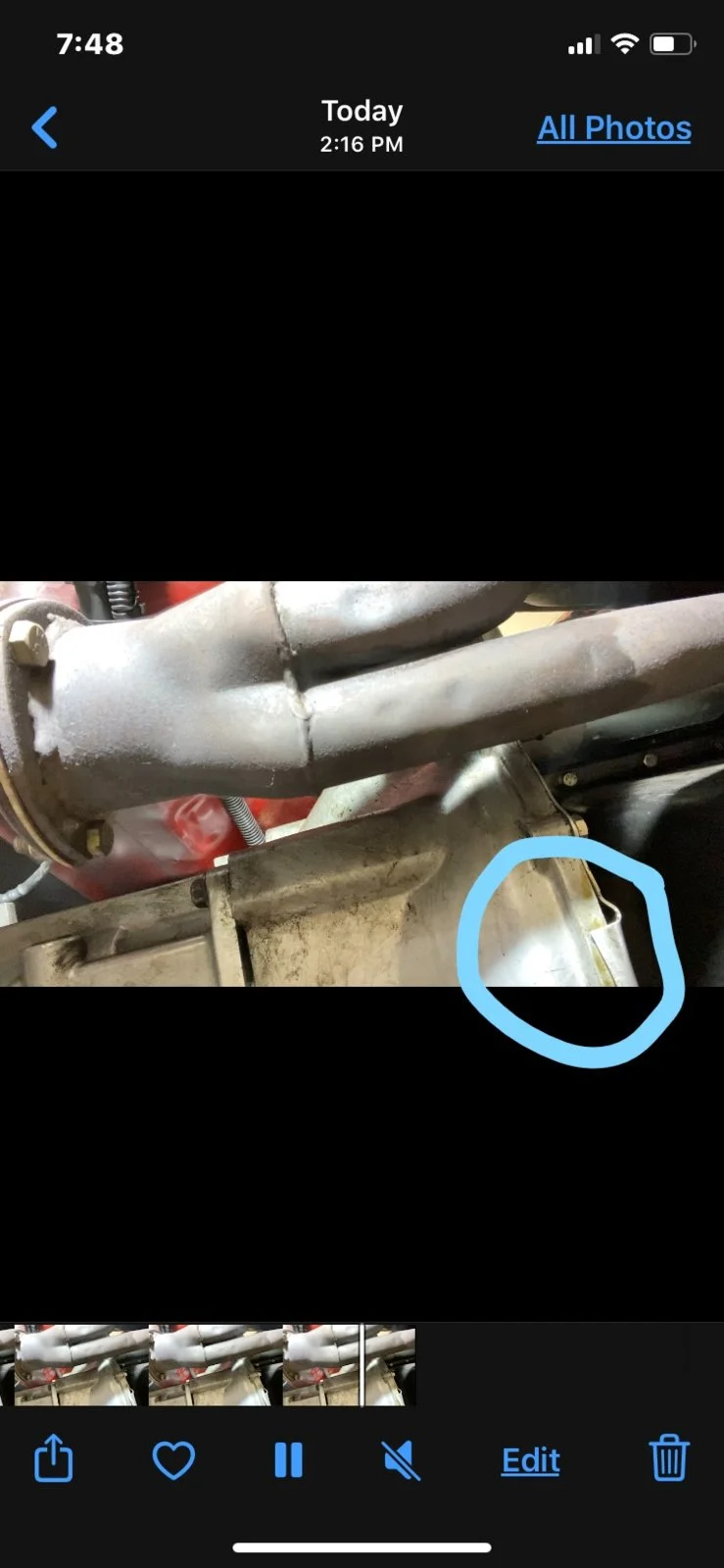

Photo indicating where the leak is coming from.


Attachments

Monkeybutt2000

Active Member
Aug 11, 2019
309
229
53
49
Lafayette,IN
This leak could be coming from ALOT of different places. Backside of lower intake, clogged pcv,valve cover,rear main seal,flywheel bolts,etc. For the diy'er your best bet is to clean everything the best you can,then start the car up and monitor everything for leaks. Extra pair of eyes really helps here as well.

  • Like
Reactions: 74stang2togo

Ukturf

Member
Mar 20, 2020
24
10
13
37
Oregon
Well folks its been a week and i final was able to get everything cleaned and was able to fab a bracket to remove the oil from dumping on the header collector so I can atleast take it for a drive without death and destruction.

After idle there was nothing coming out anywhere. 3k rpm run in neutral held for a bit and still nothing just a bit of mist coming out of the breather on the valve cover. The next morning I found some oil on the back of the motor coming out of the lower intake.. So there some good news. Looks like Ill be starting to take everything apart and tackle my first small rebuild as Ill call it.

Thanks for the advice and help gents. More questions to come as I get in on this adventure.


Monkeybutt2000

Active Member
Aug 11, 2019
309
229
53
49
Lafayette,IN
Well folks its been a week and i final was able to get everything cleaned and was able to fab a bracket to remove the oil from dumping on the header collector so I can atleast take it for a drive without death and destruction.

After idle there was nothing coming out anywhere. 3k rpm run in neutral held for a bit and still nothing just a bit of mist coming out of the breather on the valve cover. The next morning I found some oil on the back of the motor coming out of the lower intake.. So there some good news. Looks like Ill be starting to take everything apart and tackle my first small rebuild as Ill call it.

Thanks for the advice and help gents. More questions to come as I get in on this adventure.
Make sure its not leaking out the pcv before you go tearing off the intake. There's a screen under the pcv that can clog up over time. Check that out FIRST.


Ukturf

Member
Mar 20, 2020
24
10
13
37
Oregon
Make sure its not leaking out the pcv before you go tearing off the intake. There's a screen under the pcv that can clog up over time. Check that out FIRST.
Already in the works! Thanks for the advice. It’s an inexpensive price that should be replaced so that the first step.


Ukturf

Member
Mar 20, 2020
24
10
13
37
Oregon

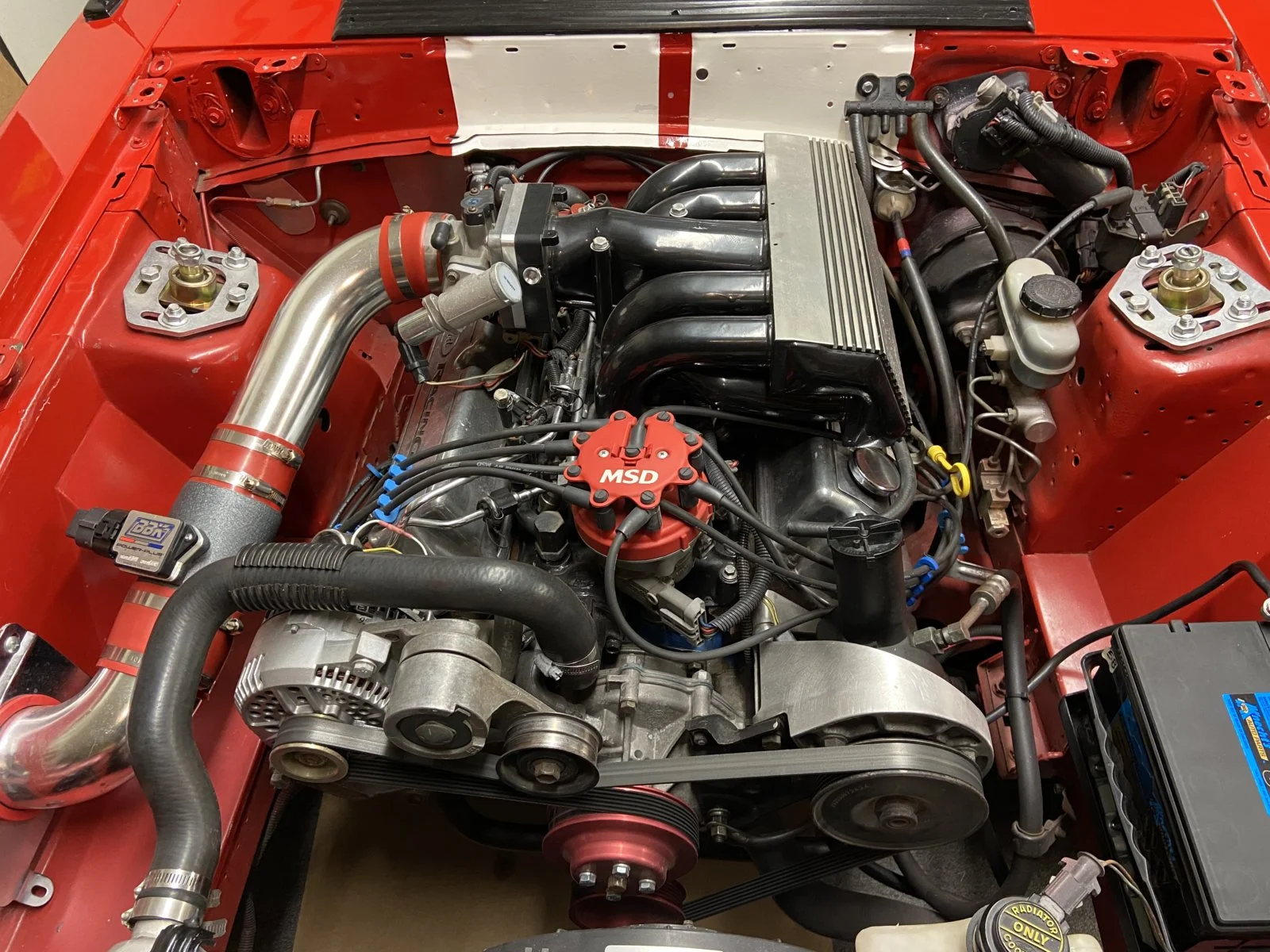

Finally had some fair weather here in Oregon and I went for a drive. After 20 miles I can confirm its the lower intake flowing a lovely river of oil everywhere. SOOOOO. Whos ready for some pictures!!! tomorrow begins my first tear down. Oh how the excitement is building....


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
17,308
5,591
193
polk county florida
Really need a better pic, a little farther out.

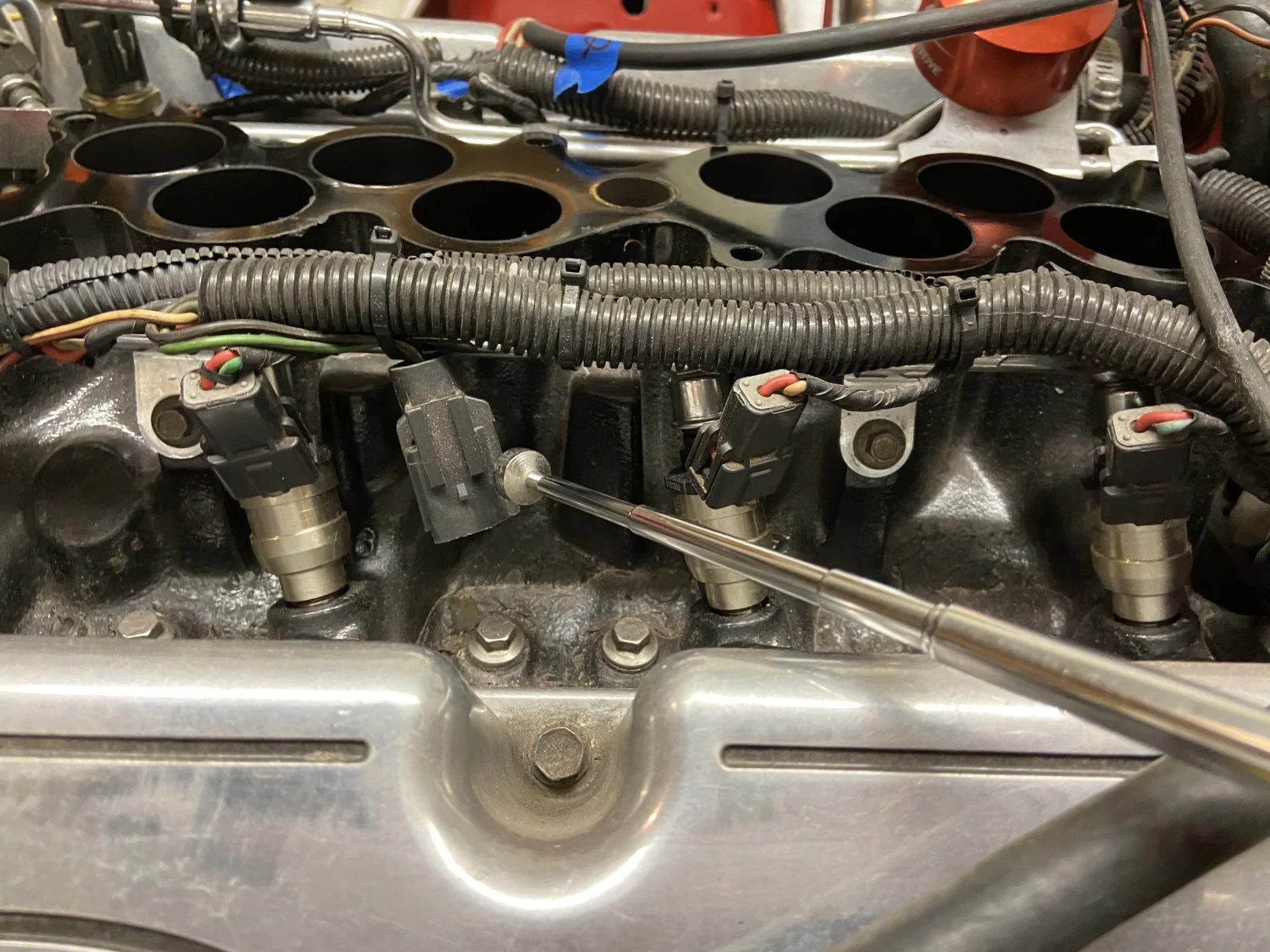

If I had to guess the one on the drivers side it IAT sensor (pretty sure about that one) the one on the passenger side is either the connection for the purge solenoid or the ECT (the sensor goes into the heater tube)


Ukturf

Member
Mar 20, 2020
24
10
13
37
Oregon

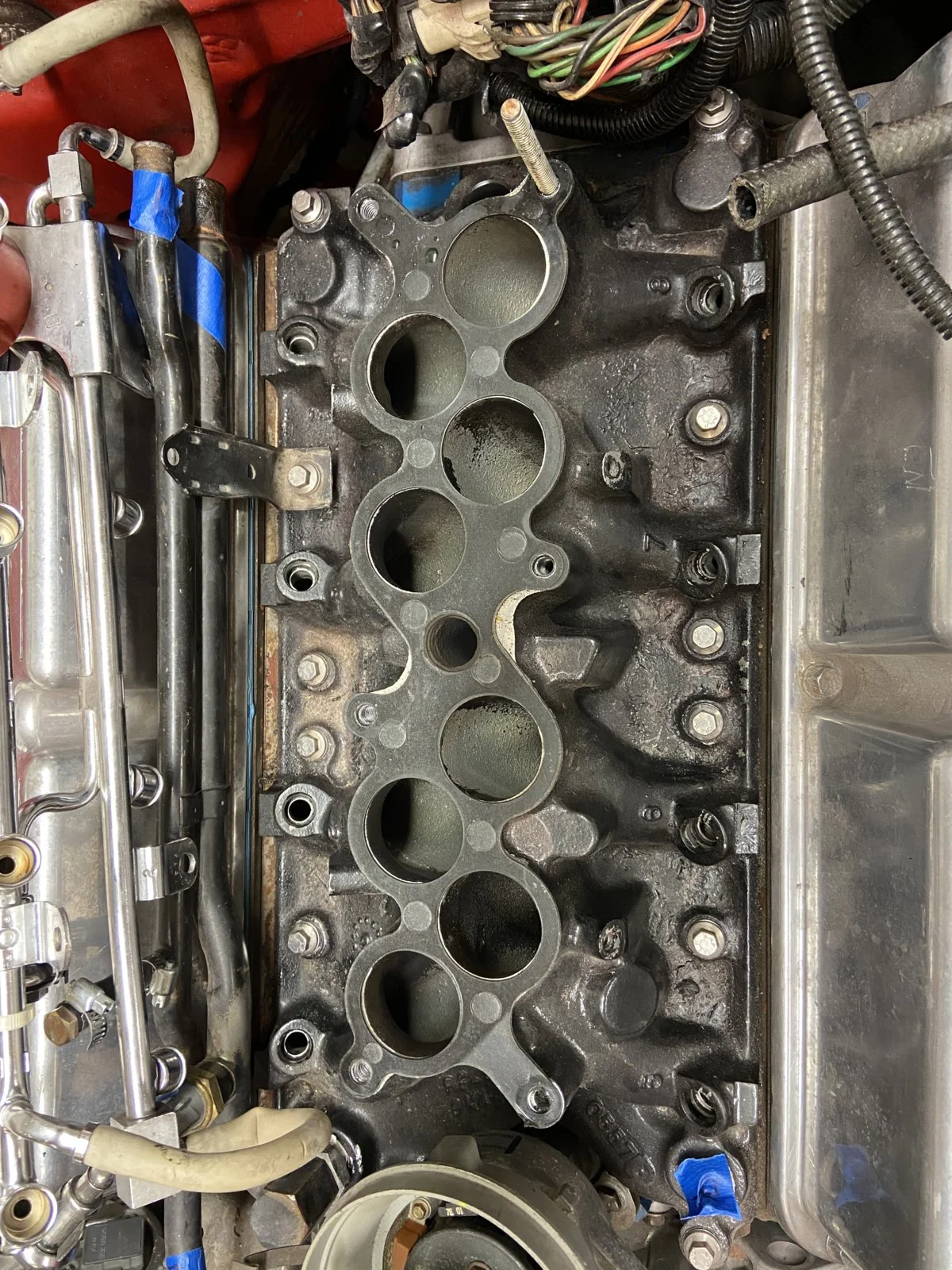

It’s taken a bunch of notes pictures and time but I’m getting there. Lower intake is coming off!!
thanks for the comments. Iget some better pictures. I don’t have the“special tool” to remove the fuel lines so I’m working around them.
since I pulled the injectors do I need to replace the orings under inspection they are flawless.


90sickfox

I didn't really have an issue with the stink...
SN Certified Technician
Mar 2, 2015
5,363
4,395
203
42
No need to replace injector o rings if they look ok. Put a little oil on them with your finger when you go to pop the rail back down.

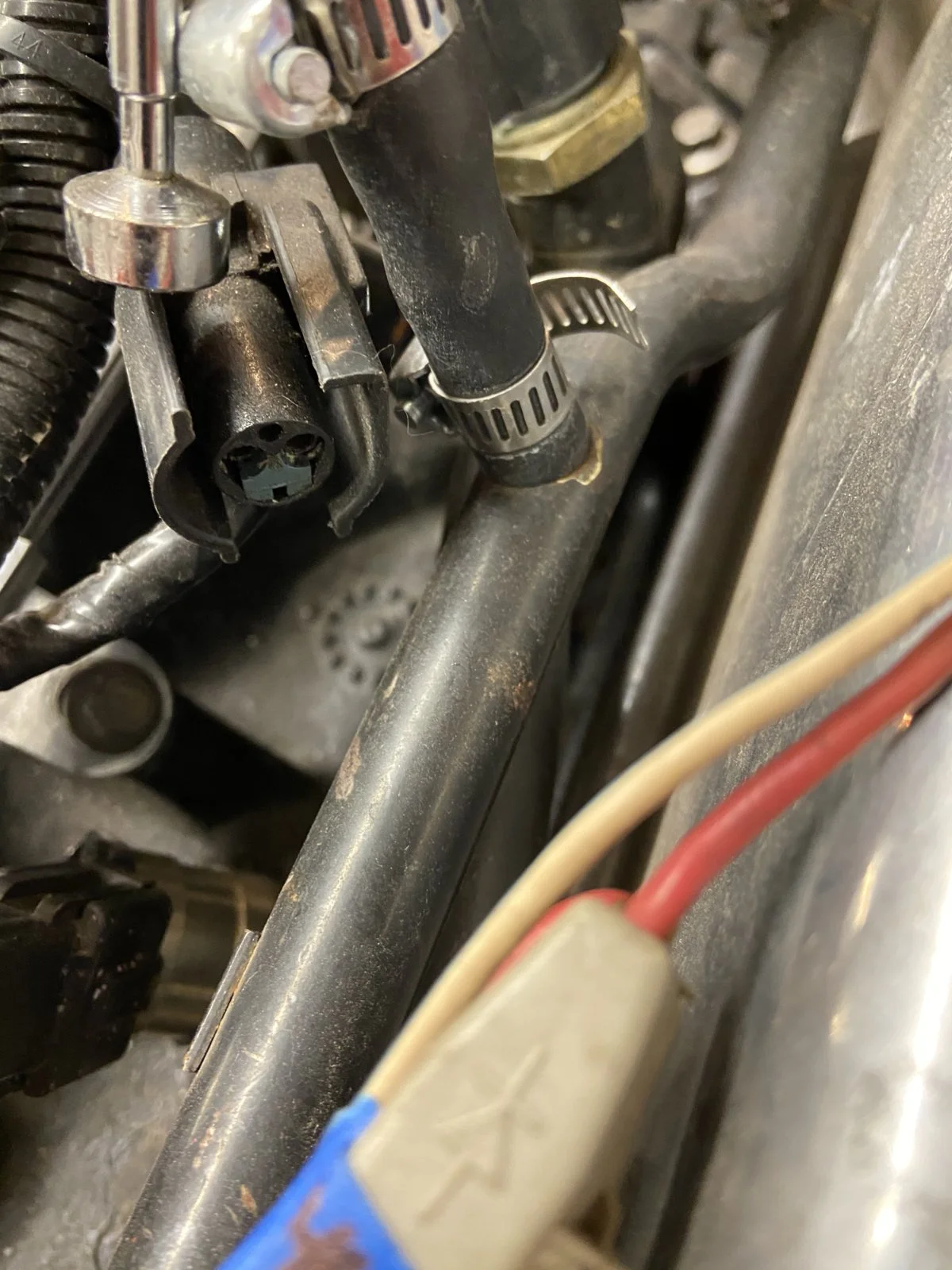

That looks like the carbon canister purge connector.


Ukturf

Member
Mar 20, 2020
24
10
13
37
Oregon

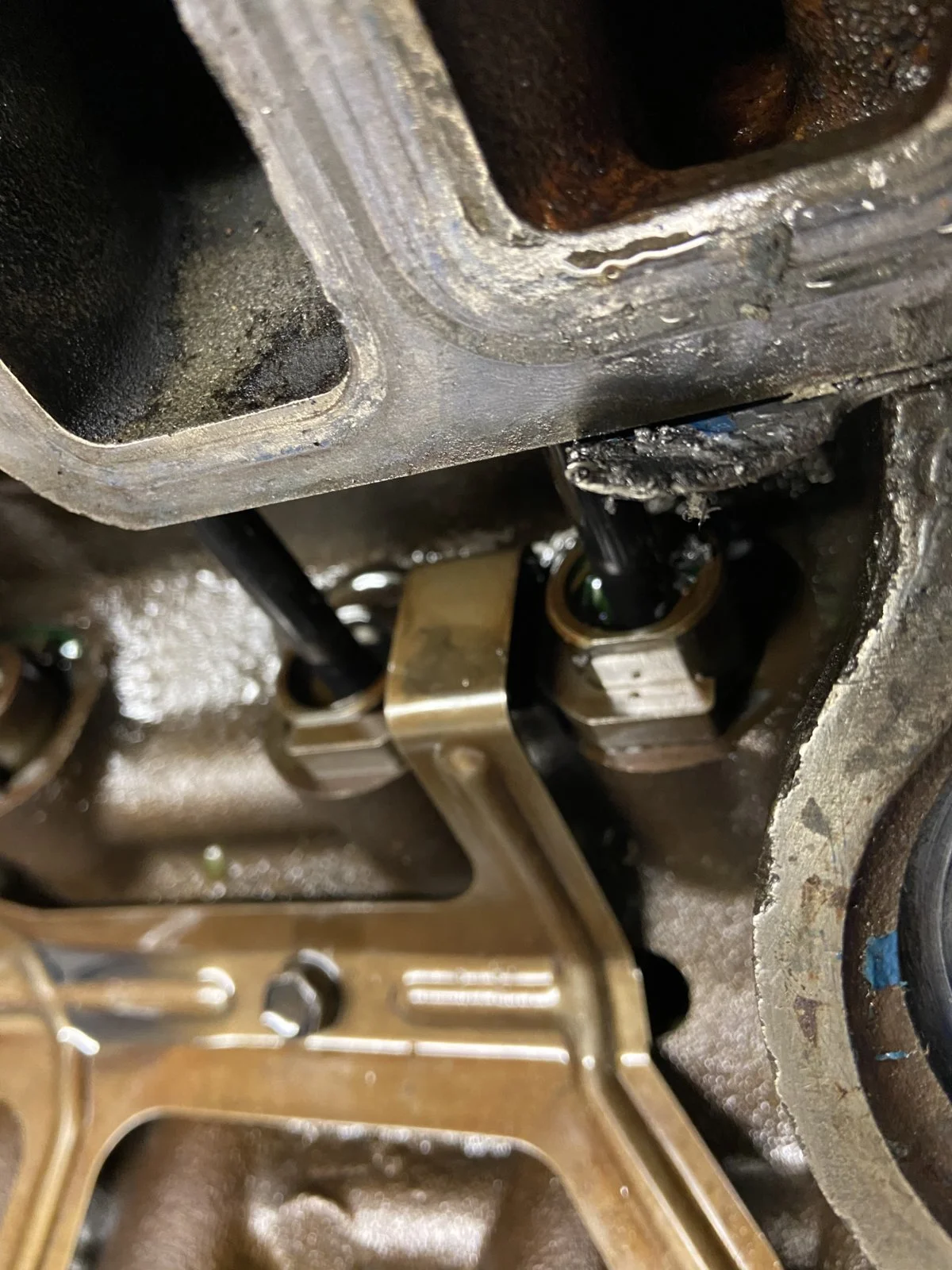

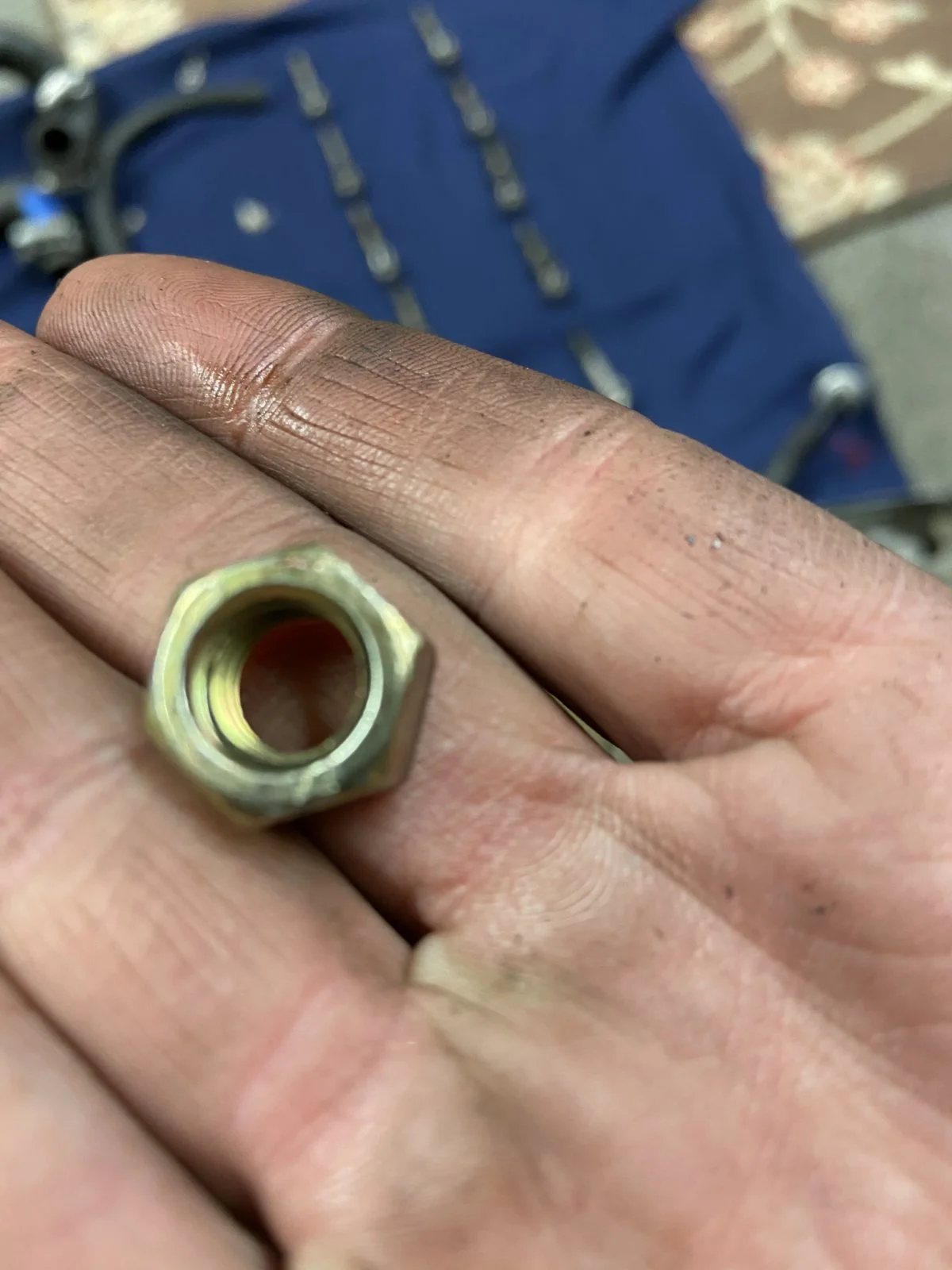

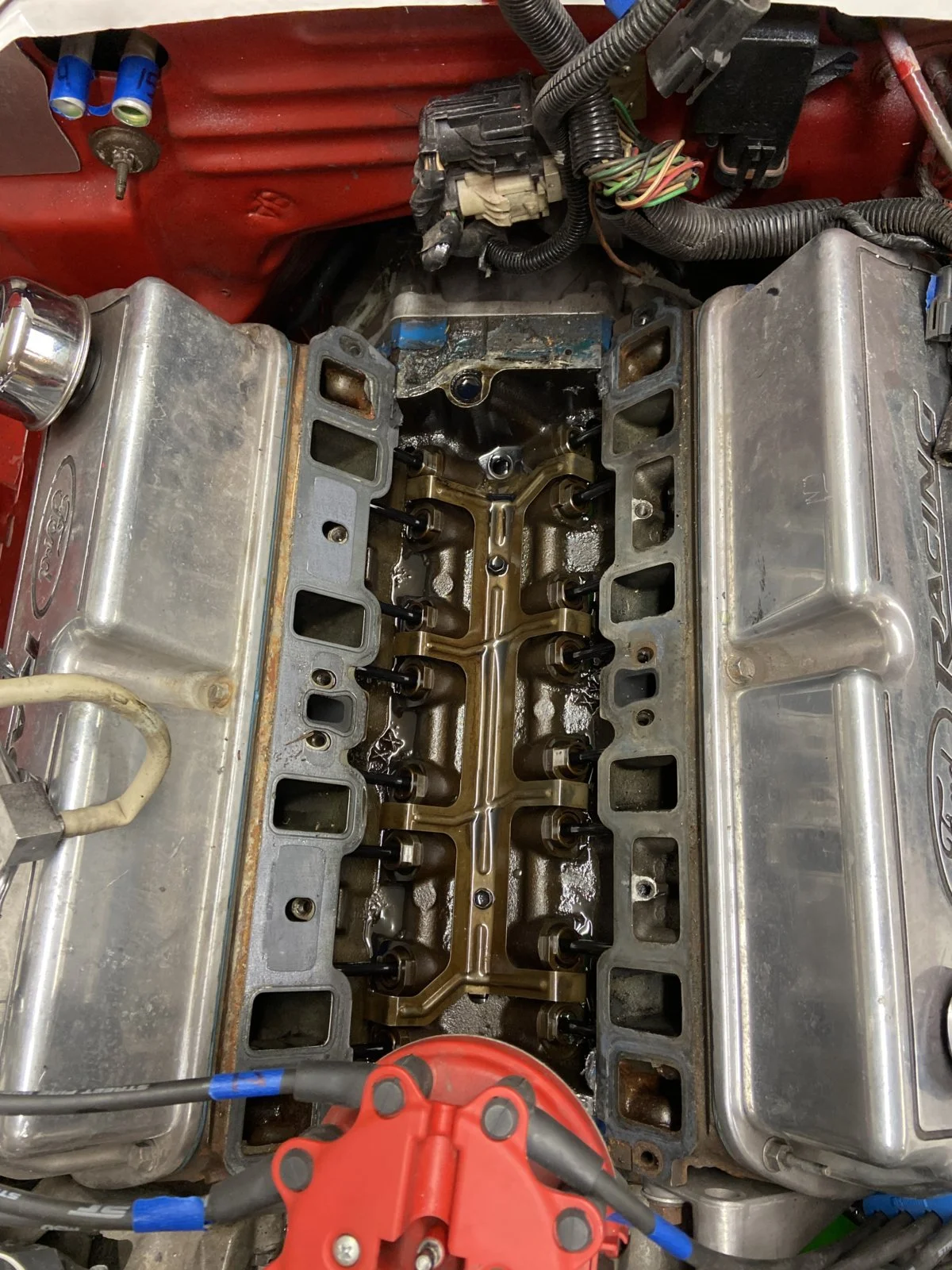

Okay folks we’ve got the intake off without any hiccups except one. as I pulled the intake off this nut showed up?? No clue where it came from I’m going to look back at my pictures and see if I missed it but I don’t recall one but that looks like this.

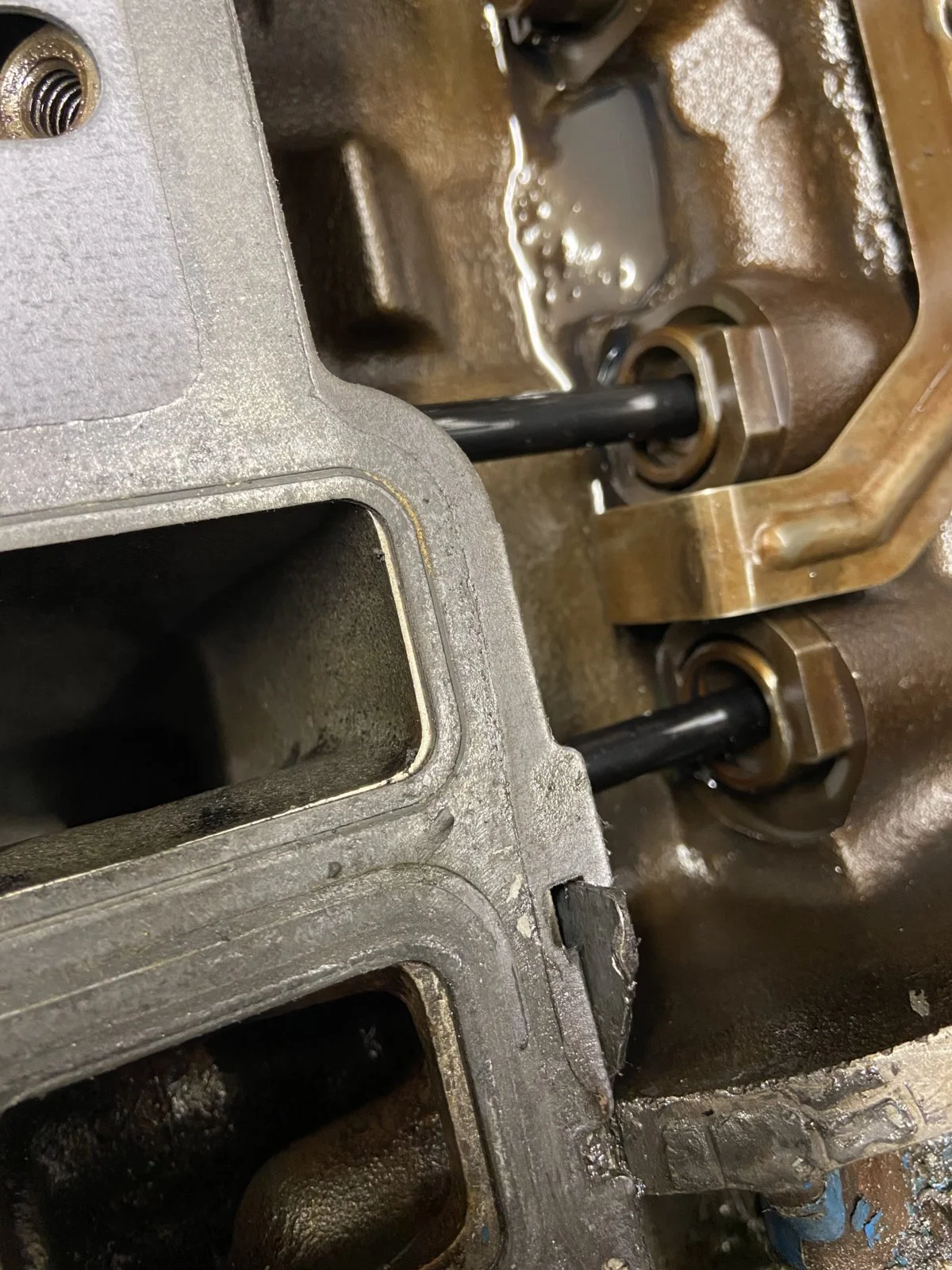

Next the valve cover gaskets seem to protrude into the intake area on all four corners leave it be or trim it
Picture included for full



next question. ARP bolts are used already for the lower intake. Treat them as normal bolts tourque spec wise or something magical? I recalla gentlemen talking about a shank and not getting them torqued properly. Maybe I’m on the wrong bolts but hey I’m learning.

Thanks again folks for the responses.


Attachments

  • Like
Reactions: 2Blue2
Thread starter Similar threads Forum Replies Date
LILCBRA Oil pan gasket change OR starter replacement in a 302 II 1974 - 1978 Mustang II Talk & Tech 11
A Dealership said time to replace engine - or take a gamble on intake manifold gasket? SN95 V6 Mustang Tech 4
E Valve Seal Replacement? SN95 4.6L Mustang Tech 3
R Pulled motor to replace oil pan gasket 1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk- 2
D 98 3.8L replaced leaking therm gasket, can't seem to burp system now SN95 V6 Mustang Tech 14
killer5.0 Need to replace my timing cover gasket...any gasket recommendations? Tips or tricks for the install? Fox 5.0 Mustang Tech 53
W Engine Gasket Replacement Fox 5.0 Mustang Tech 6
Mustang936590 Replacing Intake Gaskets Fox 5.0 Mustang Tech 5
8 Replaced Head Gasket Now Lopes At Idle 1994 - 1995 Specific Tech 3
9 Replacing Upper Performer Gasket Fox 5.0 Mustang Tech 7
M Replaced Oil Filter Adapter Gasket, Still Have Slow Leak 1996 - 2004 SN95 Mustang -General/Talk- 1
S Replacing Exhaust Manifold Gaskets Help! SN95 4.6L Mustang Tech 2
8 Replace Oil Pan Gasket In Car Fox 5.0 Mustang Tech 8
MustangGT559 Replacing Head Gasket Fox 5.0 Mustang Tech 8
U Fuel How To Replace The Fuel Filler Tube And Gasket (video) SN95 4.6L Mustang Tech 2
powerbylincoln Oil Pan Gasket Replacement 1979 - 1995 (Fox, SN95.0, & 2.3L) -General/Talk- 8
F Misfire After Timing And Head Gasket Replacement SN95 V6 Mustang Tech 5
metalmechanical Does anyone make a replacement side scoop gasket? SN95 4.6L Mustang Tech 5
yaboy4life93 Gasket replacement SN95 V6 Mustang Tech 1
S Head gasket replacement SN95 4.6L Mustang Tech 1
Z Head Gasket replacement/cam install 1994 - 1995 Specific Tech 6
ACSPONY Replacing valve cover gaskets tomorrow, quick question(s).. Fox 5.0 Mustang Tech 14
nero6 Head Gasket Replacement Fox 5.0 Mustang Tech 4
Edster Fuel sending unit gasket replacement. Classic Mustang Specific Tech 15
M Fixing to replace PS Exhaust flange gasket - any tips or tricks SN95 4.6L Mustang Tech 3
50sleeper Head Gasket replacement info Fox 5.0 Mustang Tech 6
Mach1Run Replacing an oil pan gasket. Fox 5.0 Mustang Tech 3
6 Another replaced head gaskets and engine won't start thread. Fox 5.0 Mustang Tech 0
Killa how to replace valve cover bolt gasket ? SN95 4.6L Mustang Tech 15
SaleenGT2001 replacing header gaskets SN95 4.6L Mustang Tech 18
94GTCoupe Fuel How To Replace Fuel Filler Tube Gasket *pics* 1994 - 1995 Specific Tech 109
MikeR351w Dreaded Oil Pan gasket replacement... Any Tips??? Fox 5.0 Mustang Tech 9
D Head Gasket replacment help. SVT Tech Forum 3
stang1986GT Getting ready to replace head gaskets...any tips? Fox 5.0 Mustang Tech 9
stang1986GT Two more questions for header gasket replacement (air pump and lifters) Fox 5.0 Mustang Tech 12
MahFiVeOh Header Gasket Replacement Fox 5.0 Mustang Tech 7
jcw88 head gasket replace? Fox 5.0 Mustang Tech 3
F Replace Exhaust Gasket SN95 V6 Mustang Tech 5
davins130 HELP! Replaced intake gasket now wont start... 1994 - 1995 Specific Tech 8
bill302 replacing head gasket questions with pictures..... 1994 - 1995 Specific Tech 6
poneypower89 Needs some tips. Header gasket replacement. Fox 5.0 Mustang Tech 11
AZNEAL311 Tips Wanted for Head Gaskets Replacement Fox 5.0 Mustang Tech 4
kilgorq Head Gasket replacement Now water in the oil 2.3L (N/A & Turbo) Tech 9
blacknblue2002 Header Gasket Replacement??? SN95 4.6L Mustang Tech 1
SVT32VDOHC 1992 FOX oil pan gasket replacement Fox 5.0 Mustang Tech 13
T Head gasket replacement ???'s Fox 5.0 Mustang Tech 7
SNAKEYES86GT Where can I find good/cheap replacement BBK header gaskets/bolts? Fox 5.0 Mustang Tech 5
jaymac Do I HAVE to replace my timing chain cover gasket now? Fox 5.0 Mustang Tech 11
5spd GT Replacing oil pan gasket without removing engine? Fox 5.0 Mustang Tech 9
zidane45 Tired of replacing header Gaskets!!! Fox 5.0 Mustang Tech 13
Similar threads
