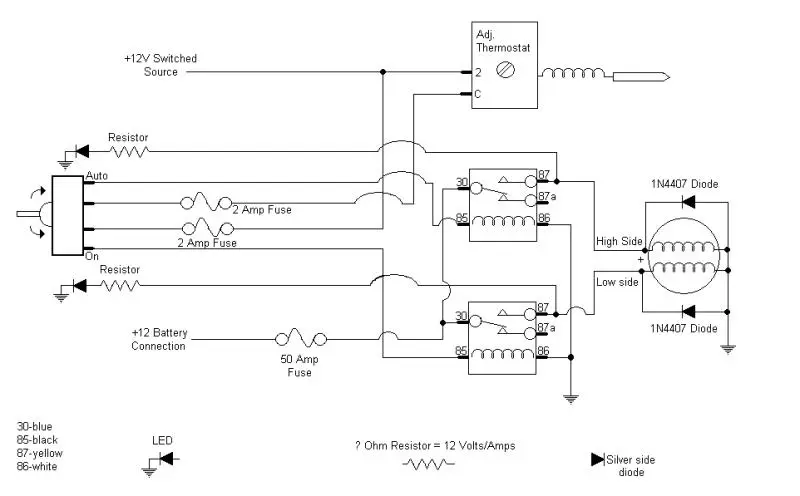

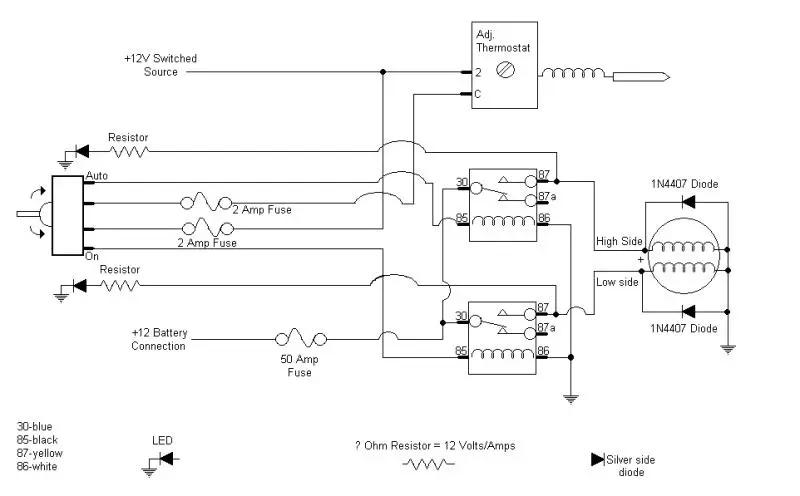

I have a diagram that I did to wire a Taurus fan for both high/low speed. It also has a 3 way switch that turns it on/off/auto. Could someone please host the pic. I also want you guys ot critique it to make sure I drew it up correctly.
tri mode fan wiring diagram
- Thread starter kidtaurus
- Start date
Send it to my spam account [email protected]
I just wired in a Taurus thermostatic switch for my electric fan too, without the driver activated one though.
I just wired in a Taurus thermostatic switch for my electric fan too, without the driver activated one though.
It is an on/off switch with only two wires coming out of it, I'll get you the part number. I spent about 40 minutes behind the counter of my local parts house looking for one that fit my manifold (Performer RPM). All of the ones I found are calibrated for what seems a high temp and a large range, most were 190-220 or 180-210.C0V3R said:
What happens if I connect terminal 85 of the low speed relay to a constant hot such as 12v batt source instead of switched 12v? Will it turn on even if the ignition is not switched to acc.?
