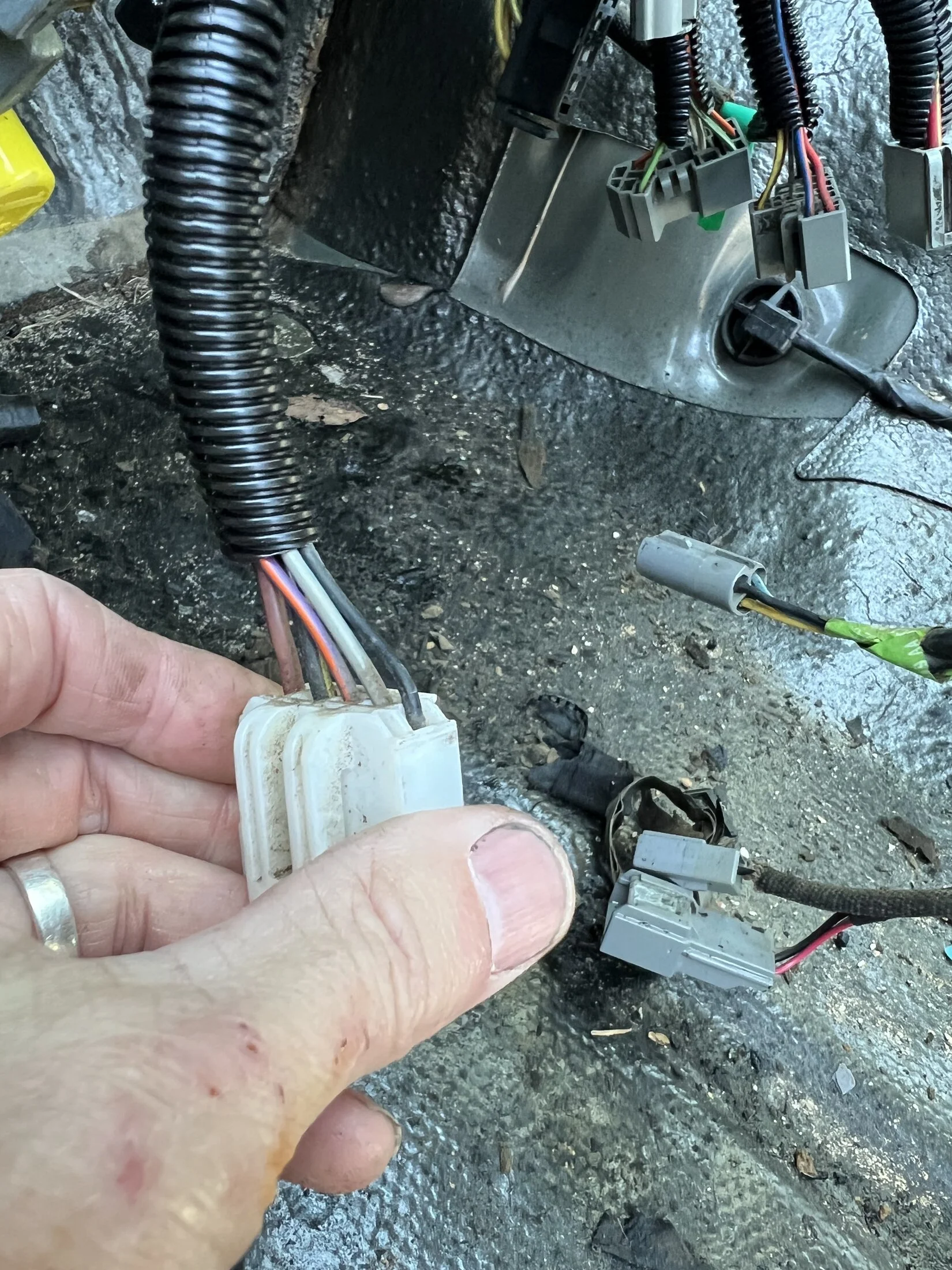

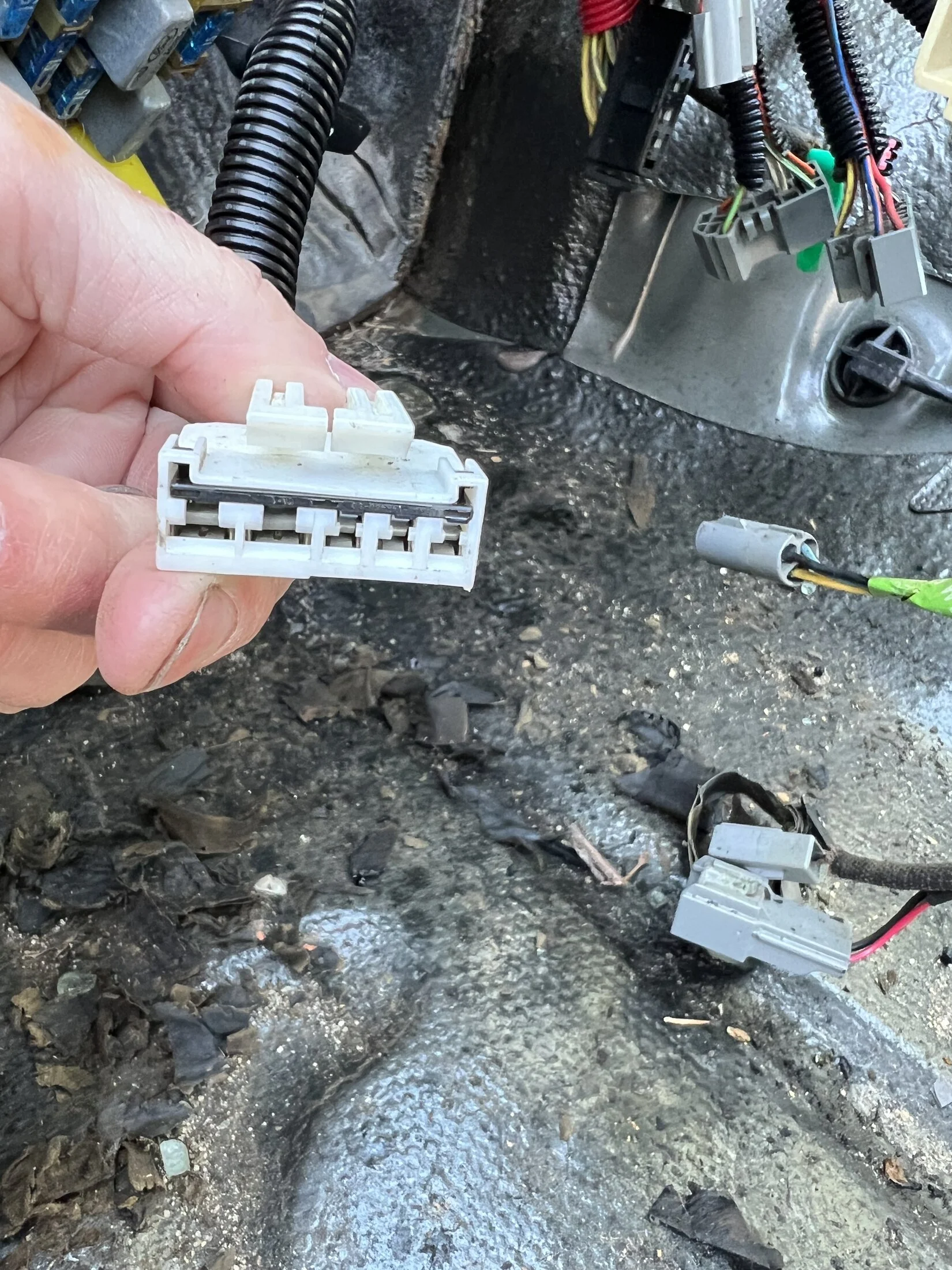

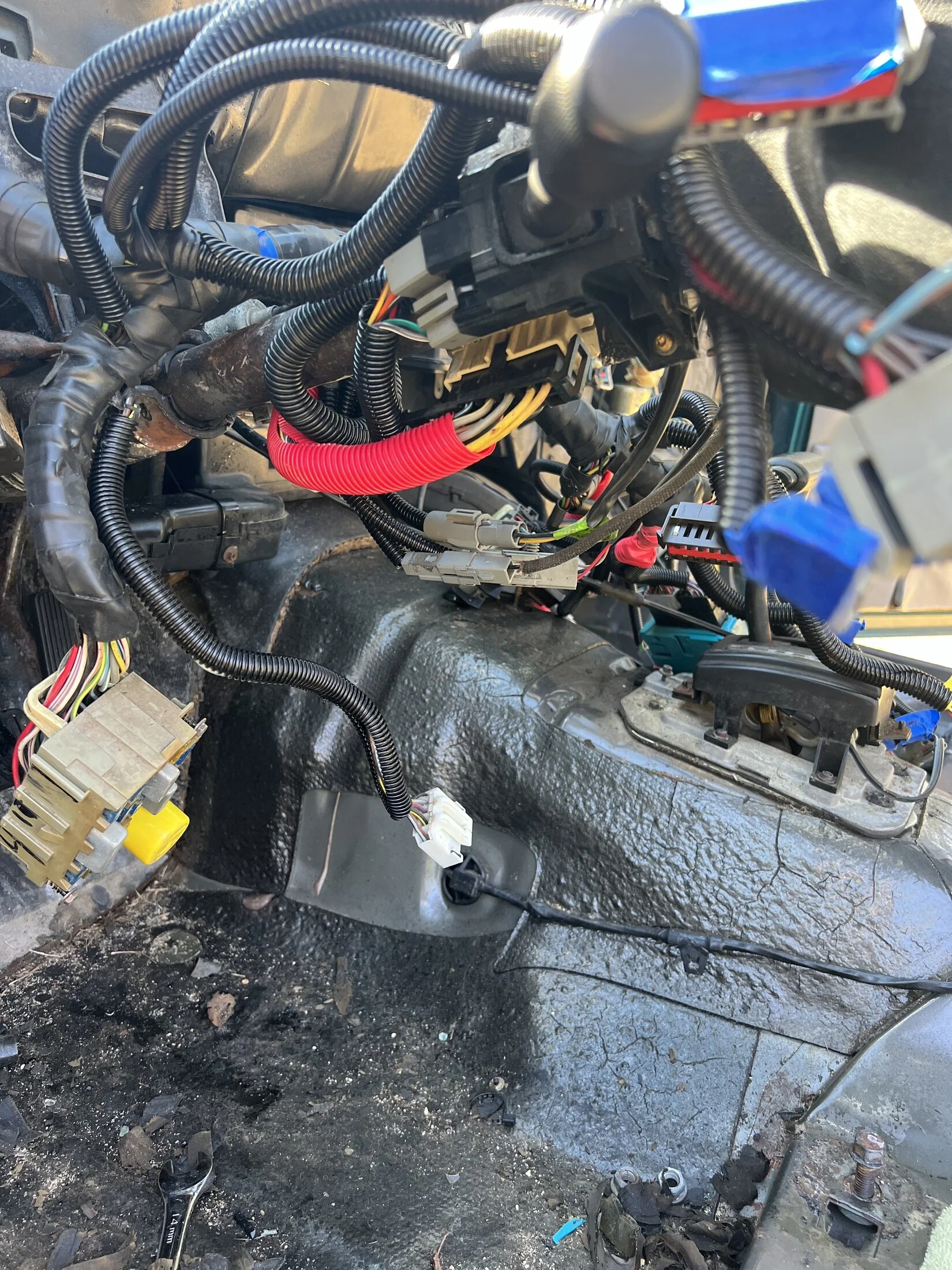

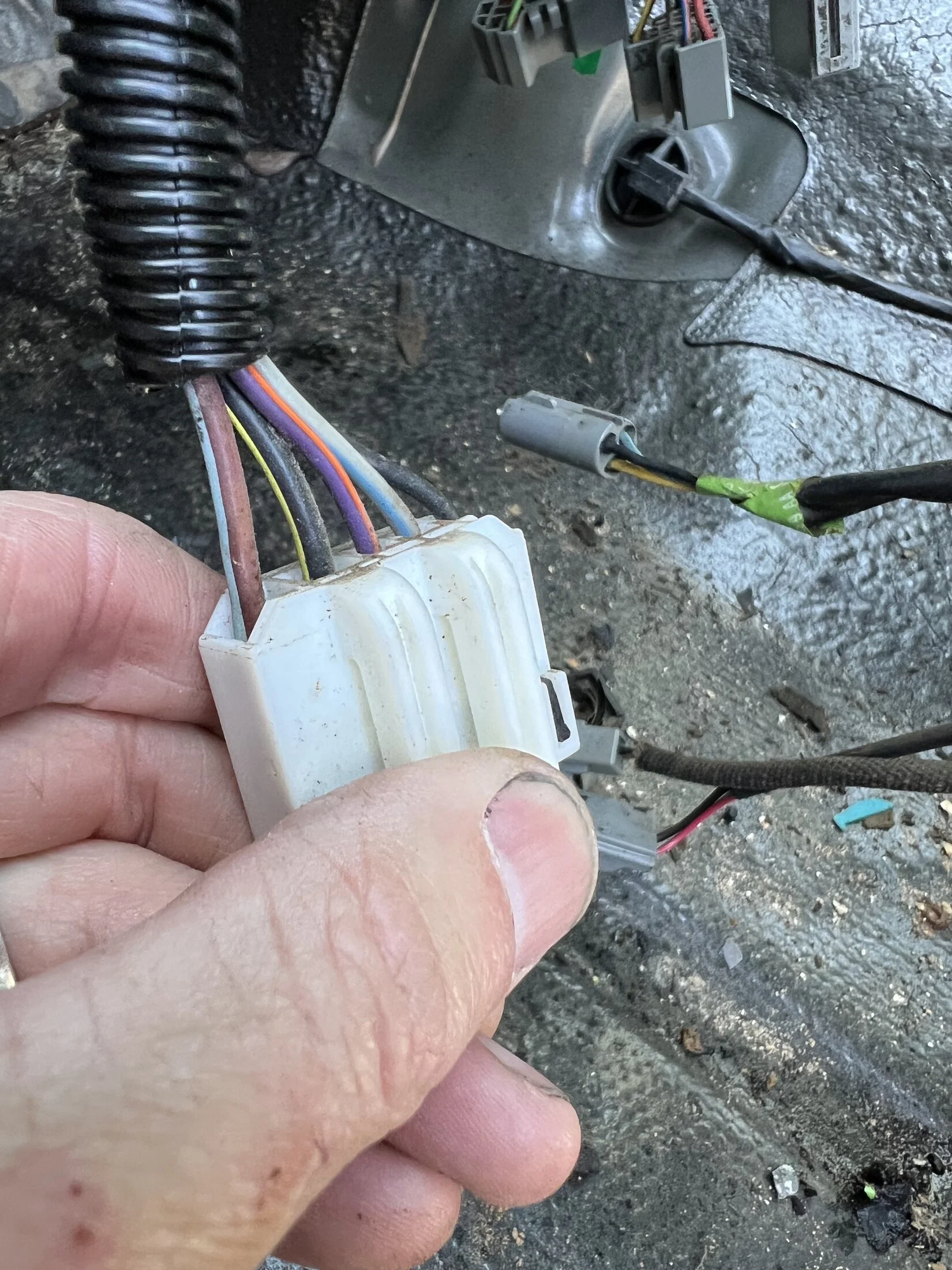

I pulled the dash harness and did a lot of repairs. I have this harness as a part of the dash harness. It’s the only all white harness plug that is included with the dash harness so it goes to a component that I cannot find.

I know it’s a long shot. Any idea where it goes. I labeled everything so either I missed it or the label fell off.


Attachments

  • IMG_7105.jpeg
    726 KB · Views: 33
  • IMG_7104.jpeg
    733.1 KB · Views: 31
  • IMG_7103.jpeg
    630.2 KB · Views: 32
  • IMG_7108.jpeg
    865.5 KB · Views: 30
Last edited:
  • Sponsors (?)


I pulled the dash harness and did a lot of repairs. I have this harness as a part of the dash harness. It’s the only all white harness plug that is included with the dash harness so it goes to a component that I cannot find.

I know it’s a long shot. Any idea where it goes. I labeled everything so either I missed it or the label fell off.

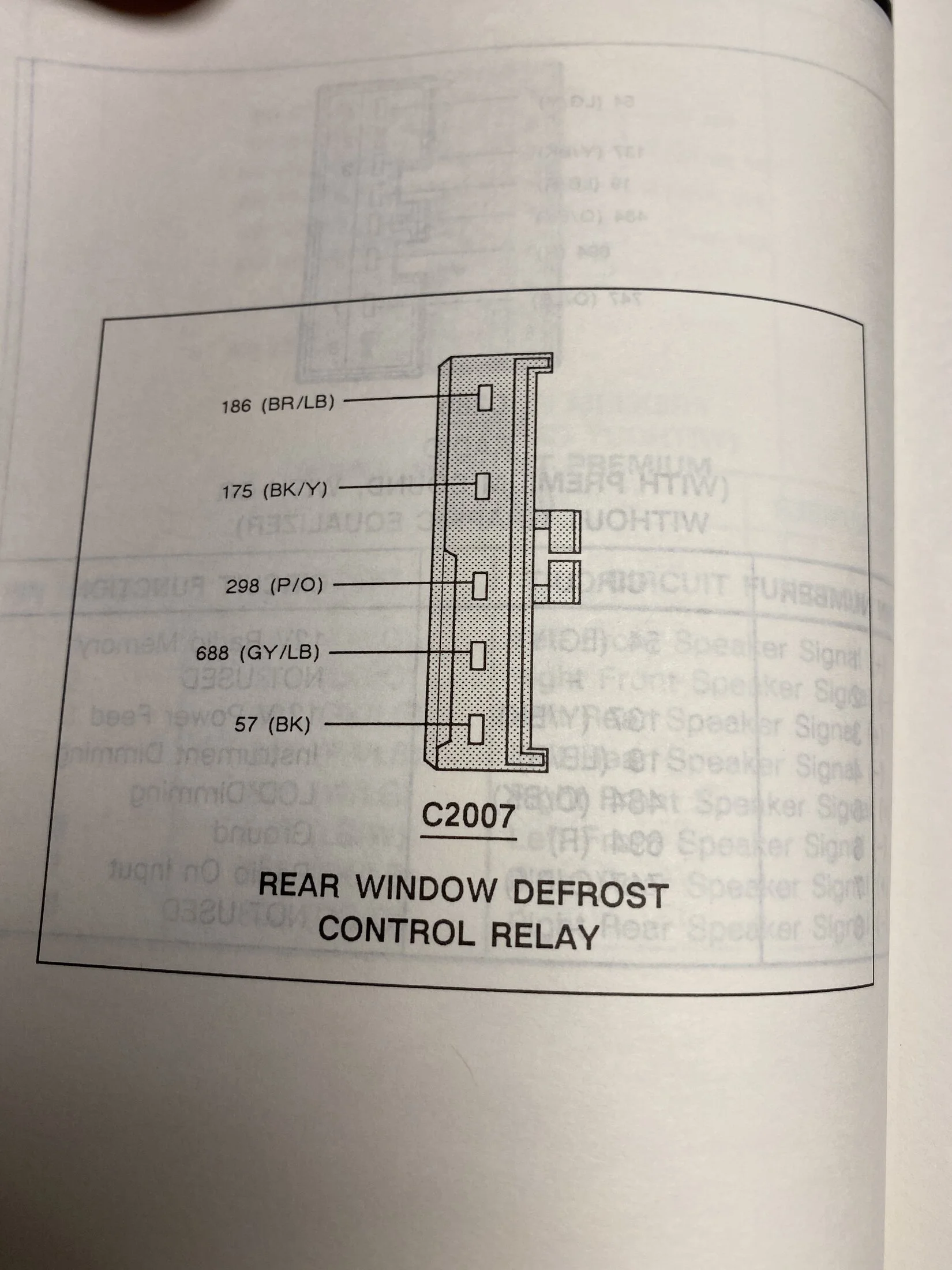

Found the diagram below. Appears to be a rear defrost control. Explains why it doesn't plug in anywhere, (Vert). Spent so much time trying to figure out where this goes and it doesn't go anywhere. Explains why it wasn't labeled when disconnected everything, it wasn't connected and got lost in the sea of wires.
