Vaccuum lines behind pass side strut tower?

Im trying to clean up the motor bay while my car is engineless. I have hidden the start solnoid and a bunch of wires, but i have decided to keep the battery in the engine bay (battery in trunk took up a lot of space, plus I still need a system). I plan on hiding whatever wires I can on the passenger side too. So far I have only rerouted the carbon canister line. I plan on rerouting the MAF wires, and hiding the relays.
Now heres my question, the vaccuum lines behind the passenger strut tower, am I using them? I was planning on keeping/hiding them, But I could have sworn I saw a schematic that showed some of them were for the smog pump. I have no emmissions equipment whatsoever (except EGR), so could I get rid of ANY of these lines?

Diagram courtesy of Tmoss & Stang&2birds


See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel pump, alternator, ignition & A/C wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Computer,. actuator & sensor wiring
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Fuse panel layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

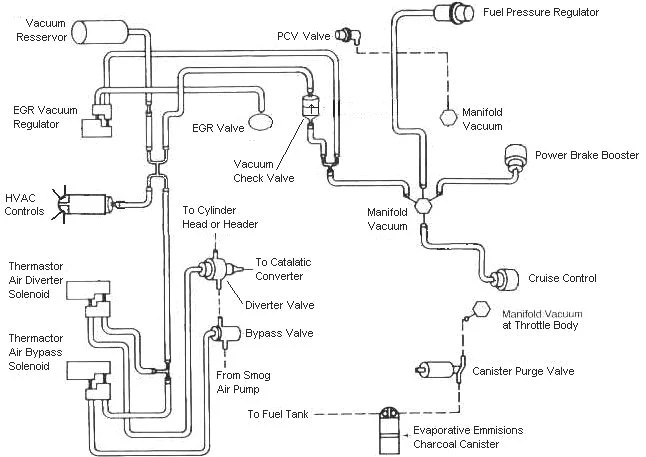

Vacuum routing
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg


Attachments

  • mustangFoxFordVacuumDiagram.webp
    37.3 KB · Views: 158
